IoT and devices

pyzed.iot connects an app to the things around it: a board on a USB cable, an MQTT broker, a PLC on the factory network, a heart-rate strap, the printers and speakers of your home network. Each one is a service: you give it handlers, it connects in a thread of its own, and its events reach your handlers on the app’s thread, so they can change the app’s state right away. In Pyzed Design they are the components of the IoT category of the toolbox.

Service	Talks to	Main events
pz.SerialPort	Arduino, ESP32, Raspberry Pi Pico, GPS, scales, lab instruments (serial and USB serial)	line, data
pz.SerialWatcher	The serial devices being plugged in and unplugged	plugged, unplugged
pz.MqttClient	Mosquitto, Home Assistant, EMQX, HiveMQ, Zigbee2MQTT, Tasmota…	message
pz.WebSocket	Servers and devices with a WebSocket (ESPHome, OctoPrint, your own API)	message
pz.UdpSocket	Broadcasts, OSC, Art-Net, WLED, sketches that send UDP	message
pz.TcpClient	Raw TCP: label printers, PLC consoles, Telnet-style devices	line, data
pz.ModbusClient	PLCs, energy meters, inverters, VFDs (Modbus TCP and RTU over RS-485)	update
pz.DeviceDiscovery	Whatever answers on the local network (mDNS/Bonjour and SSDP/UPnP)	found, lost
pz.BluetoothScanner	Bluetooth LE devices nearby	found
pz.BluetoothDevice	One Bluetooth LE device: read, write and get notified	notification

All of them work on Windows, macOS and Linux without extra packages, except Bluetooth, which needs bleak:

uv add "pyzed-ui[bluetooth]"        # or: pip install "pyzed-ui[bluetooth]"

Connections

Every connection (serial, MQTT, WebSocket, TCP, Modbus, Bluetooth device) works the same way:

mqtt = pz.MqttClient("broker.local", on_connected=..., on_disconnected=..., on_failed=...)
mqtt.connect()        # in the background: returns at once
mqtt.connected        # True once it is up
mqtt.disconnect()     # closes it and stops reconnecting

failed receives the reason as text (“connection refused”, “wrong user name or password”…). With reconnect (in milliseconds) the connection comes back by itself after the device is unplugged or the network drops; serial ports and MQTT and Modbus clients do it by default. Stop them when the window closes, in on_close.

A board on a serial port

import pyzed as pz
from pyzed import ui


class Thermometer(pz.App):
    def __init__(self):
        self.temperature = None
        self.board = pz.SerialPort(match="arduino", baud_rate=115200, on_line=self.reading)
        self.board.connect()

    def reading(self, line):            # what the board printed with Serial.println()
        if line.startswith("t="):
            self.temperature = float(line[2:])

    def toggle_led(self, on):
        self.board.send_line("LED ON" if on else "LED OFF")

    def on_close(self):
        self.board.disconnect()

    def view(self):
        return pz.column([ui.heading(f"{self.temperature or '--'} °C"),
                          ui.switch(False, self.toggle_led, label="LED")], padding=24, spacing=12)


pz.run(Thermometer)

port names the port ("COM3" on Windows, "/dev/ttyUSB0" or "/dev/ttyACM0" on Linux, "/dev/cu.usbmodem…" on macOS). Leave it empty and the first port that match names is used: part of the maker or product ("arduino", "cp210", "pico") or the USB ids ("2341:0043"). pz.SerialPort.ports() lists them with their description, usb_id, manufacturer and product, and a pz.SerialWatcher raises plugged and unplugged as boards come and go.

No board at hand?

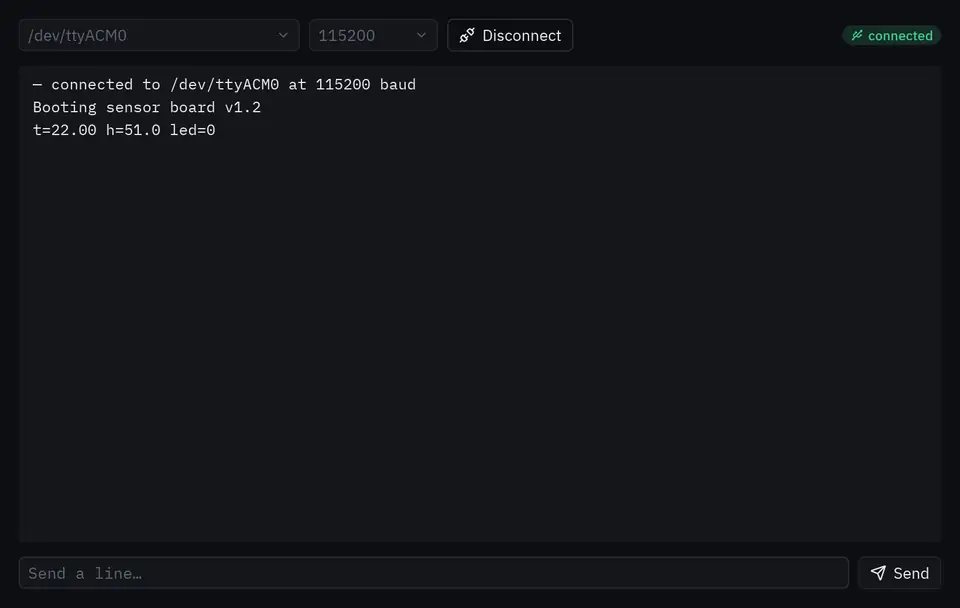

examples/iot/serial_monitor.py --demo plays a board on a virtual serial cable (Linux and macOS), made with pyzed.iot.testing.serial_pair(). Use it in your own tests too.

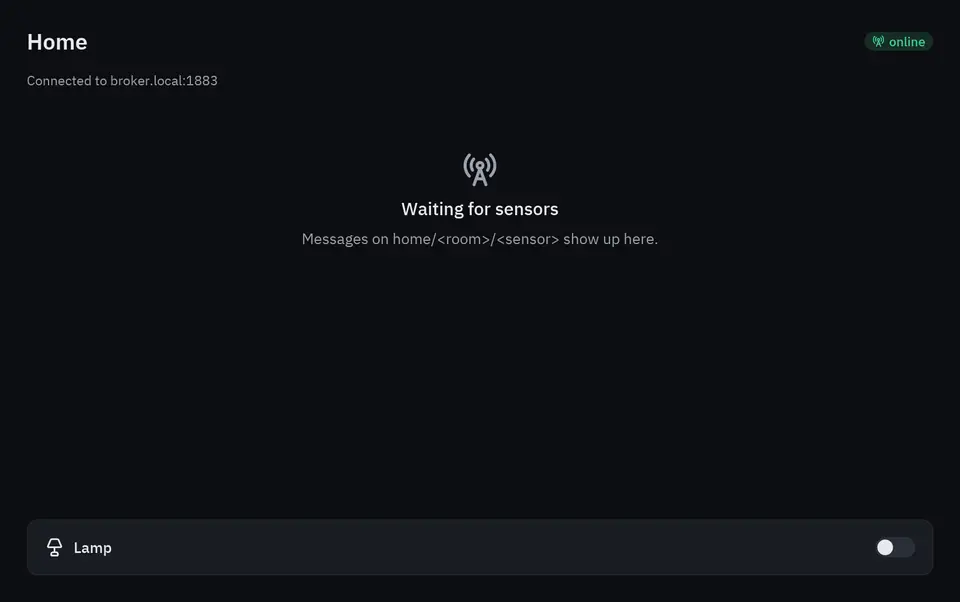

MQTT

mqtt = pz.MqttClient("192.168.1.5", username="kev", password="…", subscribe="home/#",
                     on_message=self.received)
mqtt.on_topic("home/+/temperature", self.temperature)   # only these topics, to their own handler
mqtt.connect()

def received(self, message):
    print(message.topic, message.value)   # 21.5, {"on": true}, "open"... (text, number or JSON)

mqtt.publish("home/lamp/set", "on")
mqtt.publish("home/lamp/config", {"brightness": 80}, qos=1, retain=True)   # dicts go as JSON

subscribe takes one topic, a list or one per line ("home/# 1" asks for QoS 1); the wildcards + (one level) and # (every level below) work, and the subscriptions are made again after every reconnection. tls=True connects to port 8883 (ca_file for your own certificate authority, insecure for a self-signed broker on your network). will_topic and will_message are published by the broker if the app disappears without disconnecting, which is how dashboards know a device went offline. Messages of QoS 1 and 2 published while the client is disconnected wait and go out when it connects.

WebSocket, UDP and TCP

ws = pz.WebSocket("ws://esp32.local/ws", json=True, on_message=self.update_state)
ws.connect()
ws.send({"led": True})          # text, bytes, or JSON

udp = pz.UdpSocket(4210, on_message=lambda m: print(m.host, m.text))
udp.start()                      # listens on port 4210
udp.send("ping", "192.168.1.50", 4210)
udp.reply(message, "pong")       # answers whoever sent message

tcp = pz.TcpClient("192.168.1.80", 9100, on_line=print)   # a label printer, a PLC console...
tcp.connect()
tcp.send_line("~HS")

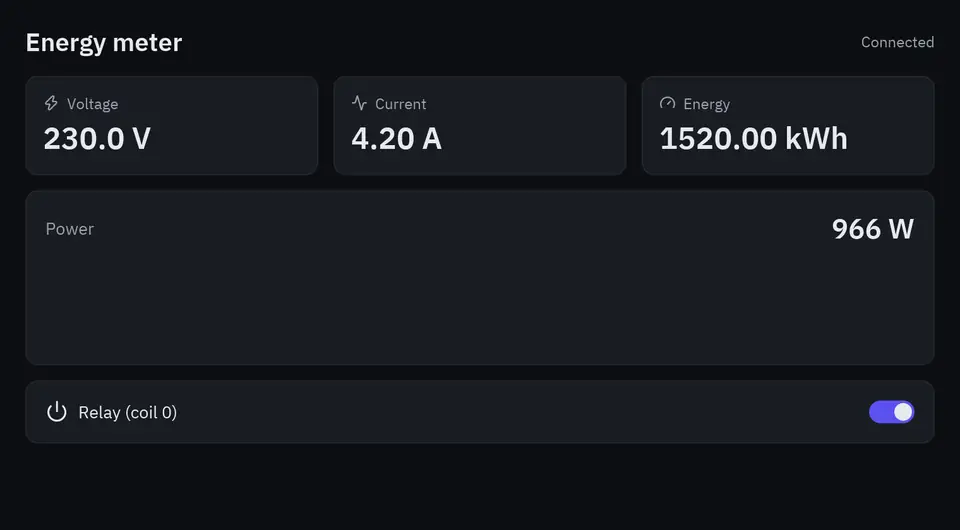

Modbus

meter = pz.ModbusClient("192.168.1.40", unit=1, poll="""
    voltage  input 0  float32
    power    input 12 float32
    relay    coils 0
""", interval=1000, on_update=self.show)
meter.connect()

def show(self, values):        # {"voltage": 230.4, "power": 1487.3, "relay": True}
    self.power = values["power"]

meter.write_coil(0, False)                        # switch the relay off
meter.write(100, 21.5, "float32")                 # a setpoint in two holding registers
meter.read_holding_registers(0, 4)                # [0, 17, 230, 1]

With serial_port="/dev/ttyUSB0" (and baud_rate, parity) instead of a host it speaks Modbus RTU over an RS-485 adapter. Each poll line is name table address [format] [count]: the table is coils, discrete, holding or input, the format uint16 (the default), int16, int32, uint32, float32, int64 or float64; word_order="little" is for devices that put the low word first. The device’s register map is in its manual. Calls block for at most timeout milliseconds and raise pyzed.iot.ModbusError when the device refuses or does not answer.

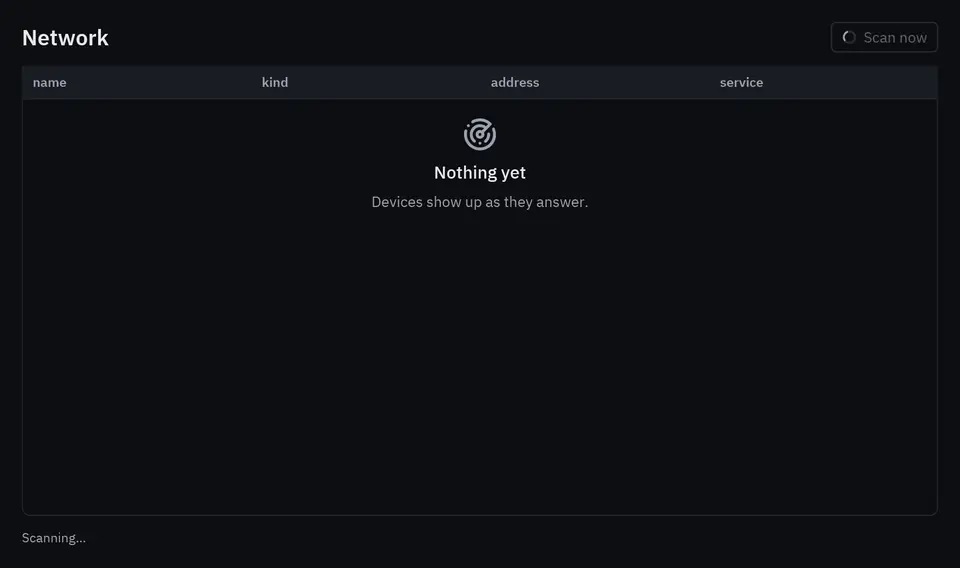

Finding devices on the network

finder = pz.DeviceDiscovery("_http._tcp", on_found=lambda d: print(d.name, d.address, d.properties))
finder.start()      # scans now and every 30 seconds; finder.scan() scans once

service is an mDNS/Bonjour type: "_http._tcp" (web pages), "_ipp._tcp" (printers), "_googlecast._tcp", "_esphomelib._tcp", "_hap._tcp" (HomeKit)…; left empty, every type is asked. SSDP/UPnP finds TVs, routers and media servers too (ssdp=False turns it off). Each Device has a name, host, port, hostname (esp32.local), service and properties (the TXT record, or the maker and model of a UPnP device). lost is raised when a device stops answering for two scans. pyzed.iot.resolve_local("raspberrypi.local") finds a single address.

Bluetooth LE

scanner = pz.BluetoothScanner(services="heart_rate", on_found=lambda d: print(d.name, d.address, d.rssi))
scanner.scan()

strap = pz.BluetoothDevice(name="Polar", notify="heart_rate_measurement", on_notification=self.beat)
strap.connect()

def beat(self, note):
    self.bpm = note.data[1]

strap.read("battery_level")          # b"\x5a" (90 %)
strap.write("nordic_uart_rx", "hello")

Characteristics and services can be full UUIDs, short ones ("2a37", "180d") or the names in pyzed.iot.bluetooth.KNOWN (battery_level, heart_rate_measurement, temperature, humidity, nordic_uart_tx…). read and write wait for the device: call them from a handler or a pz.Worker. On Linux it uses BlueZ, on Windows the system’s Bluetooth (Windows 10 or later) and on macOS CoreBluetooth, which asks the user for permission the first time.

In Pyzed Design

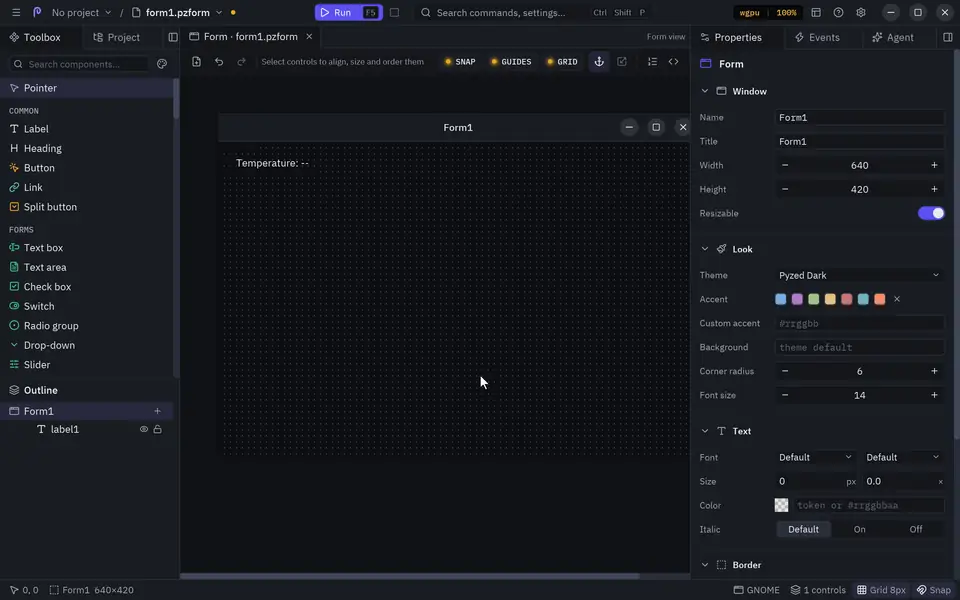

Search the toolbox for IoT (or type mqtt, serial, modbus…) and click a component: it goes to the tray under the form. Its properties are the service’s (the broker, the topics, the port, the poll lines…), Connect on load connects it when the form opens and Reconnect (ms) brings it back after a drop. A double click opens the handler of its main event (message, line, update, notification), and handlers reach it by name:

def mqtt_client1_message(form, event):
    if event.value.topic == "home/living/temperature":
        form.label1.text = f"Temperature: {event.value.value} °C"


def button1_click(form, event):
    form.mqtt_client1.publish("home/lamp/set", "on")

Trying without hardware

pyzed.iot.testing has small stand-ins that run on your computer, for tests, demos and screenshots: MqttBroker (QoS 0 to 2, retained messages, logins), WebSocketServer, ModbusServer (fill its coils and registers), FakeNetwork (devices that answer DeviceDiscovery) and serial_pair() (a virtual serial cable, Linux and macOS).

from pyzed.iot.testing import MqttBroker

def test_dashboard_shows_the_temperature():
    with MqttBroker() as broker:
        app = Dashboard("127.0.0.1", broker.port)
        app.mqtt.wait_connected()
        broker.publish("home/living/temperature", "21.5")
        ...

The four IoT examples of the gallery (MQTT dashboard, Serial monitor, Modbus energy meter, Network scanner) use them when there is no device, so they run on any computer. See the reference for every property and method.
