Non-visual components

Some parts of an app have properties and events but nothing to show: a timer that ticks, a folder you watch, a command running in the background. Visual Basic and Qt Designer kept them in a tray under the form, and Pyzed Design does the same. They are not drawn on the form, neither while you design nor when it runs: they only appear in the tray and in the Outline, where they belong to the form.

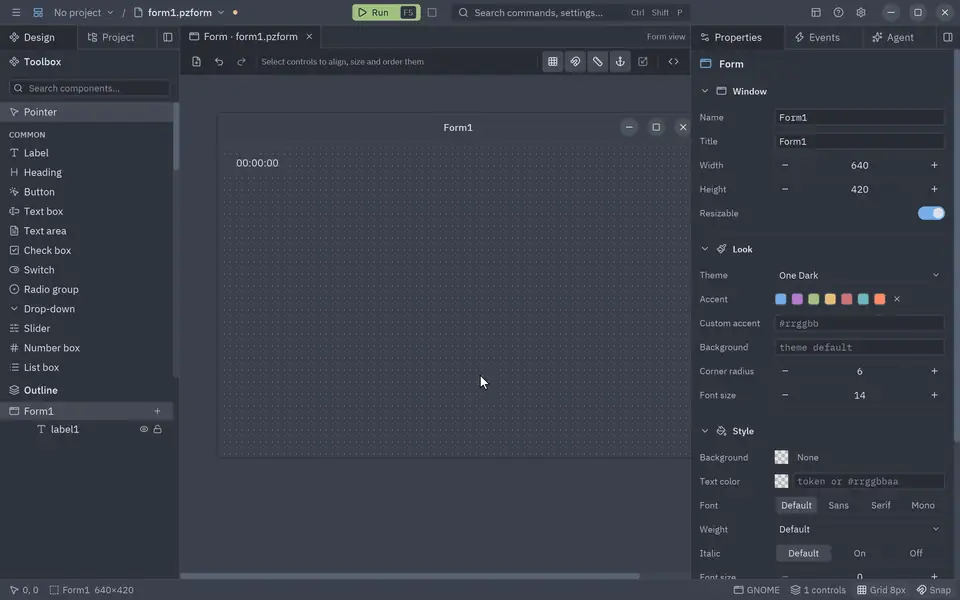

Adding one

1. Find it in the toolbox, under Components or System (or type its name in Search components…).
2. Click it: it goes straight to the tray, selected, with its properties on the right. Dragging it onto the form does the same; it never lands inside a container.
3. Set its properties in the Properties panel, and double-click its chip to write the handler of its main event (tick for a timer, output for a process…). The Events panel lists all of them.

In the tray	Result
Click a chip	Selects the component.
Double-click a chip	Opens the handler of its main event.
Right-click a chip	View code, Help, Cut, Copy, Duplicate, Enable or Disable, Delete.

In the Outline, non-visual components are listed after the controls, under Non-visual. They have no position, size, style or animations: only their own properties and Enabled (a disabled component raises no events). Copy, paste, undo and rename work as with any control, and renaming one renames its handlers.

The components

Component	What it does	Events
Timer	Runs tick every interval milliseconds while running. Turn off repeat to tick once (a delay).	tick (the count)
Shortcut	A keyboard shortcut for the whole window: keys such as ctrl-s, several separated by commas. mod-s is Cmd+S on macOS and Ctrl+S elsewhere.	activate (the combo)
File watcher	Watches a folder (path), the files that match pattern (*.csv, several separated by ;), with recursive for subfolders.	change (the changed paths), created, modified, deleted (one path)
Process	Runs command in directory and streams what it prints, line by line. autostart starts it when the form opens.	output, error_output (a line), finished (exit code), started (process id), failed
Background worker	Runs slow work in a thread so the window stays responsive.	work (in the thread), progress, done (the result), failed (the exception)
Web request	Calls url with method, headers (one Name: value per line) and body, in the background.	response (the answer), failed (no answer)
Clipboard	Copies and pastes text; with watch it notices what is copied, in this app or another one.	change, paste (the text)
Settings	Values kept between runs (a JSON file per user), and the value of the controls listed in remember.	change ((key, value))
File dialog	The system’s dialog: mode is open, open_many, save or folder; filters has one Images: png, jpg per line.	chosen (the path, or a list), cancelled
Notification	A desktop notification with title and text.	shown, failed
Tray icon	An icon in the system tray with an icon, a tooltip and a menu: one item per line, - for a separator, [x] or [ ] for a check item and indented lines for a submenu. It shows when the form opens unless Show when the form opens is off. On GNOME it needs the AppIndicator extension.	click, double_click (Windows), menu (the item’s text), failed
System info	The computer: os, os_version, machine, hostname, user, home, cpu_count, language, memory and free disk (of disk_path). With interval it checks again periodically.	update (a dict with all of it)
Launcher	Opens target with the program the system uses for it: a file, a folder, a web page or a mailto: link.	opened, failed (the target)
Network monitor	Whether the internet can be reached, checking host:port every interval ms while running.	change (True/False), online, offline
Battery monitor	The battery’s charge and whether it is plugged in, every interval ms.	change ((percent, plugged)), low (under low_level), plugged, unplugged

Each component’s page in the built-in reference (Shift+F1 with it selected) lists every property and event with its handler name.

Using them from the handlers

They are attributes of the form like any control. Their properties read and write as attributes, and they have methods:

def run_click(form, event):
    if form.proc.running:
        form.proc.kill()
    else:
        form.proc.start(form.command.text)     # or the command set in the designer


def proc_output(form, event):
    form.output.text += event.value + "\n"     # one line of what the program printed


def proc_finished(form, event):
    form.status.text = "Done." if event.value == 0 else f"It ended with code {event.value}."

Component	Methods and state
Timer	start(), stop(), running, count
Shortcut	matches(combo)
File watcher	start(), stop(), running, check()
Process	start(command=None), write(text), kill(), running, exit_code, pid
Background worker	run(value), cancel(), report(progress), busy, cancelled, result
Web request	send(url=None, json=None, body=None), busy, response
Clipboard	copy(text) and paste() (commands: return them), text
Settings	settings1["key"], settings1["key"] = value, get(key, default), set(), delete(), keys()
File dialog	show() (a command: return it), path, paths
Notification	show(text=None)
Tray icon	show() (returns whether it could), hide(), visible, checked(item), set_checked(item, value)
System info	check(), env(name), folder("documents"), memory_available, disk_free, is_windows, is_mac, is_linux
Launcher	open(target=None), reveal(path) (shows it in the file manager), email(to, subject, body)
Network monitor	check(), online, start(), stop()
Battery monitor	check(), percent, plugged, has_battery

Events that happen in the background (a line of output, a file that changed, a web answer) reach your handlers on the window’s thread, so handlers can change controls freely. The one exception is the worker’s work event:

def count_click(form, event):
    form.primes.run(200_000)                   # starts work in a thread


def primes_work(form, event):                  # runs in the thread: do not touch controls here
    found = 0
    for n in range(2, event.value):
        if event.sender.cancelled:             # form.primes.cancel() was called
            return None
        if all(n % d for d in range(2, int(n ** 0.5) + 1)):
            found += 1
        if n % 2000 == 0:
            event.sender.report(n * 100 // event.value)
    return found                               # arrives in done


def primes_progress(form, event):
    form.progress.value = event.value


def primes_done(form, event):
    form.status.text = f"{event.value:,} primes"

Commands are returned, as in every handler:

def open_click(form, event):
    return form.file_dialog1.show()            # opens the system's dialog


def file_dialog1_chosen(form, event):
    form.editor.text = Path(event.value).read_text()


def copy_click(form, event):
    return form.clipboard1.copy(form.editor.text)


def http1_response(form, event):
    if event.value.ok:
        form.stars.text = str(event.value.json()["stargazers_count"])

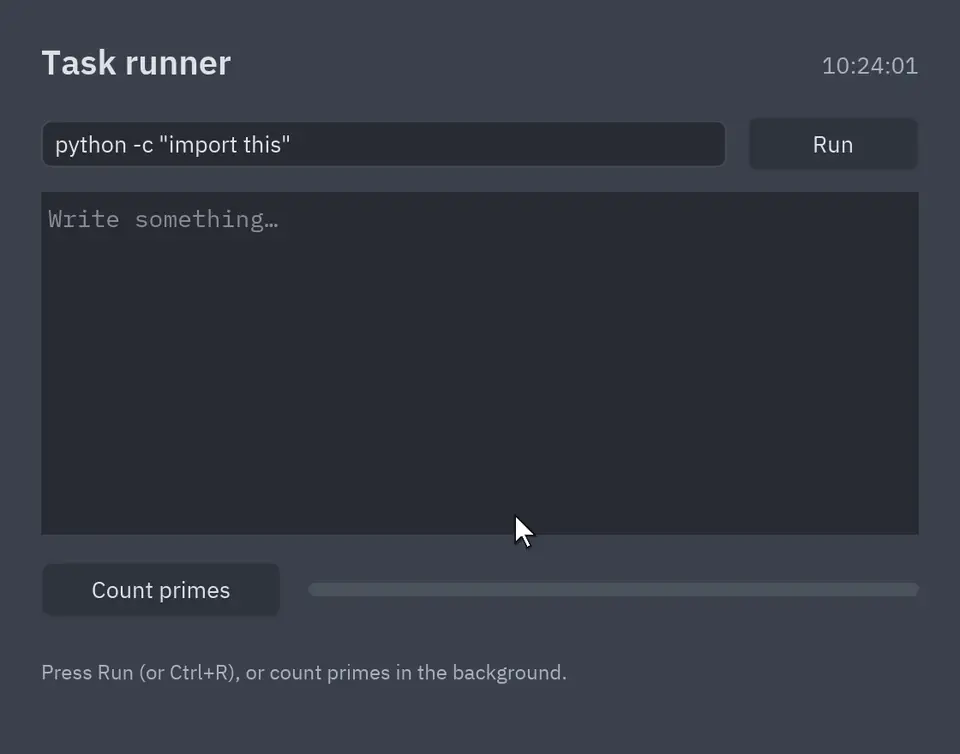

The Task runner example (examples/designer/tasks.pzform) uses seven of them together: a Timer for the clock, a Process for the command, a Background worker that counts primes, a File watcher, Settings that remember the command, a Shortcut (Ctrl+R) and a Notification. Open it with pyzed design examples/designer/tasks.pzform.

Remembering what the user left

Put a Settings component on the form and list control names in Remember, one per line: when the form closes their values (the text of a text box, the state of a check box, a slider’s value…) are saved, and the next time it opens they are back. The file is <form>.<component>.json in Pyzed’s per-user settings folder, or the name in File. Your own values go in the same file:

def form_load(form, event):
    form.volume.value = form.prefs.get("volume", 50)


def volume_change(form, event):
    form.prefs["volume"] = event.value

In code, without the designer

Each component is a class of pyzed.services (pz.Timer, pz.Process, pz.FileWatcher…), so the same objects work in a pz.App written by hand, or in a script with no window.

Tip

A busy Process or File watcher can flood the console with events: output, error_output, progress and tick are never logged, and Settings → Running turns event logging off for the rest.
