Timeline animations

animate() gives one widget its own motion. When several widgets have to move together (a title screen, a cutscene, a HUD reacting to a hit, a guided tour), put them on one timeline. A clip holds that timeline and an animation player plays it, with play, pause, seek, speed and queues. Godot’s AnimationPlayer works the same way.

A level-complete screen: the card rises, the title pops, three stars spin in one after another, the score counts up and the Next level button fades in, then the button keeps breathing

import pyzed as pz

INTRO = pz.Clip("intro", length=2.2, tracks=[
    pz.Track("card:opacity", {0: 0, 0.35: 1}),
    pz.Track("card:y", [(0, 40, "ease_out_back"), (0.5, 0)]),
    pz.Track("title:scale", [(0.3, 0.6, "ease_out_back"), (0.7, 1)]),
    pz.Track(":score", [(0.7, 0, "ease_out_cubic"), (1.9, 12_480)]),
], calls=[pz.Call(1.6, "chime")])


class Game(pz.App):
    def __init__(self):
        self.score = 0
        self.player = pz.AnimationPlayer(INTRO, autoplay="intro")

    def chime(self):
        ...

    def view(self):
        return pz.column([
            pz.text("LEVEL COMPLETE").animate(self.player["title"]),
            pz.text(f"{self.score:,.0f}"),
        ]).animate(self.player["card"])

The complete example is examples/timeline.py. To make clips without code, use the Animation panel of Pyzed Design.

The parts of a timeline

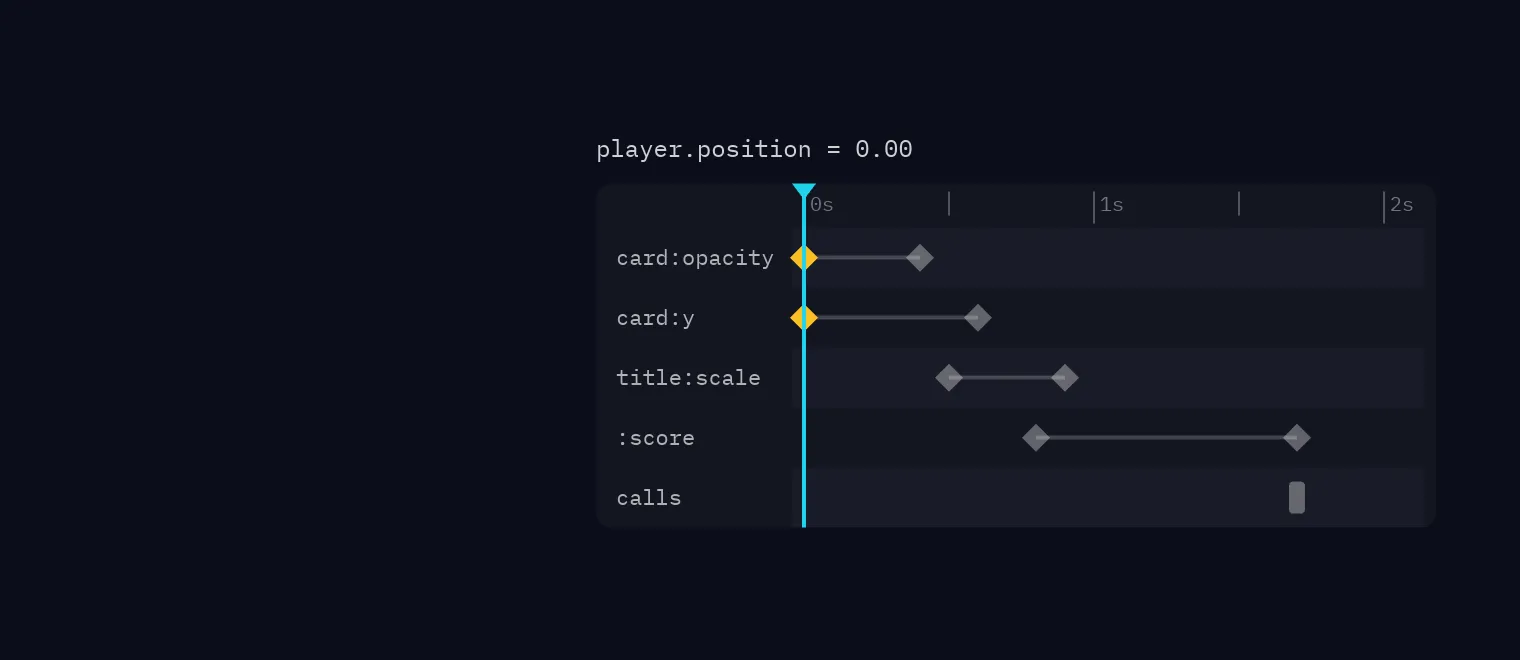

A card on the left and its clip on the right: a lane per track with its keys, a lane of calls, and a playhead moving from 0 to 2 seconds while the card fades in, rises, the title grows and the score counts

Part	What it is
Clip (`pz.Clip`)	One named timeline: a `length` in seconds, tracks, calls and a loop mode.
Track (`pz.Track`)	One property changing over time, such as the `y` of the `card`.
Key (`pz.Key`)	A value at a time on a track. Pyzed fills in the time between keys.
Call (`pz.Call`)	A method of your app that runs when the playhead passes its time.
Target	A name, like `"card"`, that widgets join with `.animate(self.player["card"])`.
Playhead	Where the player is in the clip (`player.position`).

A clip with no length lasts until its last key or call.

Track paths

A track’s path says what it animates:

Path	Animates
`"card:opacity"`	A property of every widget that plays the target `card`.
`":score"`	An attribute of the app.
`":hud.hp"`	An attribute of an attribute (follow the dots).

Widget tracks use the animatable properties (opacity, x, y, scale, rotate, blur, colors, radius, glow, width, font_size…). They play natively at the display’s frame rate, and your code doesn’t run meanwhile.

Attribute tracks (starting with :) change your app’s own values, so they can control any parameter of any widget: the text of a label, the value of a progress bar, a size, an icon. Numbers, colors ("#rrggbb") and tuples of numbers blend between keys; other values (text, booleans) change at each key. See attribute tracks and calls below.

Writing keys

Keys can be written several ways:

pz.Track("card:x", {0: -40, 0.5: 0})                       # {time: value}
pz.Track("card:x", [(0, -40, "ease_out_back"), (0.5, 0)])  # (time, value, easing to the next key)
pz.Track("card:x", [pz.Key(0, -40), pz.Key("500ms", 0)])   # Key objects; times also as "500ms"

Between keys

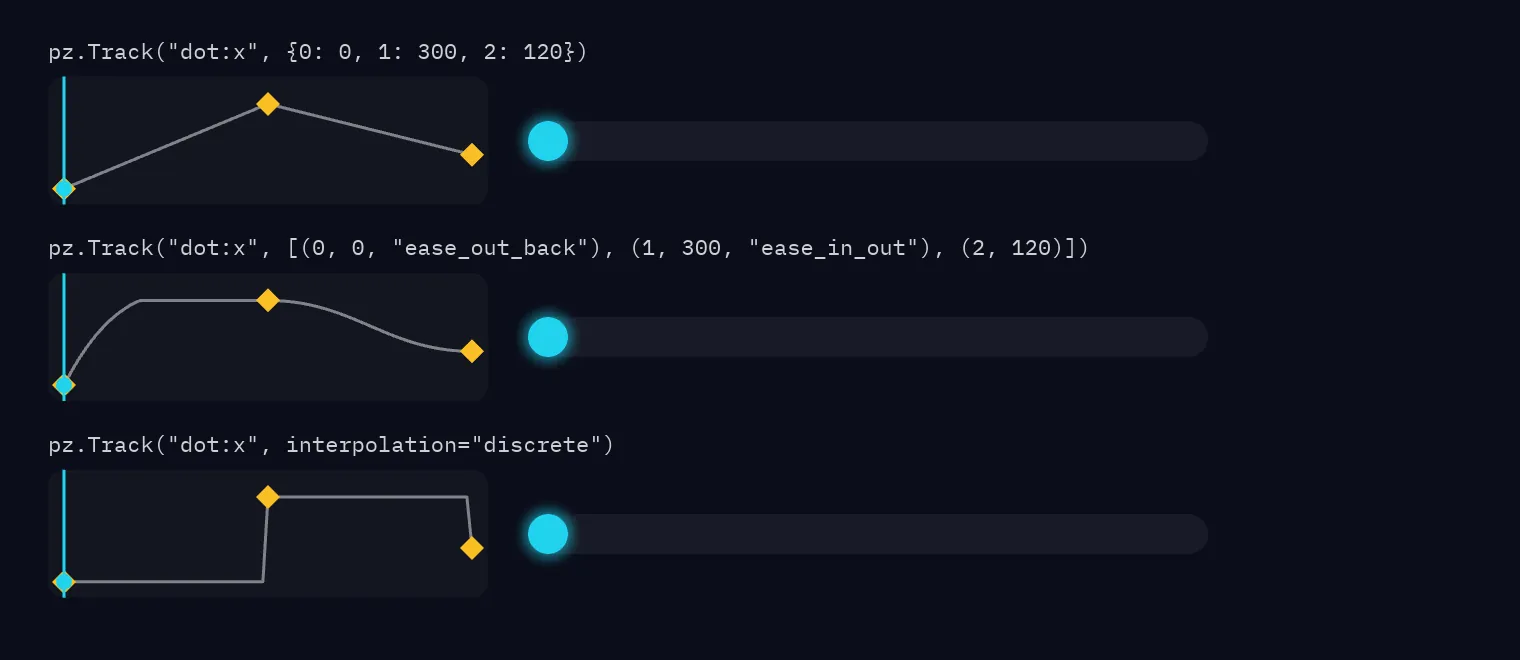

Three tracks with the same keys, each with its curve and a ball: linear moves at a steady speed, easing per key overshoots and then eases, discrete jumps from value to value

Easing per key. A key’s easing is the curve to the next key. Any name of pz.animation.EASINGS works, as do cubic Béziers (x1, y1, x2, y2) and "steps(n)". The track’s easing (default "linear") is used for keys that don’t set one.
Discrete. interpolation="discrete" holds each value until the next key, with no motion between. Good for sprite frames, texts and on/off switches.
Muting. enabled=False keeps the track in the clip without playing it.
Before and after the keys. A widget holds the first key’s value before it and the last key’s value after it, as in Godot.

Loops

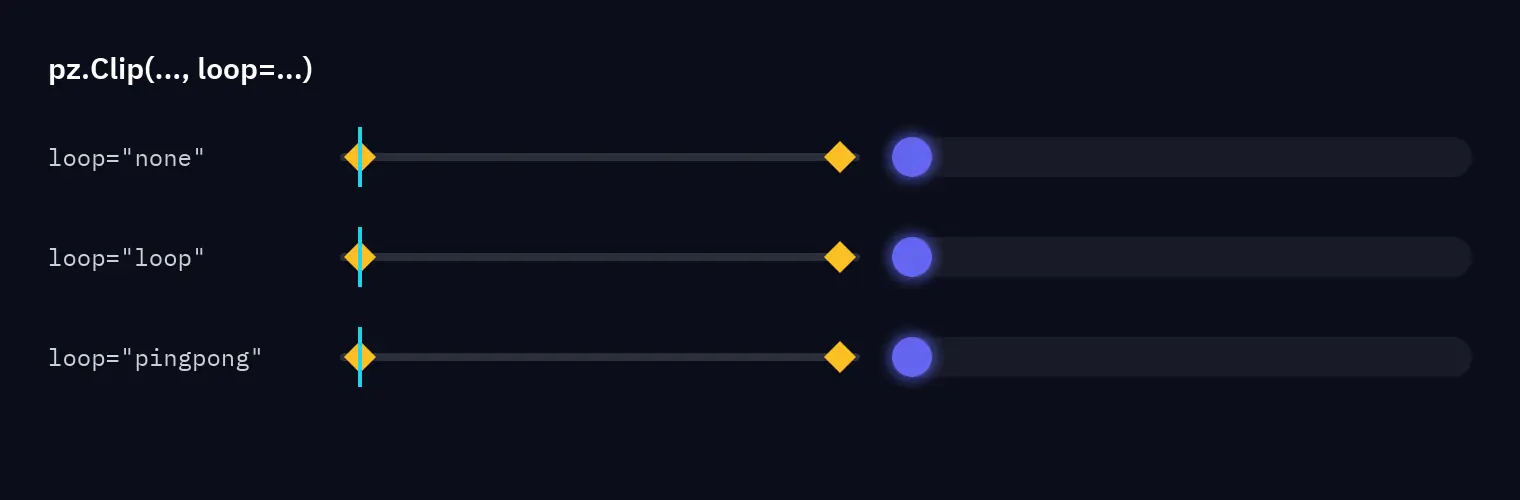

Three playheads: once stops at the end, loop starts over, pingpong goes back and forth

`loop=`	Plays
`"none"` (default)	Once, and stays on the last frame.
`"loop"`	Starts over at the end, forever.
`"pingpong"`	Goes to the end and back, forever.

IDLE = pz.Clip("idle", length=1.2, loop="pingpong", tracks=[
    pz.Track("button:scale", [(0, 1, "ease_in_out_sine"), (1.2, 1.06)]),
])

Attribute tracks and calls

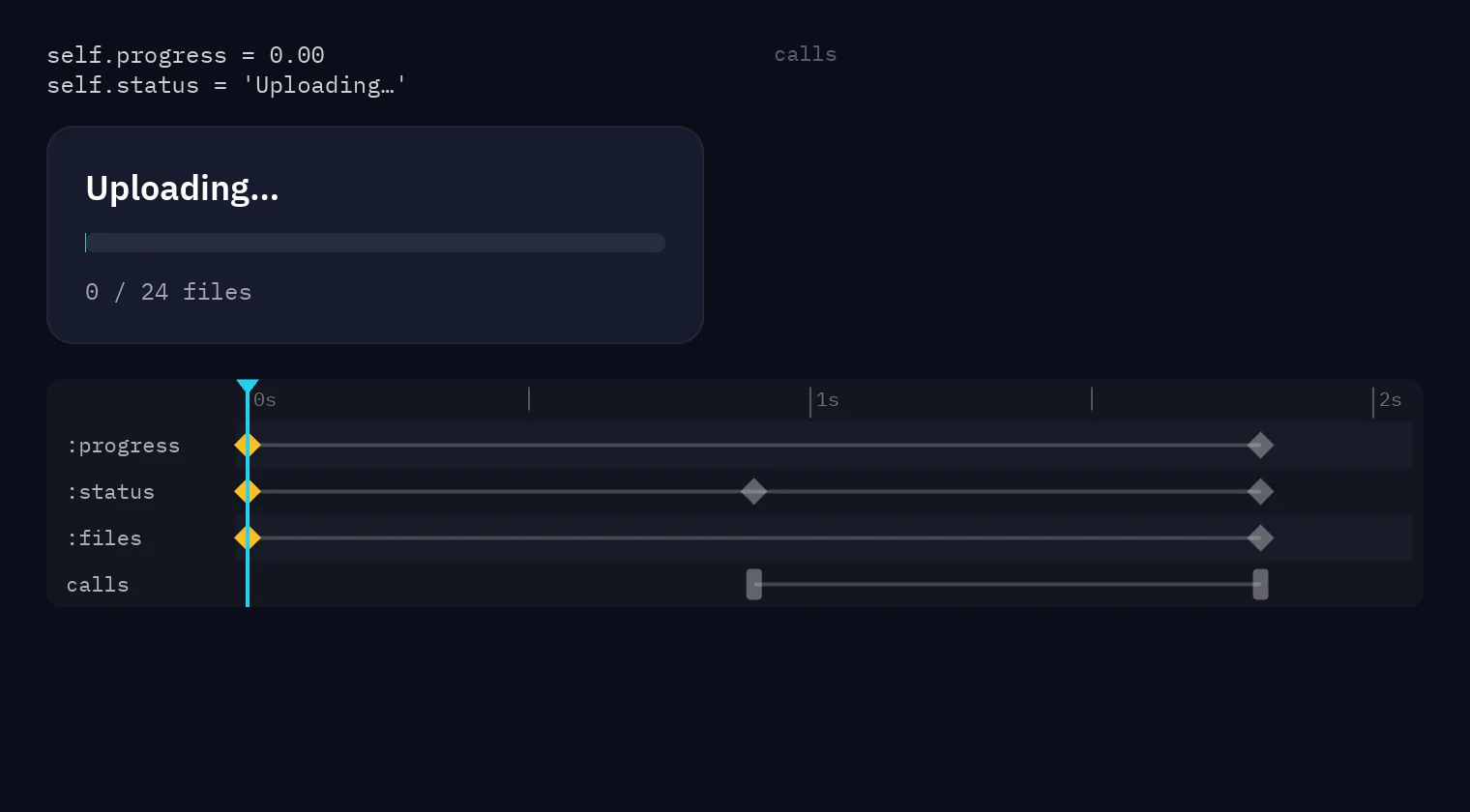

An upload card whose status text, progress bar and file count come from attribute tracks, while the calls lane fires halfway() and finished() as the playhead passes them

UPLOAD = pz.Clip("upload", length=2.0, tracks=[
    pz.Track(":progress", [(0, 0, "ease_in_out"), (1.8, 1)]),
    pz.Track(":status", {0: "Uploading…", 0.9: "Almost there", 1.8: "Done"}),   # texts change at each key
    pz.Track(":files", [(0, 0), (1.8, 24)]),
], calls=[pz.Call(0.9, "halfway"), pz.Call(1.8, "finished", "report.pdf")])


class Upload(pz.App):
    def __init__(self):
        self.progress, self.status, self.files = 0.0, "", 0
        self.player = pz.AnimationPlayer(UPLOAD, autoplay="upload")

    def halfway(self):
        ...

    def finished(self, name):
        ...

    def view(self):
        return pz.column([pz.text(self.status), ui.progress(self.progress), pz.text(f"{self.files:.0f} / 24")])

pz.Call(time, method, *args) calls a method of the app when the clip passes that time. method can also be any function. What it returns is handled like what a callback returns (a Command, a message). Calls run when playing forward, backwards and on every turn of a loop, but not when you jump with seek.

Next: the animation player plays, pauses, seeks and queues clips, and saves them in .pzanim files.
