Window frame

In plain words

Draws the window’s own top bar, with its menus and minimize / maximize / close buttons.

Draws the whole frame of a window opened without system decorations (frame = "custom"): a title bar that moves the window (double click maximizes), the minimize, maximize and close buttons in the style of a platform, menus on the left (ui.Menu) and borders that resize the window. ui.window_title_bar is the bar alone, ui.window_controls the three buttons and ui.system_platform() says which style this system uses.

ui.window_frame · Category: Workspace · Full reference →

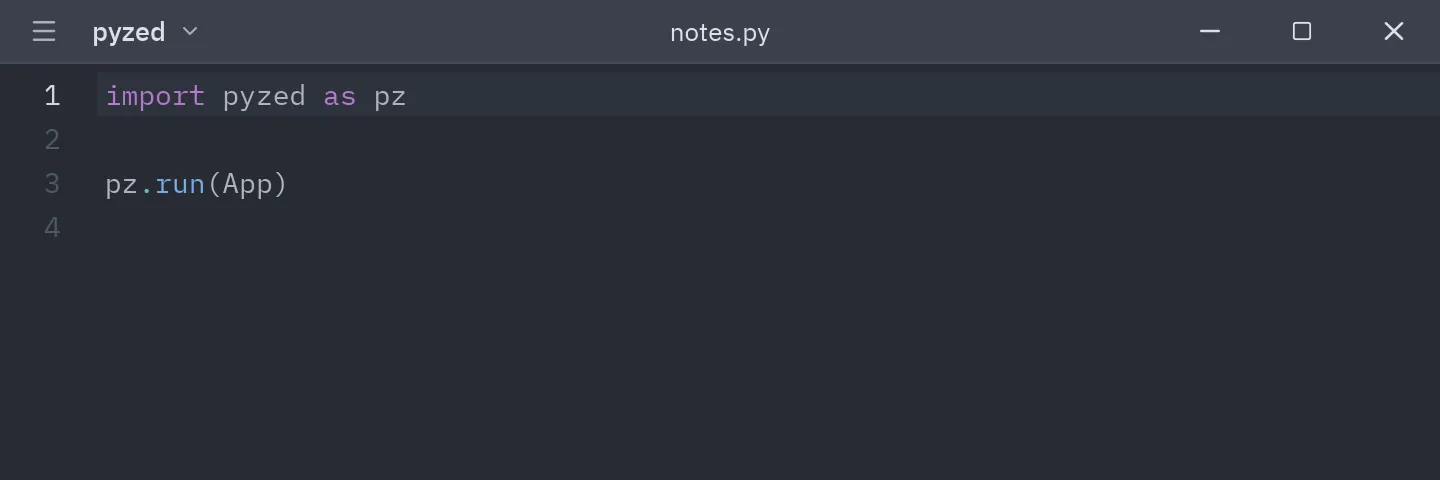

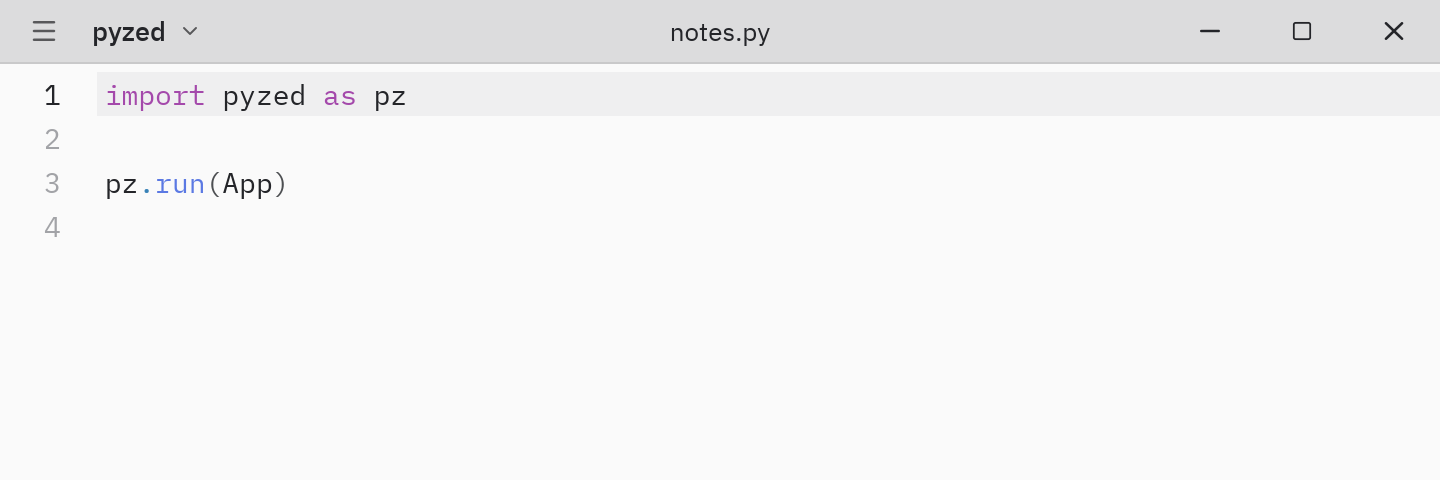

Preview

Code

ui.window_frame(
    ui.editor("frame-main", "import pyzed as pz\n\npz.run(App)\n", path="main.py"),
    title="notes.py",
    menus=[ui.Menu("File", [ui.MenuItem("Open…", on_open, keys="ctrl-o")]),
           ui.Menu("Edit", [ui.MenuItem("Undo", on_undo, keys="ctrl-z")])],
    start=[ui.title_button("pyzed", on_projects, chevron=True)],
    style="windows",
)

New

This component was added recently. Tell us how it works for you in the issue tracker.

When to use

• For apps that want a modern editor-like window: menus and pickers in the title bar instead of the system’s frame. See Window frames.
• With no callbacks, ui.window_title_bar and ui.window_controls only show: use them to preview a window in the frame of each platform.

Usage

import pyzed as pz
from pyzed import ui

class Notes(pz.App):
    title = "Notes"
    frame = "custom"  # or "macos", "windows", "gnome", "ubuntu", "kde"

    def view(self):
        return ui.window_frame(
            self.editor(),
            menus=[ui.Menu("File", [ui.MenuItem("Open…", self.open, keys="ctrl-o"), ui.SEPARATOR,
                                    ui.MenuItem("Quit", self.close)])],
            start=[ui.title_button("pyzed", chevron=True)],
            end=[ui.button("Run", self.run, icon="play", size="sm")],
        )

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Platform style

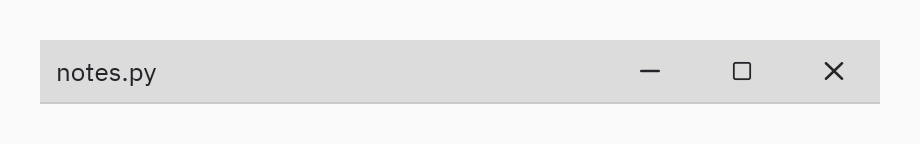

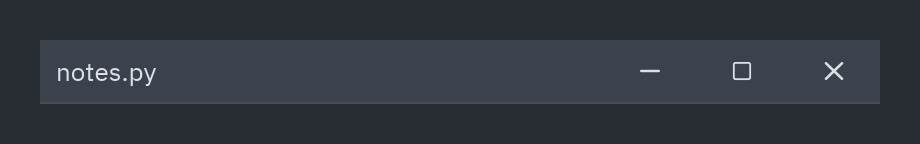

style="windows"

Code

pz.container(ui.window_title_bar("notes.py", style="windows"), width=420)

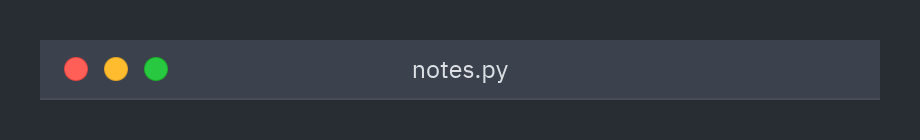

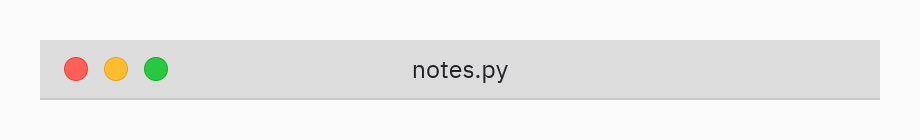

style="macos"

Code

pz.container(ui.window_title_bar("notes.py", style="macos"), width=420)

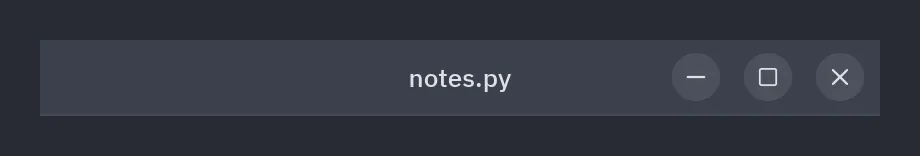

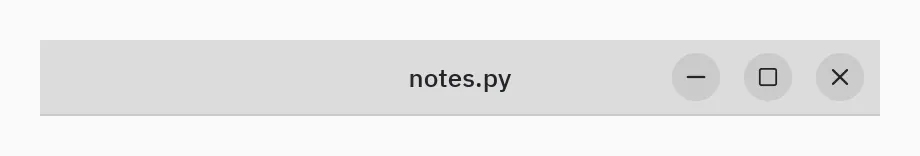

style="gnome"

Code

pz.container(ui.window_title_bar("notes.py", style="gnome"), width=420)

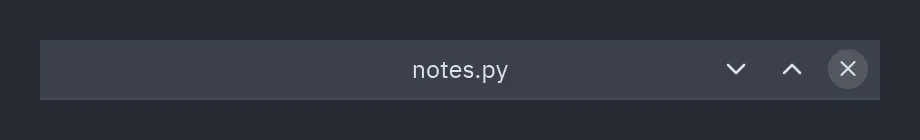

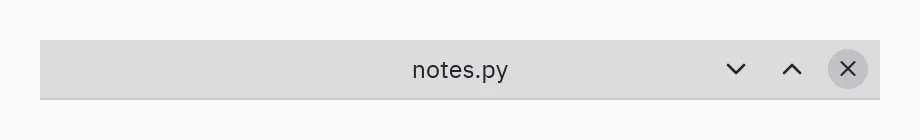

style="kde"

Code

pz.container(ui.window_title_bar("notes.py", style="kde"), width=420)

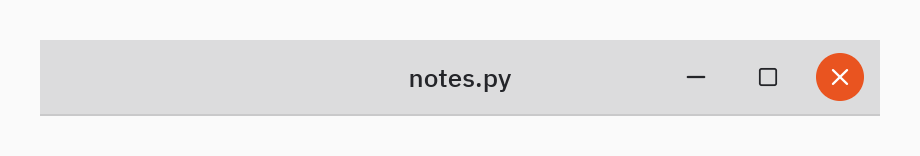

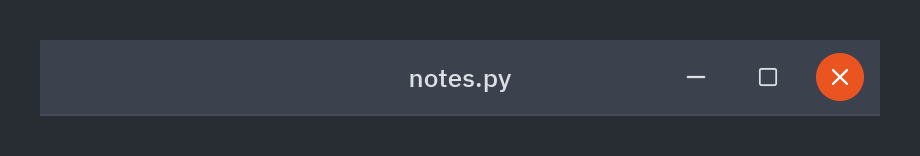

style="ubuntu"

Code

pz.container(ui.window_title_bar("notes.py", style="ubuntu"), width=420)

State

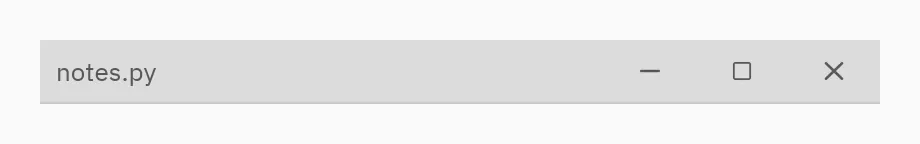

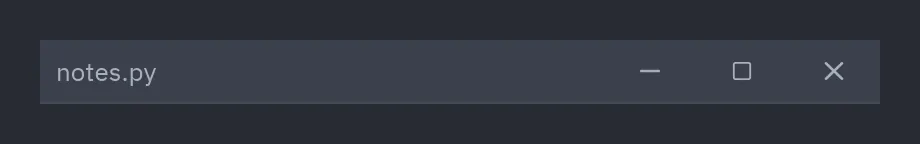

focused=False

Code

pz.container(ui.window_title_bar("notes.py", style="windows", focused=False), width=420)

maximized=True

Code

ui.window_controls("windows", maximized=True)

ui.window_controls("macos")

Code

ui.window_controls("macos")

Events

Window frame has 5 events of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Of	Handler gets	When
on_drag	ui.window_title_bar	()	Called when the empty part of the bar is dragged (return Command.drag_window()).
on_minimize	ui.window_title_bar, ui.window_controls	()	Minimize button.
on_maximize	ui.window_title_bar, ui.window_controls	()	Maximize button and double click on the bar.
on_close	ui.window_title_bar, ui.window_controls	()	Close button.
on_menu	ui.window_title_bar	()	Right click on the bar.

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

class Notes(pz.App):
    frame = "custom"                     # Pyzed draws the title bar

    def view(self):
        bar = ui.window_title_bar(
            "notes.py",
            on_drag=lambda: self.drag(),                 # the empty part of the bar
            on_minimize=lambda: self.minimize(),
            on_maximize=lambda: self.toggle_maximize(),  # also a double click on the bar
            on_close=lambda: self.close(),
            on_menu=lambda: print("window menu"),        # right click on the bar
            maximized=self.window_maximized,
        )
        return pz.column([bar, main_view()])

Declarative

class Notes(pz.App):
    frame = "custom"

    def update(self, message):           # the commands are returned from update
        match message:
            case "drag":
                return self.drag()
            case "minimize":
                return self.minimize()
            case "maximize":
                return self.toggle_maximize()
            case "close":
                return self.close()

    def view(self):
        return pz.column([ui.window_title_bar("notes.py", on_drag="drag", on_minimize="minimize",
                                              on_maximize="maximize", on_close="close"), main_view()])

Functional

from dataclasses import dataclass


@dataclass(frozen=True)
class State:
    title: str = "notes.py"


def view(state, set_state):
    # A handler can return a command: Pyzed runs it.
    return pz.column([ui.window_title_bar(state.title, on_drag=lambda: pz.Command.drag_window(),
                                          on_close=lambda: pz.Command.exit()), main_view()])

Tips

Tip

With only menus, define frame_menus() on the window and skip ui.window_frame: the runtime frames the view for you. style defaults to the window’s frame, or this system’s style.

Properties and API

ui.window_frame

window_frame(
    content,
    *,
    title=None,
    menus=None,
    menu_button=True,
    start=(),
    center=None,
    end=(),
    style=None,
    window=None,
    height=None,
    resize_border=6.0,
    resize_edges=True,
    bg=None,
    theme=None,
)

The whole frame of a window opened with frame="custom": a title bar that moves the window (double click maximizes, right click opens the system menu on Windows), the minimize, maximize and close buttons in the style of a platform, menus on the left, and borders that resize the window.

Property	Default	Description
content	required	The window’s content, under the title bar.
title	None	Title shown in the bar. By default the window’s title.
menus	None	Menus on the left of the bar: a list of ui.Menu.
menu_button	True	Shows the menus behind a ☰ button (False always shows their names).
start	()	Items after the menus (project, branch…).
center	None	Your own widget in the middle instead of the title (a search field, Run and Stop…); the bar still drags on both sides of it.
end	()	Items before the window buttons.
style	None	"macos", "windows", "gnome", "ubuntu" or "kde". By default the window’s frame, or this system’s.
window	None	The window the buttons act on. By default the one whose view() is running.
height	None	Height of the bar. By default the platform’s.
resize_border	6.0	Width in pixels of the borders that resize the window.
resize_edges	True	False leaves the resize borders to you (pz.window_edges), to put them over menus and dialogs.
bg	None	Background color ("#rrggbb[aa]", (r, g, b[, a]) or "transparent").
theme	None	Theme to use instead of the current one (pyzed.theme.current()).

Full reference →

ui.Menu

@dataclass
class Menu(label, items=[])

A menu of a window frame’s menu bar: a name and its items (ui.MenuItem, ui.SEPARATOR or a header string).

Property	Default	Description
label	required	The menu’s name.
items	[]	Its entries: ui.MenuItem, ui.SEPARATOR or a header string.

Full reference →

ui.window_title_bar

window_title_bar(
    title=None,
    *,
    style=None,
    start=(),
    center=None,
    end=(),
    on_drag=None,
    on_minimize=None,
    on_maximize=None,
    on_close=None,
    on_menu=None,
    maximized=False,
    focused=True,
    width='fill',
    height=None,
    bg=None,
    border=True,
    theme=None,
)

A window’s title bar alone: window buttons in the style of style (on the left for macOS), start items, the title and end items. Without callbacks it only shows, which is how Pyzed Design previews a form in the frame of each platform.

Property	Default	Description
title	None	Title (centered, or on the left on Windows).
style	None	"macos", "windows", "gnome", "ubuntu" or "kde" (None: this system’s).
start	()	Items at the start.
center	None	Widget in the middle instead of the title; the bar still drags on both sides of it.
end	()	Items at the end.
maximized	False	Shows the restore symbol.
focused	True	False dims it like a window in the background.
width	"fill"	Width: pixels, "fill", "shrink" or "fill:N" (proportion).
height	None	Height. By default the platform’s.
bg	None	Background color ("#rrggbb[aa]", (r, g, b[, a]) or "transparent").
border	True	Line under the bar.
theme	None	Theme to use instead of the current one (pyzed.theme.current()).

Events: on_drag, on_minimize, on_maximize, on_close, on_menu (events).

Full reference →

ui.window_controls

window_controls(
    style=None,
    *,
    on_minimize=None,
    on_maximize=None,
    on_close=None,
    maximized=False,
    focused=True,
    height=None,
    theme=None,
)

The minimize, maximize and close buttons in the style of a platform. A button without a callback is drawn but does nothing.

Property	Default	Description
style	None	"macos", "windows", "gnome", "ubuntu" or "kde" (None: this system’s).
maximized	False	Shows the restore symbol.
focused	True	False dims them.
height	None	Height.
theme	None	Theme to use instead of the current one (pyzed.theme.current()).

Events: on_minimize, on_maximize, on_close (events).

Full reference →

ui.system_platform

system_platform()

The style of this system’s window buttons: "macos", "windows", "kde", "ubuntu" or "gnome" (other Linux desktops). Under WSL it is "windows".

Full reference →
