Flex

In plain words

Spreads things along a line: packed together, evenly spaced, or with one that grows.

Lays children out along one axis like CSS flexbox: justify on the main axis (start, center, end, between, around, evenly), align on the cross axis, gap and wrap. pz.flex_item(child, grow=, basis=) makes a child grow or gives it a base size.

pz.flex · Category: Layout · Full reference →

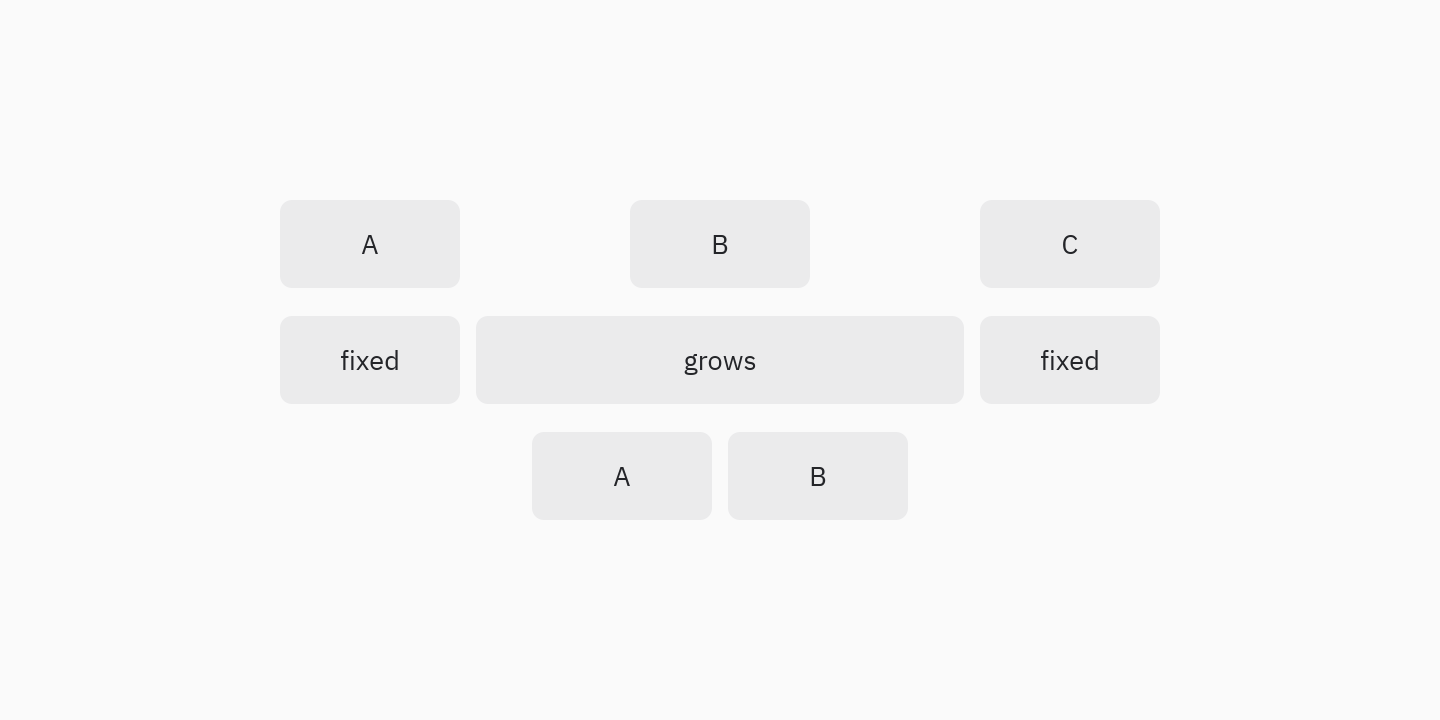

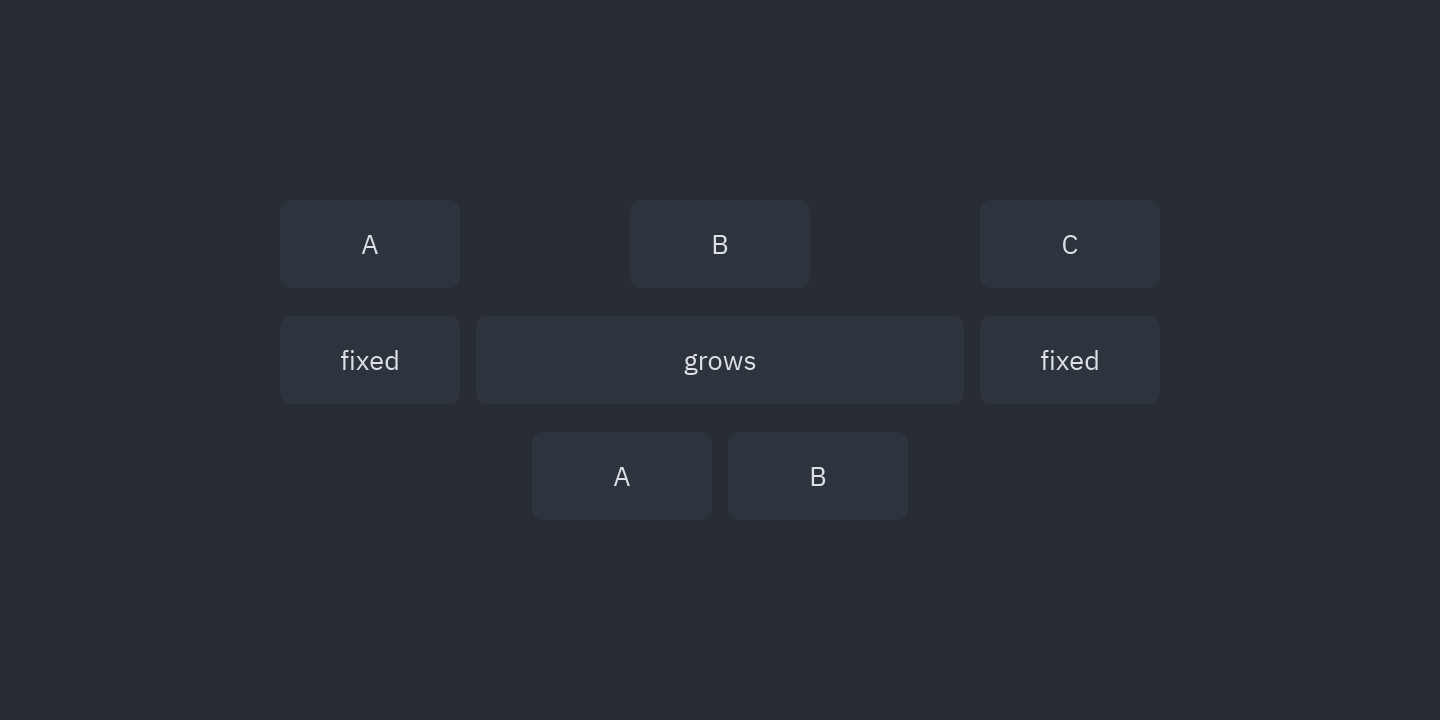

Preview

Code

box = lambda text, w=90, h=44: pz.container(ui.label(text), center=True, width=w, height=h, bg=pz.theme.current().element, radius=6)
pz.column([
    pz.flex([box("A"), box("B"), box("C")], justify="between", width=440),
    pz.flex([box("fixed"), pz.flex_item(box("grows", w="fill"), grow=1), box("fixed")], gap=8, width=440),
    pz.flex([box("A"), box("B")], justify="center", gap=8, width=440),
], spacing=14)

New

This component was added recently. Tell us how it works for you in the issue tracker.

When to use

• When row/column are not enough: even distribution, growing items, wrapping cards.

Usage

import pyzed as pz
from pyzed import ui

box = lambda text, w=90, h=44: pz.container(ui.label(text), center=True, width=w, height=h, bg=pz.theme.current().element, radius=6)
pz.column([
    pz.flex([box("A"), box("B"), box("C")], justify="between", width=440),
    pz.flex([box("fixed"), pz.flex_item(box("grows", w="fill"), grow=1), box("fixed")], gap=8, width=440),
    pz.flex([box("A"), box("B")], justify="center", gap=8, width=440),
], spacing=14)

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Justify

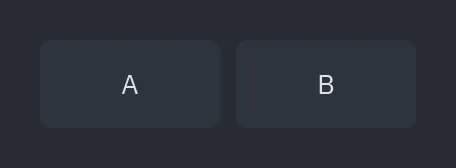

justify="start"

Code

box = lambda text, w=90, h=44: pz.container(ui.label(text), center=True, width=w, height=h, bg=pz.theme.current().element, radius=6)
pz.flex([box("A"), box("B")], justify="start", gap=8, width=360)

justify="center"

Code

box = lambda text, w=90, h=44: pz.container(ui.label(text), center=True, width=w, height=h, bg=pz.theme.current().element, radius=6)
pz.flex([box("A"), box("B")], justify="center", gap=8, width=360)

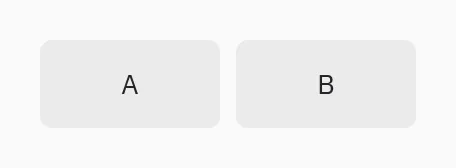

justify="end"

Code

box = lambda text, w=90, h=44: pz.container(ui.label(text), center=True, width=w, height=h, bg=pz.theme.current().element, radius=6)
pz.flex([box("A"), box("B")], justify="end", gap=8, width=360)

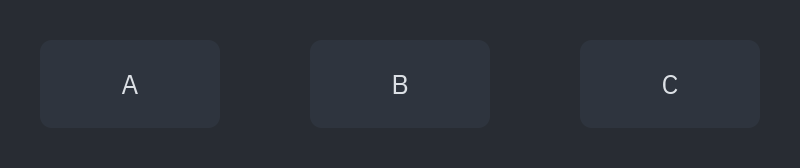

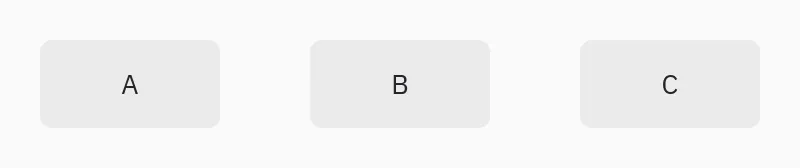

justify="between"

Code

box = lambda text, w=90, h=44: pz.container(ui.label(text), center=True, width=w, height=h, bg=pz.theme.current().element, radius=6)
pz.flex([box("A"), box("B"), box("C")], justify="between", width=360)

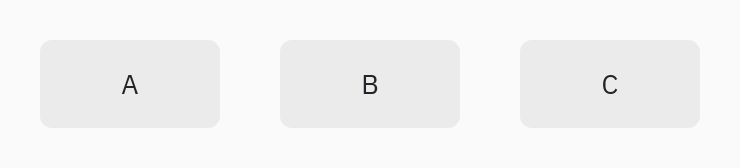

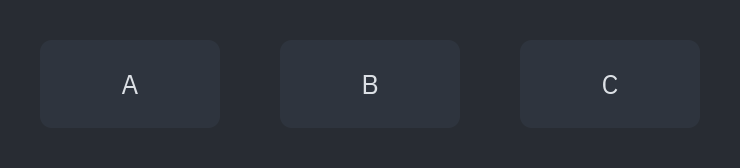

justify="around"

Code

box = lambda text, w=90, h=44: pz.container(ui.label(text), center=True, width=w, height=h, bg=pz.theme.current().element, radius=6)
pz.flex([box("A"), box("B"), box("C")], justify="around", width=360)

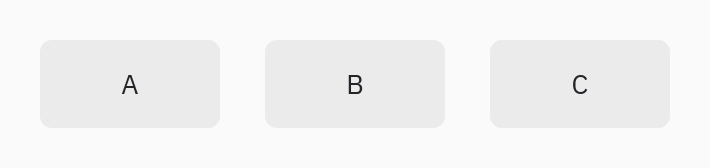

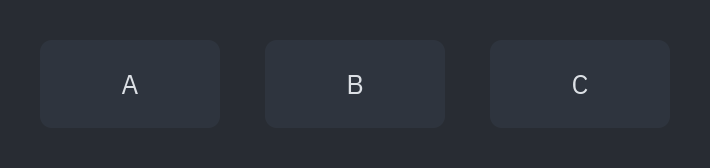

justify="evenly"

Code

box = lambda text, w=90, h=44: pz.container(ui.label(text), center=True, width=w, height=h, bg=pz.theme.current().element, radius=6)
pz.flex([box("A"), box("B"), box("C")], justify="evenly", width=360)

Grow

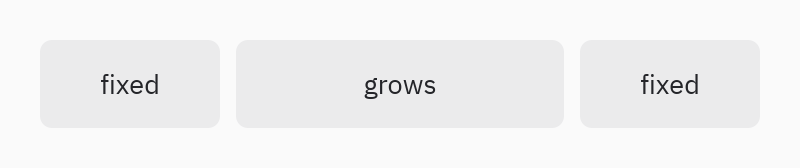

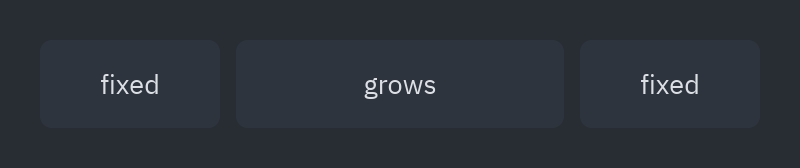

flex_item(grow=1)

Code

box = lambda text, w=90, h=44: pz.container(ui.label(text), center=True, width=w, height=h, bg=pz.theme.current().element, radius=6)
pz.flex([box("fixed"), pz.flex_item(box("grows", w="fill"), grow=1), box("fixed")], gap=8, width=360)

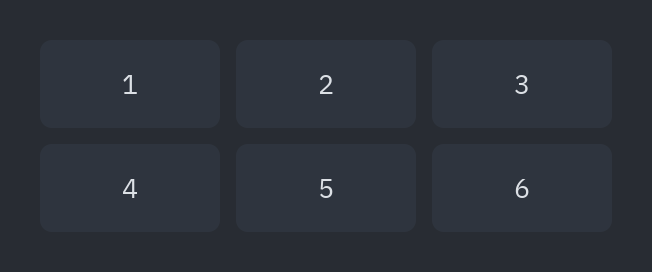

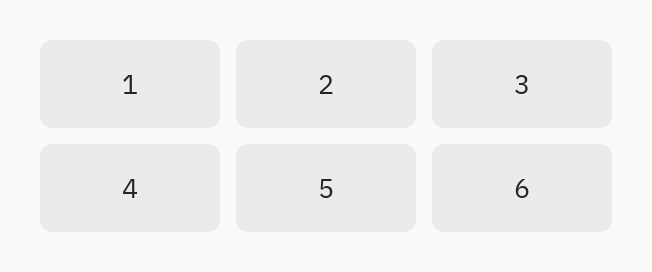

wrap=True

Code

box = lambda text, w=90, h=44: pz.container(ui.label(text), center=True, width=w, height=h, bg=pz.theme.current().element, radius=6)
pz.flex([box(str(i)) for i in range(1, 7)], gap=8, wrap=True, width=300)

Events

Flex has no events of its own: it shows what you give it. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Properties and API

pz.flex

flex(
    children=(),
    *,
    direction='row',
    justify='start',
    align='start',
    gap=0,
    wrap=False,
    padding=None,
    width=None,
    height=None,
)

Lays children out along one axis, like CSS flexbox, with justify on the main axis and align on the cross axis. Use pz.flex_item to make a child grow or give it a fixed size.

Property	Default	Description
children	()	The widgets, or pz.flex_item(...) for children with their own sizing.
direction	"row"	"row" or "column".
justify	"start"	"start", "center", "end", "between", "around" or "evenly". No effect when a child grows.
align	"start"	Cross-axis alignment: "start", "center" or "end".
gap	0	Space between children.
wrap	False	Wraps onto new lines (rows with justify="start" only).
padding	None	Space around the children.
width	None	Width.
height	None	Height.

Full reference →

pz.flex_item

flex_item(content, *, grow=1, basis=None, align=None)

Sizes a child of pz.flex.

Property	Default	Description
content	required	The widget.
grow	1	Share of the free space on the main axis (0 keeps its natural size).
basis	None	A fixed main size in pixels, instead of growing.
align	None	Cross-axis alignment for this child.

Full reference →
