Status bar

In plain words

The thin bar at the bottom of the window with small facts: errors, line number, language.

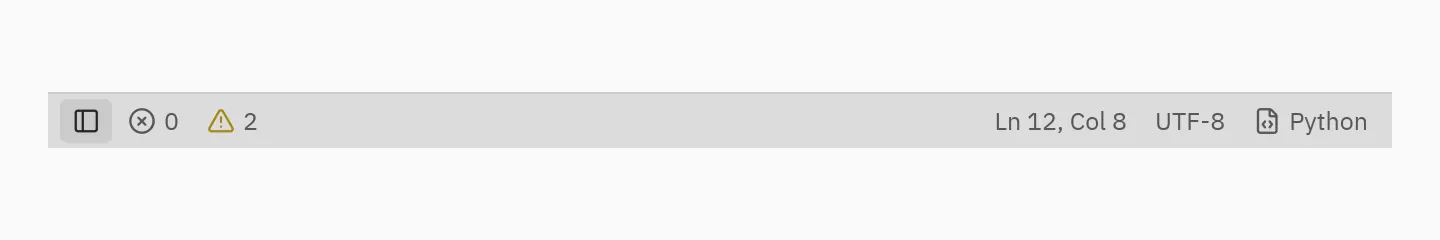

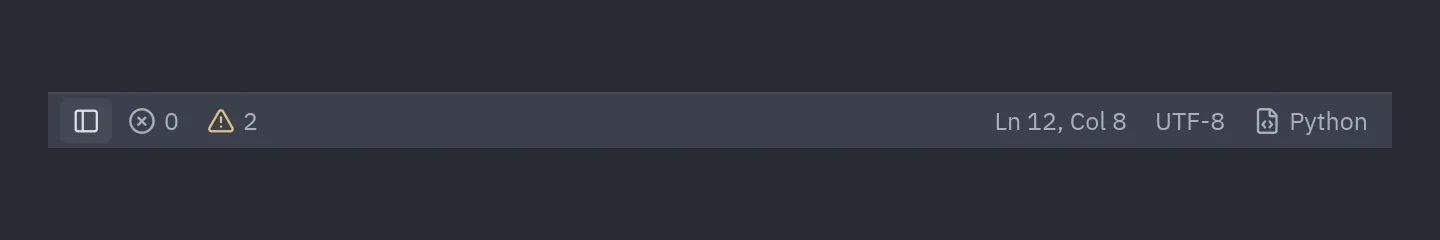

The bottom bar with items at the start and end. ui.status_item shows an icon and/or text, can be pressed, selected (a dock that is open) and carry a tooltip with keys.

ui.status_bar · Category: Workspace · Full reference →

Preview

Code

ui.status_bar(
    [ui.status_item(icon="panel-left", on_press=on_toggle, selected=True, tooltip="Project panel", keys="ctrl-b"),
     ui.status_item("0", icon="circle-x"), ui.status_item("2", icon="triangle-alert", icon_color="warning")],
    [ui.status_item("Ln 12, Col 8"), ui.status_item("UTF-8"), ui.status_item("Python", icon="file-code")],
)

When to use

• For always-visible state: errors and warnings, cursor position, language, git branch.

Usage

from pyzed import ui

ui.status_bar(
    [ui.status_item(icon="panel-left", on_press=on_toggle, selected=True, tooltip="Project panel", keys="ctrl-b"),
     ui.status_item("0", icon="circle-x"), ui.status_item("2", icon="triangle-alert", icon_color="warning")],
    [ui.status_item("Ln 12, Col 8"), ui.status_item("UTF-8"), ui.status_item("Python", icon="file-code")],
)

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Items

Text

Code

ui.status_item("Ln 12, Col 8")

icon=

Code

ui.status_item("Python", icon="file-code")

icon_color="warning"

Code

ui.status_item("2", icon="triangle-alert", icon_color="warning")

selected=True

Code

ui.status_item(icon="panel-left", on_press=on_toggle, selected=True)

color="accent"

Code

ui.status_item("main", icon="git-branch", color="accent")

Bar

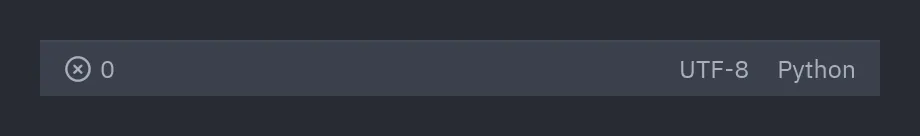

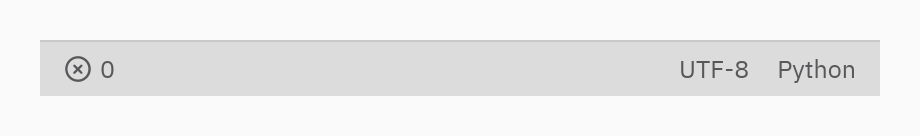

start=, end=

Code

pz.container(ui.status_bar([ui.status_item("0", icon="circle-x")],
                           [ui.status_item("UTF-8"), ui.status_item("Python")]), width=420)

Events

Status bar has 1 event of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Handler gets	When
on_press	()	Message or callable sent on press. None disables the control.

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

class Ide(pz.App):
    def __init__(self):
        self.show_left = True

    def view(self):
        return ui.status_bar(
            [ui.status_item(icon="panel-left", selected=self.show_left, tooltip="Project panel",
                            on_press=lambda: setattr(self, "show_left", not self.show_left))],
            [ui.status_item("Python", icon="file-code")],
        )

Declarative

class Ide(pz.App):
    show_left = True

    def update(self, message):
        if message == "toggle left":
            self.show_left = not self.show_left

    def view(self):
        return ui.status_bar([ui.status_item(icon="panel-left", on_press="toggle left",
                                             selected=self.show_left)])

Functional

from dataclasses import dataclass


@dataclass(frozen=True)
class State:
    show_left: bool = True


def view(state, set_state):
    return ui.status_bar([ui.status_item(icon="panel-left", selected=state.show_left,
                                         on_press=lambda: set_state(show_left=not state.show_left))])

Properties and API

ui.status_bar

status_bar(start=(), end=(), *, height=28, theme=None)

The bottom status bar.

Property	Default	Description
start	()	Widgets at the start (left).
end	()	Widgets at the end (right).
height	28	Height.
theme	None	Theme to use instead of the current one (pyzed.theme.current()).

Full reference →

ui.status_item

status_item(
    content=None,
    on_press=None,
    *,
    icon=None,
    color=None,
    icon_color=None,
    selected=False,
    tooltip=None,
    keys=None,
    theme=None,
)

An icon and/or text in the status bar (diagnostics, cursor position, language…).

Property	Default	Description
content	None	Text.
icon	None	Name of a Lucide icon (pyzed icons lists them).
color	None	Text or icon color.
icon_color	None	Icon color: a theme token or a hex color.
selected	False	Marks it as selected.
tooltip	None	Tooltip text.
keys	None	Shortcut shown at the end, written as a string: "ctrl-s", "cmd-k cmd-s".
theme	None	Theme to use instead of the current one (pyzed.theme.current()).

Events: on_press (events).

Full reference →
