Layer

In plain words

Puts something on top of the screen, like a search box, and closes it if you click outside.

Stacks overlay on top of base. Clicking outside the overlay sends on_dismiss, and backdrop dims the view behind it. With overlay=None it returns base unchanged, so it can always wrap your view. align_x, align_y and offset place the overlay (by default centered at the top, like a command palette).

ui.layer · Category: Overlays · Full reference →

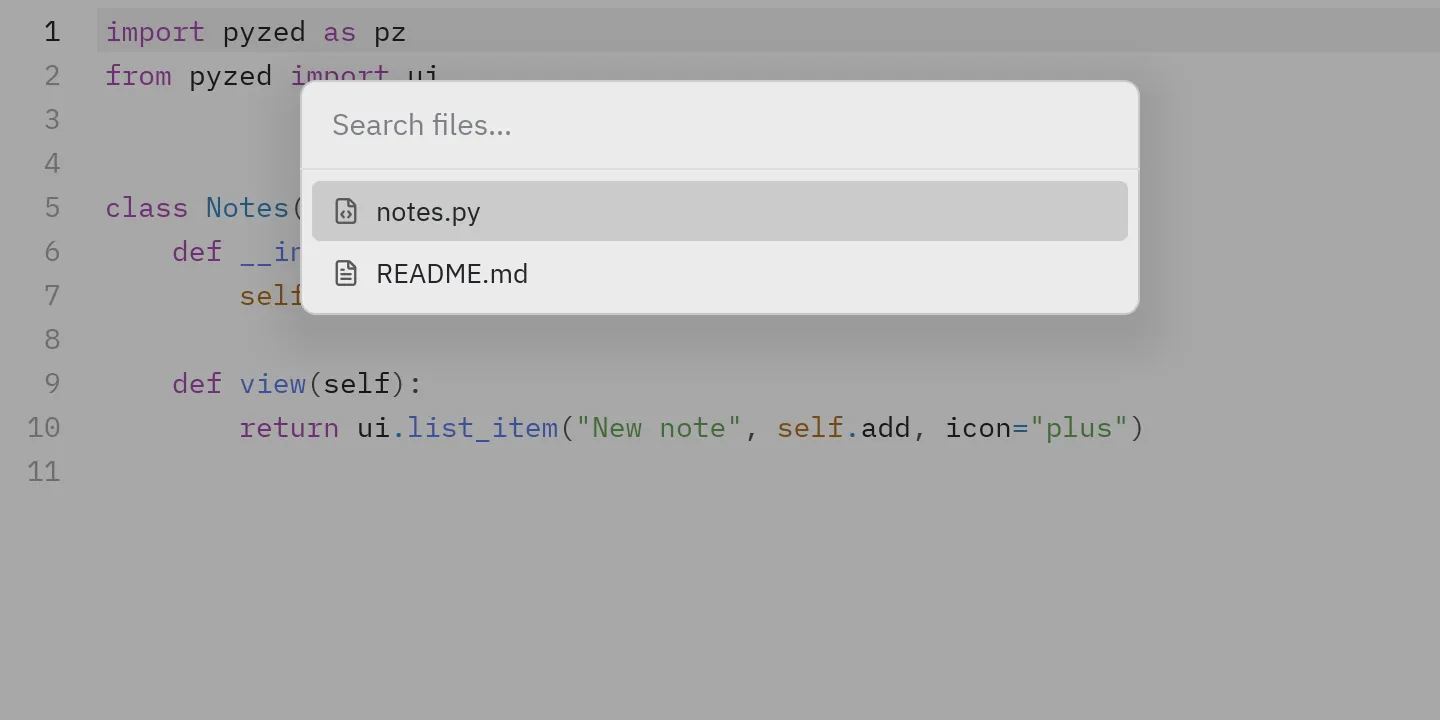

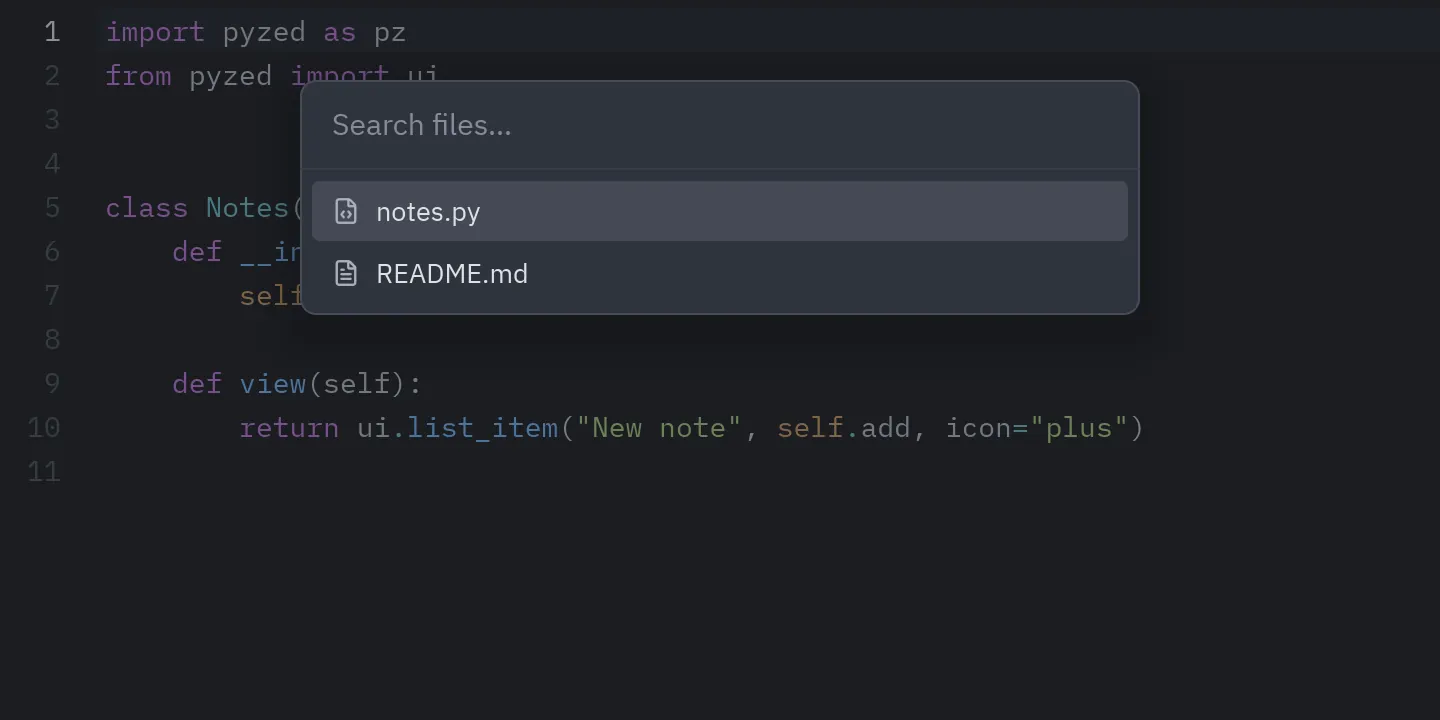

Preview

Code

ui.layer(
    main_view(),
    ui.picker("", on_query, [(ui.PaletteItem("notes.py", on_open, icon="file-code"), []),
                             (ui.PaletteItem("README.md", on_open, icon="file-text"), [])],
              placeholder="Search files…", width=420),
    on_dismiss=on_close, backdrop="#00000055", offset=40,
)

When to use

• To show palettes, pickers, modals and menus above everything else.
• For dialogs, Dialog layer already centers them over a dimmed backdrop.

Usage

import pyzed as pz
from pyzed import ui

class App(pz.App):
    def __init__(self):
        self.finder_open = False

    def view(self):
        overlay = self.finder() if self.finder_open else None
        return ui.layer(self.main_view(), overlay,
                        on_dismiss=lambda: setattr(self, "finder_open", False))

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Placement

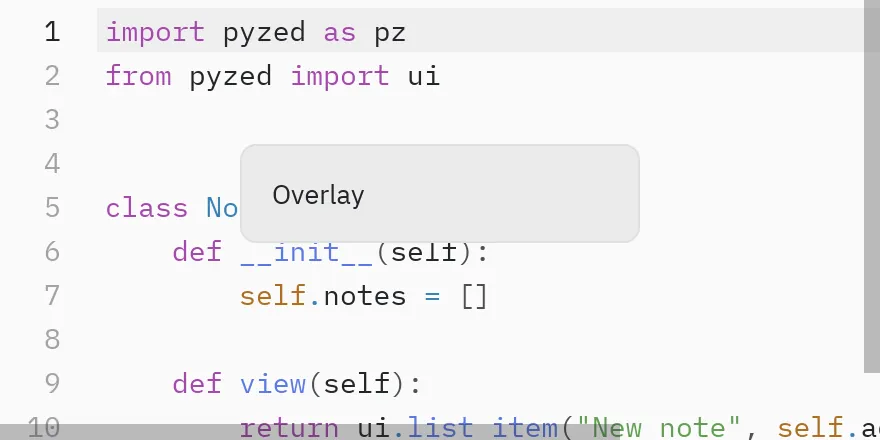

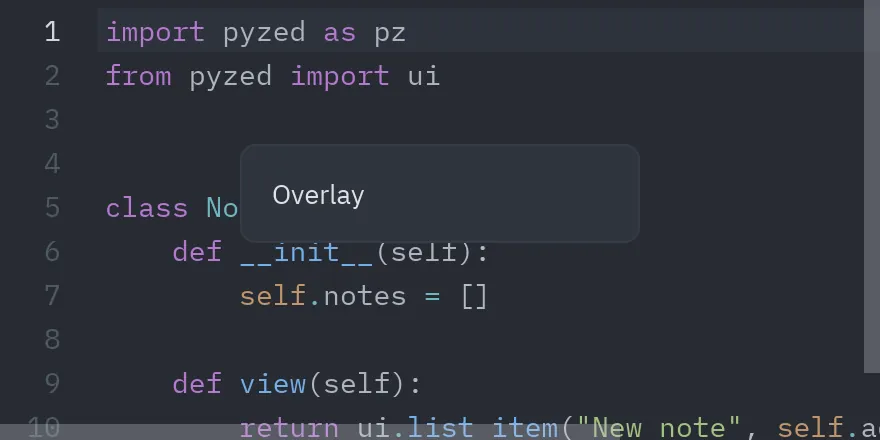

Top (default)

Code

ui.layer(main_view(), ui.card(ui.label("Overlay"), width=200), on_dismiss=on_close)

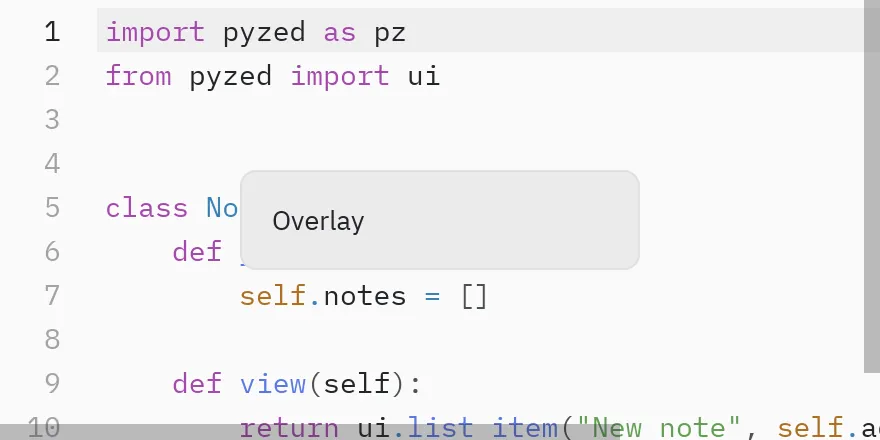

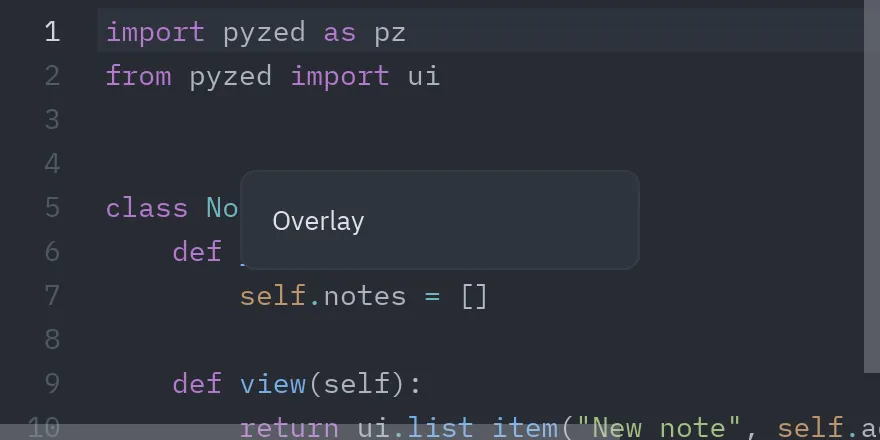

align_y="center"

Code

ui.layer(main_view(), ui.card(ui.label("Overlay"), width=200), align_y="center",
         on_dismiss=on_close)

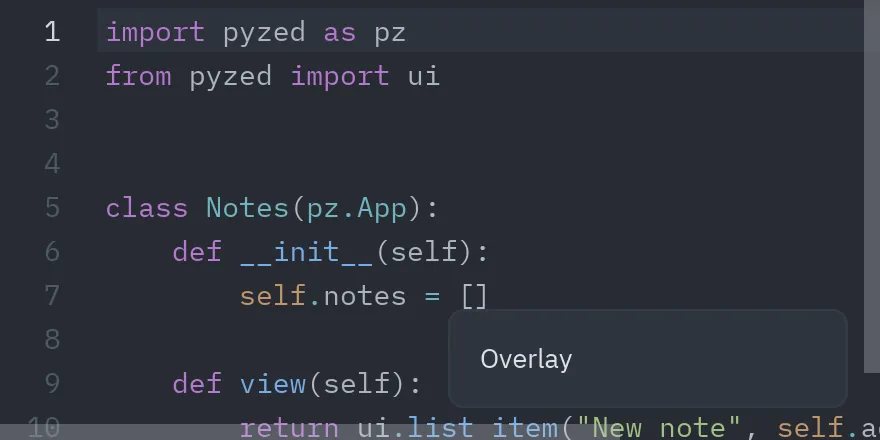

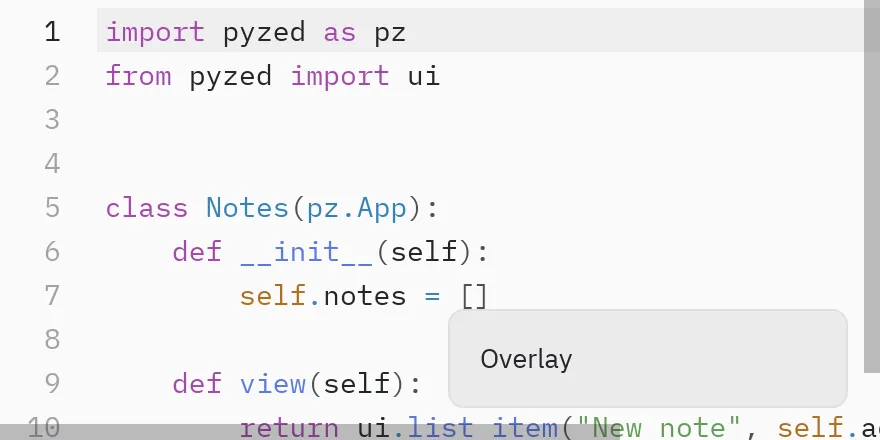

align_x="end", align_y="end"

Code

ui.layer(main_view(), ui.card(ui.label("Overlay"), width=200), align_x="end", align_y="end",
         offset=16, on_dismiss=on_close)

Backdrop

With overlay=None the layer returns your view unchanged.

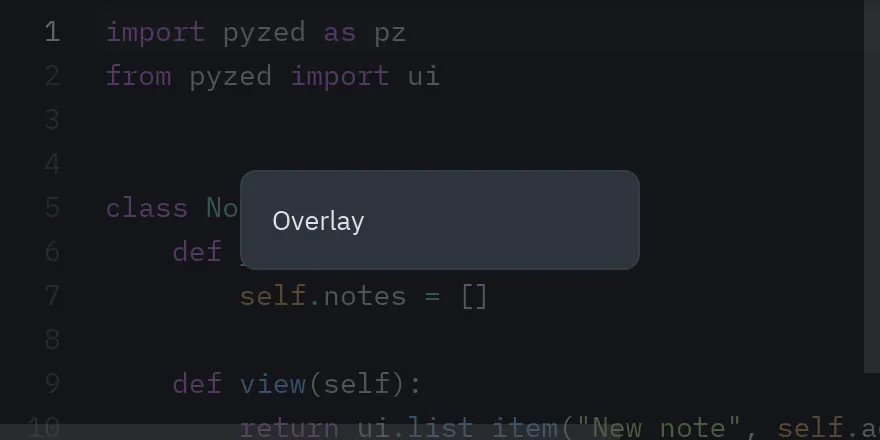

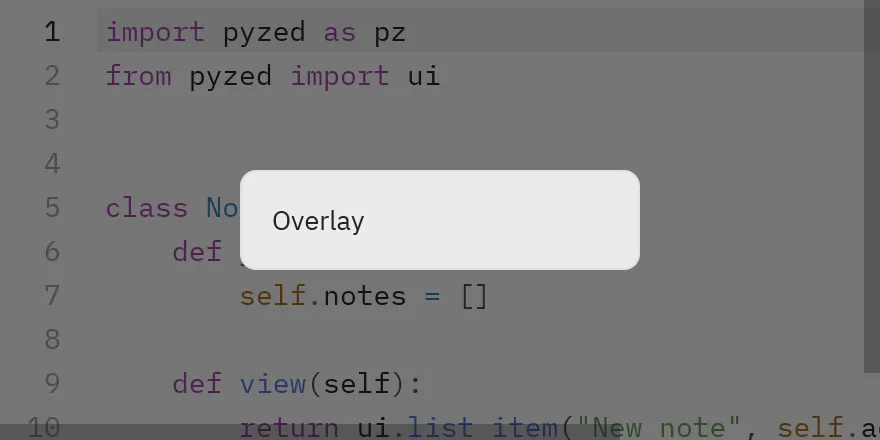

backdrop="#00000088"

Code

ui.layer(main_view(), ui.card(ui.label("Overlay"), width=200), backdrop="#00000088",
         align_y="center", on_dismiss=on_close)

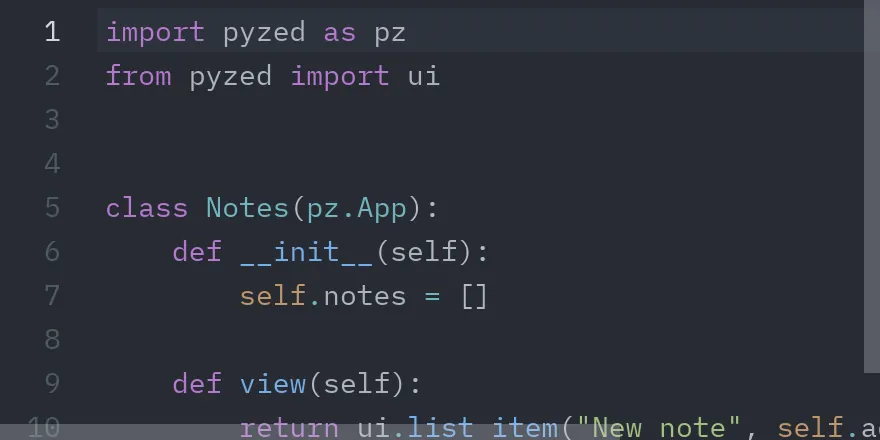

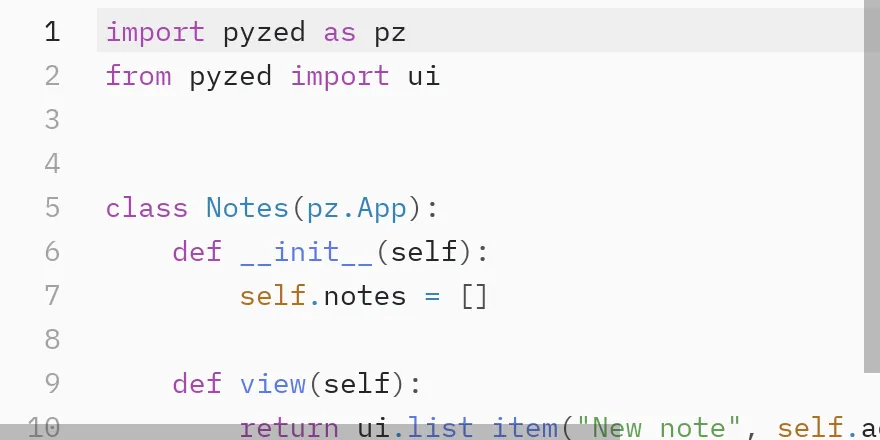

overlay=None

Code

ui.layer(main_view(), None)

Events

Layer has 1 event of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Handler gets	When
on_dismiss	()	Message or callable sent on close.

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

class App(pz.App):
    def __init__(self):
        self.finder_open = True

    def view(self):
        finder = ui.card(ui.muted("Search files…"), width=320)
        return ui.layer(main_view(), finder if self.finder_open else None,
                        on_dismiss=lambda: setattr(self, "finder_open", False))   # click outside

Declarative

class App(pz.App):
    finder_open = True

    def update(self, message):
        match message:
            case "open finder":
                self.finder_open = True
            case "close finder":
                self.finder_open = False

    def view(self):
        overlay = ui.card(ui.muted("Search files…"), width=320) if self.finder_open else None
        return ui.layer(main_view(), overlay, on_dismiss="close finder")

Functional

from dataclasses import dataclass


@dataclass(frozen=True)
class State:
    finder_open: bool = True


def view(state, set_state):
    overlay = ui.card(ui.muted("Search files…"), width=320) if state.finder_open else None
    return ui.layer(main_view(), overlay, on_dismiss=lambda: set_state(finder_open=False))

Properties and API

ui.layer

layer(
    base,
    overlay=None,
    *,
    on_dismiss=None,
    backdrop=None,
    align_x='center',
    align_y='start',
    offset=72,
)

Stacks overlay on top of base. Clicking outside sends on_dismiss. With overlay=None it returns base unchanged.

Property	Default	Description
base	required	The UI underneath.
overlay	None	What floats on top (modal, palette, menu).
backdrop	None	Color of the backdrop that dims the UI.
align_x	"center"	Horizontal alignment: "start"/"left", "center", "end"/"right".
align_y	"start"	Vertical alignment: "start"/"top", "center", "end"/"bottom".
offset	72	Distance from the top when align_y is "start".

Events: on_dismiss (events).

Full reference →
