Radio group

A set of radio buttons where one option is selected. options are strings or (value, label) pairs; on_select receives the value. horizontal=True lays them out in a row.

ui.radio_group · Category: Forms · Full reference →

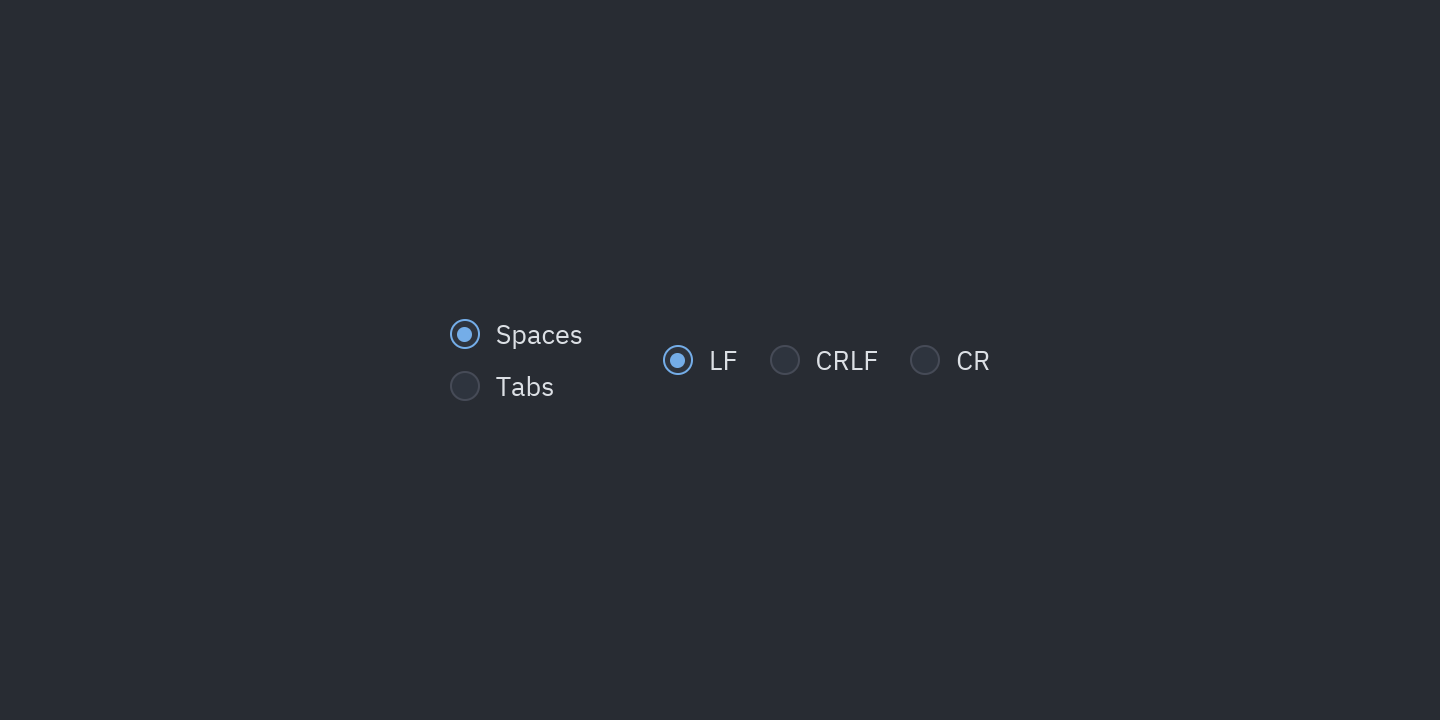

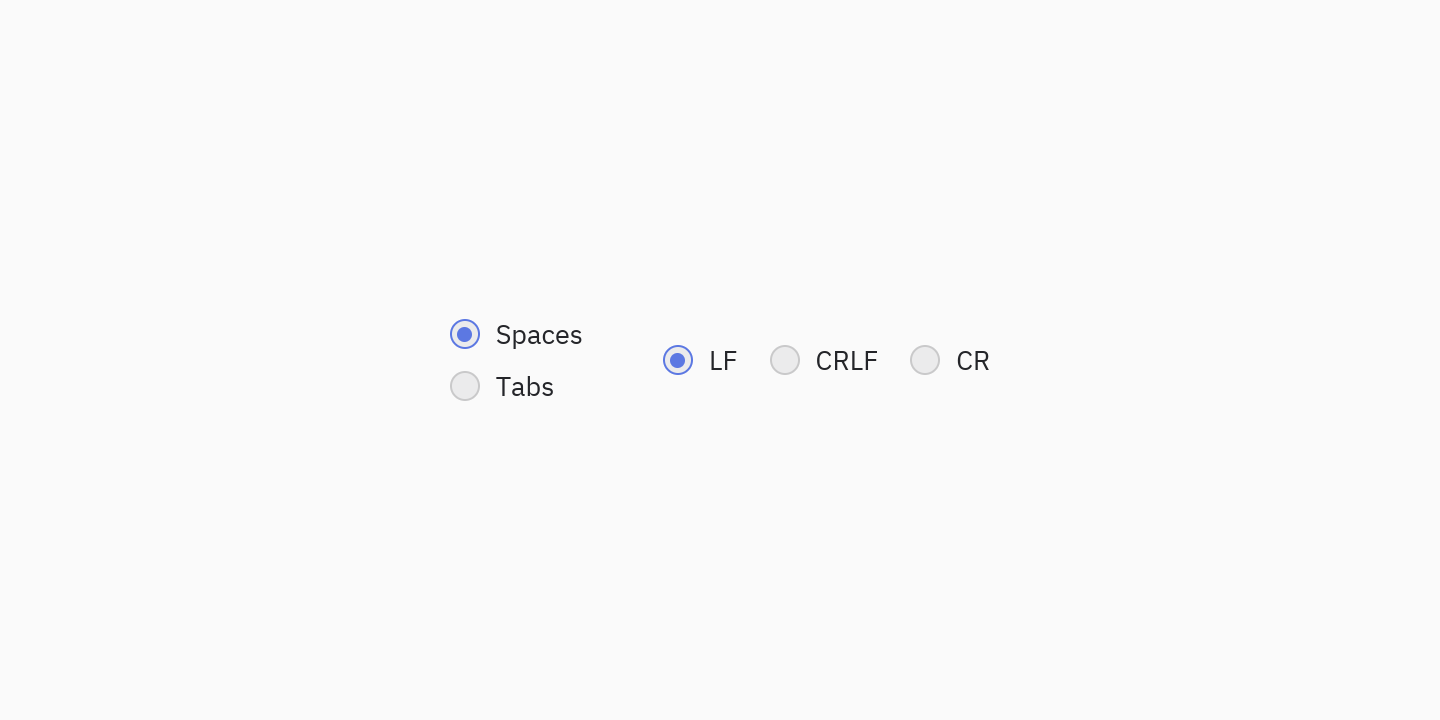

Preview
Code

pz.row([
    ui.radio_group(["Spaces", "Tabs"], "Spaces", on_select),
    ui.radio_group([("lf", "LF"), ("crlf", "CRLF"), ("cr", "CR")], "lf", on_select, horizontal=True),
], spacing=40, align="center")

When to use

When the options need a label each and should all be visible (indentation: spaces or tabs).
For many options use a Select.

Usage

import pyzed as pz
from pyzed import ui

class Settings(pz.App):
    def __init__(self):
        self.indent = "spaces"

    def view(self):
        return ui.radio_group([("spaces", "Spaces"), ("tabs", "Tabs")], self.indent,
                              lambda value: setattr(self, "indent", value))

Variants

Direction

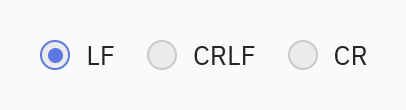

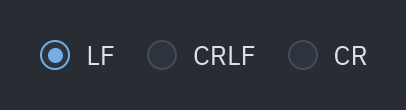

Radio group: horizontal=True — `horizontal=True`

Options

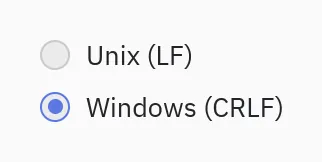

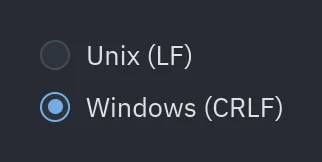

Radio group: (value, label) pairs — (value, label) pairs

Radio group: Nothing selected — Nothing selected

States and events

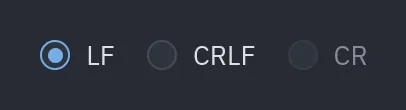

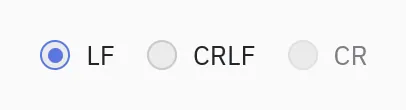

Radio group: disabled={"CR"} — `disabled={"CR"}`

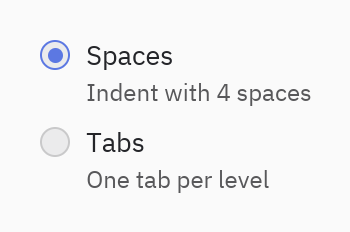

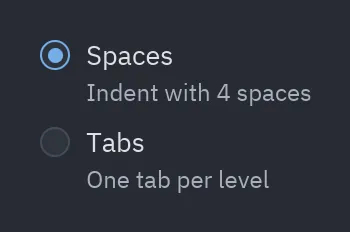

Radio group: descriptions= — `descriptions=`

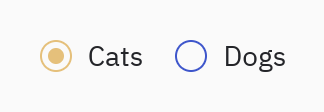

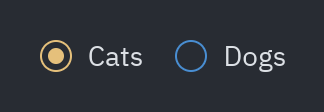

The pz.* widget underneath: no theme, every color and size is yours.

Events

Radio group has 1 event of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Of	Handler gets	When
`on_select`	`ui.radio_group`, `pz.radio`	`(value)`	Callable that receives the chosen value.

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

class Settings(pz.App):
    def __init__(self):
        self.indent = "spaces"

    def set_indent(self, value):         # on_select gets the value, not the label
        self.indent = value

    def view(self):
        return ui.radio_group([("spaces", "Spaces"), ("tabs", "Tabs")], self.indent, self.set_indent)

from dataclasses import dataclass


@dataclass
class Indent:
    value: str


class Settings(pz.App):
    indent = "spaces"

    def update(self, message):
        match message:
            case Indent(value):
                self.indent = value

    def view(self):
        return ui.radio_group([("spaces", "Spaces"), ("tabs", "Tabs")], self.indent, Indent)

from dataclasses import dataclass


@dataclass(frozen=True)
class State:
    indent: str = "spaces"


def view(state, set_state):
    return ui.radio_group([("spaces", "Spaces"), ("tabs", "Tabs")], state.indent,
                          lambda value: set_state(indent=value), horizontal=True)

Tips

Properties and API

`ui.radio_group`

radio_group(
    options,
    selected,
    on_select=None,
    *,
    horizontal=False,
    spacing=8,
    disabled=False,
    descriptions=None,
    id=None,
    theme=None,
)

Mutually exclusive options as radio buttons.

Property	Default	Description
`options`	required	Strings or `(value, label)` pairs.
`selected`	required	Current value.
`horizontal`	`False`	In a row instead of a column.
`spacing`	`8`	Space between children, in pixels.
`disabled`	`False`	`True`, or the values to disable.
`descriptions`	`None`	Maps values to a muted line under their label.
`id`	`None`	Stable identifier used to focus or scroll it with a `Command`.
`theme`	`None`	Theme to use instead of the current one (`pyzed.theme.current()`).

Events: on_select (events).

Full reference →

`pz.radio`

radio(
    label,
    selected,
    on_select=None,
    *,
    size=None,
    text_size=None,
    spacing=None,
    accent=None,
    bg=None,
    border_color=None,
    color=None,
)

A radio button. Group several yourself (or use ui.radio_group); on_select is sent when it is clicked.

Property	Default	Description
`label`	required	Label text.
`selected`	required	Whether it is checked.
`size`	`None`	Size.
`text_size`	`None`	Text size.
`spacing`	`None`	Space between the circle and the text.
`accent`	`None`	Accent color (active part).
`bg`	`None`	Background color (`"#rrggbb[aa]"`, `(r, g, b[, a])` or `"transparent"`).
`border_color`	`None`	Border color.
`color`	`None`	Text or icon color.
