Resizable

In plain words

A panel with an edge you can drag to make it bigger or smaller.

A panel whose edge ("left", "right", "top" or "bottom") can be dragged to resize it, between min_size and max_size. It keeps the size the user drags it to; on_resize(size) is called when the drag ends so you can save it.

pz.resizable · Category: Layout · Full reference →

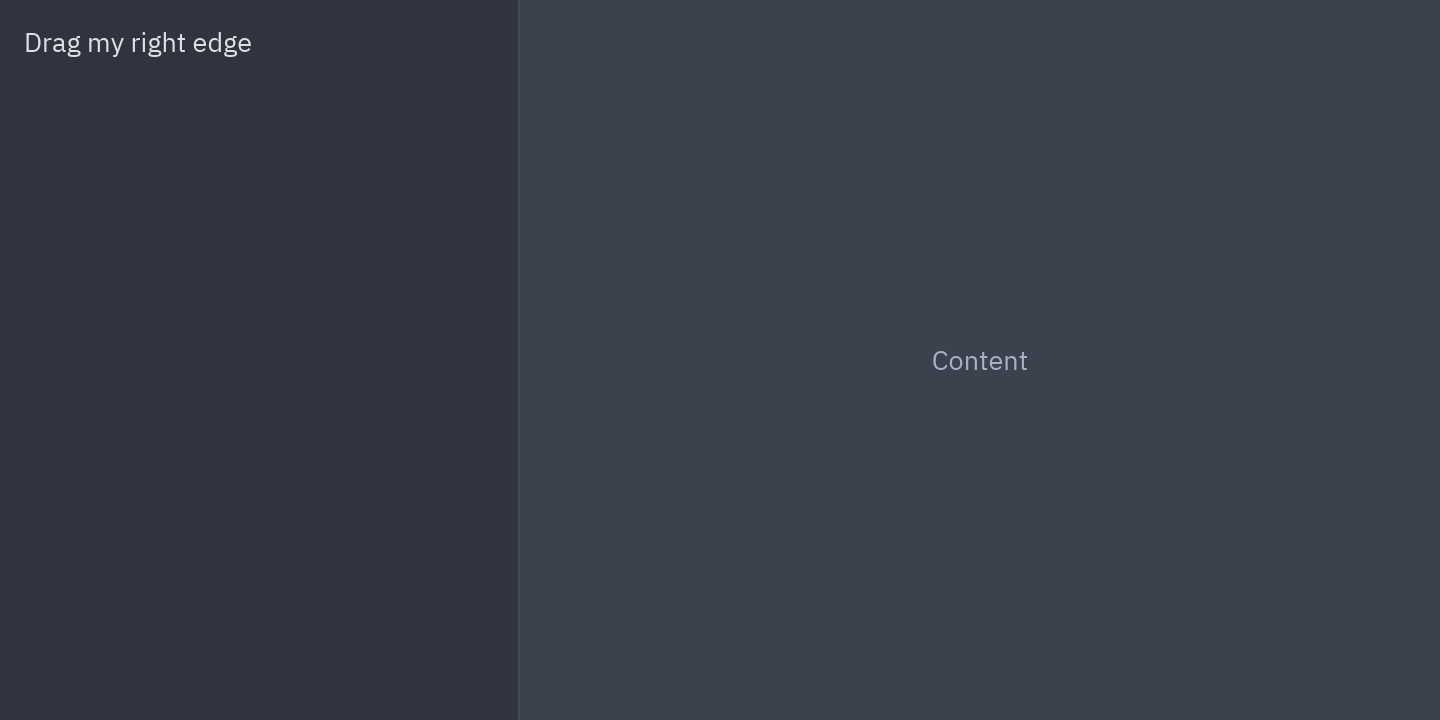

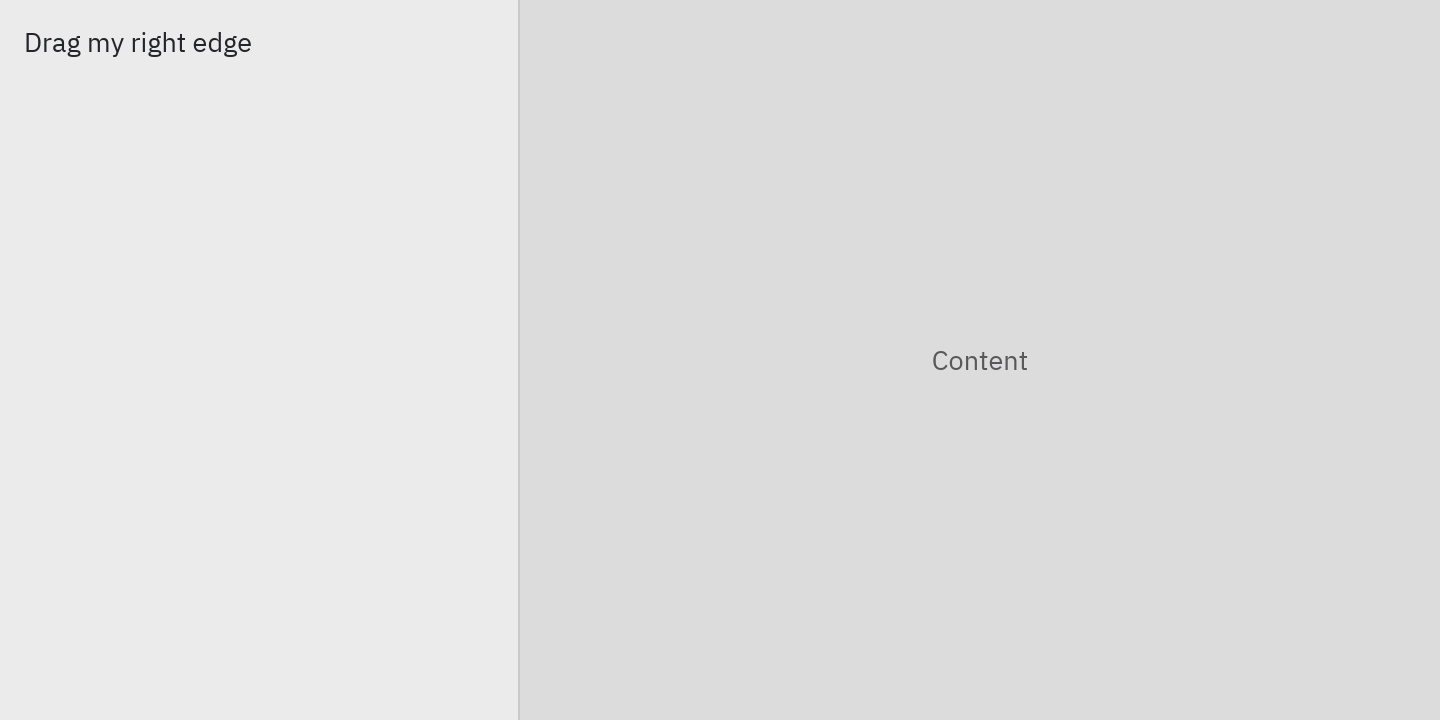

Preview

Code

t = pz.theme.current()
pz.row([
    pz.resizable(pz.container(ui.label("Drag my right edge"), padding=12, width="fill", height="fill", bg=t.panel),
                 edge="right", size=260, min_size=160, color=t.border, hover_color=t.accent),
    pz.container(ui.muted("Content"), center=True, width="fill", height="fill"),
], height="fill")

New

This component was added recently. Tell us how it works for you in the issue tracker.

When to use

• For one resizable sidebar or bottom panel next to fixed content.

Usage

import pyzed as pz
from pyzed import ui

t = pz.theme.current()
pz.row([
    pz.resizable(pz.container(ui.label("Drag my right edge"), padding=12, width="fill", height="fill", bg=t.panel),
                 edge="right", size=260, min_size=160, color=t.border, hover_color=t.accent),
    pz.container(ui.muted("Content"), center=True, width="fill", height="fill"),
], height="fill")

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Edge

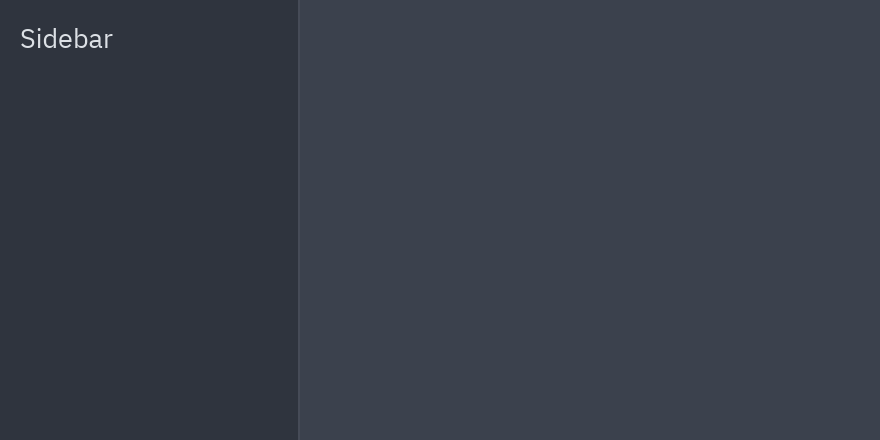

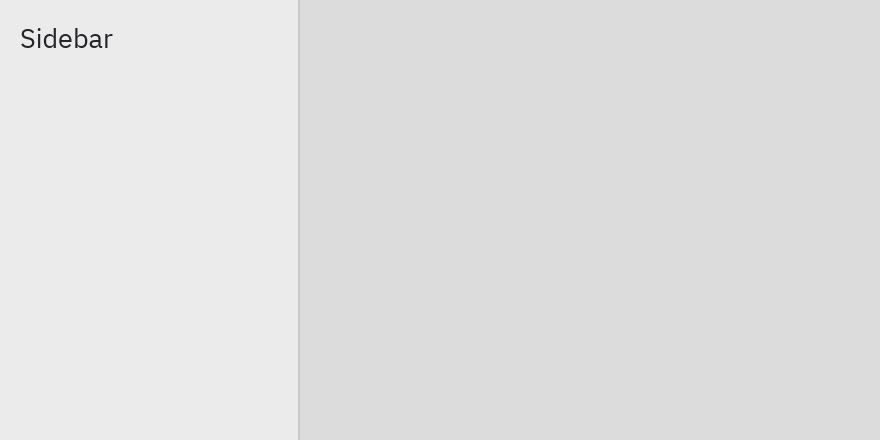

edge="right"

Code

t = pz.theme.current()
pz.row([pz.resizable(pz.container(ui.label("Sidebar"), padding=10, width="fill", height="fill", bg=t.panel),
                     edge="right", size=150, color=t.border), pz.container(width="fill")], height="fill")

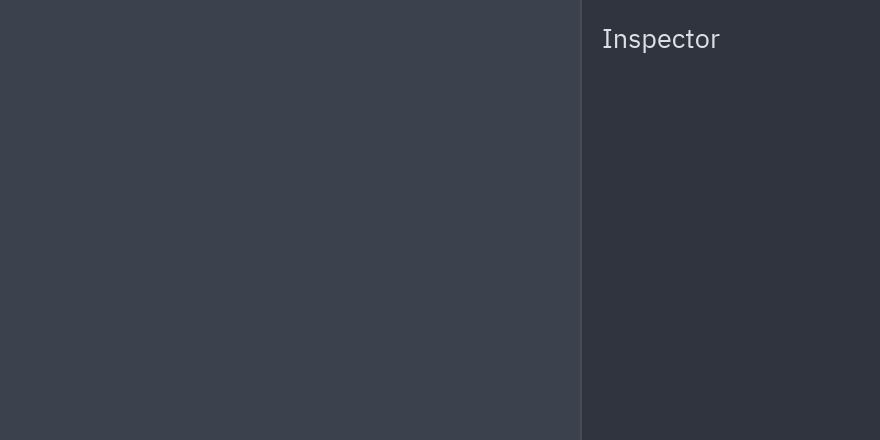

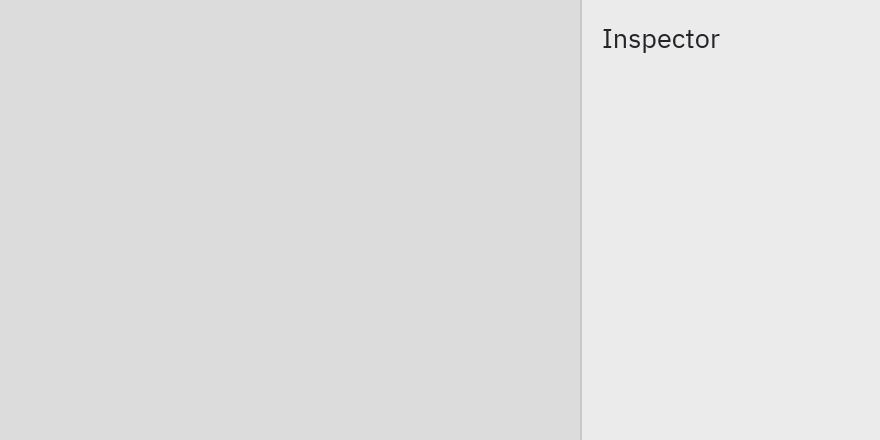

edge="left"

Code

t = pz.theme.current()
pz.row([pz.container(width="fill"), pz.resizable(pz.container(ui.label("Inspector"), padding=10, width="fill",
        height="fill", bg=t.panel), edge="left", size=150, color=t.border)], height="fill")

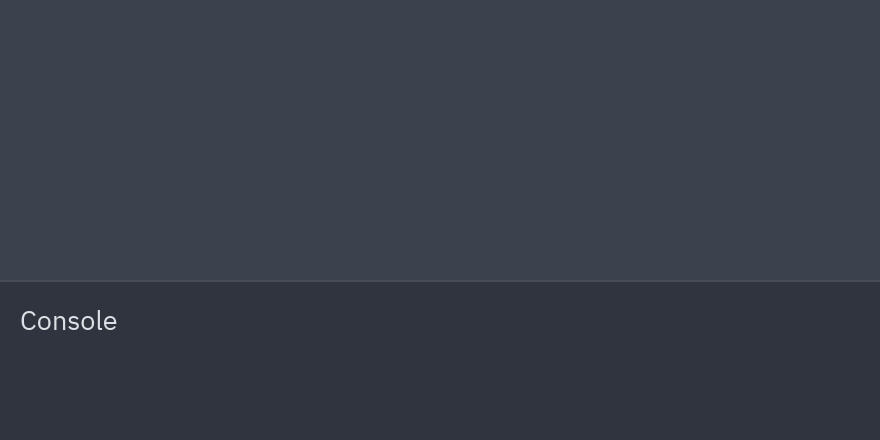

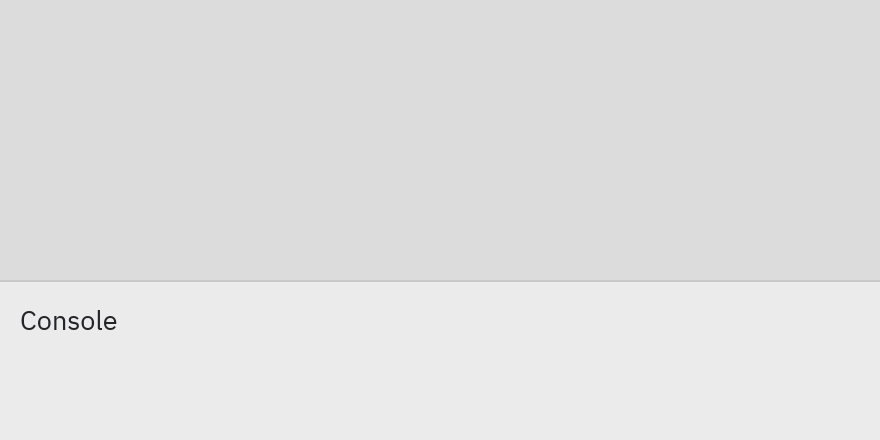

edge="top"

Code

t = pz.theme.current()
pz.column([pz.container(height="fill"), pz.resizable(pz.container(ui.label("Console"), padding=10, width="fill",
           height="fill", bg=t.panel), edge="top", size=80, color=t.border)], width="fill")

Events

Resizable has 1 event of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Handler gets	When
on_resize	(size)	Called with the new size when a drag ends.

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

class Mail(pz.App):
    def __init__(self):
        self.width = 260

    def view(self):
        return pz.row([
            pz.resizable(ui.muted(f"{self.width:.0f} px"), edge="right", size=self.width, min_size=160,
                         on_resize=lambda size: setattr(self, "width", size)),   # when the drag ends
            main_view(),
        ], height="fill")

Declarative

from dataclasses import dataclass


@dataclass
class Width:
    size: float


class Mail(pz.App):
    width = 260

    def update(self, message):
        match message:
            case Width(size):
                self.width = size

    def view(self):
        return pz.row([pz.resizable(ui.muted("Folders"), size=self.width, on_resize=Width), main_view()],
                      height="fill")

Functional

from dataclasses import dataclass


@dataclass(frozen=True)
class State:
    width: float = 260


def view(state, set_state):
    return pz.row([pz.resizable(ui.muted("Folders"), size=state.width,
                                on_resize=lambda size: set_state(width=size)), main_view()], height="fill")

Properties and API

pz.resizable

resizable(
    content,
    *,
    edge='right',
    size=240.0,
    min_size=80.0,
    max_size=None,
    on_resize=None,
    color=None,
    hover_color=None,
    thickness=1.0,
    handle=8.0,
    width=None,
    height=None,
)

A panel whose edge can be dragged to resize it. It keeps the size the user drags it to; on_resize(size) is called when a drag ends so you can save it. Changing size later resets it.

Property	Default	Description
content	required	The panel’s content.
edge	"right"	The edge with the handle: "right" (a left sidebar), "left", "top" (a bottom panel) or "bottom".
size	240.0	Starting width (height for top/bottom edges).
min_size	80.0	Smallest size.
max_size	None	Largest size.
color	None	Line color.
hover_color	None	Line color while hovered or dragged.
thickness	1.0	Line thickness.
handle	8.0	Width of the area that can be grabbed.
width	None	Width for top/bottom edges.
height	None	Height for left/right edges.

Events: on_resize (events).

Full reference →
