Reference browser

In plain words

A help window with the documentation inside the app, searchable and offline.

The built-in reference: a searchable class list (the library, your components and any section you reference.register) next to the page that is open, with back and forward, internal links and an Open online button. Keep a pyzed.reference.Browser in your state; the browser changes it. Links that leave the reference go to on_open_url. See Built-in reference.

ui.reference_browser · Category: Code and tools · Full reference →

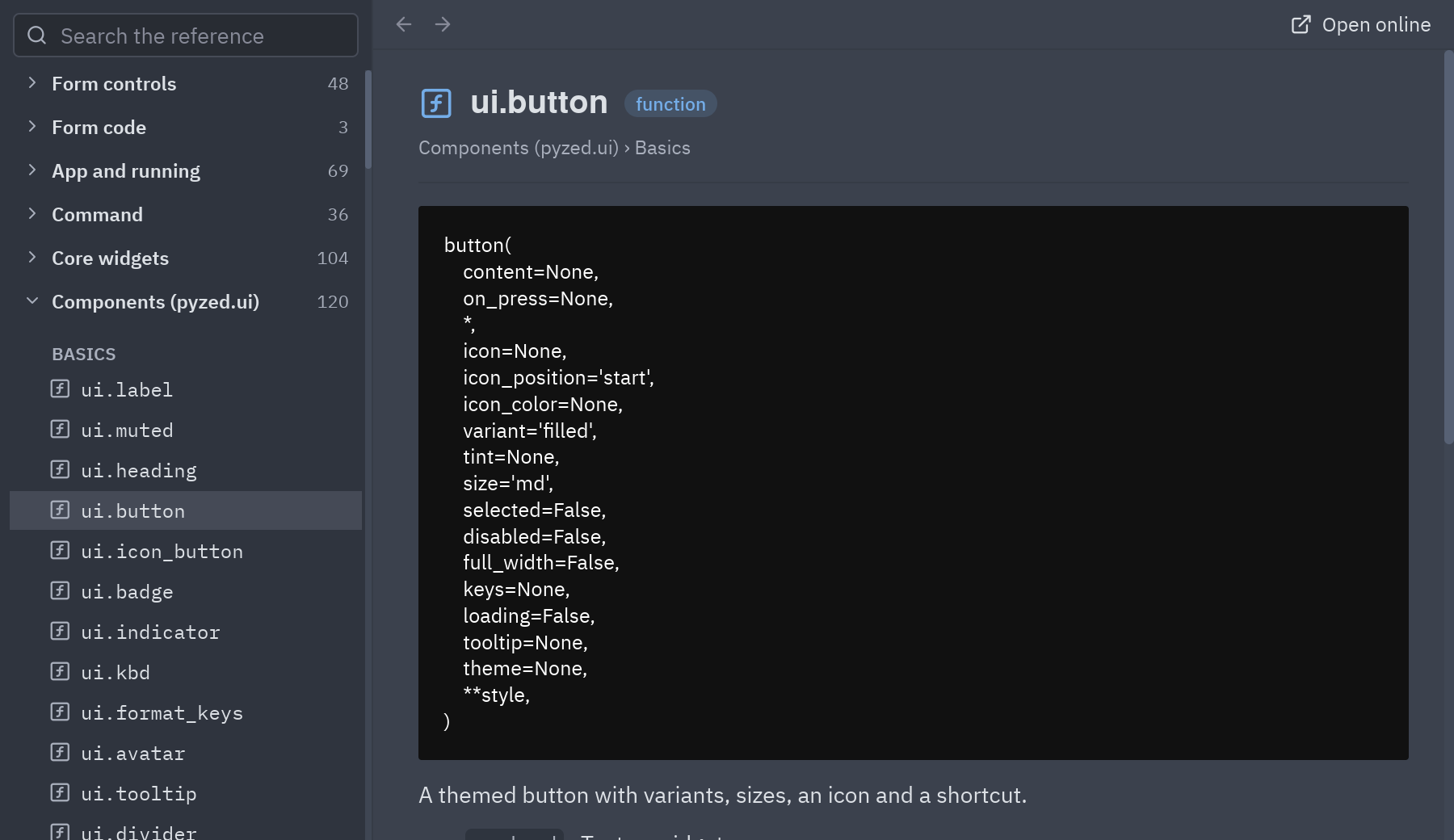

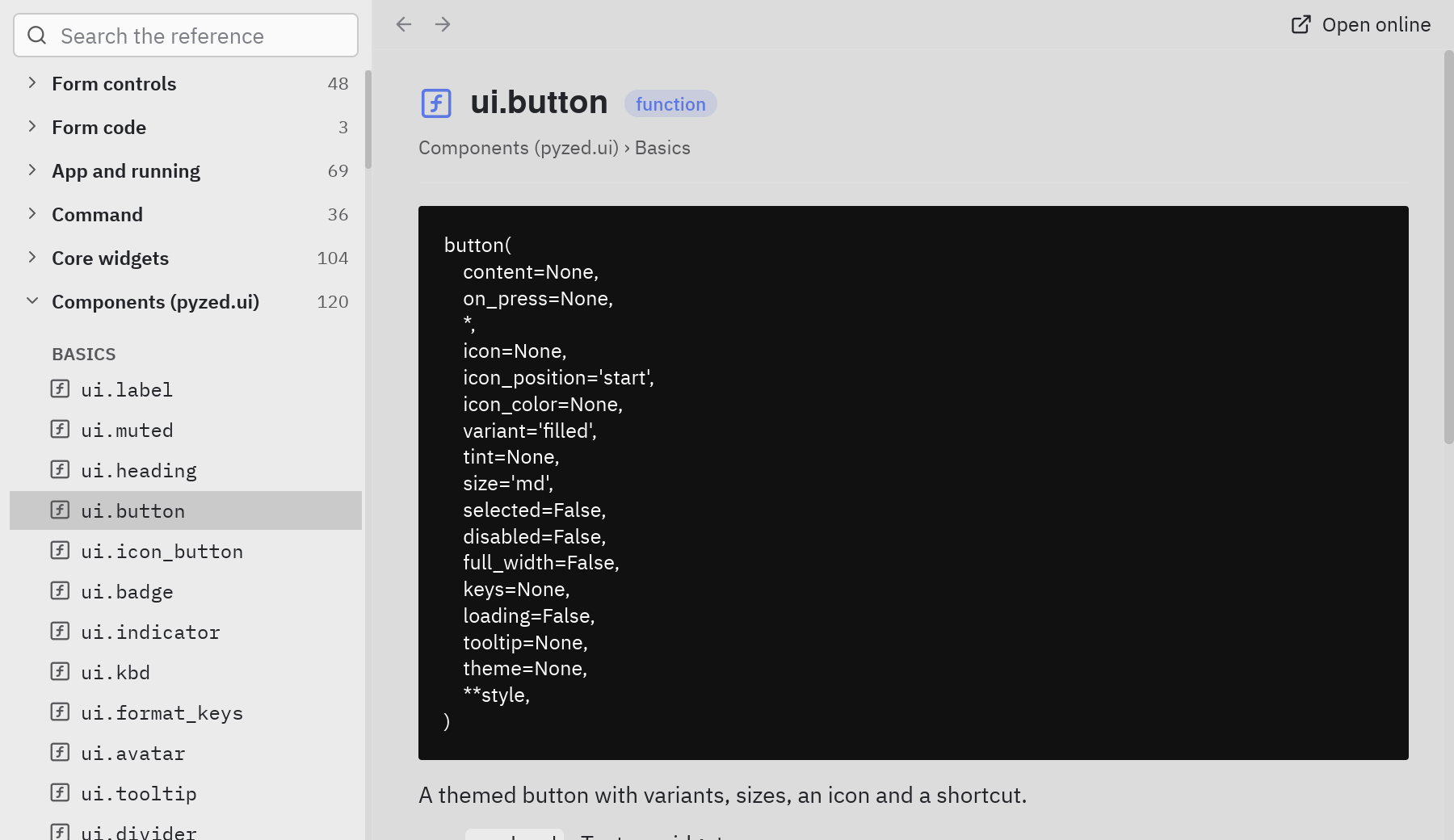

Preview

Code

from pyzed import reference

help = reference.Browser("pyzed.ui.button")
ui.reference_browser(help, on_open_url=open_in_browser, sidebar_width=230)

When to use

• In a Help tab or window of an app built on Pyzed, so its users can read the API offline.
• With your own reference.Provider sections, as your app’s help.

Usage

from pyzed import ui

from pyzed import reference

help = reference.Browser("pyzed.ui.button")
ui.reference_browser(help, on_open_url=open_in_browser, sidebar_width=230)

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Pages

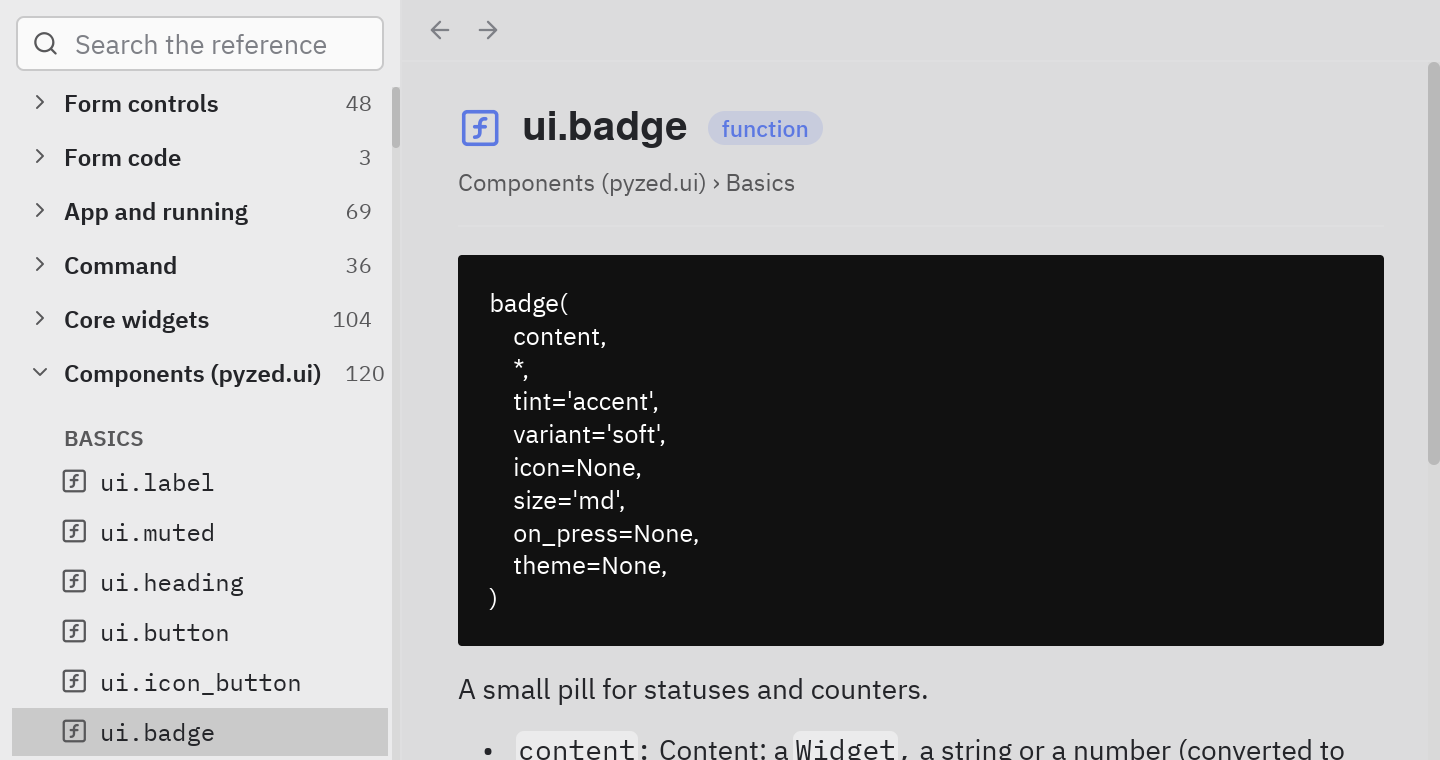

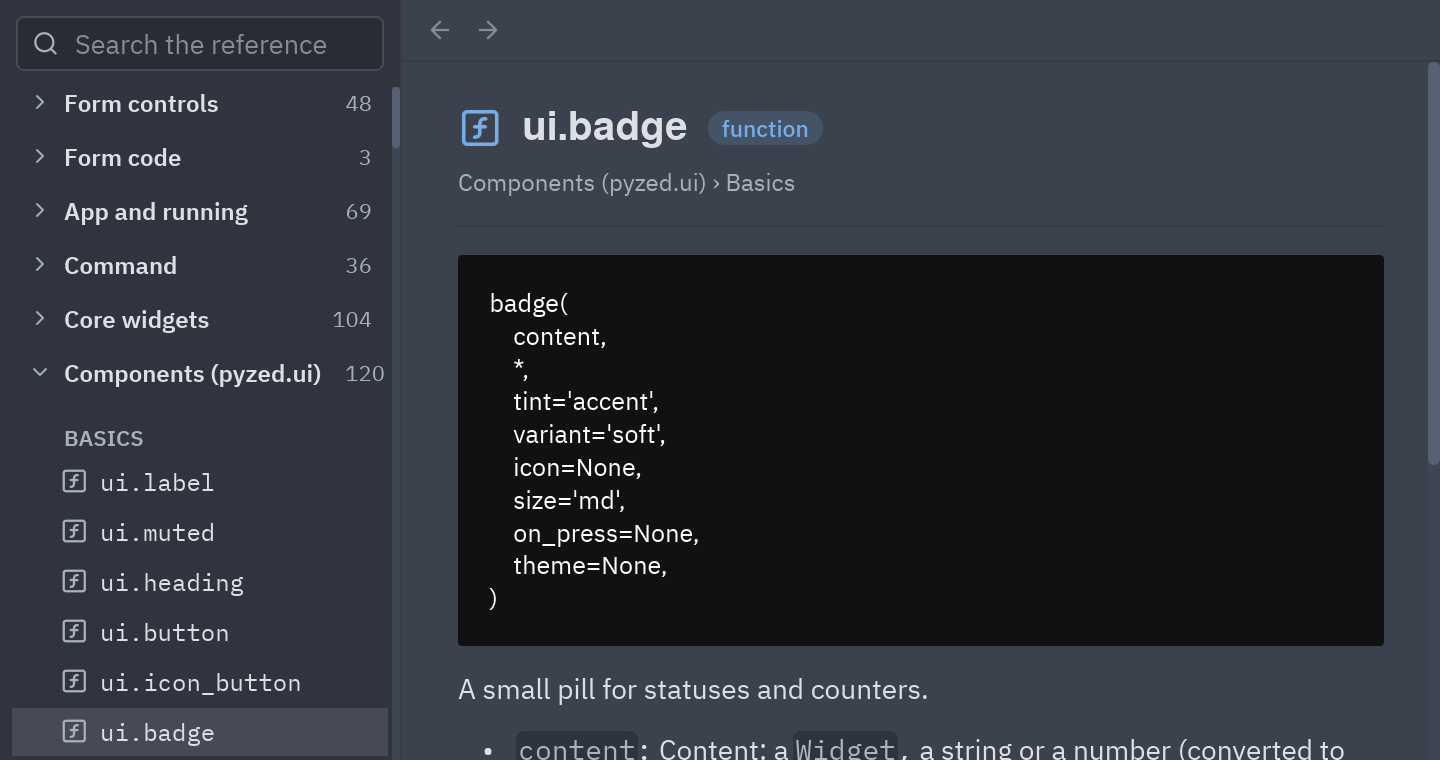

A component

Code

from pyzed import reference

ui.reference_browser(reference.Browser("pyzed.ui.badge"), sidebar_width=200)

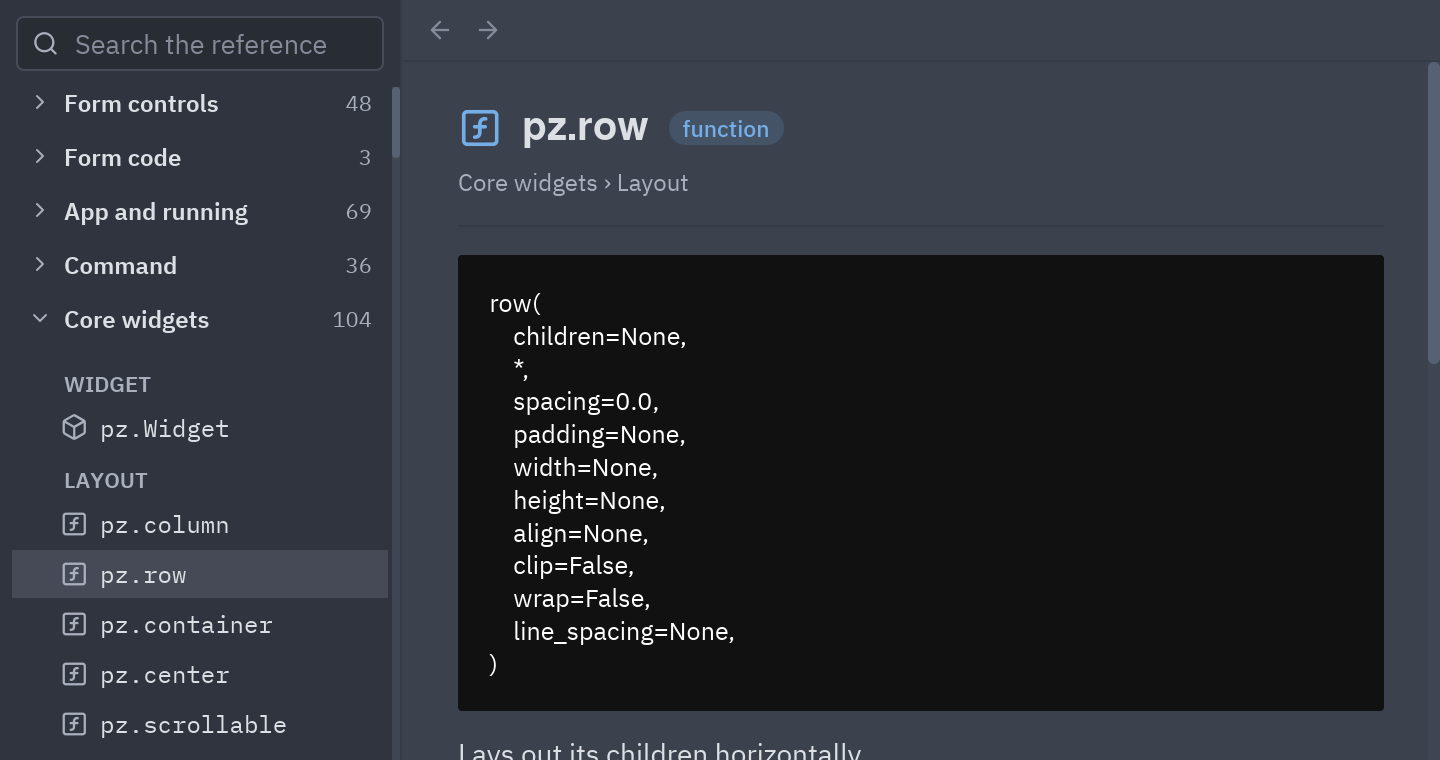

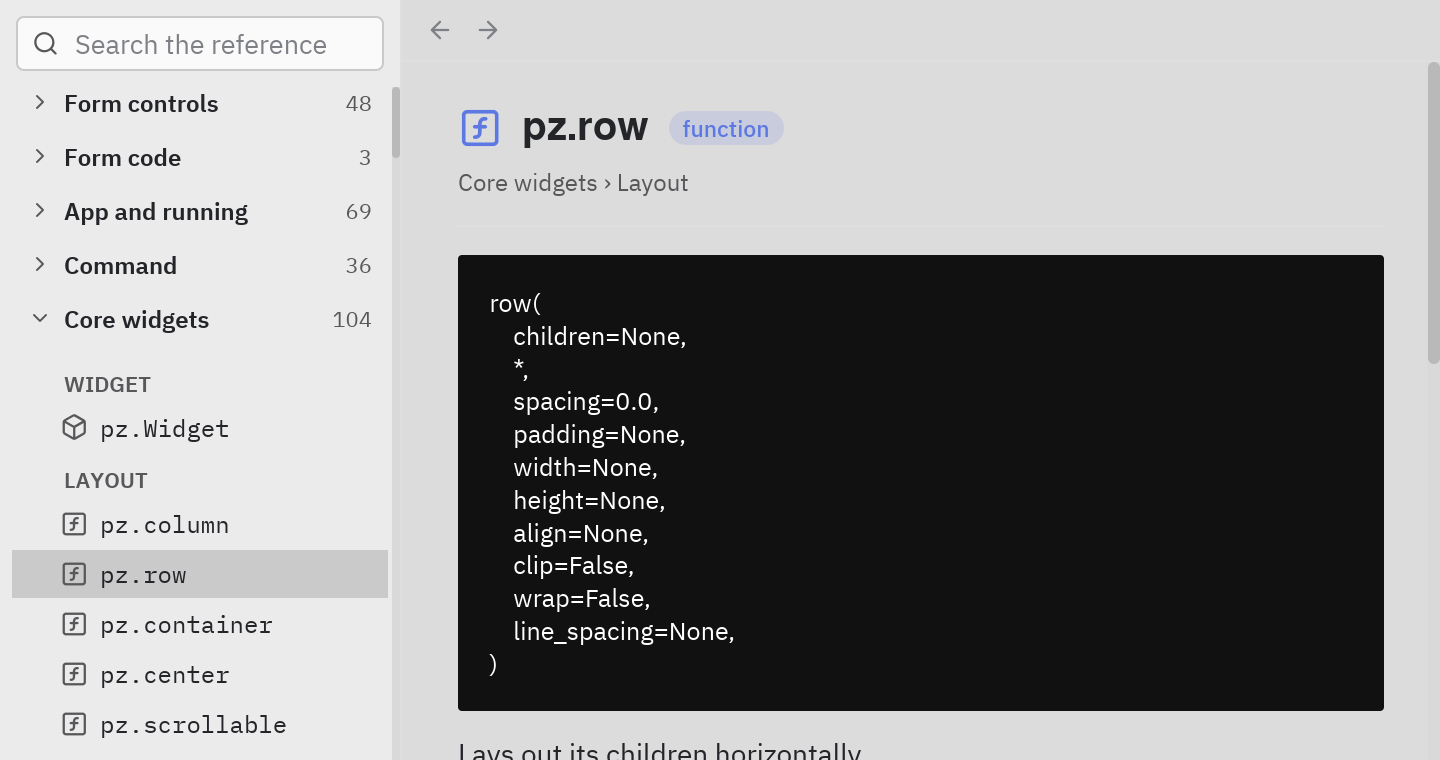

A layout widget

Code

from pyzed import reference

ui.reference_browser(reference.Browser("pyzed.row"), sidebar_width=200)

Events

Reference browser has 1 event of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Handler gets	When
on_open_url	(url)	Called with the URL of a link that leaves the reference (open it in the browser).

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

import webbrowser

from pyzed import reference


class Help(pz.App):
    def __init__(self):
        self.browser = reference.Browser("pyzed.ui.button")

    def view(self):
        return ui.reference_browser(self.browser, on_open_url=webbrowser.open)   # links to the web

Declarative

from dataclasses import dataclass

from pyzed import reference


@dataclass
class OpenUrl:
    url: str


class Help(pz.App):
    browser = reference.Browser("pyzed.ui.button")

    def update(self, message):
        match message:
            case OpenUrl(url):
                print("open", url)

    def view(self):
        return ui.reference_browser(self.browser, on_open_url=OpenUrl)

Functional

from dataclasses import dataclass

from pyzed import reference

BROWSER = reference.Browser("pyzed.ui.button")


@dataclass(frozen=True)
class State:
    last_url: str = ""


def view(state, set_state):
    return ui.reference_browser(BROWSER, on_open_url=lambda url: set_state(last_url=url))

Properties and API

ui.reference_browser

reference_browser(
    browser,
    *,
    on_open_url=None,
    sidebar_width=270,
    width='fill',
    height='fill',
    theme=None,
)

The built-in reference, like Godot’s: a searchable class list next to the page that is open.

Events: on_open_url (events).

Full reference →
