Popover

In plain words

A small floating box that appears next to where you clicked, like a right-click menu.

Shows content (a menu, a card…) over base at (x, y). Clicking anywhere else calls on_dismiss; with content=None only base is shown. For a right-click menu, store the pointer position with pz.mouse_area(on_move=...) and open it from on_right_press.

ui.popover · Category: Overlays · Full reference →

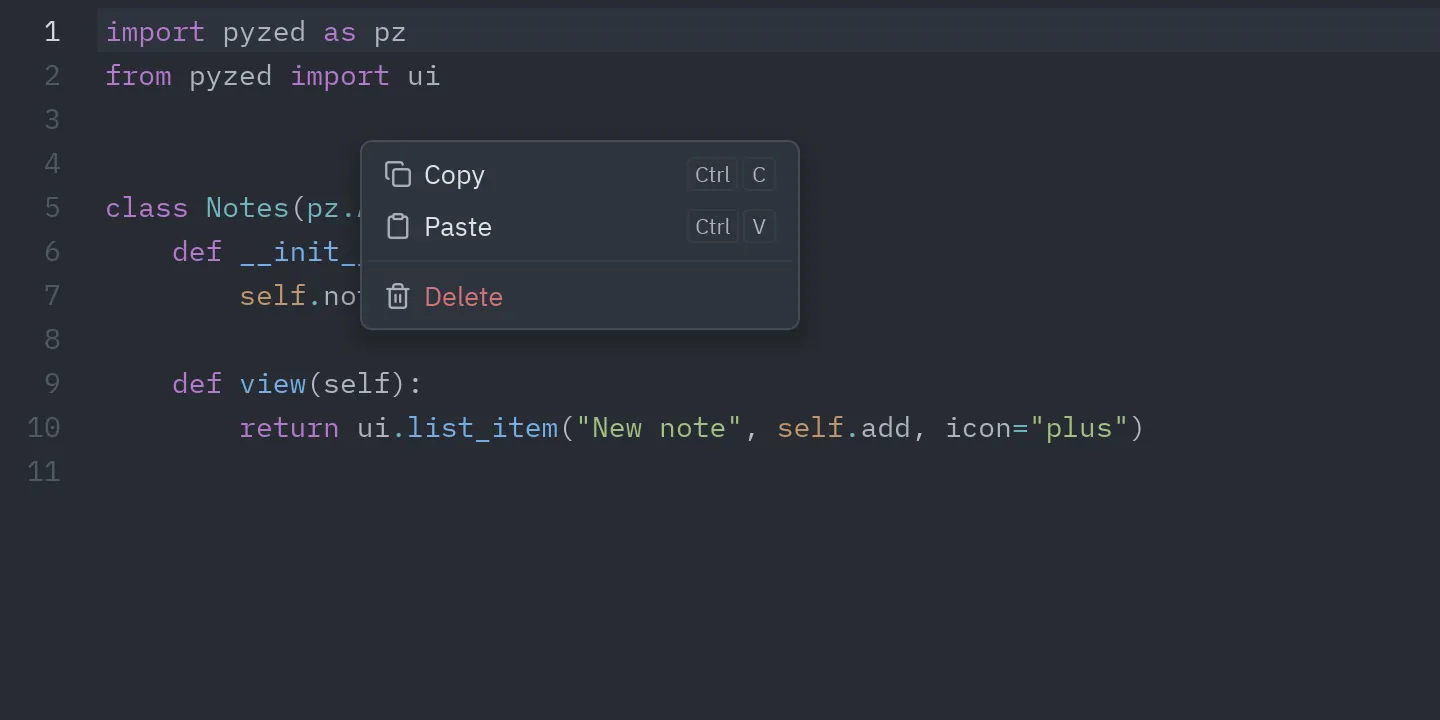

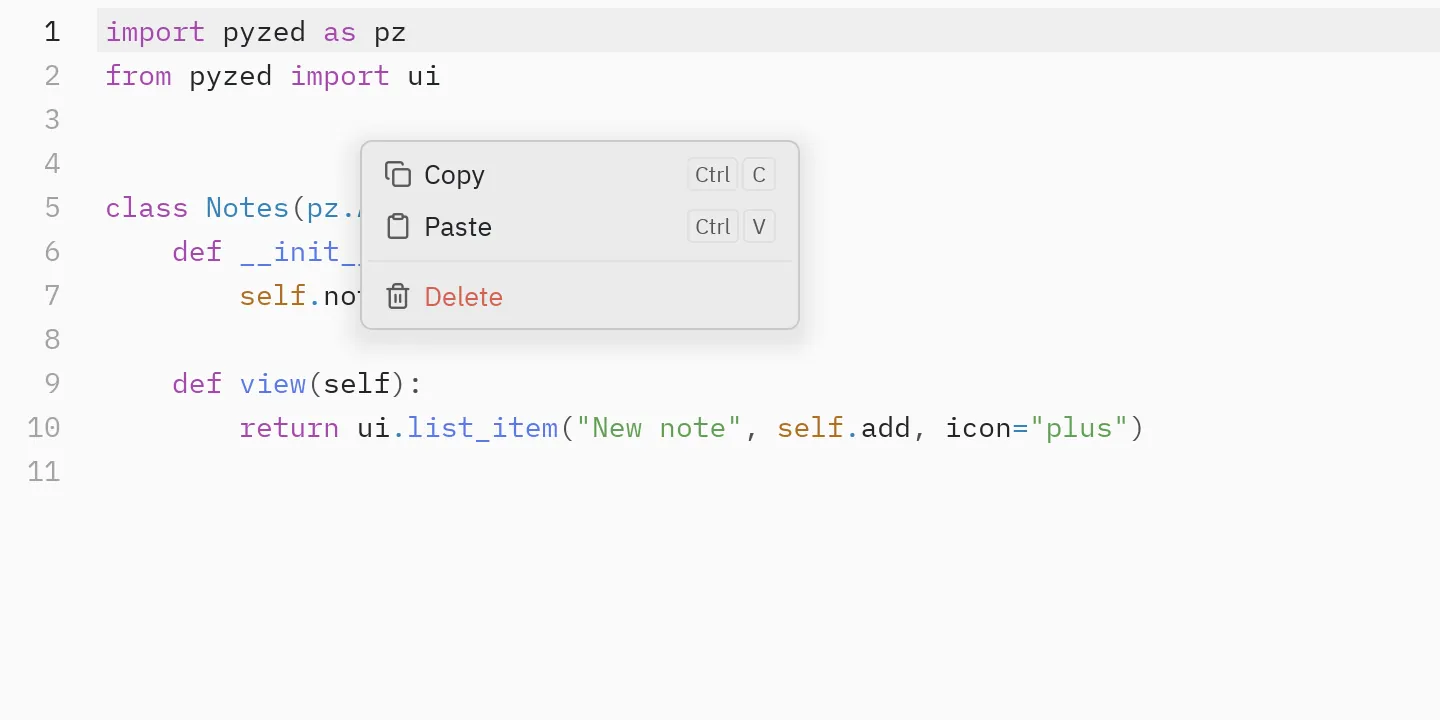

Preview

Code

ui.popover(
    main_view(),
    ui.menu([
        ui.MenuItem("Copy", on_copy, icon="copy", keys="ctrl-c"),
        ui.MenuItem("Paste", on_paste, icon="clipboard", keys="ctrl-v"),
        ui.SEPARATOR,
        ui.MenuItem("Delete", on_delete, icon="trash-2", danger=True),
    ], width=220),
    x=180, y=70, on_dismiss=on_close,
)

When to use

• For context menus, dropdown panels and pickers anchored to a point or a button.

Usage

import pyzed as pz
from pyzed import ui

class Canvas(pz.App):
    def __init__(self):
        self.pointer, self.menu_at = (0, 0), None

    def view(self):
        base = pz.mouse_area(self.content(), on_move=lambda x, y: setattr(self, "pointer", (x, y)),
                             on_right_press=lambda: setattr(self, "menu_at", self.pointer))
        menu = ui.menu([ui.MenuItem("Copy", self.copy), ui.MenuItem("Paste", self.paste)])
        x, y = self.menu_at or (0, 0)
        return ui.popover(base, menu if self.menu_at else None, x=x, y=y,
                          on_dismiss=lambda: setattr(self, "menu_at", None))

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Content

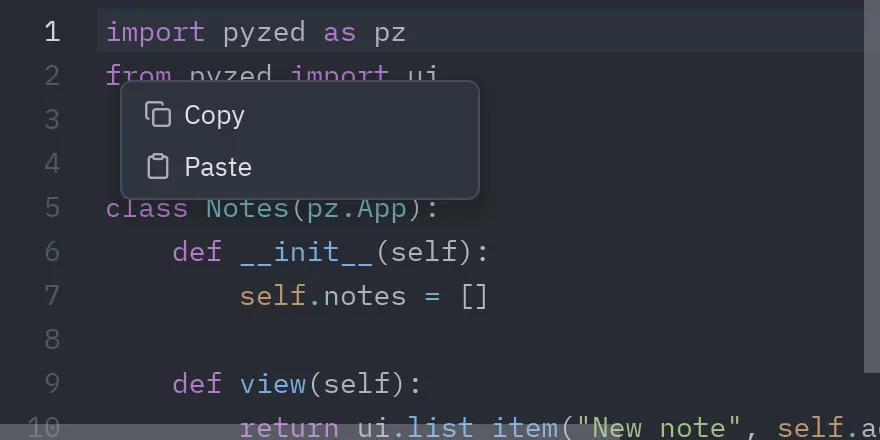

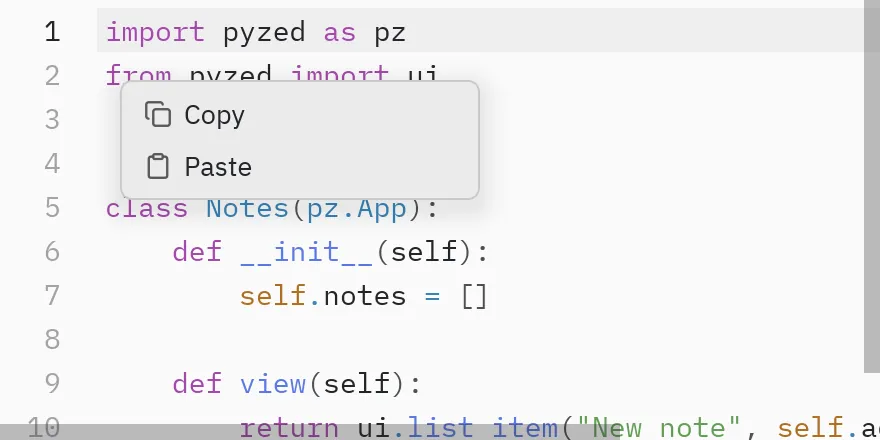

A menu

Code

ui.popover(main_view(), ui.menu([ui.MenuItem("Copy", on_copy, icon="copy"),
                                    ui.MenuItem("Paste", on_paste, icon="clipboard")], width=180),
           x=60, y=40, on_dismiss=on_close)

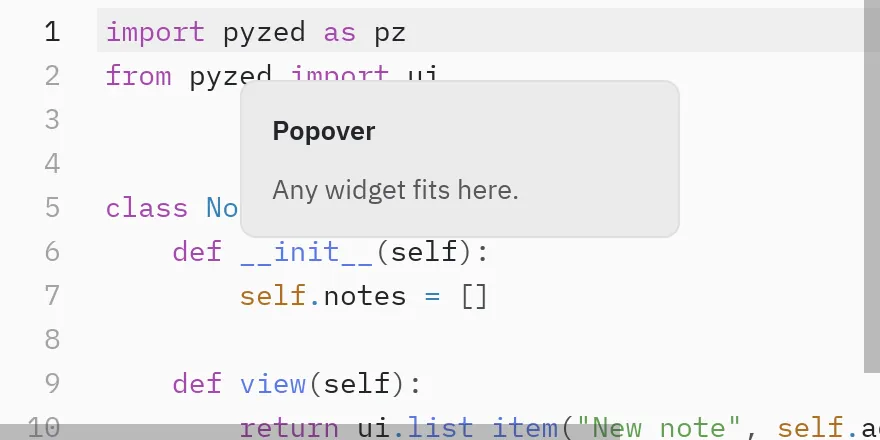

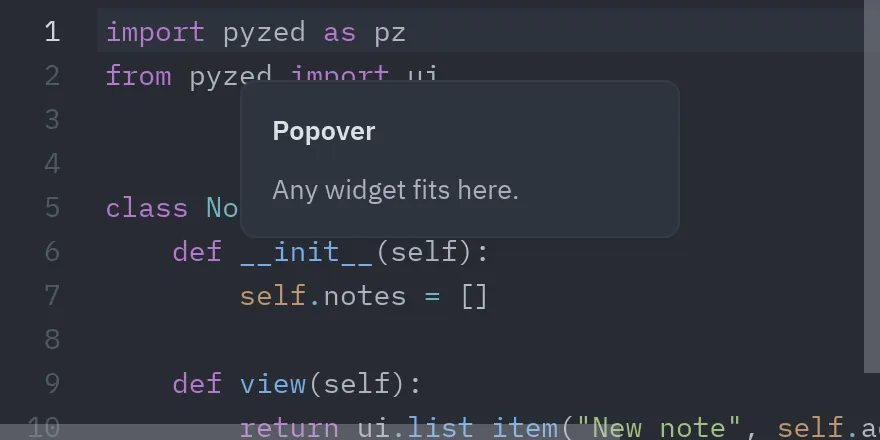

A card

Code

ui.popover(main_view(), ui.card(ui.muted("Any widget fits here."), title="Popover", width=220),
           x=120, y=40, on_dismiss=on_close)

Events

Popover has 1 event of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Handler gets	When
on_dismiss	()	Message or callable sent on close.

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

class Canvas(pz.App):
    def __init__(self):
        self.pointer, self.menu_at = (0, 0), None

    def view(self):
        base = pz.mouse_area(main_view(), on_move=lambda x, y: setattr(self, "pointer", (x, y)),
                             on_right_press=lambda: setattr(self, "menu_at", self.pointer))
        menu = ui.menu([ui.MenuItem("Copy", lambda: setattr(self, "menu_at", None))])
        x, y = self.menu_at or (0, 0)
        return ui.popover(base, menu if self.menu_at else None, x=x, y=y,
                          on_dismiss=lambda: setattr(self, "menu_at", None))   # click outside

Declarative

from dataclasses import dataclass


@dataclass
class MenuAt:
    x: float
    y: float


class Canvas(pz.App):
    menu_at = None

    def update(self, message):
        match message:
            case MenuAt(x, y):
                self.menu_at = (x, y)
            case "close":
                self.menu_at = None

    def view(self):
        base = pz.canvas([], width=400, height=200, on_right_press=MenuAt)
        x, y = self.menu_at or (0, 0)
        return ui.popover(base, ui.menu([ui.MenuItem("Copy", "close")]) if self.menu_at else None,
                          x=x, y=y, on_dismiss="close")

Functional

from dataclasses import dataclass


@dataclass(frozen=True)
class State:
    menu_at: tuple = ()


def view(state, set_state):
    base = pz.canvas([], width=400, height=200, on_right_press=lambda x, y: set_state(menu_at=(x, y)))
    menu = ui.menu([ui.MenuItem("Copy", lambda: set_state(menu_at=()))]) if state.menu_at else None
    x, y = state.menu_at or (0, 0)
    return ui.popover(base, menu, x=x, y=y, on_dismiss=lambda: set_state(menu_at=()))

Properties and API

ui.popover

popover(base, content=None, *, x=0, y=0, on_dismiss=None, align_x='start')

Shows content (a ui.menu, a card…) over base at (x, y). Clicking anywhere else calls on_dismiss. For a right-click menu, store the mouse position with mouse_area(on_move=...) and open the popover from on_right_press (see examples/context_menu.py).

Property	Default	Description
base	required	The UI underneath.
content	None	What floats (or None).
x	0	Horizontal position.
y	0	Vertical position.
align_x	"start"	Horizontal alignment: "start"/"left", "center", "end"/"right".

Events: on_dismiss (events).

Full reference →
