Plan

In plain words

A to-do list an AI assistant writes for itself and ticks off as it works.

ui.Plan is a component that shows an AI agent’s plan as a checklist: each step is pending (an empty circle), in progress (a dot, or a spinner with running=True) or done (a green check, with its text dimmed), and the header counts done/total. Clicking the header folds and unfolds the steps. steps are dicts with step (the text) and status: "pending", "in_progress" or "done".

ui.Plan · Category: AI agents · Full reference →

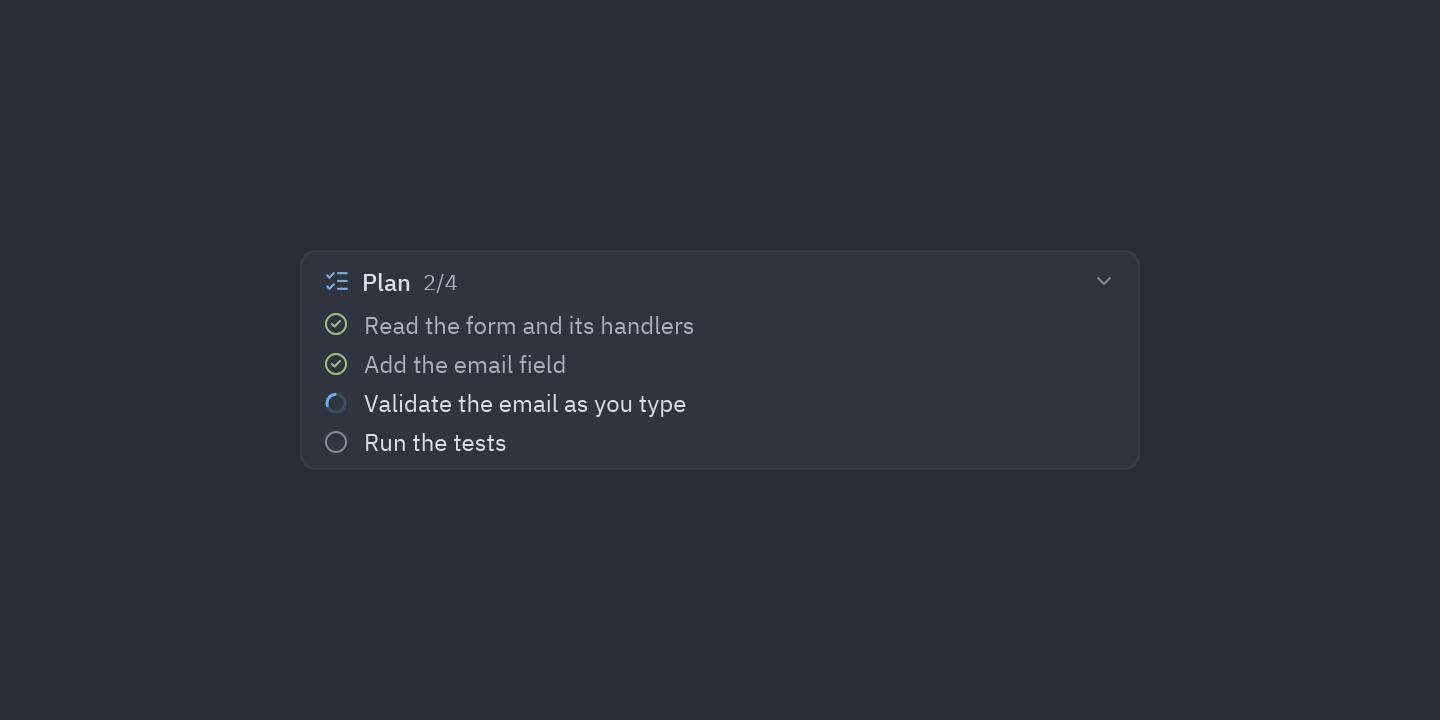

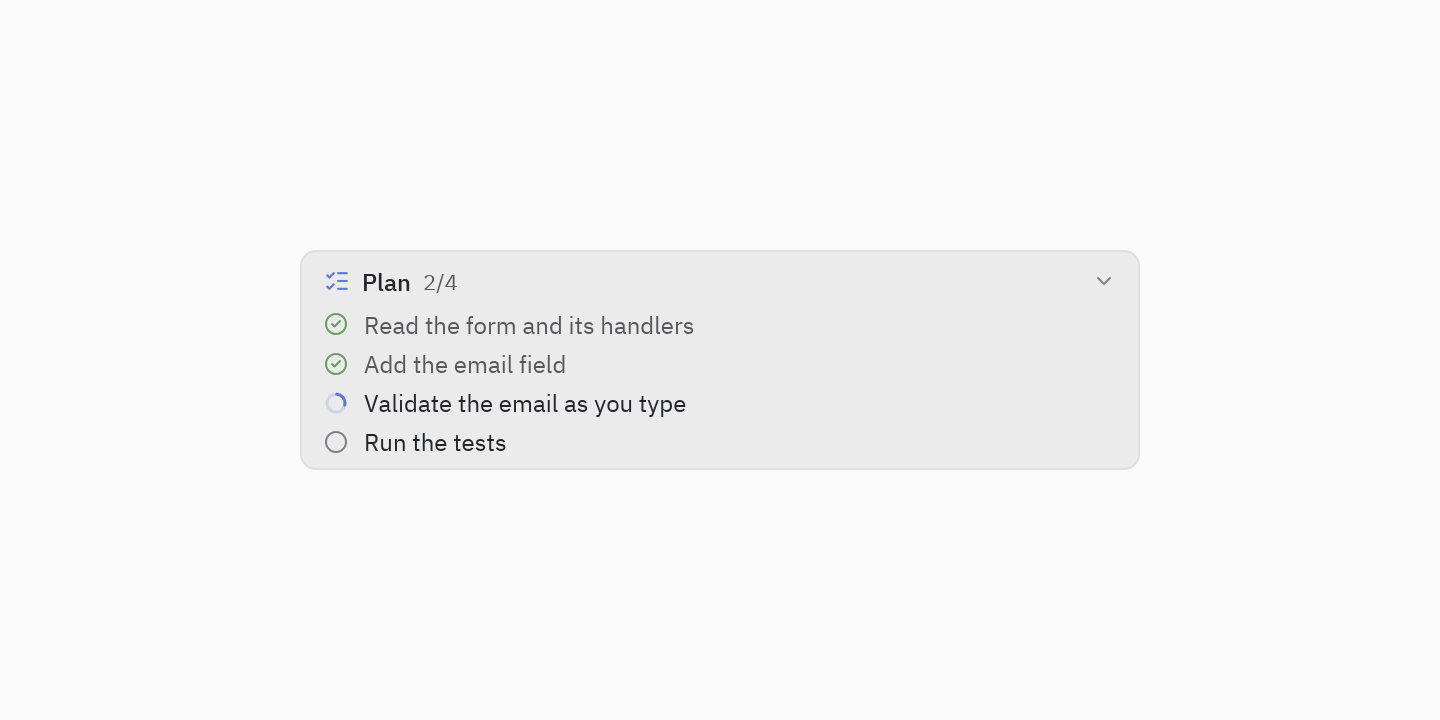

Preview

Code

pz.container(ui.Plan(steps=[
    {"step": "Read the form and its handlers", "status": "done"},
    {"step": "Add the email field", "status": "done"},
    {"step": "Validate the email as you type", "status": "in_progress"},
    {"step": "Run the tests", "status": "pending"},
], running=True), width=420)

New

This component was added recently. Tell us how it works for you in the issue tracker.

When to use

• Above an agent’s chat, while it works through a task of several steps.
• For any list of steps that updates as the work goes on, such as an install or a migration.

Usage

import pyzed as pz
from pyzed import ui

class Agent(pz.App):
    def __init__(self):
        self.steps = [{"step": "Add the form", "status": "done"},
                      {"step": "Wire the events", "status": "in_progress"}]
        self.working = True

    def view(self):
        return ui.Plan(steps=self.steps, running=self.working)

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

State

Without running the step in progress shows a dot; folded is drawn as after a click on the header.

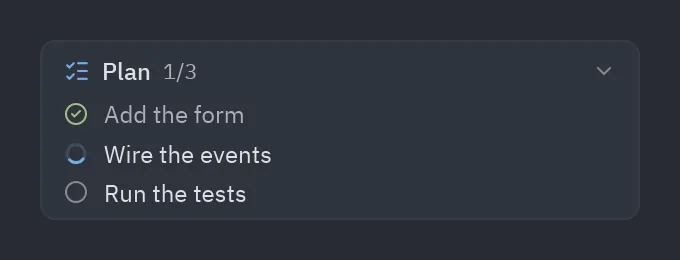

running=True

Code

pz.container(ui.Plan(steps=[{"step": "Add the form", "status": "done"},
                         {"step": "Wire the events", "status": "in_progress"},
                         {"step": "Run the tests", "status": "pending"}],
                  running=True), width=300)

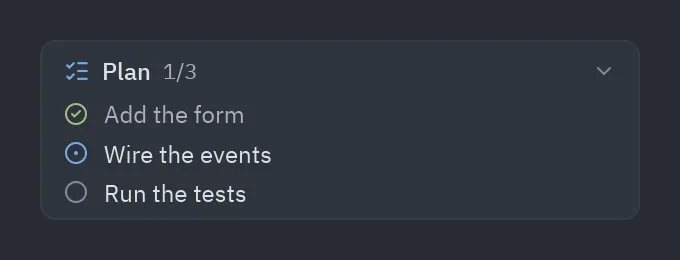

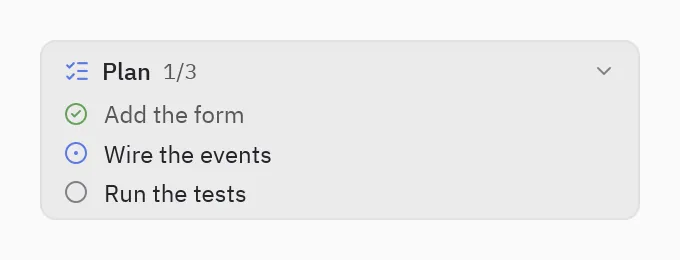

running=False

Code

pz.container(ui.Plan(steps=[{"step": "Add the form", "status": "done"},
                         {"step": "Wire the events", "status": "in_progress"},
                         {"step": "Run the tests", "status": "pending"}]), width=300)

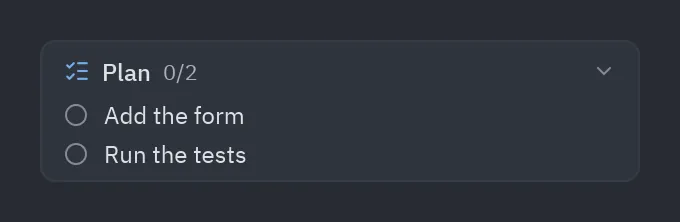

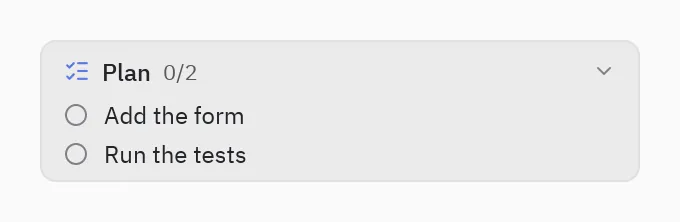

All pending

Code

pz.container(ui.Plan(steps=[{"step": "Add the form", "status": "pending"},
                         {"step": "Run the tests", "status": "pending"}]), width=300)

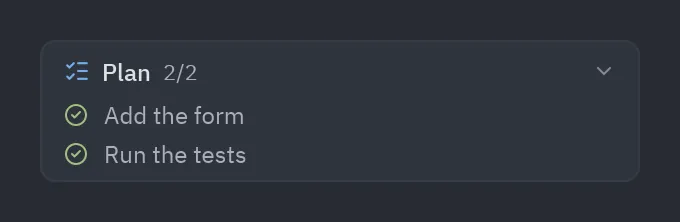

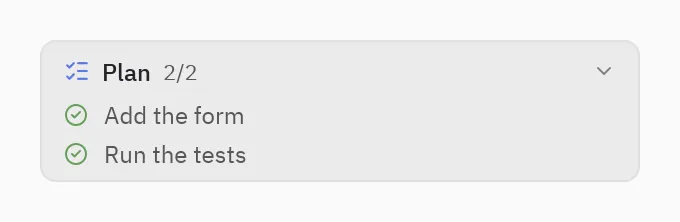

All done

Code

pz.container(ui.Plan(steps=[{"step": "Add the form", "status": "done"},
                         {"step": "Run the tests", "status": "done"}]), width=300)

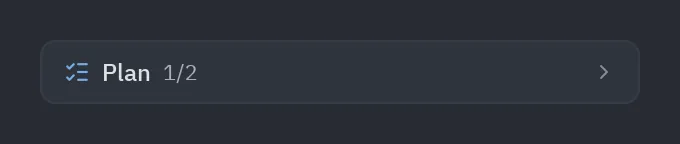

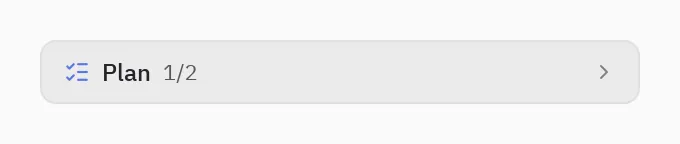

Folded

Code

pz.container(ui.Plan(steps=[{"step": "Add the form", "status": "done"},
                         {"step": "Run the tests", "status": "pending"}]), width=300)

Events

Plan has no events of its own: it shows what you give it. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

It is a pz.Component, so it also raises on_mount and on_unmount, and its handlers get a pz.Event whose value holds the data.

Properties and API

ui.Plan

class Plan

A component for an agent’s plan: a checklist with done/total in its header, which folds it.

Property	Default	Description
steps	None	{"step": text, "status": "pending" | "in_progress" | "done"} dicts.
running	False	Spins the step in progress.
theme	None	Theme.

Full reference →
