Split button

In plain words

A button with two parts: the big part does the usual thing, the little arrow shows other ways to do it.

A button with a separate chevron on the right. on_press runs the main action and on_menu usually opens a ui.menu inside a ui.popover with the alternatives.

ui.split_button · Category: Actions · Full reference →

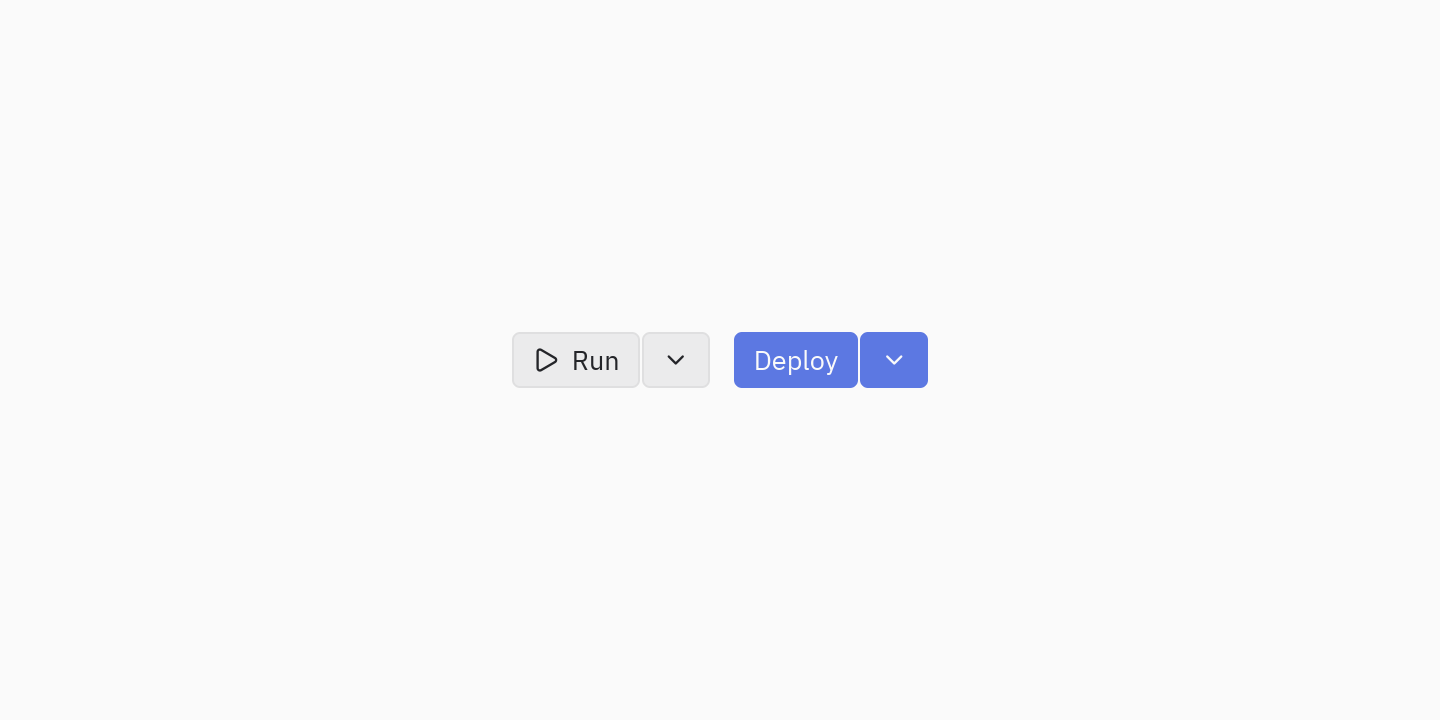

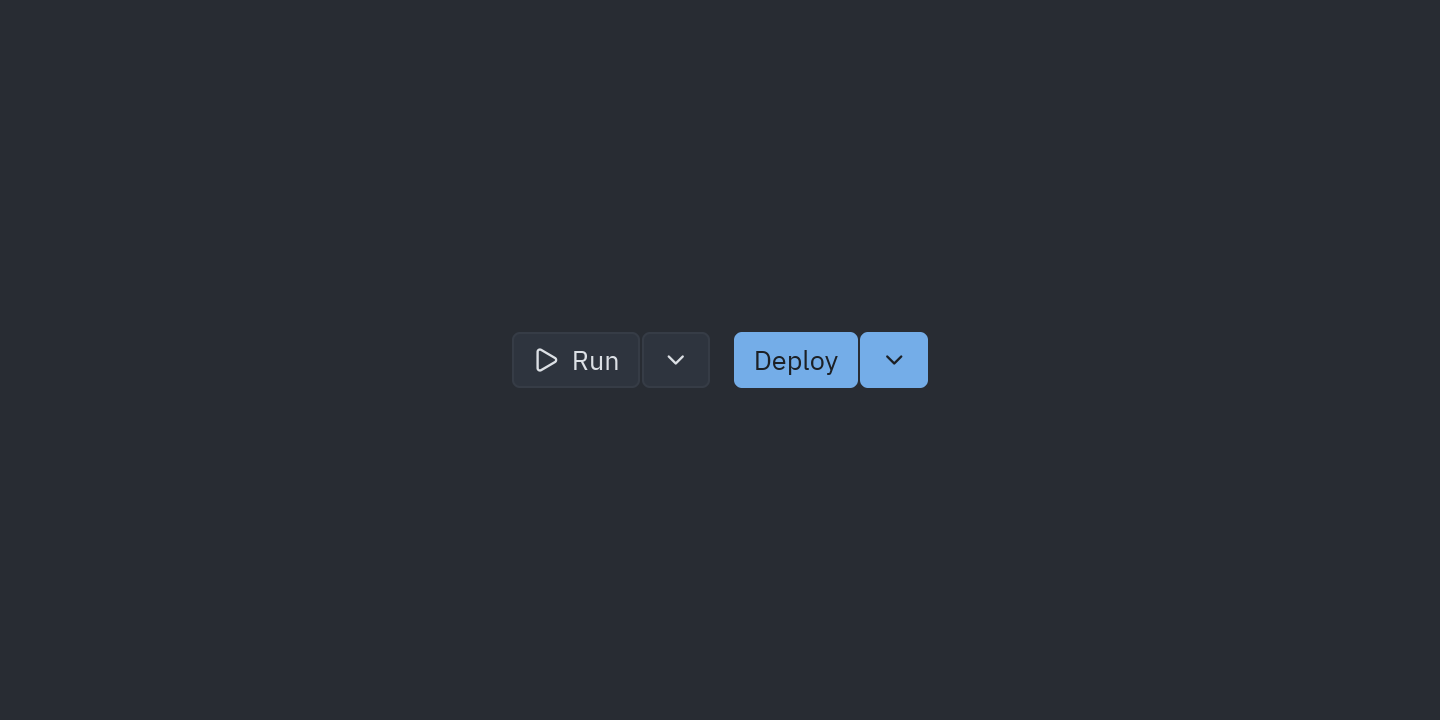

Preview

Code

pz.row([
    ui.split_button("Run", on_run, on_menu, icon="play"),
    ui.split_button("Deploy", on_deploy, on_menu, variant="solid"),
], spacing=12)

When to use

• When one action is the usual one but there are a few variations (Run / Run with arguments).
• Avoid it when the options are equally important: use a Select.

Usage

import pyzed as pz
from pyzed import ui

class Runner(pz.App):
    def __init__(self):
        self.menu_open = False

    def view(self):
        button = ui.split_button("Run", self.run, lambda: setattr(self, "menu_open", True), icon="play")
        menu = ui.menu([ui.MenuItem("Run with arguments…", self.run_args),
                        ui.MenuItem("Debug", self.debug, icon="bug")]) if self.menu_open else None
        return ui.popover(button, menu, y=32, on_dismiss=lambda: setattr(self, "menu_open", False))

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Variant

variant="filled"

Code

ui.split_button("Run", on_run, on_menu, icon="play")

variant="ghost"

Code

ui.split_button("Run", on_run, on_menu, icon="play", variant="ghost")

variant="outline"

Code

ui.split_button("Run", on_run, on_menu, icon="play", variant="outline")

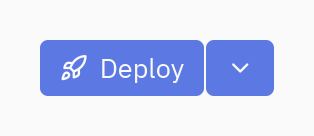

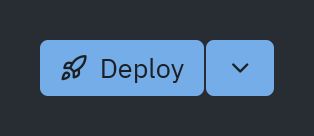

variant="solid"

Code

ui.split_button("Deploy", on_deploy, on_menu, icon="rocket", variant="solid")

Size

size="sm"

Code

ui.split_button("Build", on_build, on_menu, size="sm")

size="md"

Code

ui.split_button("Build", on_build, on_menu, size="md")

size="lg"

Code

ui.split_button("Build", on_build, on_menu, size="lg")

Content

Text only

Code

ui.split_button("Merge", on_merge, on_menu)

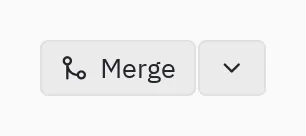

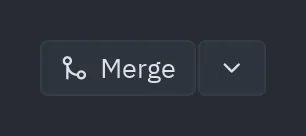

icon="git-merge"

Code

ui.split_button("Merge", on_merge, on_menu, icon="git-merge")

States and events

tint="success"

Code

ui.split_button("Deploy", on_press, on_menu, tint="success")

disabled=True

Code

ui.split_button("Run", on_press, on_menu, disabled=True)

Events

Split button has 2 events of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Handler gets	When
on_press	()	Message or callable sent on press. None disables the control.
on_menu	()	Message or callable for the menu button.

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

class Runner(pz.App):
    def __init__(self):
        self.menu_open = False
        self.last = "nothing yet"

    def run(self, how="run"):
        self.last, self.menu_open = how, False

    def view(self):
        button = ui.split_button("Run", self.run,                     # on_press: the main action
                                 lambda: setattr(self, "menu_open", True),   # on_menu: the arrow
                                 icon="play")
        menu = ui.menu([ui.MenuItem("Debug", lambda: self.run("debug"), icon="bug")])
        return pz.column([
            ui.popover(button, menu if self.menu_open else None, y=32,
                       on_dismiss=lambda: setattr(self, "menu_open", False)),
            ui.label(f"Last: {self.last}"),
        ], spacing=8)

Declarative

from dataclasses import dataclass


@dataclass
class Run:
    how: str = "run"


class Runner(pz.App):
    menu_open = False
    last = "nothing yet"

    def update(self, message):
        match message:
            case Run(how):
                self.last, self.menu_open = how, False
            case "menu":
                self.menu_open = True
            case "dismiss":
                self.menu_open = False

    def view(self):
        menu = ui.menu([ui.MenuItem("Debug", Run("debug"), icon="bug")])
        return ui.popover(ui.split_button("Run", Run(), "menu", icon="play"),
                          menu if self.menu_open else None, y=32, on_dismiss="dismiss")

Functional

from dataclasses import dataclass


@dataclass(frozen=True)
class State:
    menu_open: bool = False
    last: str = "nothing yet"


def view(state, set_state):
    run = lambda how: set_state(last=how, menu_open=False)
    menu = ui.menu([ui.MenuItem("Debug", lambda: run("debug"), icon="bug")])
    return ui.popover(
        ui.split_button("Run", lambda: run("run"), lambda: set_state(menu_open=True), icon="play"),
        menu if state.menu_open else None, y=32, on_dismiss=lambda: set_state(menu_open=False))

Properties and API

ui.split_button

split_button(
    content,
    on_press=None,
    on_menu=None,
    *,
    icon=None,
    variant='filled',
    tint=None,
    size='md',
    disabled=False,
    tooltip=None,
    theme=None,
)

A button with a separate arrow for more options. on_press runs the main action and on_menu usually opens a ui.menu in a ui.popover.

Property	Default	Description
content	required	Button text.
icon	None	Name of a Lucide icon (pyzed icons lists them).
variant	"filled"	As in ui.button.
tint	None	As in ui.button.
size	"md"	"xs", "sm", "md" or "lg".
disabled	False	Disables both halves.
tooltip	None	Tooltip of the main half.
theme	None	Theme to use instead of the current one (pyzed.theme.current()).

Events: on_press, on_menu (events).

Full reference →
