Table

In plain words

Rows and columns of data, like a spreadsheet you can sort by clicking a column.

A data table with a fixed header, optional sorting and row selection. Columns are ui.Column objects whose key is a dict key, an attribute name or a function of the row; render turns a value into any widget. The table sorts the rows itself by the column whose title is sort_by: you only store that title and the direction.

ui.table · Category: Data · Full reference →

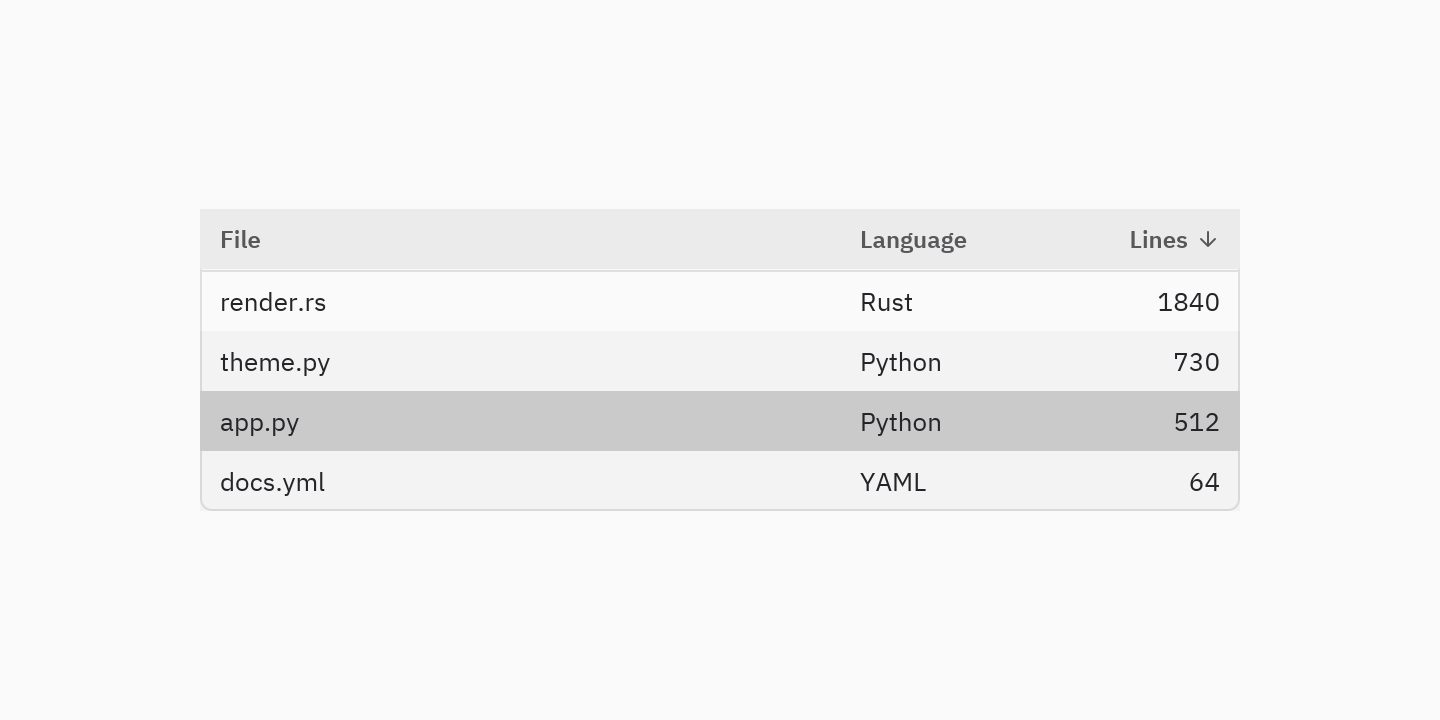

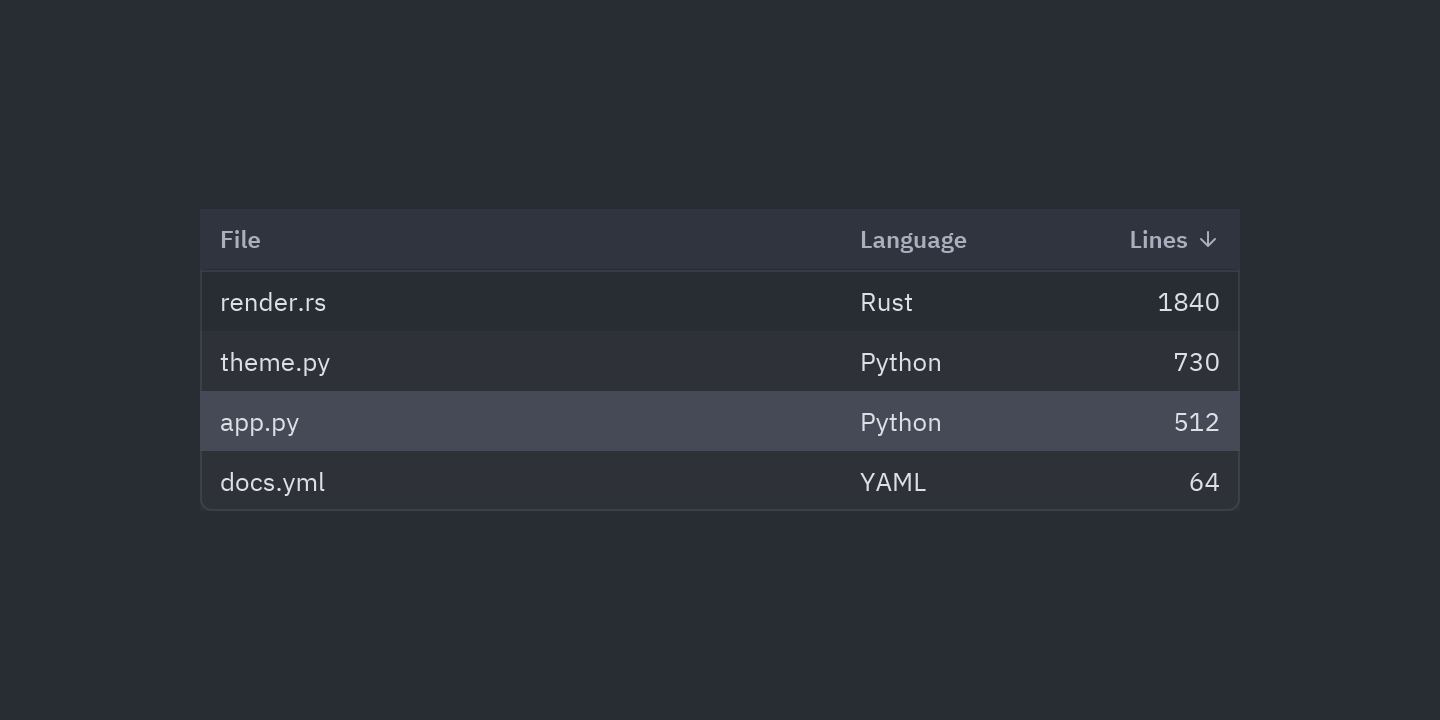

Preview

Code

rows = [
    {"name": "render.rs", "lang": "Rust", "lines": 1840},
    {"name": "app.py", "lang": "Python", "lines": 512},
    {"name": "theme.py", "lang": "Python", "lines": 730},
    {"name": "docs.yml", "lang": "YAML", "lines": 64},
]
pz.container(ui.table(
    [ui.Column("File", "name"), ui.Column("Language", "lang", width=120),
     ui.Column("Lines", "lines", width=80, align="end")],
    rows, sort_by="Lines", descending=True, on_sort=on_sort, selected=rows[1], striped=True,
), width=520)

When to use

• For records with several comparable fields: files, users, processes, results.
• For a single column of items, a list of List items is lighter.

Usage

import pyzed as pz
from pyzed import ui

class Files(pz.App):
    def __init__(self):
        self.rows = [{"name": "app.py", "lines": 512}, {"name": "theme.py", "lines": 730}]
        self.sort_by, self.descending, self.selected = "Lines", True, None

    def sort(self, title):
        self.descending = not self.descending if self.sort_by == title else False
        self.sort_by = title

    def view(self):
        return ui.table(
            [ui.Column("File", "name"), ui.Column("Lines", "lines", width=80, align="end")],
            self.rows, sort_by=self.sort_by, descending=self.descending, on_sort=self.sort,
            on_row_press=lambda row: setattr(self, "selected", row), selected=self.selected,
        )

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Options

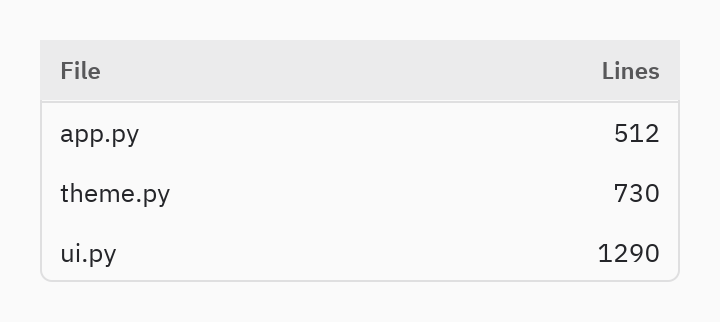

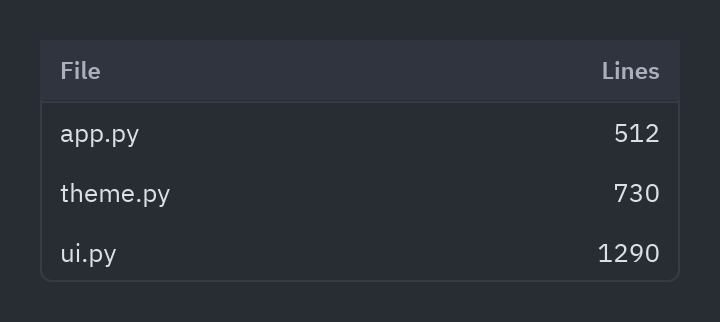

Plain

Code

pz.container(ui.table([ui.Column("File", "name"), ui.Column("Lines", "lines", width=80, align="end")],
                      [{"name": "app.py", "lines": 512}, {"name": "theme.py", "lines": 730}, {"name": "ui.py", "lines": 1290}]), width=320)

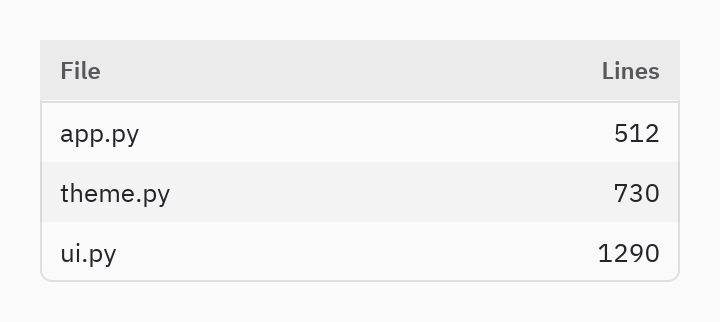

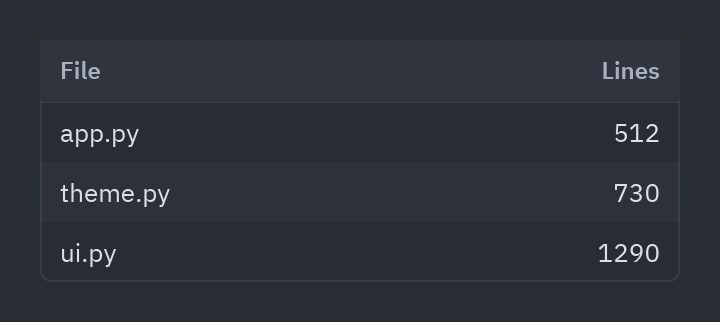

striped=True

Code

pz.container(ui.table([ui.Column("File", "name"), ui.Column("Lines", "lines", width=80, align="end")],
                      [{"name": "app.py", "lines": 512}, {"name": "theme.py", "lines": 730}, {"name": "ui.py", "lines": 1290}], striped=True), width=320)

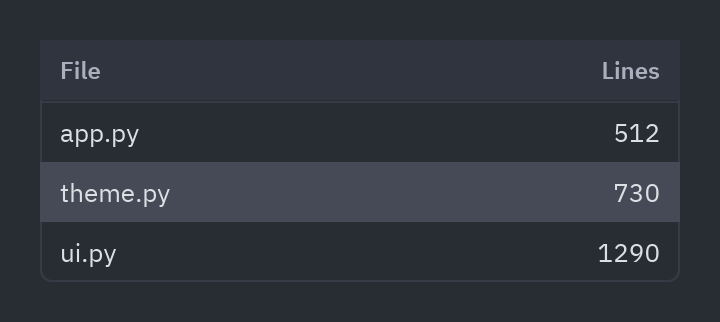

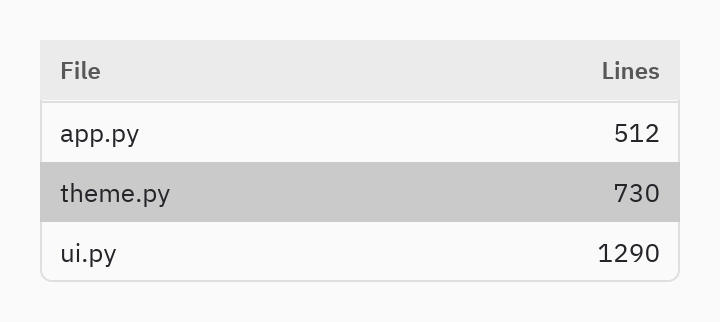

selected=

Code

rows = [{"name": "app.py", "lines": 512}, {"name": "theme.py", "lines": 730}, {"name": "ui.py", "lines": 1290}]
pz.container(ui.table([ui.Column("File", "name"), ui.Column("Lines", "lines", width=80, align="end")], rows, selected=rows[1]), width=320)

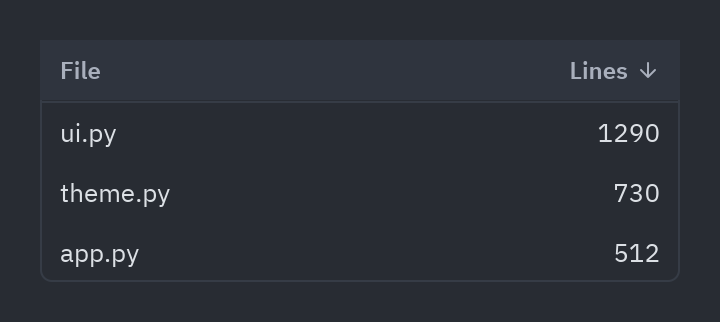

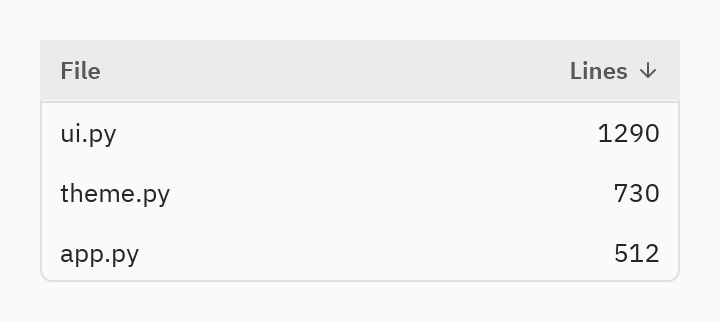

sort_by=, descending=True

Code

pz.container(ui.table([ui.Column("File", "name"), ui.Column("Lines", "lines", width=80, align="end")],
                      [{"name": "app.py", "lines": 512}, {"name": "theme.py", "lines": 730}, {"name": "ui.py", "lines": 1290}], sort_by="Lines", descending=True,
                      on_sort=on_sort), width=320)

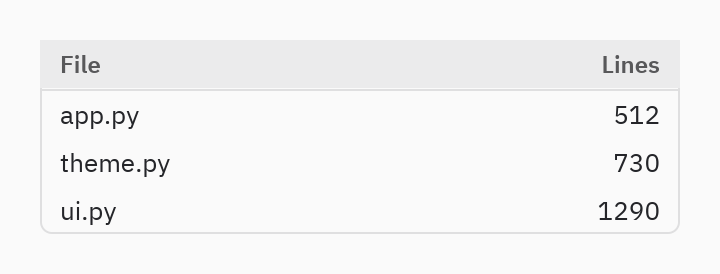

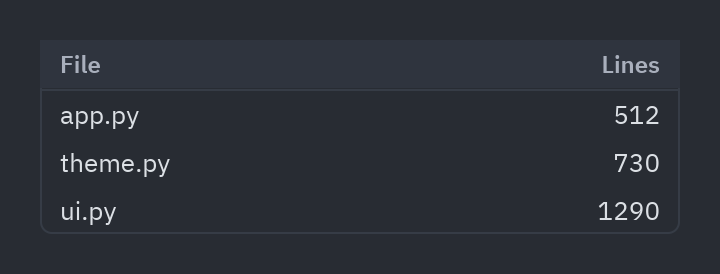

row_height=24

Code

pz.container(ui.table([ui.Column("File", "name"), ui.Column("Lines", "lines", width=80, align="end")],
                      [{"name": "app.py", "lines": 512}, {"name": "theme.py", "lines": 730}, {"name": "ui.py", "lines": 1290}], row_height=24), width=320)

Cells

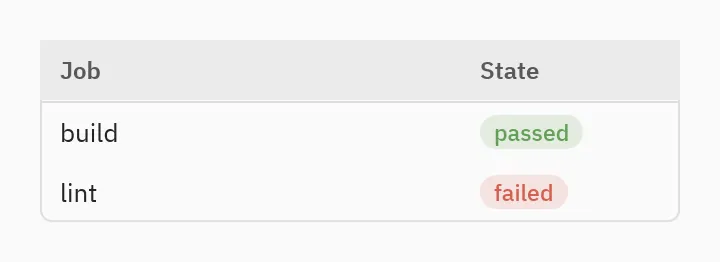

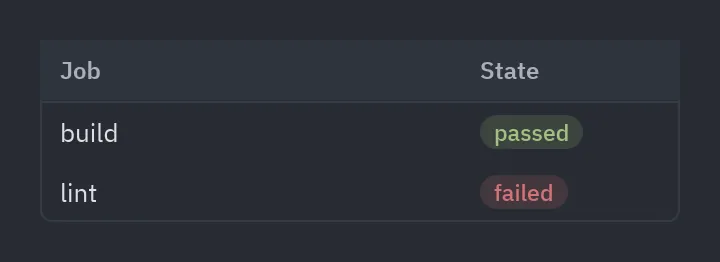

render=

Code

rows = [{"job": "build", "state": "passed"}, {"job": "lint", "state": "failed"}]
tint = {"passed": "success", "failed": "error"}
pz.container(ui.table([ui.Column("Job", "job"),
                       ui.Column("State", "state", width=110, render=lambda s: ui.badge(s, tint=tint[s]))],
                      rows), width=320)

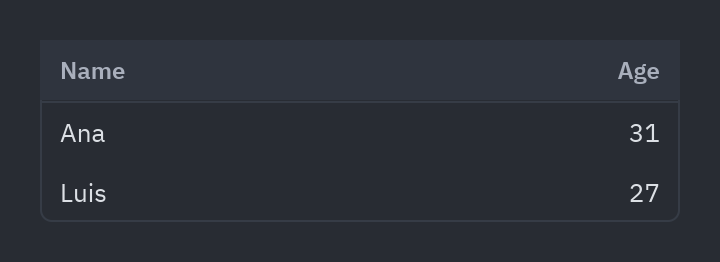

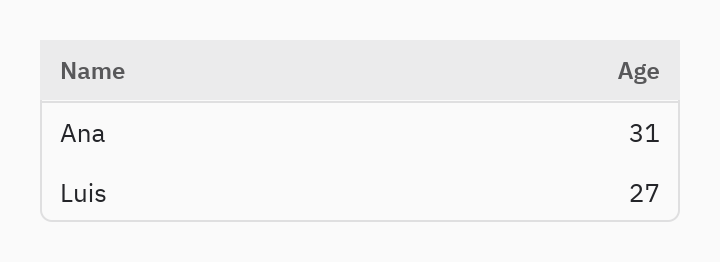

key=lambda

Code

people = [("Ana", 31), ("Luis", 27)]
pz.container(ui.table([ui.Column("Name", lambda p: p[0]),
                       ui.Column("Age", lambda p: p[1], width=70, align="end")], people), width=320)

States and events

on_row_double_press(row) opens a row and on_row_context(row) shows a context menu.

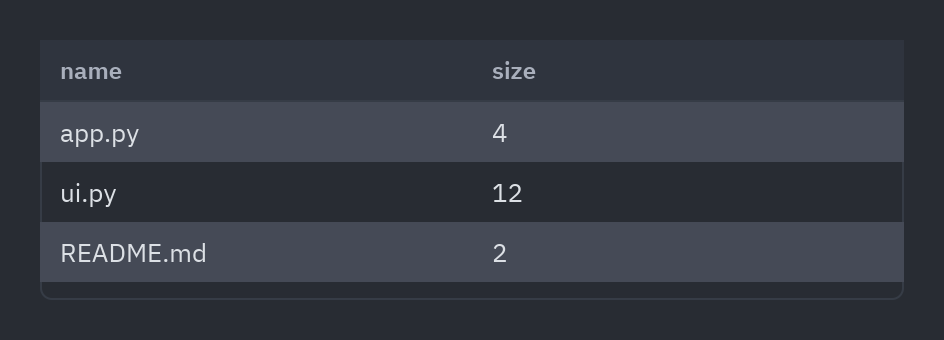

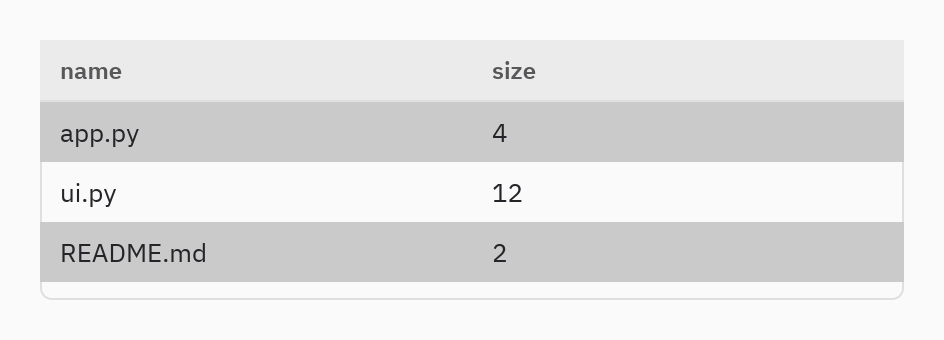

Multiple selection

Code

rows = [{"name": "app.py", "size": 4}, {"name": "ui.py", "size": 12}, {"name": "README.md", "size": 2}]
ui.table(["name", "size"], rows, selected=[rows[0], rows[2]], on_row_press=on_press,
         on_row_double_press=on_open, on_row_context=on_context, height=130)

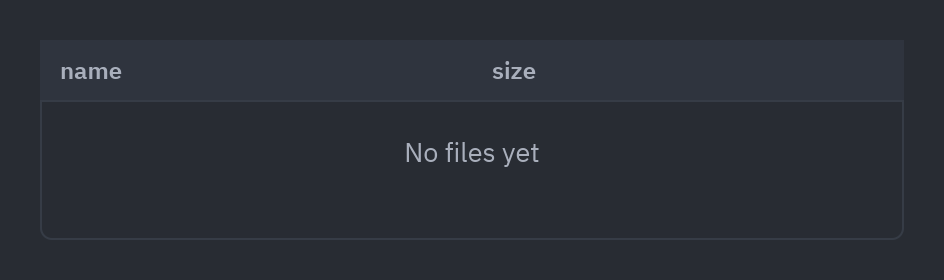

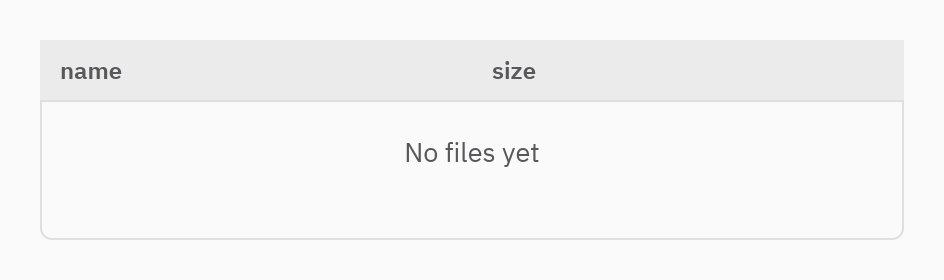

empty=

Code

ui.table(["name", "size"], [], empty="No files yet", height=100)

Examples

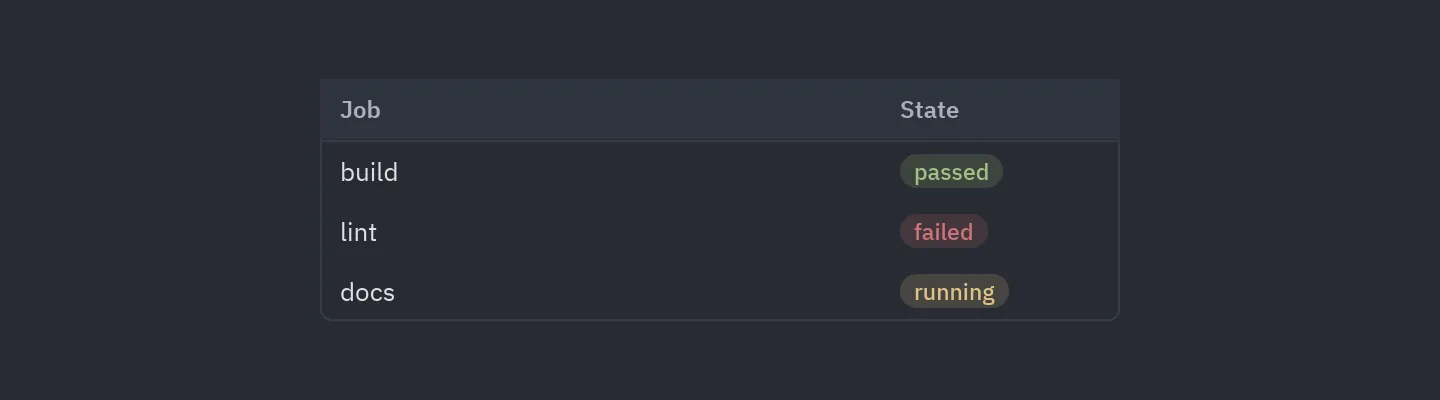

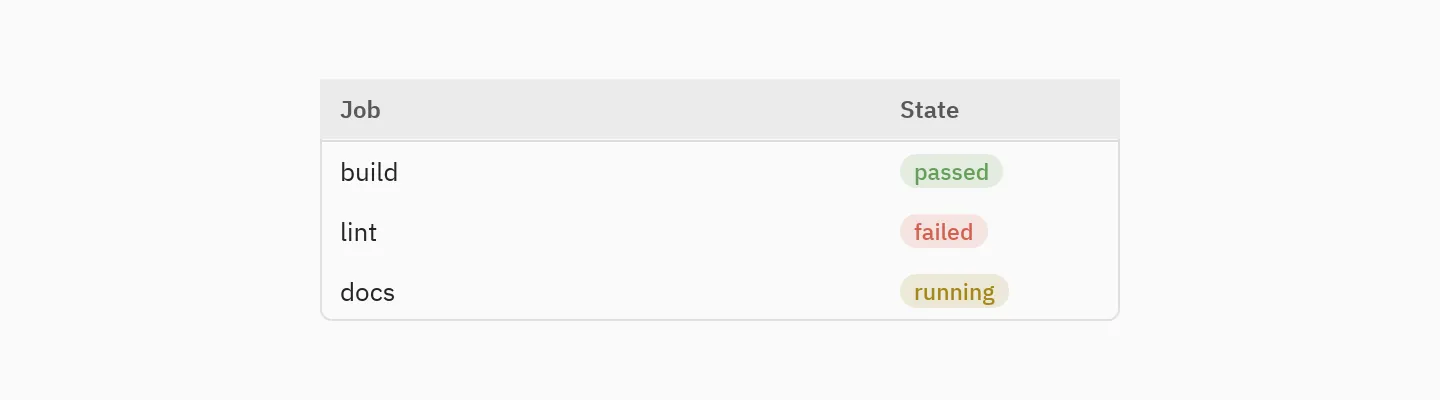

Custom cells

render receives the value and returns a widget, here a badge.

Preview

Code

rows = [{"job": "build", "state": "passed"}, {"job": "lint", "state": "failed"},
        {"job": "docs", "state": "running"}]
tint = {"passed": "success", "failed": "error", "running": "warning"}
pz.container(ui.table(
    [ui.Column("Job", "job"),
     ui.Column("State", "state", width=120, render=lambda s: ui.badge(s, tint=tint[s]))],
    rows,
), width=400)

Events

Table has 4 events of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Handler gets	When
on_sort	(title)	Callable that receives the clicked title.
on_row_press	(row)	Callable that receives the clicked row.
on_row_double_press	(row)	Called with the row on a double click (open, edit…).
on_row_context	(row)	Called with the row on a right click (a context menu).

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

class Files(pz.App):
    def __init__(self):
        self.rows = [{"name": "app.py", "lines": 512}, {"name": "theme.py", "lines": 730}]
        self.sort_by, self.descending = "Lines", True
        self.selected, self.opened = None, None

    def sort(self, title):               # on_sort: the clicked column title
        self.descending = not self.descending if self.sort_by == title else False
        self.sort_by = title

    def view(self):
        key = "name" if self.sort_by == "File" else "lines"
        rows = sorted(self.rows, key=lambda r: r[key], reverse=self.descending)
        return ui.table(
            [ui.Column("File", "name"), ui.Column("Lines", "lines", width=80, align="end")], rows,
            sort_by=self.sort_by, descending=self.descending, on_sort=self.sort, selected=self.selected,
            on_row_press=lambda row: setattr(self, "selected", row),         # click
            on_row_double_press=lambda row: setattr(self, "opened", row),    # double click
            on_row_context=lambda row: print("menu for", row["name"]),       # right click
        )

Declarative

from dataclasses import dataclass


@dataclass
class Sort:
    title: str


@dataclass
class Select:
    row: dict


class Files(pz.App):
    rows = [{"name": "app.py", "lines": 512}, {"name": "theme.py", "lines": 730}]
    sort_by, descending, selected = "Lines", True, None

    def update(self, message):
        match message:
            case Sort(title):
                self.descending = not self.descending if title == self.sort_by else False
                self.sort_by = title
            case Select(row):
                self.selected = row

    def view(self):
        return ui.table([ui.Column("File", "name"), ui.Column("Lines", "lines", width=80)], self.rows,
                        sort_by=self.sort_by, descending=self.descending, selected=self.selected,
                        on_sort=Sort, on_row_press=Select)

Functional

from dataclasses import dataclass

ROWS = ({"name": "app.py", "lines": 512}, {"name": "theme.py", "lines": 730})


@dataclass(frozen=True)
class State:
    sort_by: str = "Lines"
    descending: bool = True
    selected: str = ""


def view(state, set_state):
    key = "name" if state.sort_by == "File" else "lines"
    rows = sorted(ROWS, key=lambda r: r[key], reverse=state.descending)
    return ui.table(
        [ui.Column("File", "name"), ui.Column("Lines", "lines", width=80)], rows,
        sort_by=state.sort_by, descending=state.descending,
        selected=next((r for r in rows if r["name"] == state.selected), None),
        on_sort=lambda t: set_state(sort_by=t, descending=not state.descending if t == state.sort_by else False),
        on_row_press=lambda row: set_state(selected=row["name"]))

Properties and API

ui.table

table(
    columns,
    rows,
    *,
    sort_by=None,
    descending=False,
    on_sort=None,
    on_row_press=None,
    selected=None,
    striped=False,
    row_height=30,
    height=None,
    on_row_double_press=None,
    on_row_context=None,
    empty=None,
    theme=None,
)

A data table with a fixed header, optional sorting and row selection. Sorting happens here when sort_by names a column: clicking a header calls on_sort(title) and you update sort_by/descending in your state. Rows are virtualized: only the ones in view are built, so hundreds of thousands of rows scroll smoothly.

Property	Default	Description
columns	required	ui.Column or plain keys.
rows	required	Dicts or objects.
sort_by	None	Title of the column to sort by.
descending	False	Descending order.
selected	None	The row to highlight, or a list or set of rows (multiple selection).
striped	False	Shaded alternating rows.
row_height	30	Height of each row.
height	None	Height: pixels, "fill", "shrink" or "fill:N" (proportion).
empty	None	Text or widget shown in place of the rows when there are none.
theme	None	Theme to use instead of the current one (pyzed.theme.current()).

Events: on_sort, on_row_press, on_row_double_press, on_row_context (events).

Full reference →

ui.Column

@dataclass
class Column(title, key, width='fill', align='start', render=None, sortable=True)

A column of ui.table. key is a dict key, an attribute name or a function of the row; render (optional) turns the value into a widget. width is "fill", a number or a portion such as "fill:2".

Property	Default	Description
title	required	Header (and name used for sorting).
key	required	How to get the value from each row.
width	"fill"	Width: pixels, "fill", "shrink" or "fill:N" (proportion).
align	"start"	"start", "center" or "end".
render	None	Function value → widget.
sortable	True	Whether the header can be clicked to sort.

Full reference →
