File explorer and IDE

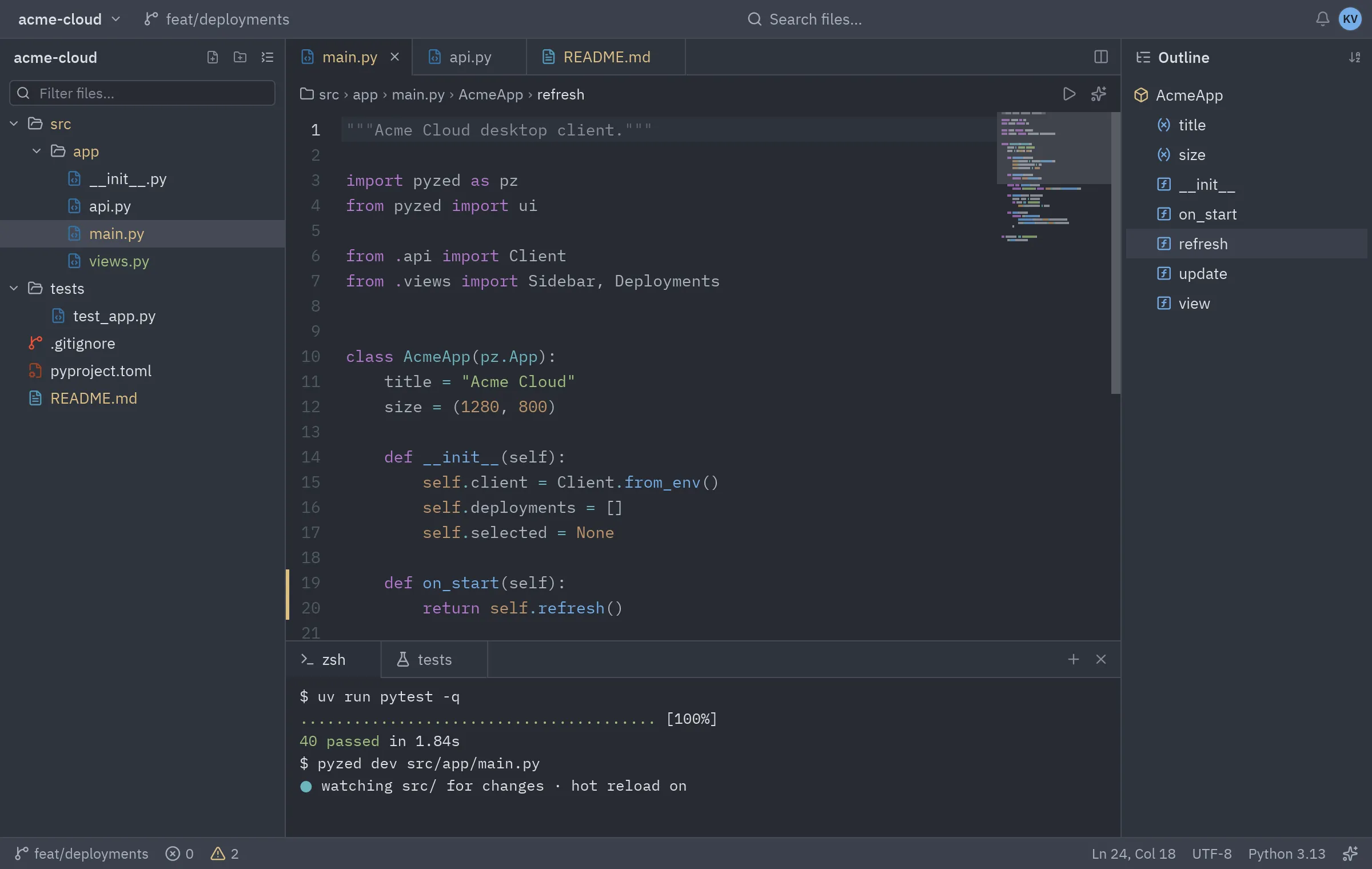

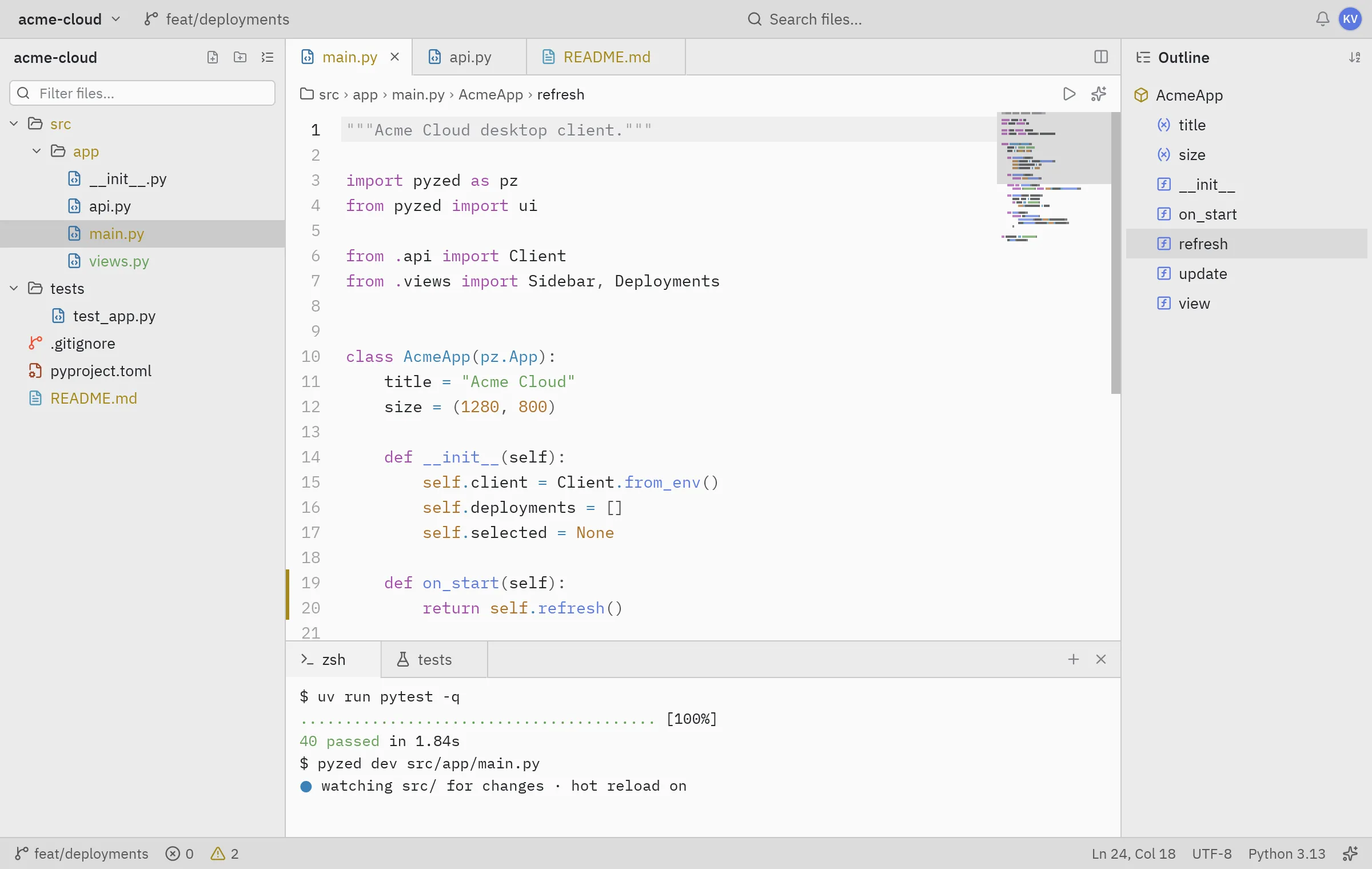

A code editor window built with ui.workspace: a title bar with project and branch, a filterable project tree with git status colors, editor tabs and breadcrumbs, the code editor with syntax highlighting, git markers and a minimap, a terminal with tabs, an outline panel and a status bar.

File explorer and IDEFile explorer and IDE

The screenshot follows the site’s theme: switch between light and dark at the top of the page to see the block in One Light and One Dark.

Run it

Section titled “Run it”

From the repository root:

Terminal window
python examples/blocks/file_explorer.py

What it shows

Section titled “What it shows”
  • ui.workspace places the docks; they can be resized by dragging.
  • ui.TreeNode.from_paths builds the tree from a list of paths, with git statuses.
  • ui.Tab.for_file picks the icon and color of each file type.
  • ui.terminal understands ANSI colors.

Components used

Section titled “Components used”
Component Used for
Workspace The window layout
Tree Project files
Tab bar Open files
Breadcrumbs Path
Editor Code
Terminal Terminal
Title bar Title bar
Status bar Status bar
Toolbar Editor toolbar
Panel header Panel titles
List item Outline

Code

Section titled “Code”

The whole block, ready to copy. It only needs pip install pyzed-ui.

examples/blocks/file_explorer.py
"""IDE layout block: a project tree, editor tabs with breadcrumbs, a terminal, an outline panel and a status bar."""


import pyzed as pz
from pyzed import ui


FILES = {
    "src/app/main.py": '''"""Acme Cloud desktop client."""


import pyzed as pz
from pyzed import ui


from .api import Client
from .views import Sidebar, Deployments




class AcmeApp(pz.App):
    title = "Acme Cloud"
    size = (1280, 800)


    def __init__(self):
        self.client = Client.from_env()
        self.deployments = []
        self.selected = None


    def on_start(self):
        return self.refresh()


    async def refresh(self):
        return ("loaded", await self.client.deployments())


    def update(self, message):
        kind, data = message
        if kind == "loaded":
            self.deployments = data


    def view(self):
        return ui.workspace(
            Deployments(items=self.deployments),
            left=Sidebar(selected=self.selected),
        )




if __name__ == "__main__":
    pz.run(AcmeApp)
''',
    "src/app/api.py": "import httpx\n\n\nclass Client:\n    ...\n",
    "src/app/views.py": "import pyzed as pz\n",
    "src/app/__init__.py": "",
    "tests/test_app.py": "def test_refresh():\n    ...\n",
    "pyproject.toml": "[project]\nname = \"acme-cloud\"\n",
    "README.md": "# Acme Cloud\n",
    ".gitignore": "__pycache__/\n",
}
STATUS = {"src/app/main.py": "modified", "src/app/views.py": "created", "README.md": "modified"}
OUTLINE = [("class", "AcmeApp", 0), ("variable", "title", 1), ("variable", "size", 1), ("method", "__init__", 1),
           ("method", "on_start", 1), ("method", "refresh", 1), ("method", "update", 1), ("method", "view", 1)]
OUTLINE_ICON = {"class": ("box", "warning"), "method": ("square-function", "accent"), "variable": ("variable", "info")}
TERMINAL = ("$ uv run pytest -q\n"
            "\x1b[32m........................................\x1b[0m [100%]\n"
            "\x1b[32m40 passed\x1b[0m in 1.84s\n"
            "$ pyzed dev src/app/main.py\n"
            "\x1b[36m●\x1b[0m watching src/ for changes · hot reload on\n")




class FileExplorer(pz.App):
    title = "acme-cloud — main.py"
    size = (1200, 760)


    def __init__(self):
        self.tree = ui.TreeNode.from_paths(list(FILES), status=STATUS)
        self.expanded = {"src", "src/app", "tests"}
        self.open = ["src/app/main.py", "src/app/api.py", "README.md"]
        self.active = "src/app/main.py"
        self.texts = dict(FILES)
        self.cursor = (24, 18)
        self.query = ""


    # -- actions ---------------------------------------------------------------------------
    def toggle(self, node_id):
        self.expanded ^= {node_id}


    def select(self, node_id):
        if node_id in FILES:
            if node_id not in self.open:
                self.open.append(node_id)
            self.active = node_id


    def close(self, path):
        self.open.remove(path)
        if self.active == path:
            self.active = self.open[-1] if self.open else None


    def edit(self, text):
        self.texts[self.active] = text


    # -- view ------------------------------------------------------------------------------
    def project(self):
        return pz.column([
            ui.panel_header("acme-cloud", [ui.icon_button("file-plus", None, size="xs", tooltip="New file"),
                                           ui.icon_button("folder-plus", None, size="xs", tooltip="New folder"),
                                           ui.icon_button("list-collapse", lambda: setattr(self, "expanded", set()),
                                                          size="xs", tooltip="Collapse all")]),
            pz.container(ui.search_input(self.query, lambda v: setattr(self, "query", v), placeholder="Filter files…",
                                         size="sm"), padding=(4, 8)),
            ui.tree(self.tree, expanded=self.expanded, selected=self.active, on_toggle=self.toggle,
                    on_select=self.select),
        ])


    def outline(self):
        rows = []
        for kind, name, depth in OUTLINE:
            icon, color = OUTLINE_ICON[kind]
            rows.append(ui.list_item(name, None, icon=icon, icon_color=self.resolved_theme().color(color),
                                     indent=depth * 14, height=26, selected=name == "refresh"))
        return pz.column([ui.panel_header("Outline", [ui.icon_button("arrow-down-a-z", None, size="xs")],
                                          icon="list-tree"),
                          pz.column(rows, padding=(4, 4))])


    def editor(self):
        if self.active is None:
            return ui.empty_state("No open files", "Pick a file in the project panel.", icon="file")
        tabs = [ui.Tab.for_file(p, dirty=p == "src/app/main.py", status=STATUS.get(p)) for p in self.open]
        parts = self.active.split("/")
        return pz.column([
            ui.tab_bar(tabs, self.active, on_select=self.select, on_close=self.close,
                       end=[ui.icon_button("columns-2", None, size="sm", tooltip="Split right")]),
            ui.toolbar([ui.breadcrumbs([("folder", parts[0]), *parts[1:], "AcmeApp", "refresh"])],
                       [ui.icon_button("play", None, size="sm", tooltip="Run"),
                        ui.icon_button("sparkles", None, size="sm", tooltip="Inline assist")]),
            ui.editor("ide-editor", self.texts[self.active], path=self.active, on_change=self.edit,
                      markers={19: "modified", 20: "modified", 24: "created"}, minimap=True),
        ])


    def view(self):
        line, col = self.cursor
        return ui.workspace(
            self.editor(),
            title_bar=ui.title_bar(
                [ui.title_button("acme-cloud", chevron=True), ui.title_button("feat/deployments", icon="git-branch",
                                                                              muted=True)],
                [ui.icon_button("bell", None, size="sm"), ui.avatar("KV")],
                center=ui.title_button("Search files…", icon="search", muted=True)),
            left=self.project(),
            right=self.outline(),
            bottom=pz.column([
                ui.tab_bar([ui.Tab("zsh", "zsh", icon="terminal"), ui.Tab("tests", "tests", icon="flask-conical")],
                           "zsh", end=[ui.icon_button("plus", None, size="sm"), ui.icon_button("x", None, size="sm")]),
                ui.terminal(TERMINAL),
            ]),
            status_bar=ui.status_bar(
                [ui.status_item("feat/deployments", icon="git-branch"), ui.status_item("0", icon="circle-x"),
                 ui.status_item("2", icon="triangle-alert", icon_color=self.resolved_theme().warning)],
                [ui.status_item(f"Ln {line}, Col {col}"), ui.status_item("UTF-8"), ui.status_item("Python 3.13"),
                 ui.status_item(None, icon="sparkles", tooltip="AI agent")]),
            left_width=250, right_width=220, bottom_height=172,
        )




if __name__ == "__main__":
    pz.run(FileExplorer)

Make it yours

Section titled “Make it yours”

Change theme (or self.theme = pz.themes.get("One Dark").with_accent("#e11d48")), replace the sample data with your own and split pieces into components when they grow. An AI agent with the MCP server can read this block with read_example("blocks/file_explorer") and adapt it for you.
