Tree

In plain words

A list of folders you can open and close, like the files of a project.

A project panel: collapsible folders, an icon per file type and git status colors. TreeNode.from_paths(paths, status=...) builds the nodes, puts folders first and propagates the git status to the folders that contain changes. Each node’s id is its path; you own the expanded set and the selected id.

ui.tree · Category: Lists and menus · Full reference →

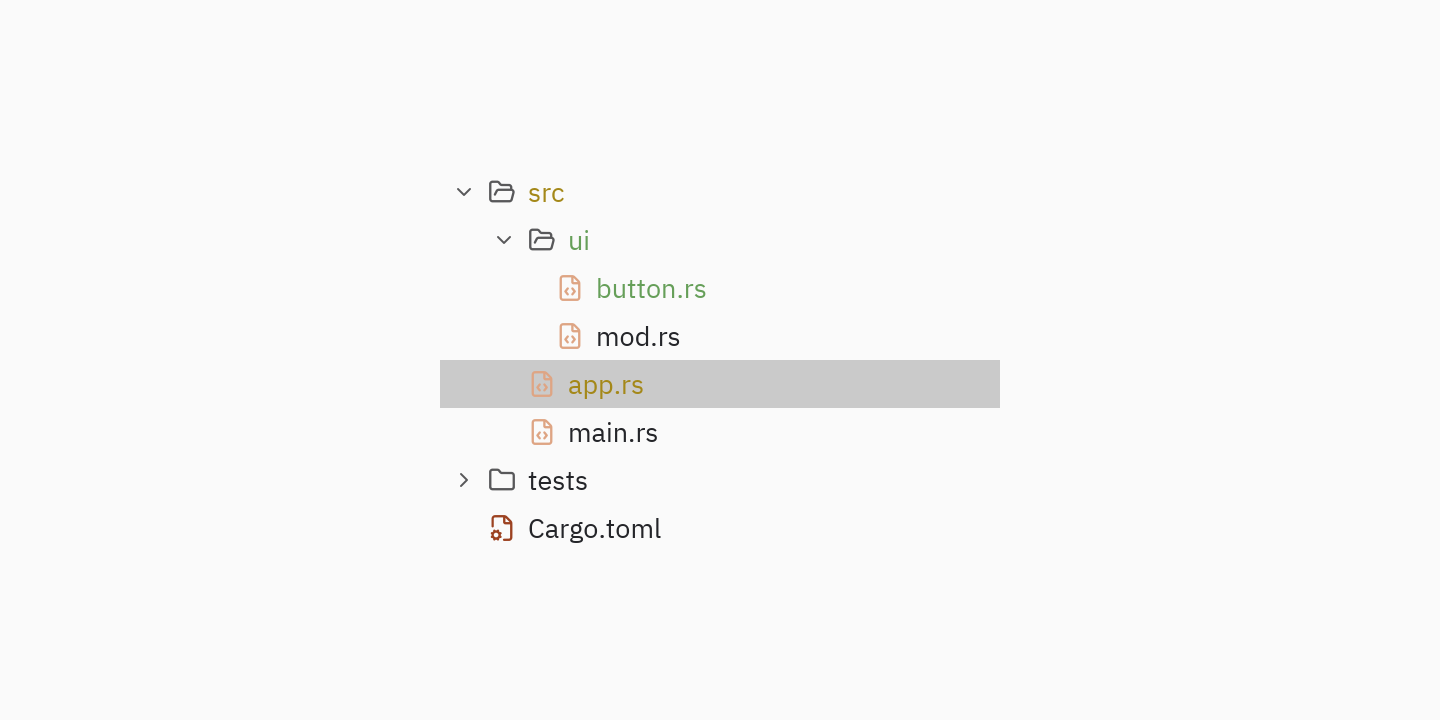

Preview

Code

nodes = ui.TreeNode.from_paths(
    ["src/main.rs", "src/app.rs", "src/ui/button.rs", "src/ui/mod.rs", "tests/app.rs", "Cargo.toml"],
    status={"src/app.rs": "modified", "src/ui/button.rs": "created"},
)
pz.container(ui.tree(nodes, expanded={"src", "src/ui"}, selected="src/app.rs",
                     on_toggle=on_toggle, on_select=on_select), width=280)

When to use

• For files and any hierarchy: outlines, categories, settings sections.
• status is "modified", "created", "deleted", "conflict" or "ignored".

Usage

import pyzed as pz
from pyzed import ui

class Explorer(pz.App):
    def __init__(self):
        self.nodes = ui.TreeNode.from_paths(["src/main.rs", "src/app.rs", "Cargo.toml"])
        self.expanded = {"src"}
        self.selected = None

    def toggle(self, folder):
        self.expanded ^= {folder}

    def view(self):
        return ui.tree(self.nodes, expanded=self.expanded, selected=self.selected,
                       on_toggle=self.toggle, on_select=lambda path: setattr(self, "selected", path))

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Expanded

Collapsed

Code

nodes = ui.TreeNode.from_paths(["src/main.rs", "src/app.rs", "src/ui/mod.rs", "src/ui/button.rs", "Cargo.toml"])
pz.container(ui.tree(nodes, expanded=set()), width=240)

expanded={"src"}

Code

nodes = ui.TreeNode.from_paths(["src/main.rs", "src/app.rs", "src/ui/mod.rs", "src/ui/button.rs", "Cargo.toml"])
pz.container(ui.tree(nodes, expanded={"src"}), width=240)

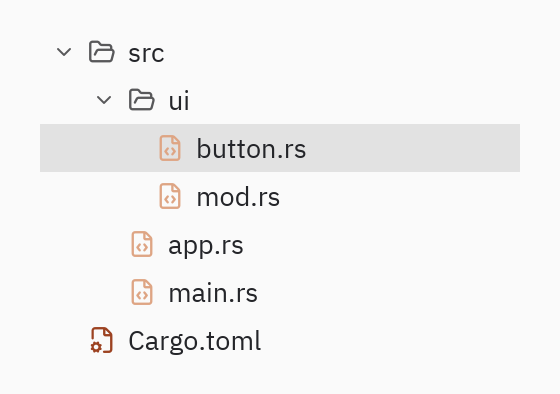

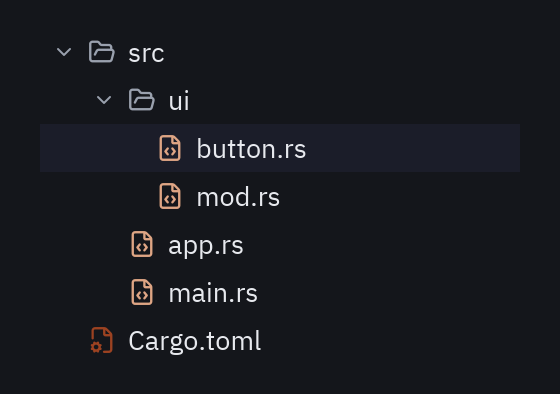

expanded={"src", "src/ui"}

Code

nodes = ui.TreeNode.from_paths(["src/main.rs", "src/app.rs", "src/ui/mod.rs", "src/ui/button.rs", "Cargo.toml"])
pz.container(ui.tree(nodes, expanded={"src", "src/ui"}, selected="src/ui/button.rs"), width=240)

Git status

status=

Code

nodes = ui.TreeNode.from_paths(["src/app.rs", "src/new.rs", "src/old.rs", "build.log"],
    status={"src/app.rs": "modified", "src/new.rs": "created", "src/old.rs": "deleted", "build.log": "ignored"})
pz.container(ui.tree(nodes, expanded={"src"}), width=240)

"conflict"

Code

nodes = ui.TreeNode.from_paths(["merge.py", "ok.py"], status={"merge.py": "conflict"})
pz.container(ui.tree(nodes, expanded=set()), width=240)

Density

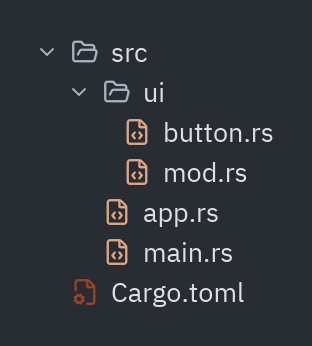

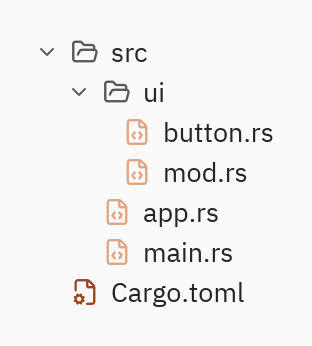

item_height=20, indent=10

Code

nodes = ui.TreeNode.from_paths(["src/main.rs", "src/app.rs", "src/ui/mod.rs", "src/ui/button.rs", "Cargo.toml"])
pz.container(ui.tree(nodes, expanded={"src", "src/ui"}, item_height=20, indent=10), width=240)

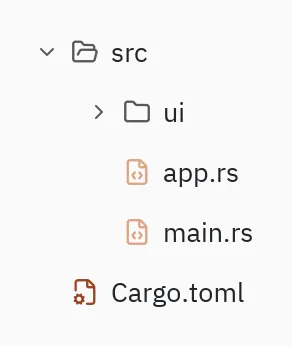

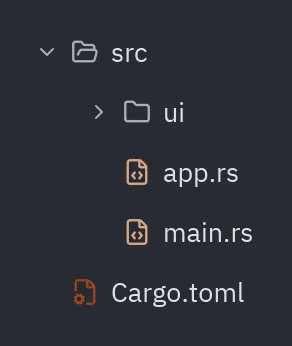

item_height=30, indent=20

Code

nodes = ui.TreeNode.from_paths(["src/main.rs", "src/app.rs", "src/ui/mod.rs", "src/ui/button.rs", "Cargo.toml"])
pz.container(ui.tree(nodes, expanded={"src"}, item_height=30, indent=20), width=240)

States and events

on_open(id) runs on a double click of a file and on_context(id) on a right click.

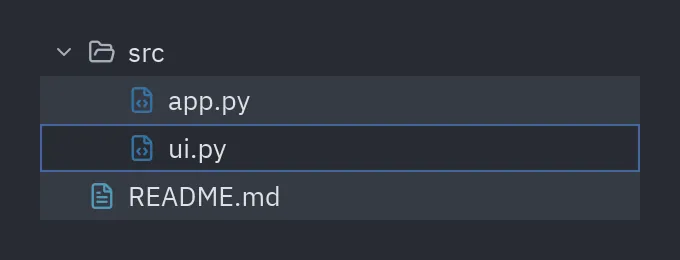

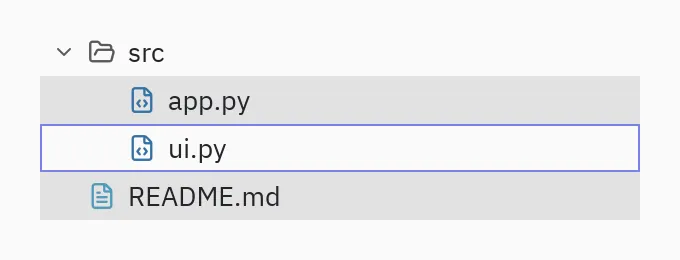

Multiple selection and focus

Code

pz.container(ui.tree(ui.TreeNode.from_paths(["src/app.py", "src/ui.py", "README.md"]), expanded={"src"},
                     selected={"src/app.py", "README.md"}, focused="src/ui.py", on_open=on_open,
                     on_context=on_context), width=300)

Examples

A real folder

Build the paths with pathlib and pass them to from_paths.

from pathlib import Path

root = Path(".")
paths = [p.relative_to(root).as_posix() for p in root.rglob("*")
         if p.is_file() and ".git" not in p.parts]
nodes = ui.TreeNode.from_paths(paths)

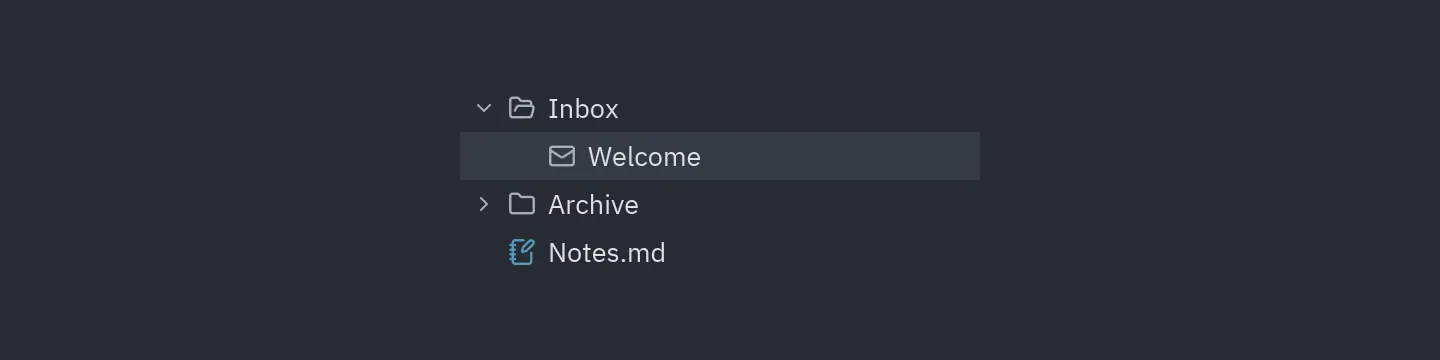

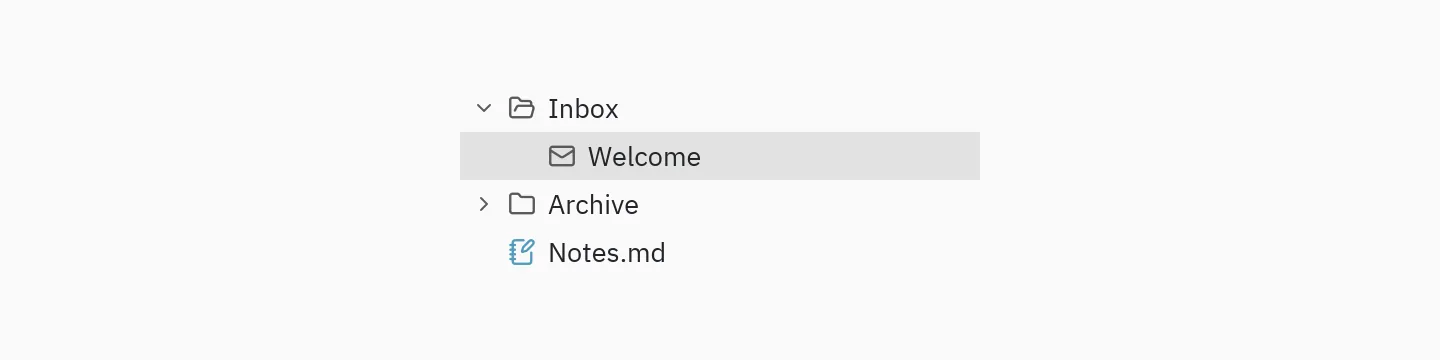

Nodes by hand

Folders are nodes with children.

Preview

Code

nodes = [
    ui.TreeNode("Inbox", children=[ui.TreeNode("Welcome", id="inbox/1", icon="mail")], id="inbox"),
    ui.TreeNode("Archive", children=[], id="archive"),
    ui.TreeNode("Notes.md", id="notes", icon="notebook-pen"),
]
pz.container(ui.tree(nodes, expanded={"inbox"}, selected="inbox/1"), width=260)

Events

Tree has 4 events of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Handler gets	When
on_toggle	(id)	Called with the id of the clicked folder.
on_select	(id)	Called with the id of the clicked file.
on_open	(id)	Called with the id of a file that is double-clicked.
on_context	(id)	Called with the id of a row that is right-clicked (show a ui.menu there).

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

class Explorer(pz.App):
    def __init__(self):
        self.nodes = ui.TreeNode.from_paths(["src/main.rs", "src/app.rs", "Cargo.toml"])
        self.expanded = {"src"}
        self.selected = None

    def toggle(self, folder):            # on_toggle: the folder's id (its path)
        self.expanded ^= {folder}

    def view(self):
        return ui.tree(self.nodes, expanded=self.expanded, selected=self.selected,
                       on_toggle=self.toggle,
                       on_select=lambda path: setattr(self, "selected", path),   # click on a file
                       on_open=lambda path: print("open", path),                 # double click
                       on_context=lambda path: print("menu for", path))          # right click

Declarative

from dataclasses import dataclass


@dataclass
class Toggle:
    folder: str


@dataclass
class Select:
    path: str


class Explorer(pz.App):
    nodes = ui.TreeNode.from_paths(["src/main.rs", "src/app.rs", "Cargo.toml"])
    expanded = frozenset({"src"})
    selected = None

    def update(self, message):
        match message:
            case Toggle(folder):
                self.expanded = self.expanded ^ {folder}
            case Select(path):
                self.selected = path

    def view(self):
        return ui.tree(self.nodes, expanded=self.expanded, selected=self.selected,
                       on_toggle=Toggle, on_select=Select)

Functional

from dataclasses import dataclass

NODES = ui.TreeNode.from_paths(["src/main.rs", "src/app.rs", "Cargo.toml"])


@dataclass(frozen=True)
class State:
    expanded: frozenset = frozenset({"src"})
    selected: str = ""


def view(state, set_state):
    return ui.tree(NODES, expanded=state.expanded, selected=state.selected,
                   on_toggle=lambda folder: set_state(expanded=state.expanded ^ {folder}),
                   on_select=lambda path: set_state(selected=path))

Properties and API

ui.tree

tree(
    nodes,
    *,
    expanded,
    selected=None,
    on_toggle=None,
    on_select=None,
    on_open=None,
    on_context=None,
    focused=None,
    indent=14,
    item_height=24,
    theme=None,
)

A collapsible file tree, like a code editor’s project panel.

Property	Default	Description
nodes	required	List of TreeNode.
expanded	required	Set of open folder ids.
selected	None	One id or a collection of ids (multiple selection).
focused	None	Outlines the row the keyboard is on.
indent	14	Left indentation, in pixels.
item_height	24	Height of each row.
theme	None	Theme to use instead of the current one (pyzed.theme.current()).

Events: on_toggle, on_select, on_open, on_context (events).

Full reference →

ui.TreeNode

@dataclass
class TreeNode(name, children=None, id=None, status=None, icon=None, icon_color=None)

A file or folder for ui.tree. Folders have children (a list). status is "modified", "created", "deleted", "conflict" or "ignored". TreeNode.from_paths(paths, status=None) builds the tree from paths like "src/main.rs", with folders first and the git status propagated to folders.

Property	Default	Description
name	required	Display name.
children	None	Children (None for a file).
id	None	Stable identifier used to focus or scroll it with a Command.
status	None	Git status.
icon	None	Name of a Lucide icon (pyzed icons lists them).
icon_color	None	Icon color: a theme token or a hex color.

Full reference →
