Virtual list

In plain words

A list that stays fast even with millions of rows, because it only draws what you see.

A scrolling list for thousands or millions of items. Only the rows in view are built: render(item) is called when an item scrolls into view, so the list costs the same whatever its length. Every row has the same item_height. pz.virtual_column is the building block underneath (rows by index, inside any scrollable), and Table uses it for its rows too.

ui.virtual_list · Category: Lists and menus · Full reference →

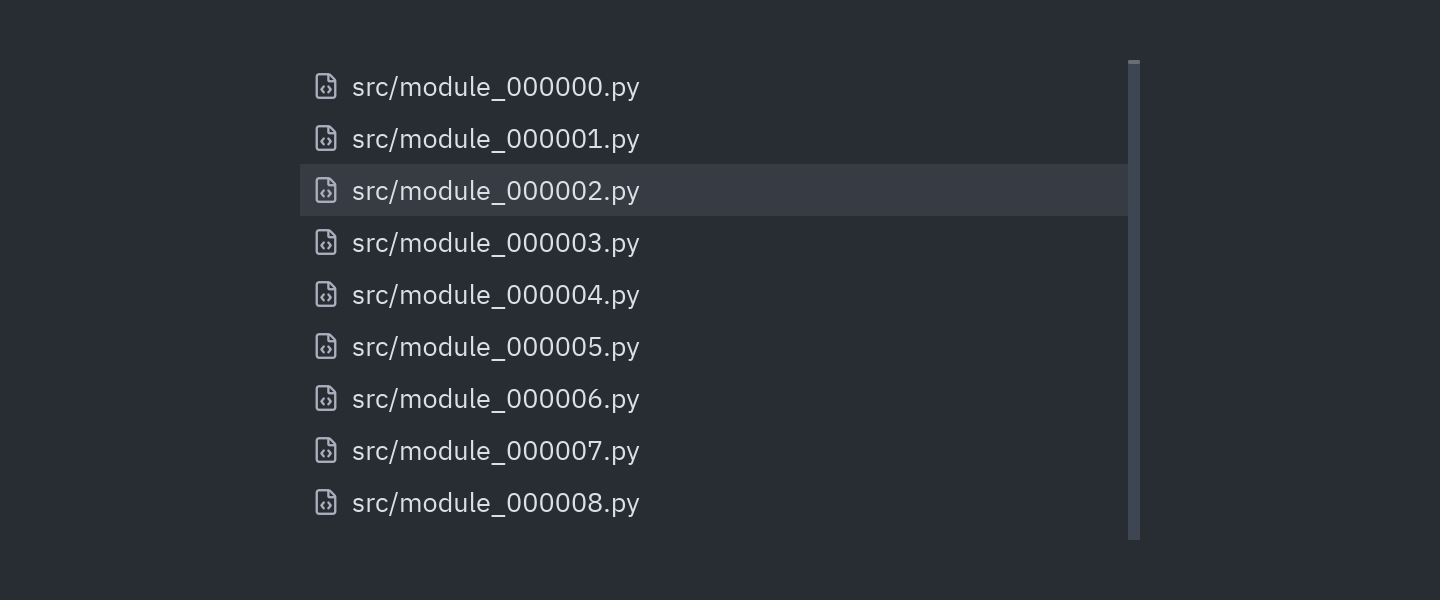

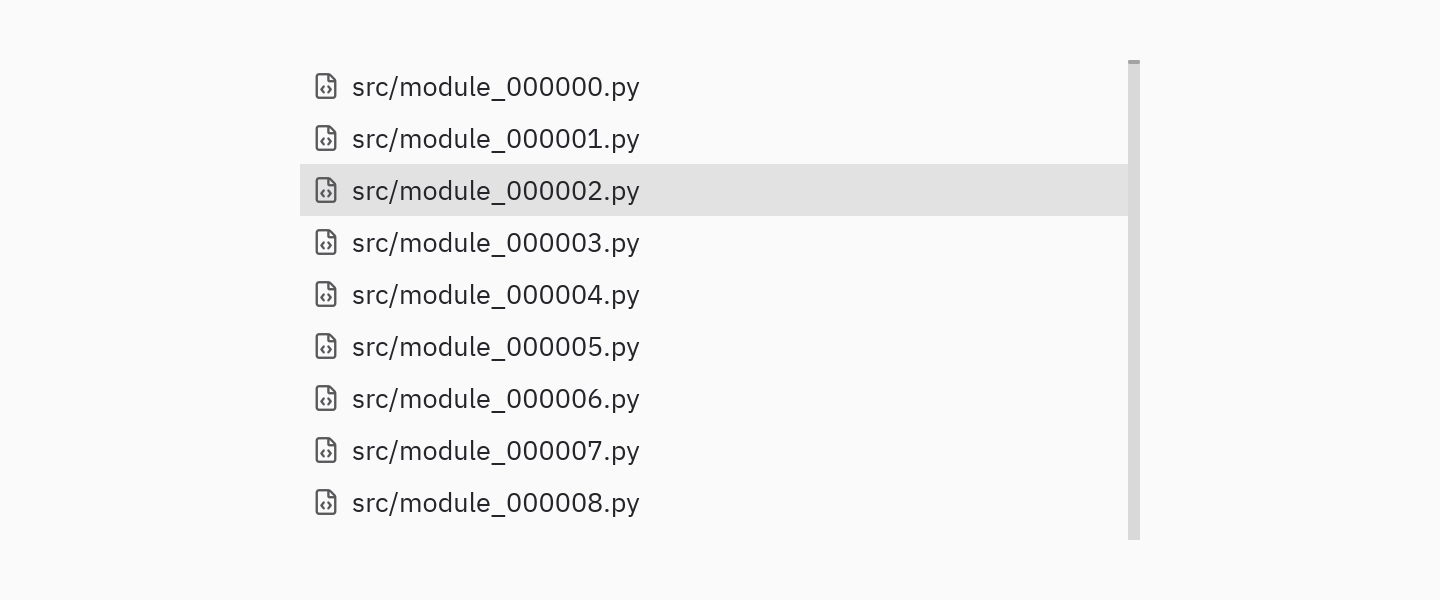

Preview

Code

files = [f"src/module_{i:06}.py" for i in range(1_000_000)]
pz.container(ui.virtual_list(
    files, lambda f: ui.list_item(f, icon="file-code", selected=f.endswith("02.py")),
    height=240,
), width=420)

New

This component was added recently. Tell us how it works for you in the issue tracker.

When to use

• For logs, search results, file lists or any list that can grow past a few hundred rows.
• For short lists, a pz.column of List items is simpler.

Usage

import pyzed as pz
from pyzed import ui

class Logs(pz.App):
    def __init__(self):
        self.lines = [f"[{i:06}] request handled" for i in range(500_000)]

    def view(self):
        return ui.virtual_list(self.lines, lambda line: pz.text(line, font="mono", size=12),
                               item_height=20, id="logs")

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Options

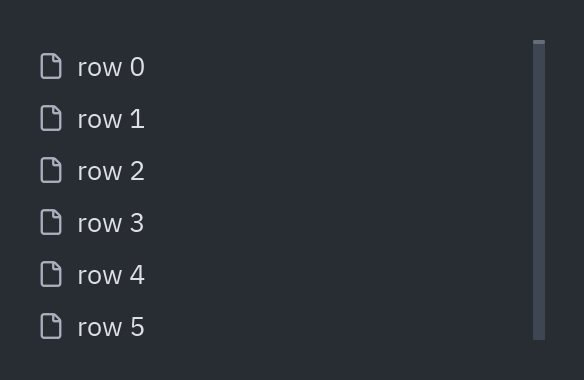

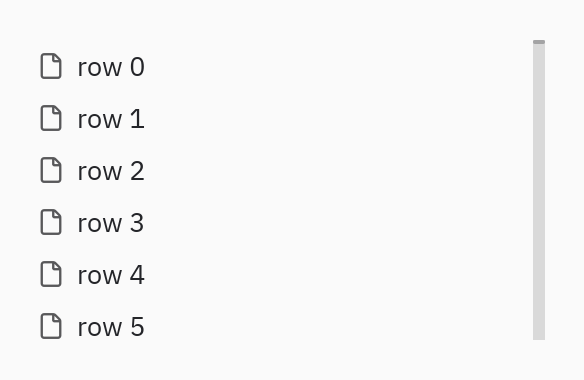

A million rows

Code

pz.container(ui.virtual_list([f"row {i:,}" for i in range(1_000_000)],
                             lambda r: ui.list_item(r, icon="file"), height=150), width=260)

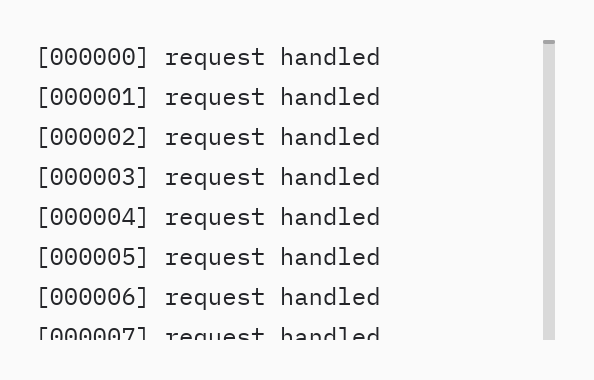

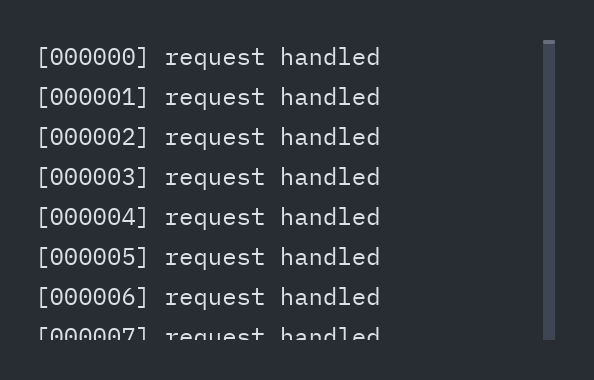

item_height=20

Code

pz.container(ui.virtual_list([f"[{i:06}] request handled" for i in range(100_000)],
                             lambda line: pz.text(line, font="mono", size=12), item_height=20, height=150),
             width=260)

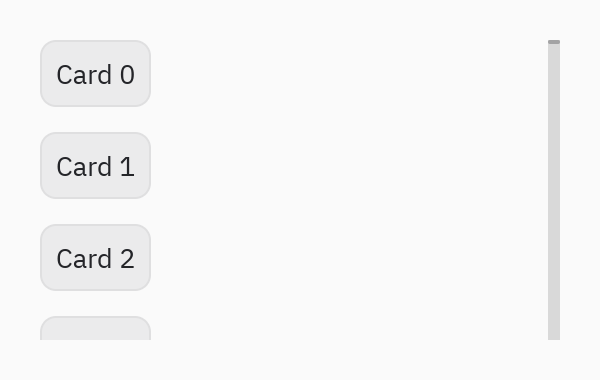

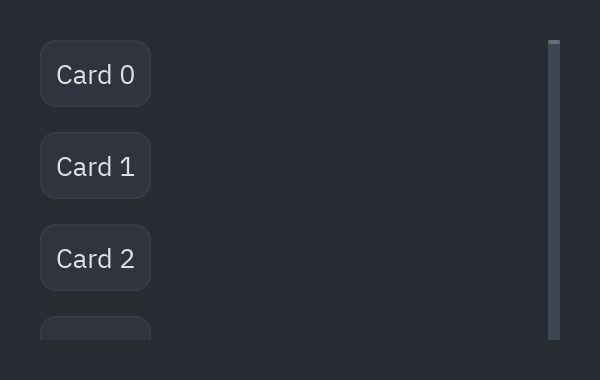

spacing=6

Code

pz.container(ui.virtual_list(list(range(10_000)), lambda i: ui.card(ui.label(f"Card {i}"), padding=8),
                             item_height=40, spacing=6, height=150), width=260)

Examples

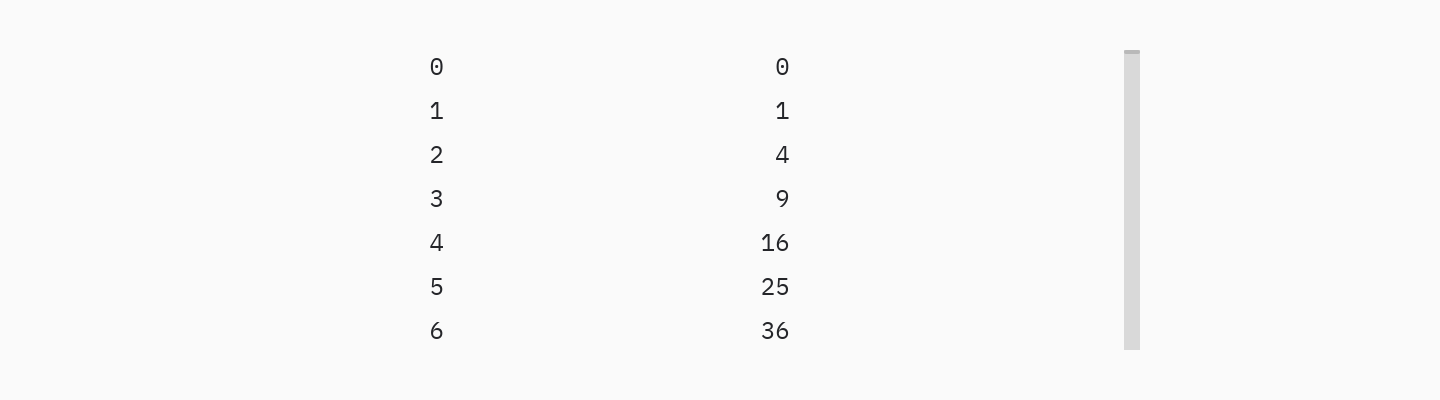

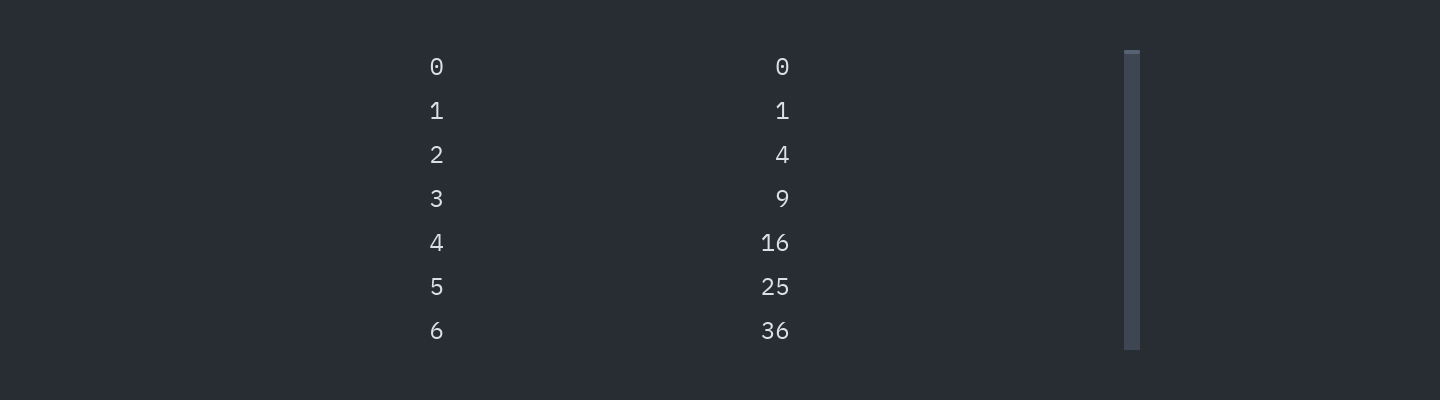

Rows by index

pz.virtual_column(count, item, item_height=...) calls item(index), handy when the rows come from an array, a database cursor or a computed value. Scroll it like any scrollable: row i starts at i * (item_height + spacing).

Preview

Code

pz.container(pz.scrollable(
    pz.virtual_column(10_000_000, lambda i: pz.text(f"{i:>10,}  {i * i:>22,}", font="mono", size=12),
                      item_height=22),
    height=150,
), width=420)

Events

Virtual list has 1 event of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Handler gets	When
on_scroll	(info)	Callable that receives the scroll viewport, as in pz.scrollable.

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

class Logs(pz.App):
    def __init__(self):
        self.lines = [f"[{i:06}] request handled" for i in range(100_000)]
        self.top = 0

    def scrolled(self, info):            # on_scroll: offsets and sizes of the viewport
        self.top = int(info["y"] // 20)

    def view(self):
        return pz.column([
            ui.label(f"Line {self.top + 1} of {len(self.lines)}"),
            ui.virtual_list(self.lines, lambda line: pz.text(line, font="mono", size=12),
                            item_height=20, height=200, on_scroll=self.scrolled),
        ], spacing=6)

Declarative

from dataclasses import dataclass


@dataclass
class Scrolled:
    info: dict


class Logs(pz.App):
    lines = [f"[{i:06}] request handled" for i in range(100_000)]
    top = 0

    def update(self, message):
        match message:
            case Scrolled(info):
                self.top = int(info["y"] // 20)

    def view(self):
        return ui.virtual_list(self.lines, lambda line: pz.text(line, size=12), item_height=20,
                               height=200, on_scroll=Scrolled)

Functional

from dataclasses import dataclass

LINES = [f"[{i:06}] request handled" for i in range(100_000)]


@dataclass(frozen=True)
class State:
    top: int = 0


def view(state, set_state):
    return pz.column([
        ui.label(f"Line {state.top + 1}"),
        ui.virtual_list(LINES, lambda line: pz.text(line, size=12), item_height=20, height=200,
                        on_scroll=lambda info: set_state(top=int(info["y"] // 20))),
    ], spacing=6)

Tips

Tip

• Rows are built again when they scroll back into view, so keep render cheap or wrap it in @pz.memo.
• items should be a list or another sequence: other iterables are copied into a list on every view().

Properties and API

ui.virtual_list

virtual_list(
    items,
    render,
    *,
    item_height=26,
    spacing=0,
    width='fill',
    height='fill',
    padding=None,
    overscan=4,
    id=None,
    on_scroll=None,
    theme=None,
)

A scrolling list that only builds the rows in view, for thousands or millions of items. render(item) returns the widget for one item and is called when it scrolls into view. Every row has the same height.

Property	Default	Description
items	required	The items: a list or any sequence (other iterables are turned into a list).
render	required	Function that receives an item and returns its widget.
item_height	26	Height of every row, in pixels.
spacing	0	Space between children, in pixels.
width	"fill"	Width: pixels, "fill", "shrink" or "fill:N" (proportion).
height	"fill"	Height: pixels, "fill", "shrink" or "fill:N" (proportion).
padding	None	Inner padding: 8, (vertical, horizontal) or (top, right, bottom, left).
overscan	4	Extra rows built above and below the visible ones.
id	None	Stable identifier used to focus or scroll it with a Command.
theme	None	Theme to use instead of the current one (pyzed.theme.current()).

Events: on_scroll (events).

Full reference →

pz.virtual_column

virtual_column(count, item, *, item_height, spacing=0.0, overscan=4, width=None)

A column of count rows of the same height that only builds the rows in view: item(index) is called when row index scrolls into view, and rows that leave it are dropped. A column of a million rows costs the same as one of fifty. Put it in a scrollable (it virtualizes against the visible area of the closest one, or the window).

Property	Default	Description
count	required	Number of rows.
item	required	Function that receives a row index and returns its widget.
item_height	required	Height of every row, in pixels.
spacing	0.0	Space between rows, in pixels.
overscan	4	Extra rows built above and below the visible ones, so fast scrolling shows no gaps.
width	None	Width: pixels, "fill", "shrink" or "fill:N" (proportion).

Full reference →

Related

List itemA list row with icon, text and an end slot.

TableA data table with a fixed header, sorting and selection.
