Toggle group

In plain words

A row of icon buttons where only one can be on, like choosing left, center or right alignment.

A row of icon buttons where exactly one is selected, like text alignment in an editor. options are (value, icon) pairs and on_select receives the chosen value.

ui.toggle_group · Category: Actions · Full reference →

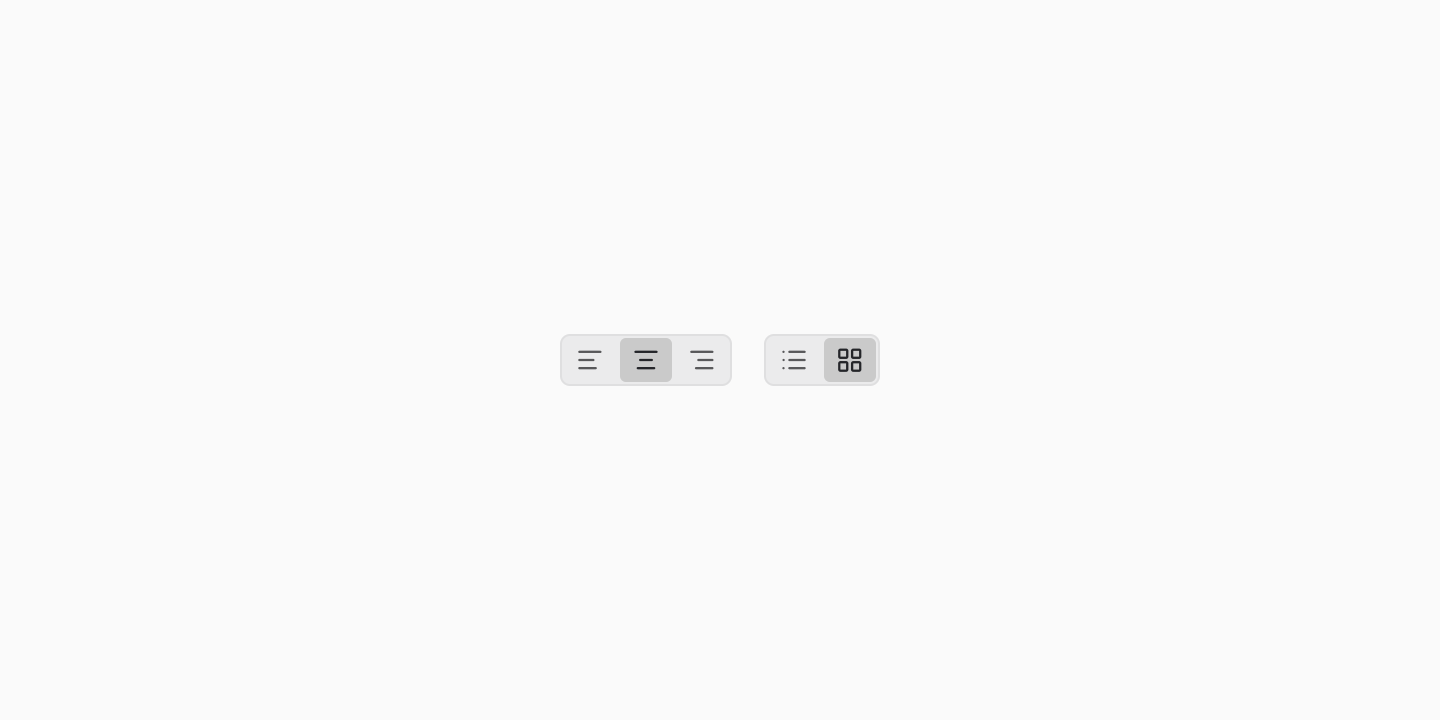

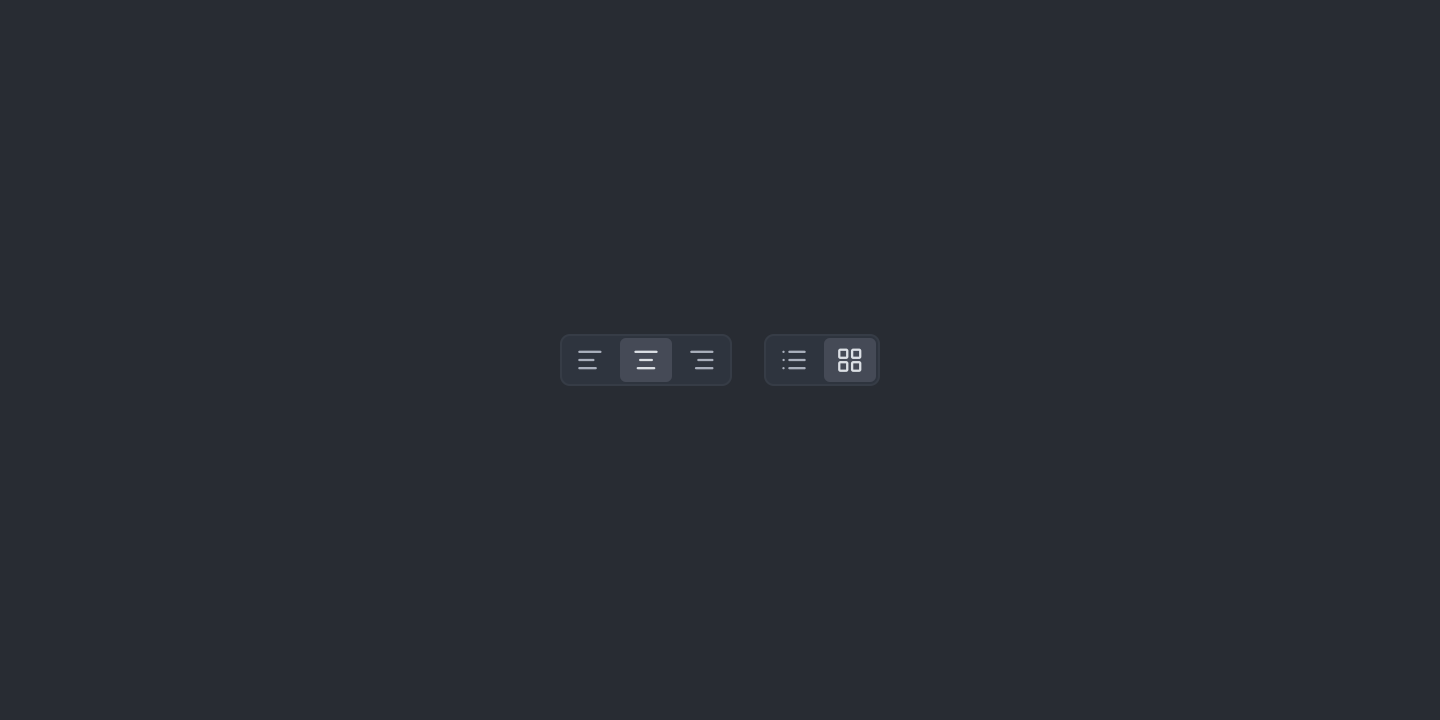

Preview

Code

pz.row([
    ui.toggle_group([("left", "align-left"), ("center", "align-center"), ("right", "align-right")],
                    "center", on_align),
    ui.toggle_group([("list", "list"), ("grid", "layout-grid")], "grid", on_layout),
], spacing=16)

When to use

• For a small set of mutually exclusive modes that have clear icons.
• With text labels, use Segmented instead.

Usage

import pyzed as pz
from pyzed import ui

class Toolbar(pz.App):
    def __init__(self):
        self.align = "left"

    def view(self):
        return ui.toggle_group(
            [("left", "align-left"), ("center", "align-center"), ("right", "align-right")],
            self.align, lambda value: setattr(self, "align", value),
        )

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Options

Two options

Code

ui.toggle_group([("list", "list"), ("grid", "layout-grid")], "list", on_select)

Three options

Code

ui.toggle_group([("left", "align-left"), ("center", "align-center"), ("right", "align-right")],
                "center", on_select)

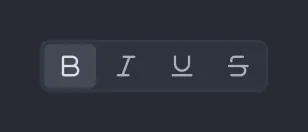

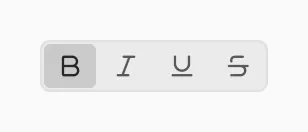

Four options

Code

ui.toggle_group([("b", "bold"), ("i", "italic"), ("u", "underline"), ("s", "strikethrough")],
                "b", on_select)

Selection

selected="left"

Code

ui.toggle_group([("left", "align-left"), ("center", "align-center"), ("right", "align-right")],
                "left", on_select)

selected="right"

Code

ui.toggle_group([("left", "align-left"), ("center", "align-center"), ("right", "align-right")],
                "right", on_select)

selected=None

Code

ui.toggle_group([("left", "align-left"), ("center", "align-center"), ("right", "align-right")],
                None, on_select)

States and events

A third item in an option adds a tooltip: (value, icon, tooltip).

multiple=True

Code

ui.toggle_group([("b", "bold"), ("i", "italic"), ("u", "underline")], {"b", "u"}, on_select, multiple=True)

disabled={"right"}

Code

ui.toggle_group([("left", "align-left"), ("center", "align-center"), ("right", "align-right")],
                "left", on_select, disabled={"right"})

Events

Toggle group has 1 event of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Handler gets	When
on_select	(value)	Callable that receives the chosen item.

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

class Toolbar(pz.App):
    def __init__(self):
        self.align = "left"

    def set_align(self, value):          # on_select gets the value of the pressed option
        self.align = value

    def view(self):
        return ui.toggle_group([("left", "align-left"), ("center", "align-center"), ("right", "align-right")],
                               self.align, self.set_align)

Declarative

from dataclasses import dataclass


@dataclass
class Align:
    value: str


class Toolbar(pz.App):
    align = "left"

    def update(self, message):
        match message:
            case Align(value):
                self.align = value

    def view(self):
        return ui.toggle_group([("left", "align-left"), ("center", "align-center")],
                               self.align, Align)   # the class builds the message from the value

Functional

from dataclasses import dataclass


@dataclass(frozen=True)
class State:
    align: str = "left"


def view(state, set_state):
    return ui.toggle_group([("left", "align-left"), ("center", "align-center"), ("right", "align-right")],
                           state.align, lambda value: set_state(align=value))

Properties and API

ui.toggle_group

toggle_group(
    options,
    selected,
    on_select=None,
    *,
    disabled=False,
    multiple=False,
    theme=None,
)

An icon-only segmented control.

Property	Default	Description
options	required	(value, icon_name) or (value, icon_name, tooltip).
selected	required	Current value (a collection with multiple).
disabled	False	True, or the values to disable.
multiple	False	Each button toggles its value on or off.
theme	None	Theme to use instead of the current one (pyzed.theme.current()).

Events: on_select (events).

Full reference →
