Time picker

In plain words

A box for a time of day, with lists of hours and minutes to choose from.

ui.TimePicker is a field for a time of day. Its popup has a column of hours, one of minutes (every minute_step minutes), seconds when the format has ss and AM/PM when it has A or h. ↑ and ↓ move it by one step from the keyboard. on_change receives a datetime.time.

ui.TimePicker · Category: Dates and times · Full reference →

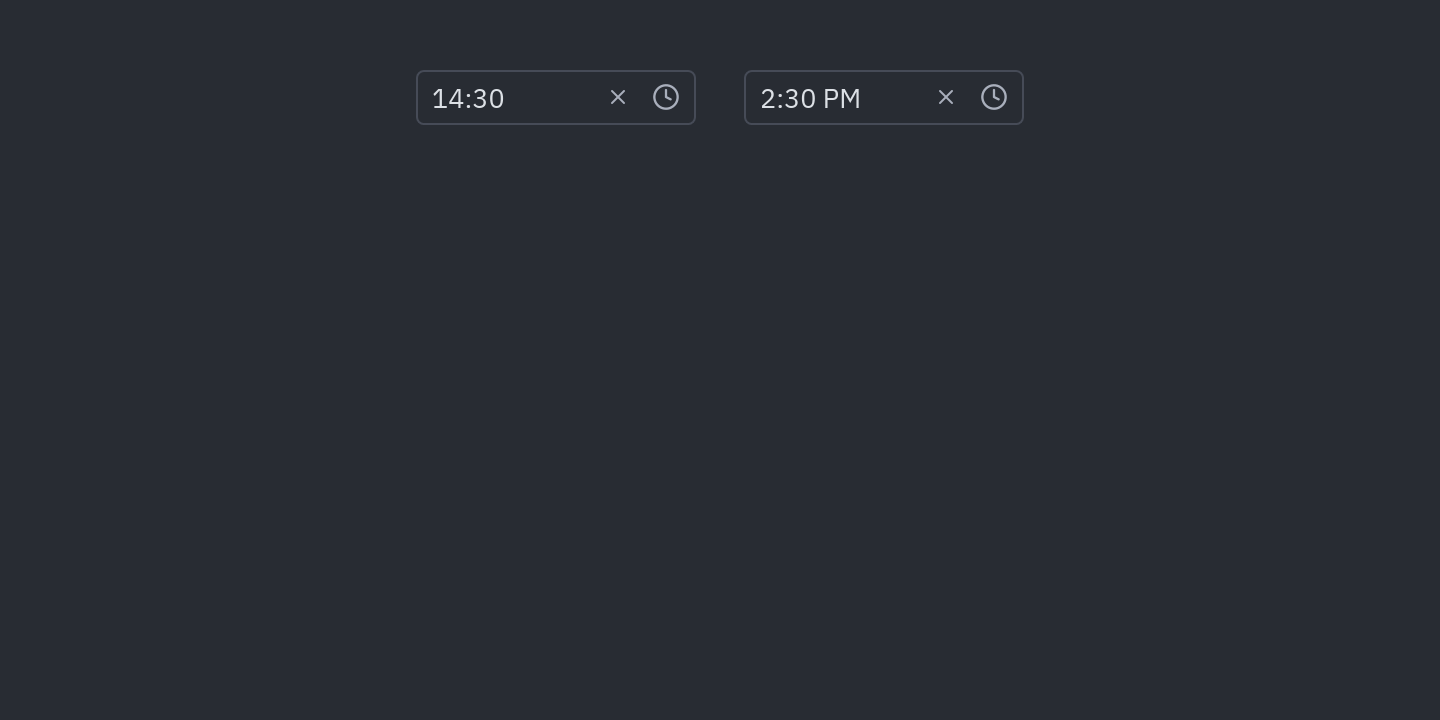

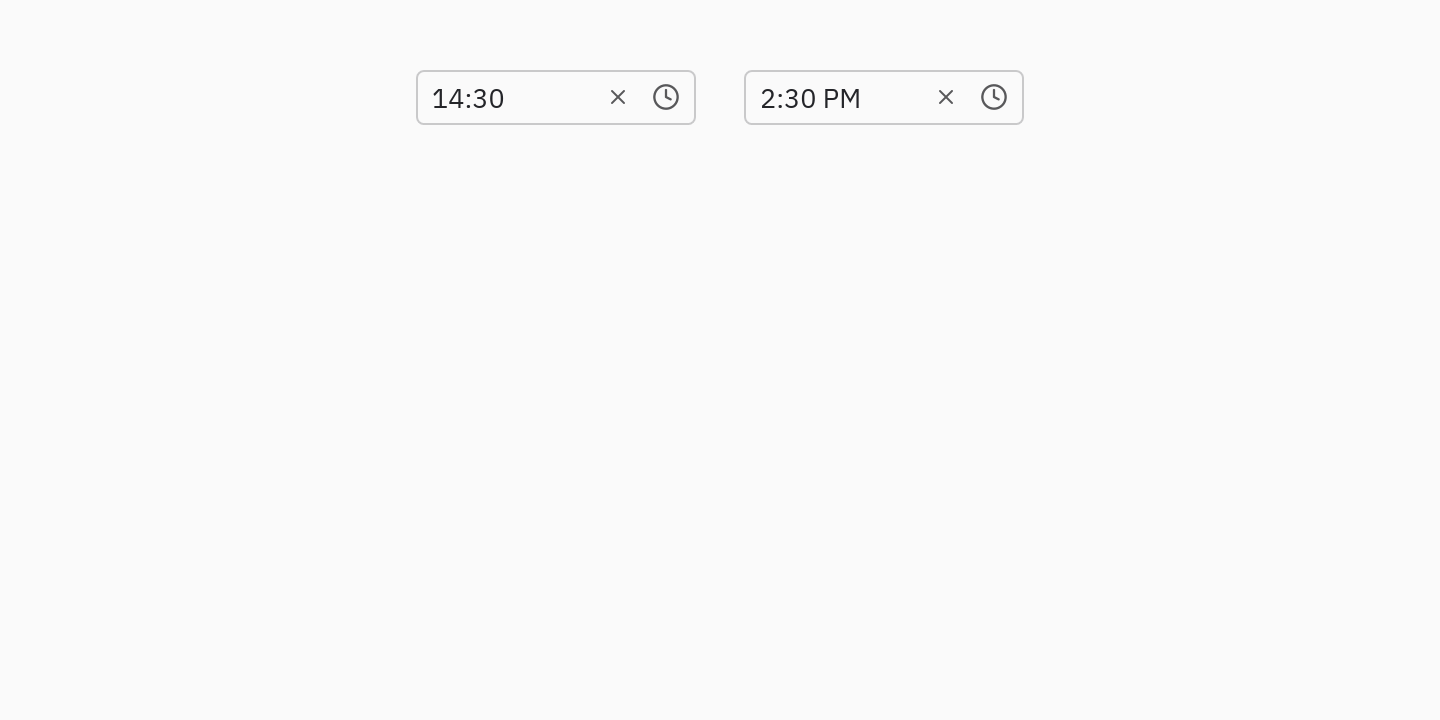

Preview

Code

pz.row([
    pz.container(ui.TimePicker(value="14:30", on_change=on_change), width=140, height=290, align_y="start"),
    pz.container(ui.TimePicker(value="14:30", format="h:mm A", minute_step=15, on_change=on_change),
                 width=140, height=290, align_y="start"),
], spacing=24)

New

This component was added recently. Tell us how it works for you in the issue tracker.

When to use

• For alarms, opening hours, meetings and reminders.
• format="HH:mm" is 24 hours; "h:mm A" is 12 hours with AM/PM; "HH:mm:ss" adds seconds.

Usage

import pyzed as pz
from pyzed import ui

import datetime


class Alarm(pz.App):
    def __init__(self):
        self.at = datetime.time(7, 30)

    def view(self):
        return ui.field("Wake me at", ui.TimePicker(value=self.at, format="h:mm A",
                                                    on_change=lambda e: setattr(self, "at", e.value)))

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Format

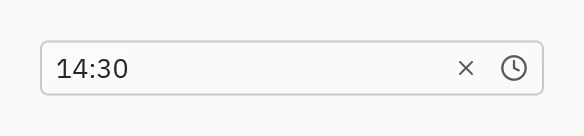

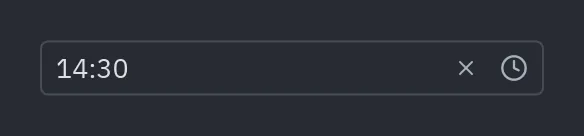

"HH:mm"

Code

ui.TimePicker(value="14:30", on_change=on_change)

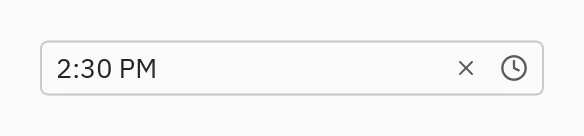

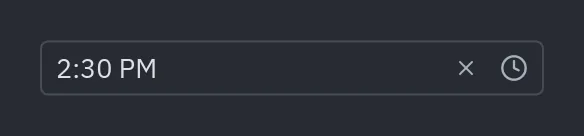

"h:mm A"

Code

ui.TimePicker(value="14:30", format="h:mm A", on_change=on_change)

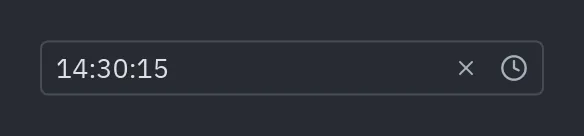

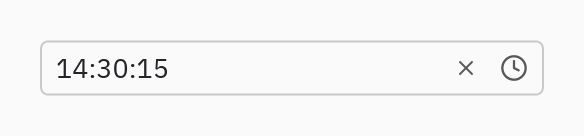

"HH:mm:ss"

Code

ui.TimePicker(value="14:30:15", format="HH:mm:ss", on_change=on_change)

Open

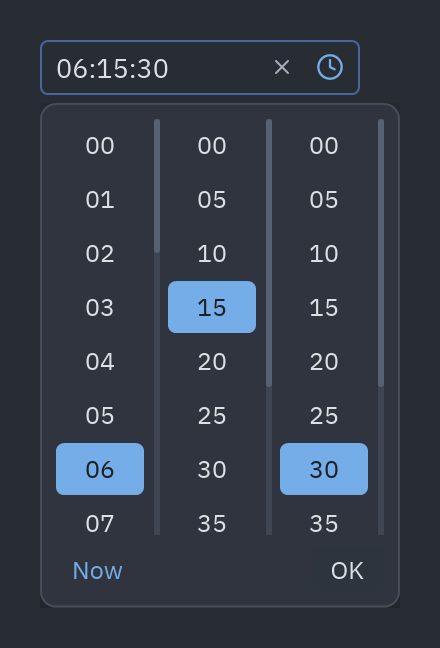

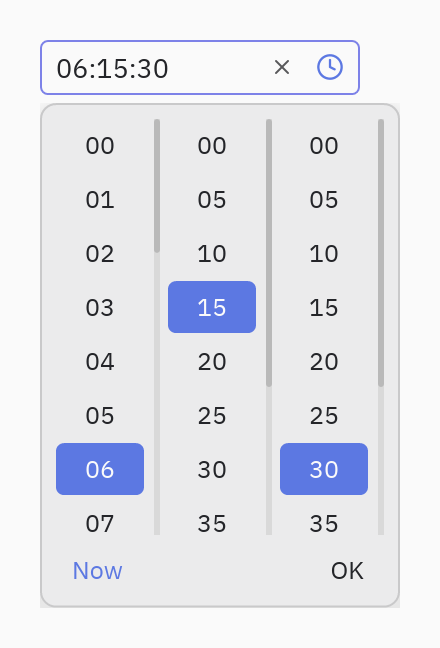

format="HH:mm:ss"

Code

ui.TimePicker(value="06:15:30", format="HH:mm:ss", on_change=on_change)

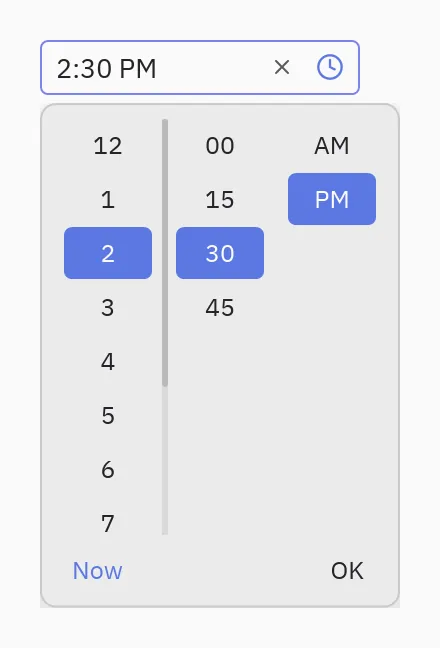

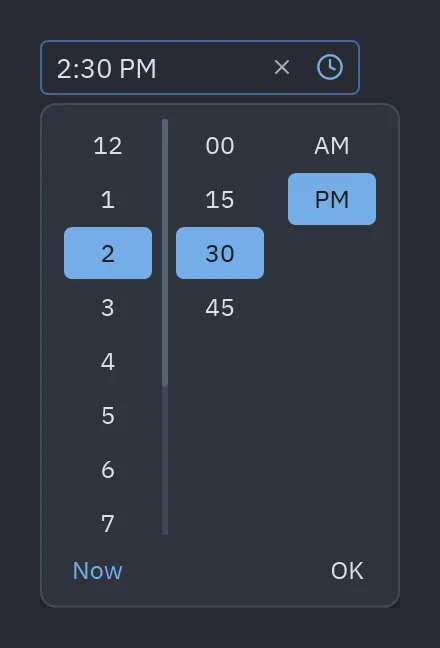

format="h:mm A"

Code

ui.TimePicker(value="14:30", format="h:mm A", minute_step=15, on_change=on_change)

Events

Time picker has 3 events of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

It is a pz.Component, so it also raises on_mount and on_unmount, and its handlers get a pz.Event whose value holds the data.

Event	Handler gets	When
on_change	(event)	Receives event.value: a datetime.time or None.
on_open	(event)	The list opened.
on_close	(event)	The list closed.

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

import datetime


class Alarm(pz.App):
    def __init__(self):
        self.at = datetime.time(7, 30)

    def changed(self, event):            # on_change: event.value is a datetime.time
        self.at = event.value

    def view(self):
        return pz.column([
            ui.TimePicker(value=self.at, format="h:mm A", on_change=self.changed),
            ui.label(f"Alarm at {ui.format_time(self.at, 'HH:mm')}"),
        ], spacing=8, width=200)

Declarative

import datetime
from dataclasses import dataclass


@dataclass
class At:
    time: datetime.time


class Alarm(pz.App):
    at = datetime.time(7, 30)

    def update(self, message):
        match message:
            case At(time):
                self.at = time

    def view(self):
        return ui.TimePicker(value=self.at, on_change=lambda e: At(e.value))

Functional

import datetime
from dataclasses import dataclass


@dataclass(frozen=True)
class State:
    at: datetime.time = datetime.time(7, 30)


def view(state, set_state):
    return ui.TimePicker(value=state.at, minute_step=15, on_change=lambda e: set_state(at=e.value))

Properties and API

ui.TimePicker

class TimePicker

A component: a time field with columns of hours and minutes (and seconds, and AM/PM with a 12-hour format) in a popup. Once clicked, ↑/↓ change it by minute_step. See the Time picker page.

Property	Default	Description
value	None	The time (datetime.time, "14:30" or None).
format	"HH:mm"	"HH:mm", "HH:mm:ss", "h:mm A"…
placeholder	""	Hint while empty.
minute_step	5	Minutes between the ones offered.
min	None	The earliest time.
max	None	The latest time.
clearable	True	Shows an x that empties it.
disabled	False	Greys it out.
invalid	False	Paints the border in the error color.

Events: on_change, on_open, on_close (events).

Full reference →

ui.format_time

format_time(value, fmt='HH:mm')

Writes a time (or "14:30") with a pattern such as "h:mm A".

Property	Default	Description
value	required	A datetime.time or text.
fmt	"HH:mm"	The pattern.

Full reference →

ui.parse_time

parse_time(text, fmt='HH:mm')

Reads a time: "14:30", "2:30 PM", "14:30:05", with fmt first. None when it is not one.

Property	Default	Description
text	required	The text.
fmt	"HH:mm"	The pattern.

Full reference →
