Tool call

In plain words

One thing an AI assistant did, like reading or changing a file. Click it to see the details; if it needs your permission, it asks with Allow and Reject buttons.

ui.ToolCall is a component for one action of an AI agent (reading a file, editing it, running a command), drawn like in Zed: a line with its status, the title and what it works on (detail), and a click unfolds the input and the output (plus any images). Edits, commands (kind edit, delete, move or execute) and calls that wait are cards instead. diffs show the edits it made as colored diffs, and while it runs progress shows the last lines a command printed. While status is "waiting" it asks right on the card: Always allow, Allow or Reject, reported through on_allow, on_allow_always and on_deny. The component remembers whether it is unfolded; your app only keeps the data.

ui.ToolCall · Category: AI agents · Full reference →

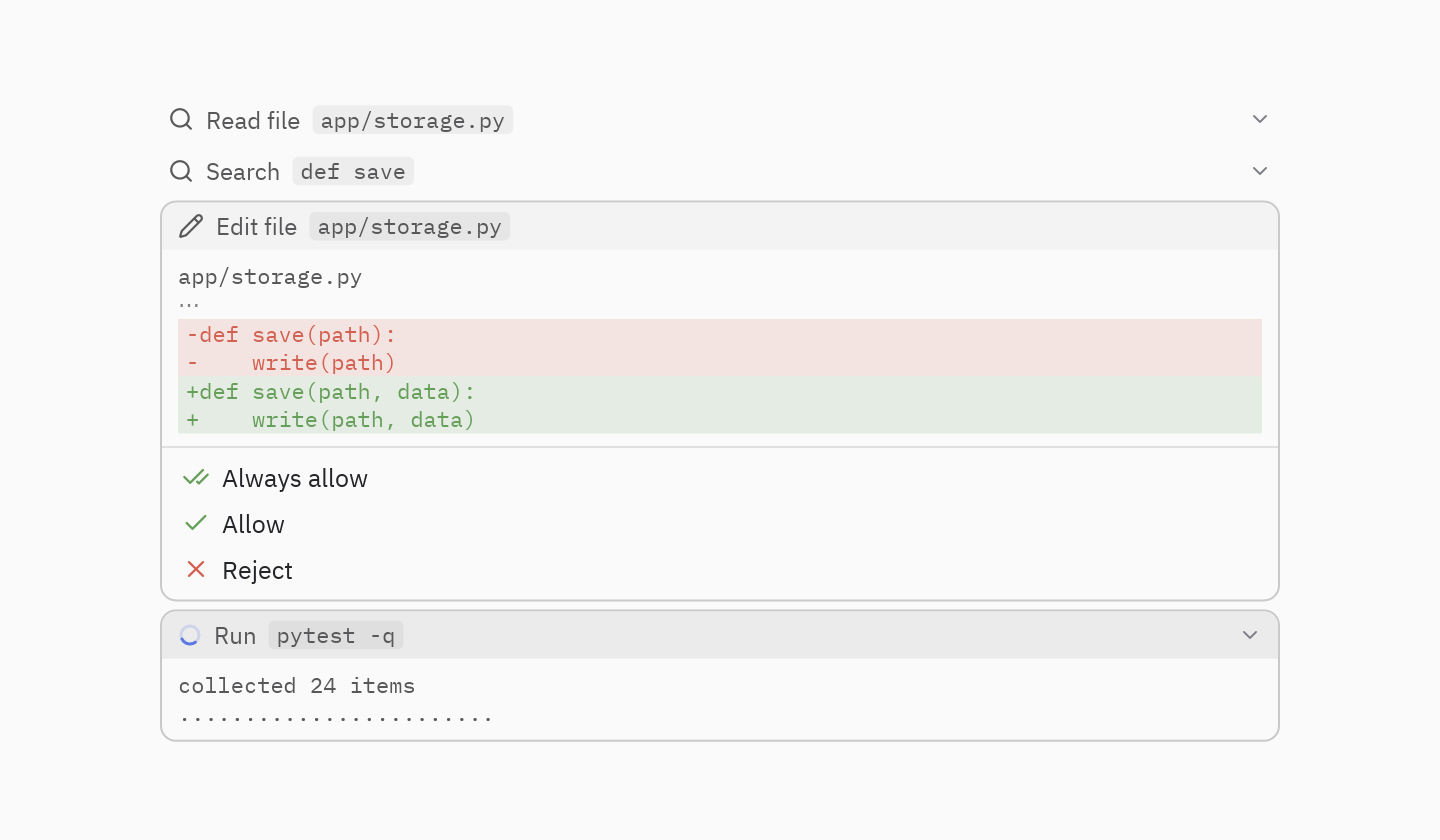

Preview

Code

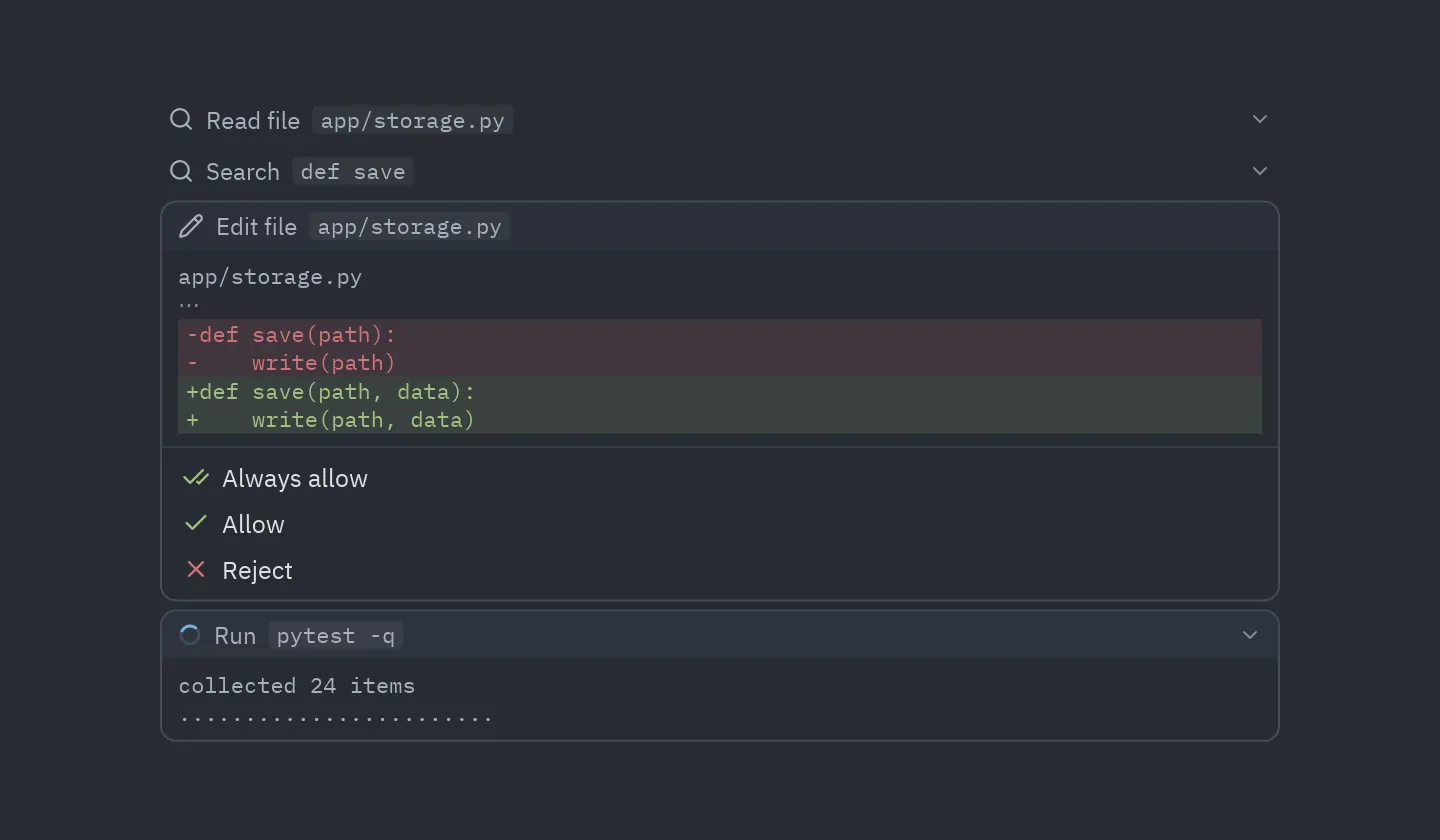

pz.column([
    ui.ToolCall(title="Read file", detail="app/storage.py", kind="read", output="def save(path): ..."),
    ui.ToolCall(title="Search", detail="def save", kind="search", output="app/storage.py:12"),
    ui.ToolCall(title="Edit file", detail="app/storage.py", kind="edit", status="waiting",
                diffs=[{"path": "app/storage.py", "old": "def save(path):\n    write(path)\n",
                        "new": "def save(path, data):\n    write(path, data)\n"}],
                on_allow=on_allow, on_allow_always=on_allow_always, on_deny=on_deny),
    ui.ToolCall(title="Run", detail="pytest -q", kind="execute", status="running",
                progress="collected 24 items\n........................"),
], spacing=4, width=560)

New

This component was added recently. Tell us how it works for you in the issue tracker.

When to use

• In an agent’s chat, one per step the agent takes.
• With status="waiting", to ask before a risky step such as writing files or running a command.
• For an edit on its own, outside a tool call, use Diff view.

Usage

import pyzed as pz
from pyzed import ui

class Chat(pz.App):
    def __init__(self):
        self.status = "waiting"

    def answer(self, allowed):
        self.status = "done" if allowed else "rejected"

    def view(self):
        return ui.ToolCall(title="Run", detail="pytest -q", kind="execute", status=self.status,
                           input={"command": "pytest -q"}, output="24 passed",
                           on_allow=lambda e: self.answer(True), on_deny=lambda e: self.answer(False))

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

State

Pending and running show a spinner, waiting asks with Always allow, Allow and Reject, failed and rejected say so in red.

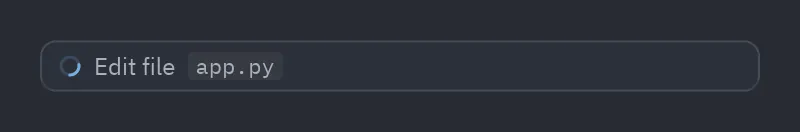

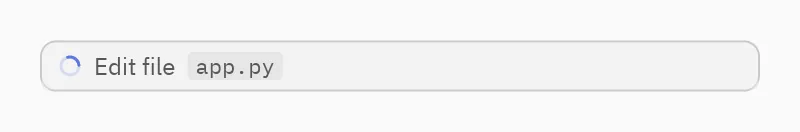

status="pending"

Code

pz.container(ui.ToolCall(title="Edit file", detail="app.py", kind="edit", status="pending"),
             width=360)

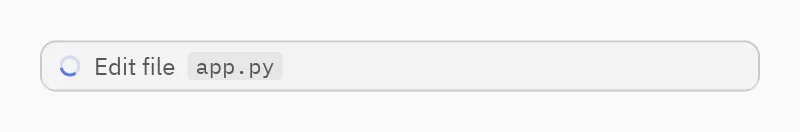

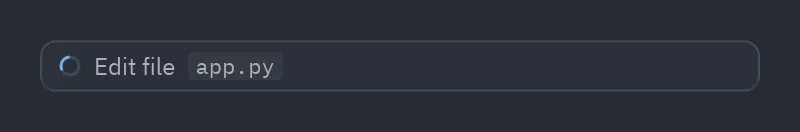

status="running"

Code

pz.container(ui.ToolCall(title="Edit file", detail="app.py", kind="edit", status="running"),
             width=360)

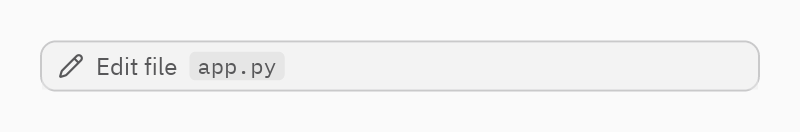

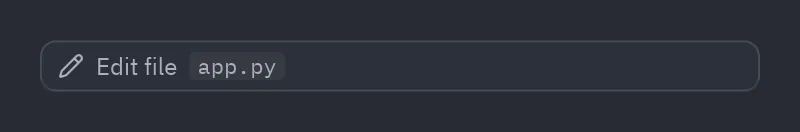

status="done"

Code

pz.container(ui.ToolCall(title="Edit file", detail="app.py", kind="edit", status="done"),
             width=360)

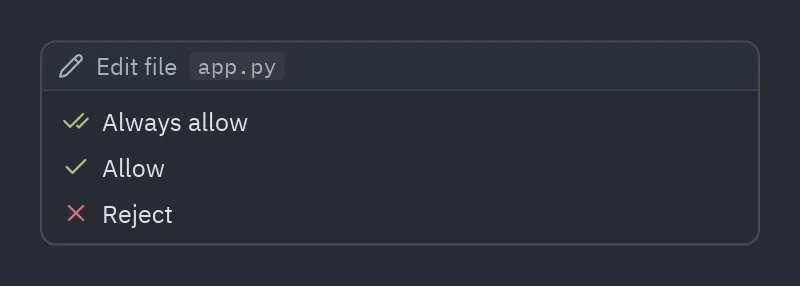

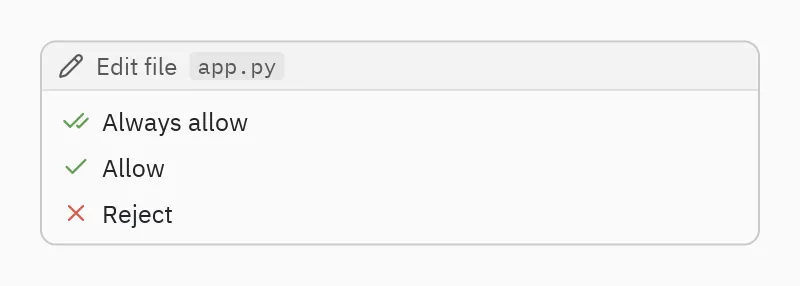

status="waiting"

Code

pz.container(ui.ToolCall(title="Edit file", detail="app.py", kind="edit", status="waiting",
                         on_allow=on_allow, on_allow_always=on_allow_always, on_deny=on_deny),
             width=360)

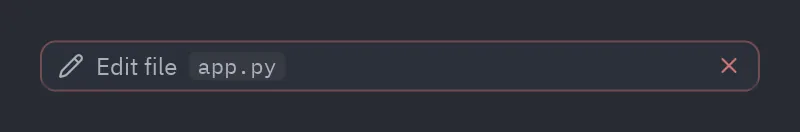

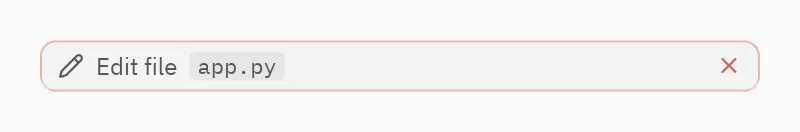

status="failed"

Code

pz.container(ui.ToolCall(title="Edit file", detail="app.py", kind="edit", status="failed"),
             width=360)

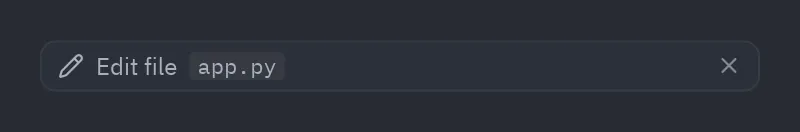

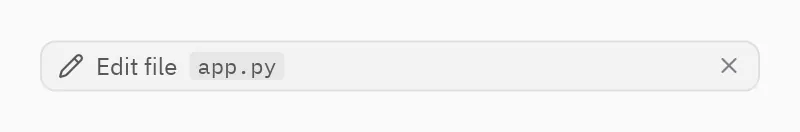

status="rejected"

Code

pz.container(ui.ToolCall(title="Edit file", detail="app.py", kind="edit", status="rejected"),
             width=360)

Kind

The kind picks the icon of a finished call.

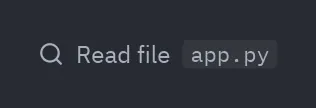

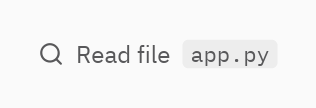

kind="read"

Code

pz.container(ui.ToolCall(title="Read file", detail="app.py", kind="read"), width=300)

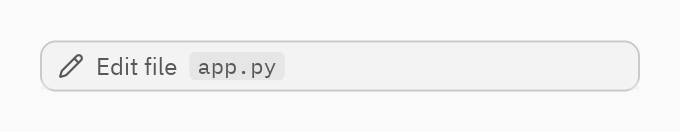

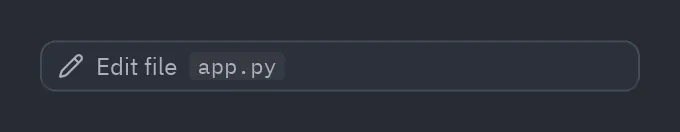

kind="edit"

Code

pz.container(ui.ToolCall(title="Edit file", detail="app.py", kind="edit"), width=300)

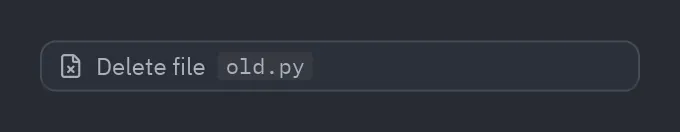

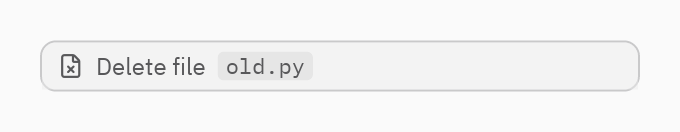

kind="delete"

Code

pz.container(ui.ToolCall(title="Delete file", detail="old.py", kind="delete"), width=300)

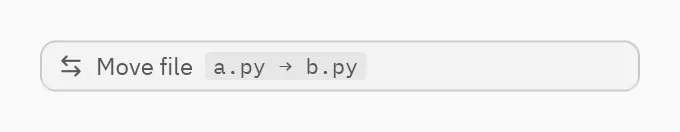

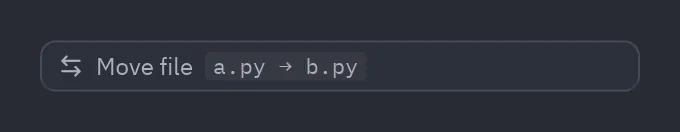

kind="move"

Code

pz.container(ui.ToolCall(title="Move file", detail="a.py → b.py", kind="move"), width=300)

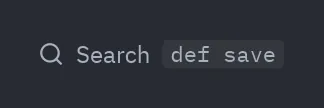

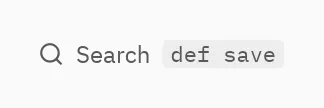

kind="search"

Code

pz.container(ui.ToolCall(title="Search", detail="def save", kind="search"), width=300)

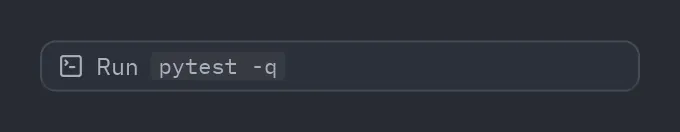

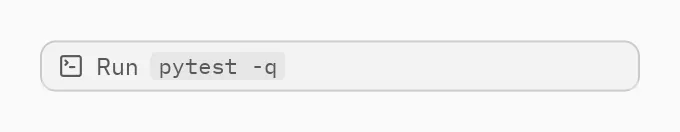

kind="execute"

Code

pz.container(ui.ToolCall(title="Run", detail="pytest -q", kind="execute"), width=300)

kind="think"

Code

pz.container(ui.ToolCall(title="Think", kind="think"), width=300)

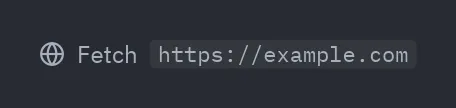

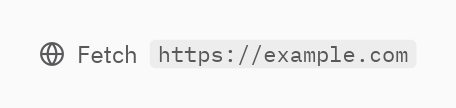

kind="fetch"

Code

pz.container(ui.ToolCall(title="Fetch", detail="https://example.com", kind="fetch"),
             width=300)

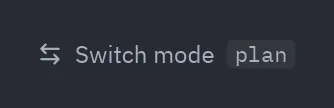

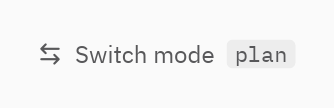

kind="switch_mode"

Code

pz.container(ui.ToolCall(title="Switch mode", detail="plan", kind="switch_mode"),
             width=300)

kind="other"

Code

pz.container(ui.ToolCall(title="Tool", detail="custom", kind="other"), width=300)

Content

Unfolded ones are drawn as they look after a click on the header.

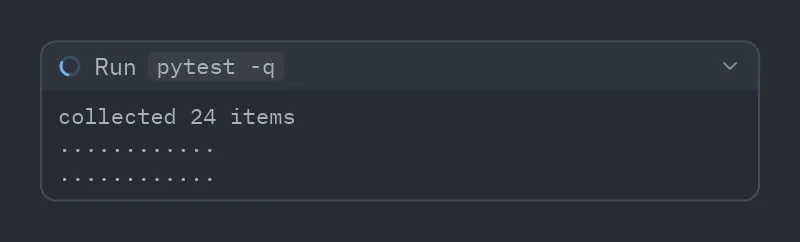

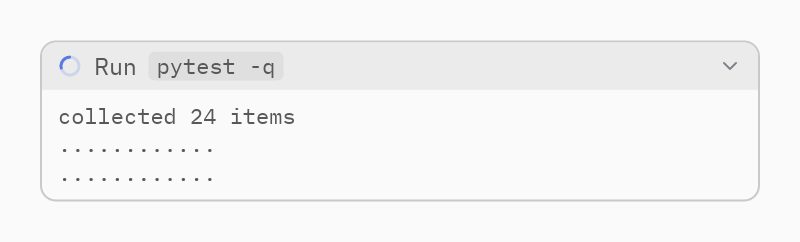

progress=

Code

pz.container(ui.ToolCall(title="Run", detail="pytest -q", kind="execute", status="running",
                         progress="collected 24 items\n............\n............"),
             width=360)

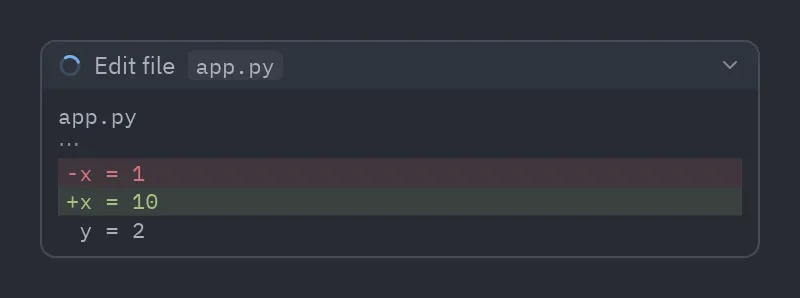

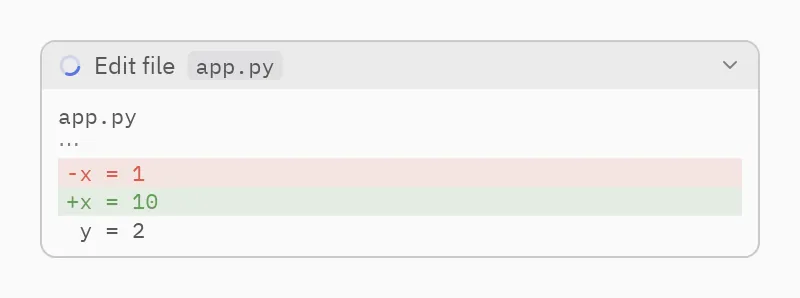

diffs=

Code

pz.container(ui.ToolCall(title="Edit file", detail="app.py", kind="edit", status="running",
                         diffs=[{"path": "app.py", "old": "x = 1\ny = 2\n", "new": "x = 10\ny = 2\n"}]),
             width=360)

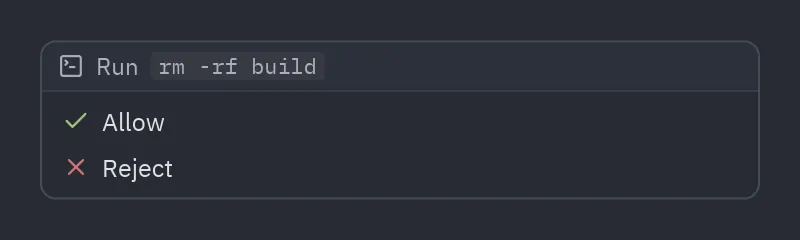

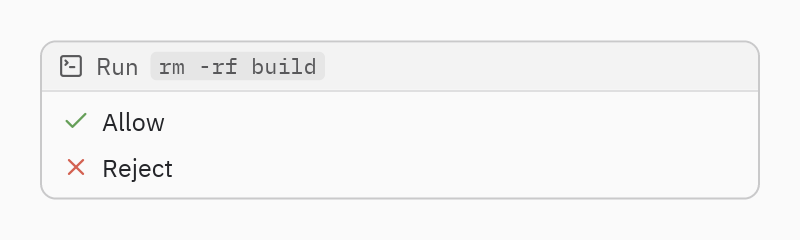

allow_always=False

Code

pz.container(ui.ToolCall(title="Run", detail="rm -rf build", kind="execute", status="waiting",
                         allow_always=False, on_allow=on_allow, on_deny=on_deny),
             width=360)

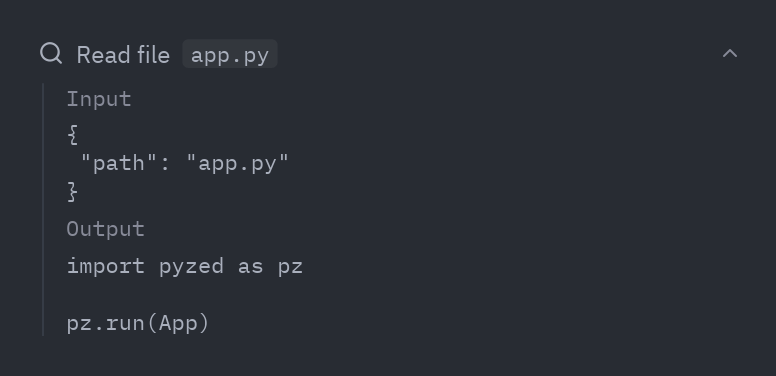

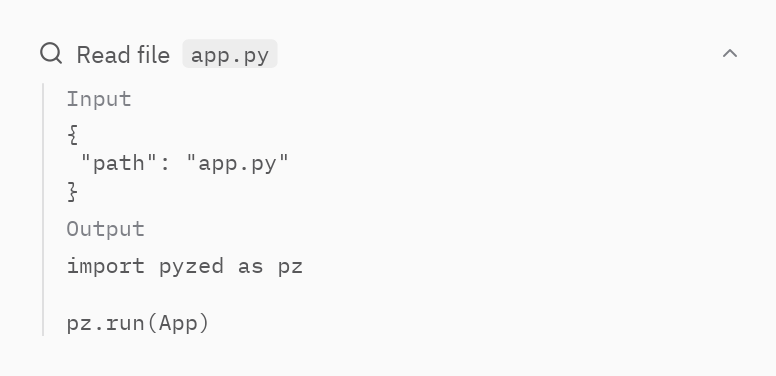

input=, output=

Code

pz.container(ui.ToolCall(title="Read file", detail="app.py", kind="read",
                         input={"path": "app.py"}, output="import pyzed as pz\n\npz.run(App)"),
             width=360)

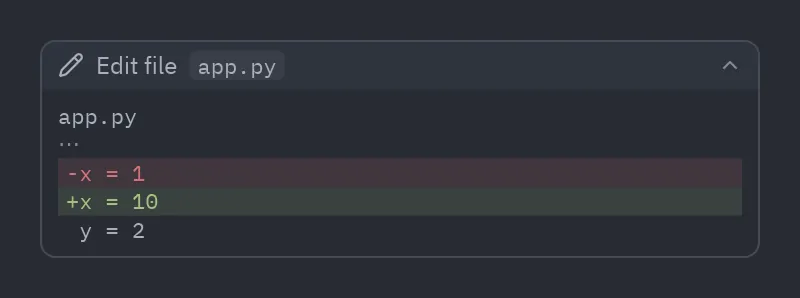

Unfolded diffs

Code

pz.container(ui.ToolCall(title="Edit file", detail="app.py", kind="edit",
                         diffs=[{"path": "app.py", "old": "x = 1\ny = 2\n", "new": "x = 10\ny = 2\n"}]),
             width=360)

Events

Tool call has 3 events of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

It is a pz.Component, so it also raises on_mount and on_unmount, and its handlers get a pz.Event whose value holds the data.

Event	Handler gets	When
on_allow	(event)	Allow was pressed.
on_allow_always	(event)	Always allow was pressed.
on_deny	(event)	Reject was pressed.

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

class Chat(pz.App):
    def __init__(self):
        self.status = "waiting"

    def answer(self, status):
        self.status = status

    def view(self):                      # a pz.Component: handlers get a pz.Event
        return ui.ToolCall(title="Run", detail="pytest -q", kind="execute", status=self.status,
                           input={"command": "pytest -q"},
                           on_allow=lambda e: self.answer("done"),
                           on_allow_always=lambda e: self.answer("done"),
                           on_deny=lambda e: self.answer("rejected"))

Declarative

class Chat(pz.App):
    status = "waiting"

    def update(self, message):
        match message:
            case "allow":
                self.status = "done"
            case "deny":
                self.status = "rejected"

    def view(self):
        return ui.ToolCall(title="Run", detail="pytest -q", kind="execute", status=self.status,
                           on_allow="allow", on_deny="deny")   # messages work for components too

Functional

from dataclasses import dataclass


@dataclass(frozen=True)
class State:
    status: str = "waiting"


def view(state, set_state):
    return ui.ToolCall(title="Run", detail="pytest -q", kind="execute", status=state.status,
                       on_allow=lambda e: set_state(status="done"),
                       on_deny=lambda e: set_state(status="rejected"))

Tips

Tip

status is yours: set it from what the agent reports (pending, then running, then done or failed; rejected after a Reject). kind only picks the icon: read, edit, delete, move, search, execute, think, fetch, switch_mode or other. The header only unfolds when there is something to show (input, output, images or diffs).

Properties and API

ui.ToolCall

class ToolCall

A component for one action of an AI agent, drawn like in Zed’s Agent panel: a line with its icon, what it does and where (it unfolds to show the input and the output), or a card for edits and commands, with the diff or the output. While status is "waiting" it asks right on the card: Always allow, Allow or Reject. See AI agents.

Property	Default	Description
title	""	What it does (“Edit file”).
detail	""	What it works on, in a monospace font.
kind	""	ACP’s kind: read, edit, delete, move, search, execute, think, fetch or other (its icon).
status	"done"	pending, running, waiting, done, failed or rejected.
input	None	The arguments (a dict or text).
output	None	The answer (text or a dict).
images	None	PNG bytes shown under the output.
diffs	None	The edits it made: {"path", "old", "new"} dicts, shown as colored diffs (see ui.diff_view).
progress	""	What it printed so far (a command’s output); its last lines show under the header while it runs.
allow_always	True	Shows Always allow.
theme	None	Theme.

Events: on_allow, on_allow_always, on_deny (events).

Full reference →
