Canvas

In plain words

A blank sheet to draw shapes, lines and text on, for charts and games.

A 2D drawing surface. shapes is a list made with pyzed.draw (rectangles, circles, arcs, paths, text, images…). Mouse callbacks receive coordinates relative to the canvas; with an id the geometry is cached between frames. The charts of this library are drawn with it.

pz.canvas · Category: Content · Full reference →

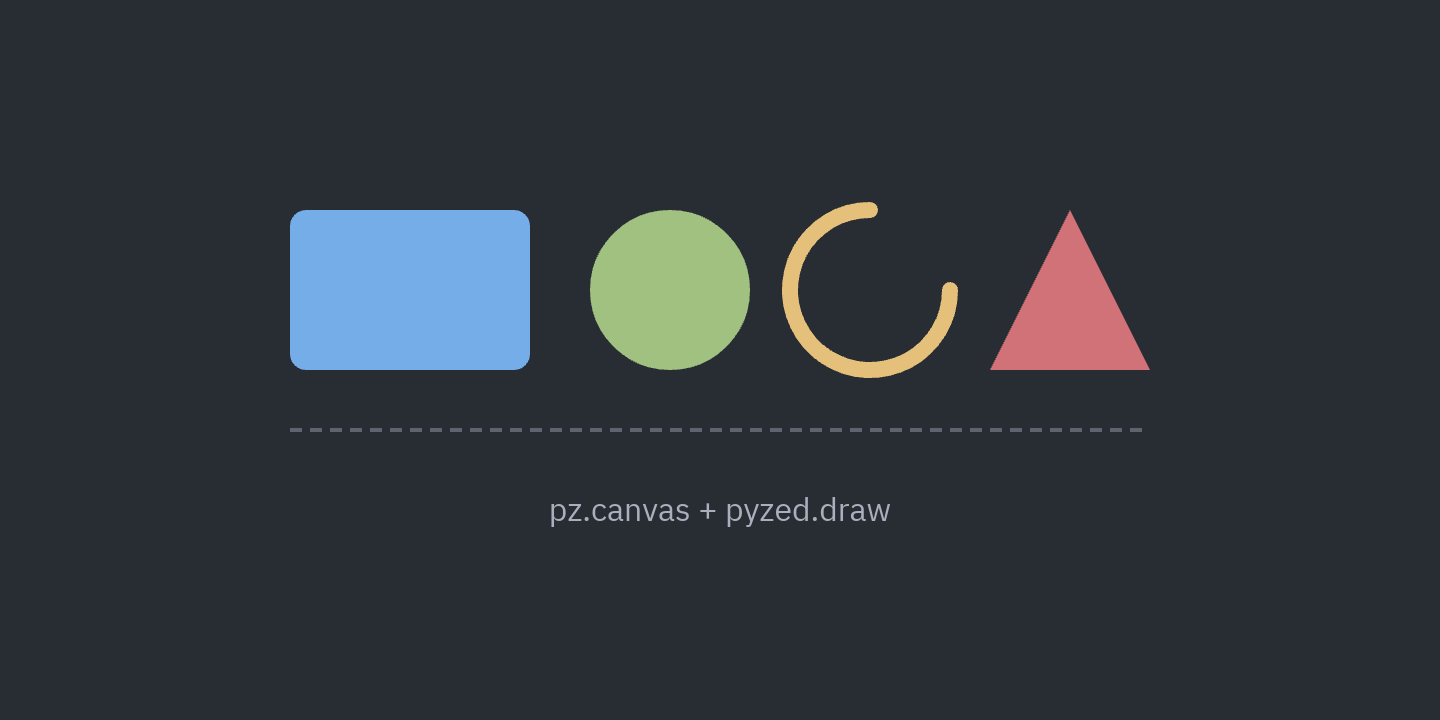

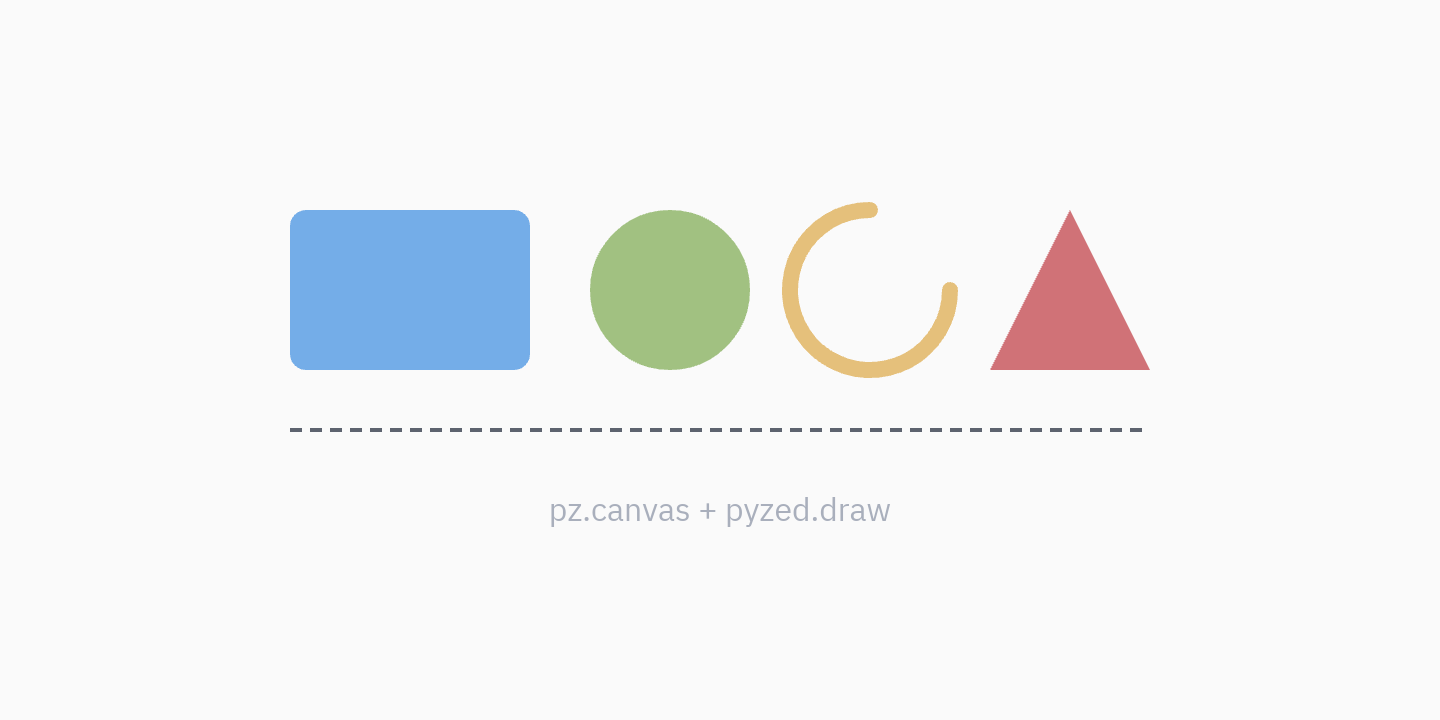

Preview

Code

pz.canvas([
    draw.rect(10, 10, 120, 80, fill="#74ade8", radius=8),
    draw.circle(200, 50, 40, fill="#a1c181"),
    draw.arc(300, 50, 40, 0, 270, stroke="#e5c07b", width=8, cap="round"),
    draw.polygon([(360, 90), (400, 10), (440, 90)], fill="#d07277"),
    draw.line(10, 120, 440, 120, stroke="#5d636f", width=2, dash=[6, 4]),
    draw.text(225, 150, "pz.canvas + pyzed.draw", color="#a9afbc", size=16, align_x="center"),
], width=450, height=170)

When to use

• For charts, games, diagrams, drawing apps and custom widgets.

Usage

import pyzed as pz
from pyzed import draw

pz.canvas([
    draw.rect(10, 10, 120, 80, fill="#74ade8", radius=8),
    draw.circle(200, 50, 40, fill="#a1c181"),
    draw.arc(300, 50, 40, 0, 270, stroke="#e5c07b", width=8, cap="round"),
    draw.polygon([(360, 90), (400, 10), (440, 90)], fill="#d07277"),
    draw.line(10, 120, 440, 120, stroke="#5d636f", width=2, dash=[6, 4]),
    draw.text(225, 150, "pz.canvas + pyzed.draw", color="#a9afbc", size=16, align_x="center"),
], width=450, height=170)

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Shapes

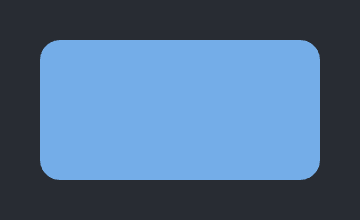

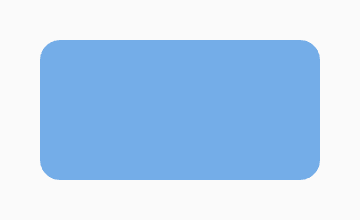

draw.rect

Code

pz.canvas([draw.rect(10, 10, 140, 70, fill="#74ade8", radius=10)], width=160, height=90)

draw.circle

Code

pz.canvas([draw.circle(50, 45, 36, fill="#a1c181")], width=100, height=90)

draw.arc

Code

pz.canvas([draw.arc(50, 45, 34, 0, 270, stroke="#e5c07b", width=8, cap="round")], width=100, height=90)

draw.polygon

Code

pz.canvas([draw.polygon([(10, 80), (50, 10), (90, 80)], fill="#d07277")], width=100, height=90)

draw.line(dash=)

Code

pz.canvas([draw.line(10, 45, 190, 45, stroke="#c678dd", width=3, dash=[8, 5])], width=200, height=90)

draw.text

Code

pz.canvas([draw.text(100, 45, "pyzed.draw", color="#74ade8", size=20, align_x="center",
                     align_y="center")], width=200, height=90)

Events

Canvas has 5 events of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Handler gets	When
on_press	(x, y)	Callable that receives (x, y) on press.
on_release	(x, y)	Callable that receives (x, y) on release.
on_right_press	(x, y)	Callable that receives (x, y) on right click.
on_move	(x, y)	Called with (x, y) when the mouse moves.
on_scroll	(dx, dy)	Callable that receives (dx, dy) in lines when the wheel is used.

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

class Paint(pz.App):
    def __init__(self):
        self.dots, self.drawing = [], False

    def press(self, x, y):               # on_press / on_move get the position
        self.drawing = True
        self.dots.append((x, y))

    def move(self, x, y):
        if self.drawing:
            self.dots.append((x, y))

    def view(self):
        return pz.canvas([draw.circle(x, y, 3, fill="#74ade8") for x, y in self.dots],
                         width=420, height=200, cursor="crosshair",
                         on_press=self.press, on_move=self.move,
                         on_release=lambda x, y: setattr(self, "drawing", False),
                         on_right_press=lambda x, y: self.dots.clear())

Declarative

from dataclasses import dataclass


@dataclass
class Dot:
    x: float
    y: float


class Paint(pz.App):
    dots = []

    def update(self, message):
        match message:
            case Dot(x, y):
                self.dots = self.dots + [(x, y)]
            case "clear":
                self.dots = []

    def view(self):
        return pz.canvas([draw.circle(x, y, 3, fill="#74ade8") for x, y in self.dots],
                         width=420, height=200, on_press=Dot, on_right_press=lambda x, y: "clear")

Functional

from dataclasses import dataclass


@dataclass(frozen=True)
class State:
    dots: tuple = ()
    zoom: float = 1.0


def view(state, set_state):
    shapes = [draw.circle(x, y, 3 * state.zoom, fill="#74ade8") for x, y in state.dots]
    return pz.canvas(shapes, width=420, height=200,
                     on_press=lambda x, y: set_state(dots=state.dots + ((x, y),)),
                     on_scroll=lambda dx, dy: set_state(zoom=max(0.5, state.zoom + dy * 0.1)))

Properties and API

pz.canvas

canvas(
    shapes=None,
    *,
    width=None,
    height=None,
    id=None,
    on_press=None,
    on_release=None,
    on_right_press=None,
    on_move=None,
    on_scroll=None,
    cursor=None,
)

A 2D drawing surface. shapes is a list created with pyzed.draw. Mouse callbacks receive coordinates relative to the canvas. With an id, the geometry is cached between frames and only recomputed when the shapes change. See the drawing with canvas guide.

Property	Default	Description
shapes	None	List of pyzed.draw shapes (nested lists are accepted).
width	None	Width: pixels, "fill", "shrink" or "fill:N" (proportion).
height	None	Height: pixels, "fill", "shrink" or "fill:N" (proportion).
id	None	Enables the geometry cache.
cursor	None	Mouse cursor ("crosshair", "pointer"…).

Events: on_press, on_release, on_right_press, on_move, on_scroll (events).

Full reference →
