Field

In plain words

A row of a form: the name of a setting on the left and its control on the right.

A form row like the ones of a settings screen: the title (and an optional description) on the left and any control on the right. Stack several in a column or a Settings group.

ui.field · Category: Forms · Full reference →

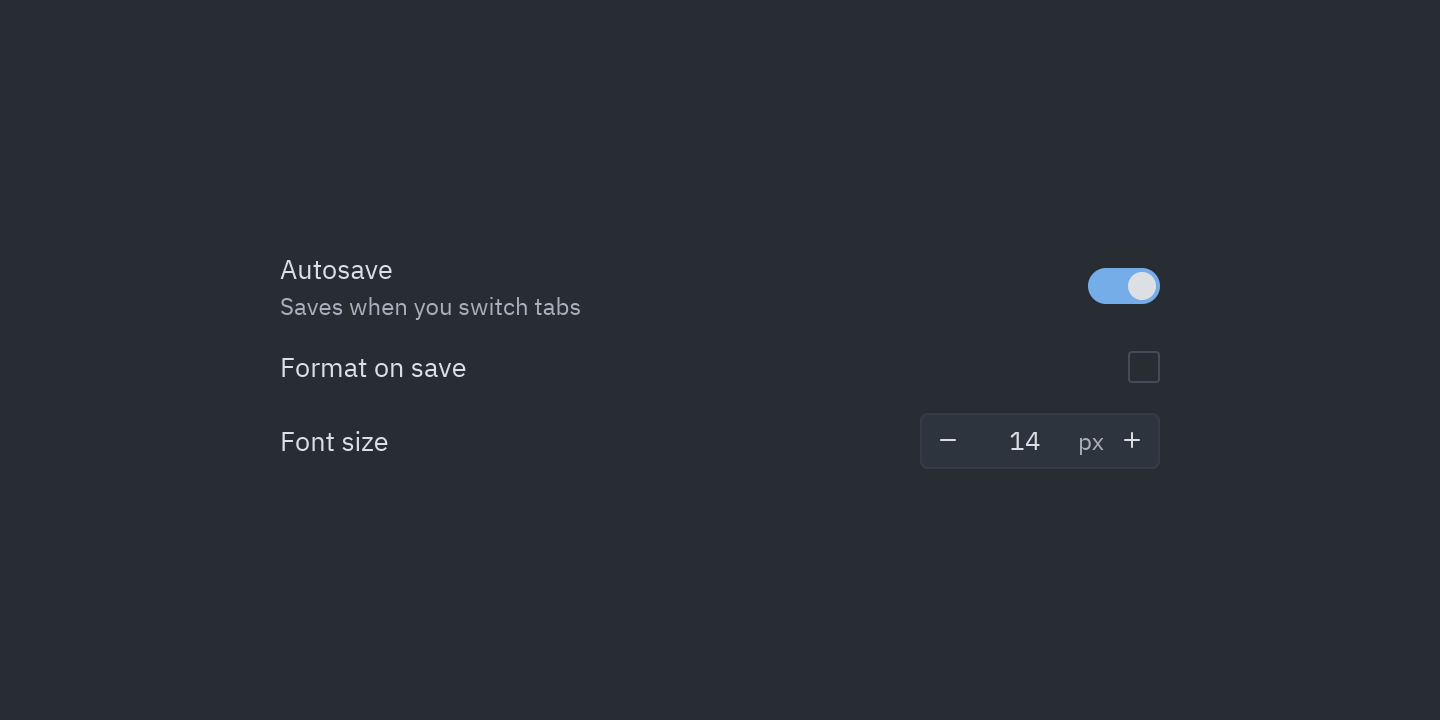

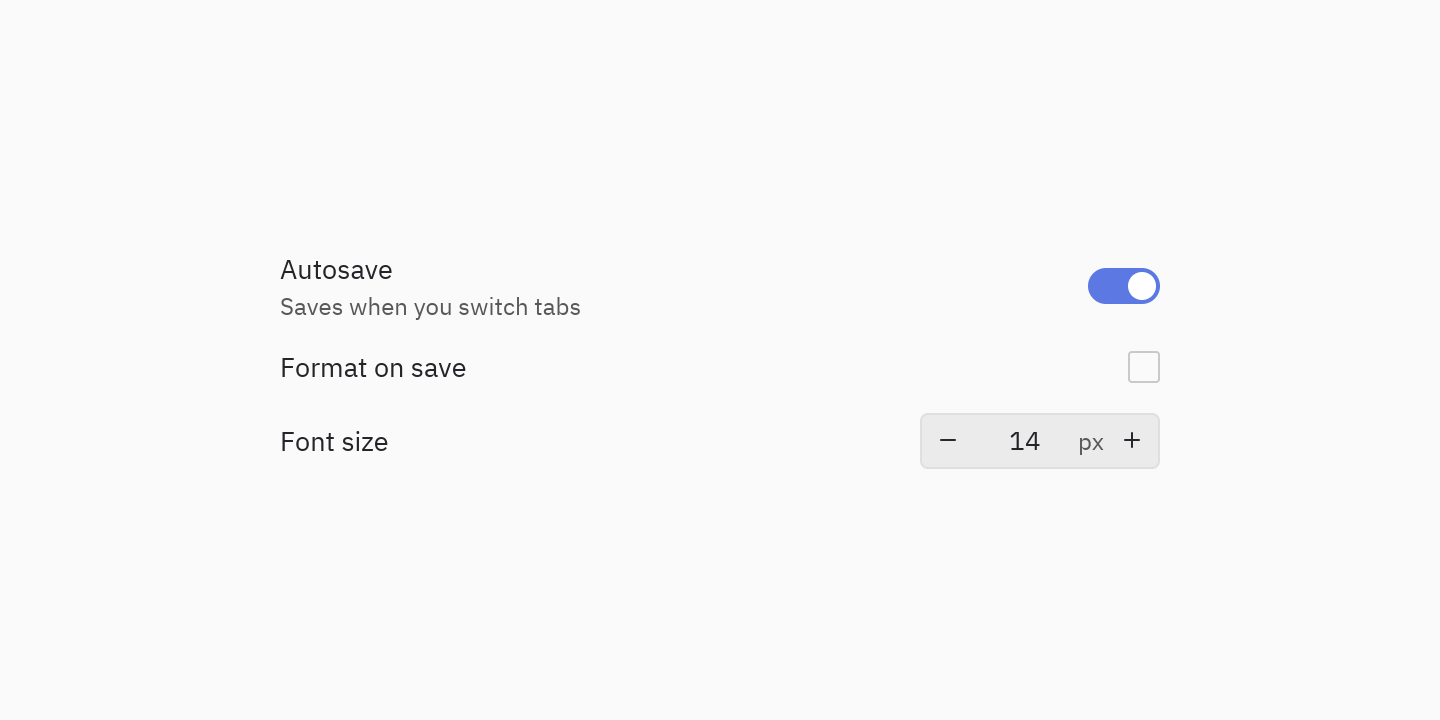

Preview

Code

pz.column([
    ui.field("Autosave", ui.switch(True, on_toggle), description="Saves when you switch tabs"),
    ui.field("Format on save", ui.checkbox(False, on_toggle)),
    ui.field("Font size", ui.number_field(14, on_change, suffix="px")),
], spacing=14, width=440)

When to use

• For preferences and forms where each control needs a label and maybe a hint.
• It lines up switches, selects and number fields of different widths.

Usage

import pyzed as pz
from pyzed import ui

pz.column([
    ui.field("Autosave", ui.switch(True, on_toggle), description="Saves when you switch tabs"),
    ui.field("Format on save", ui.checkbox(False, on_toggle)),
    ui.field("Font size", ui.number_field(14, on_change, suffix="px")),
], spacing=14, width=440)

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Control

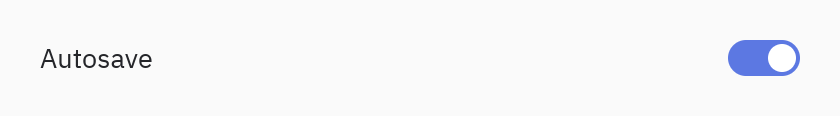

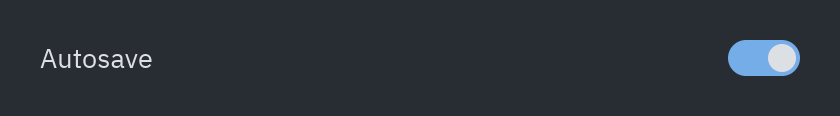

Switch

Code

pz.container(ui.field("Autosave", ui.switch(True, on_toggle)), width=380)

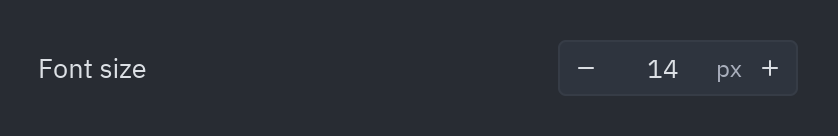

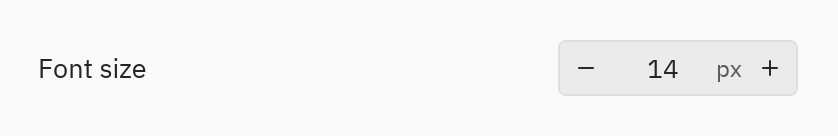

Number field

Code

pz.container(ui.field("Font size", ui.number_field(14, on_change, suffix="px")), width=380)

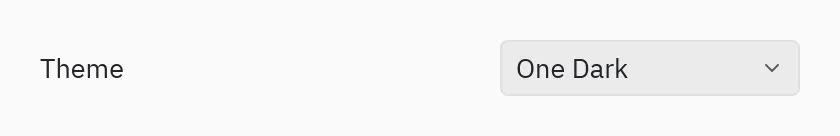

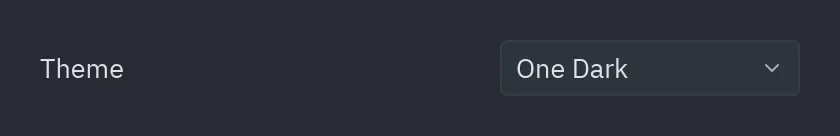

Select

Code

pz.container(ui.field("Theme", ui.select(["One Dark", "One Light"], "One Dark", on_select, width=150)), width=380)

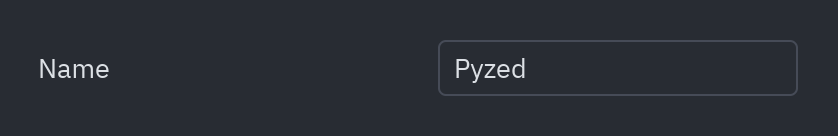

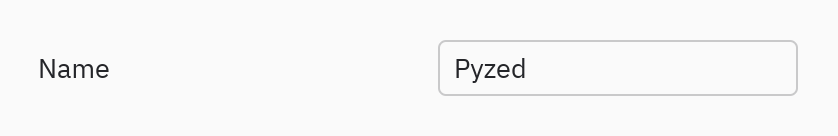

Input

Code

pz.container(ui.field("Name", ui.input("Pyzed", on_input, width=180)), width=380)

Help and errors

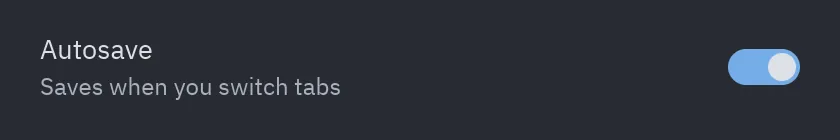

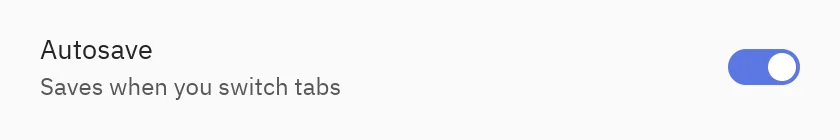

description=

Code

pz.container(ui.field("Autosave", ui.switch(True, on_toggle), description="Saves when you switch tabs"), width=380)

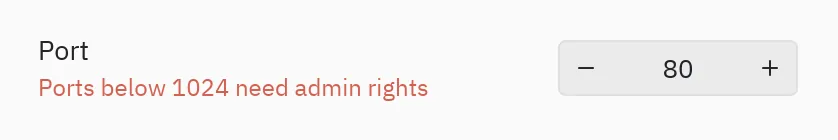

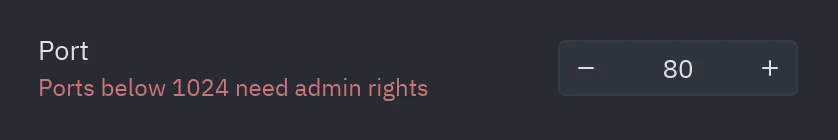

error=

Code

pz.container(ui.field("Port", ui.number_field(80, on_change), error="Ports below 1024 need admin rights"), width=380)

States and events

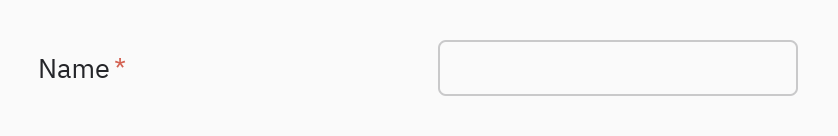

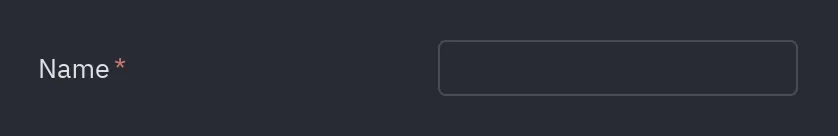

required=True

Code

pz.container(ui.field("Name", ui.input("", on_input, width=180), required=True), width=380)

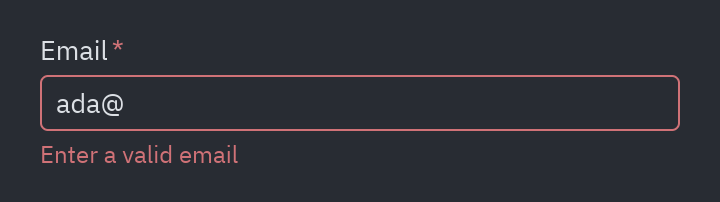

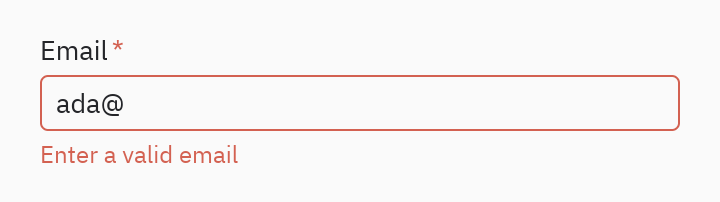

vertical=True

Code

pz.container(ui.field("Email", ui.input("ada@", on_input, invalid=True), vertical=True, required=True,
                      error="Enter a valid email"), width=320)

Events

Field has no events of its own: it shows what you give it. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Properties and API

ui.field

field(
    title,
    control,
    *,
    description=None,
    error=None,
    required=False,
    vertical=False,
    theme=None,
)

A form row: title and description on the left, control on the right (like a settings screen).

Property	Default	Description
title	required	Title.
control	required	The control (switch, input…).
description	None	Help text.
error	None	A validation message shown under the title in the error color (see pz.validation_errors).
required	False	Adds a red * after the title.
vertical	False	Puts the control under the title.
theme	None	Theme to use instead of the current one (pyzed.theme.current()).

Full reference →

Related

Settings groupA titled block of field rows, for settings screens.

SwitchAn on/off switch for settings that apply at once.

Number fieldA number with −/+ buttons, limits, step and suffix.
