Workspace

In plain words

The whole layout of an editor-like window: bar on top, side panels, the main area and a bar at the bottom.

Builds the frame of an editor-style window: the title bar on top, docks on the left, right and bottom, the center and the status bar. Pass None to hide a dock (that is how Ctrl+B works); left_width, right_width and bottom_height set their size and on_resize reports drags.

ui.workspace · Category: Workspace · Full reference →

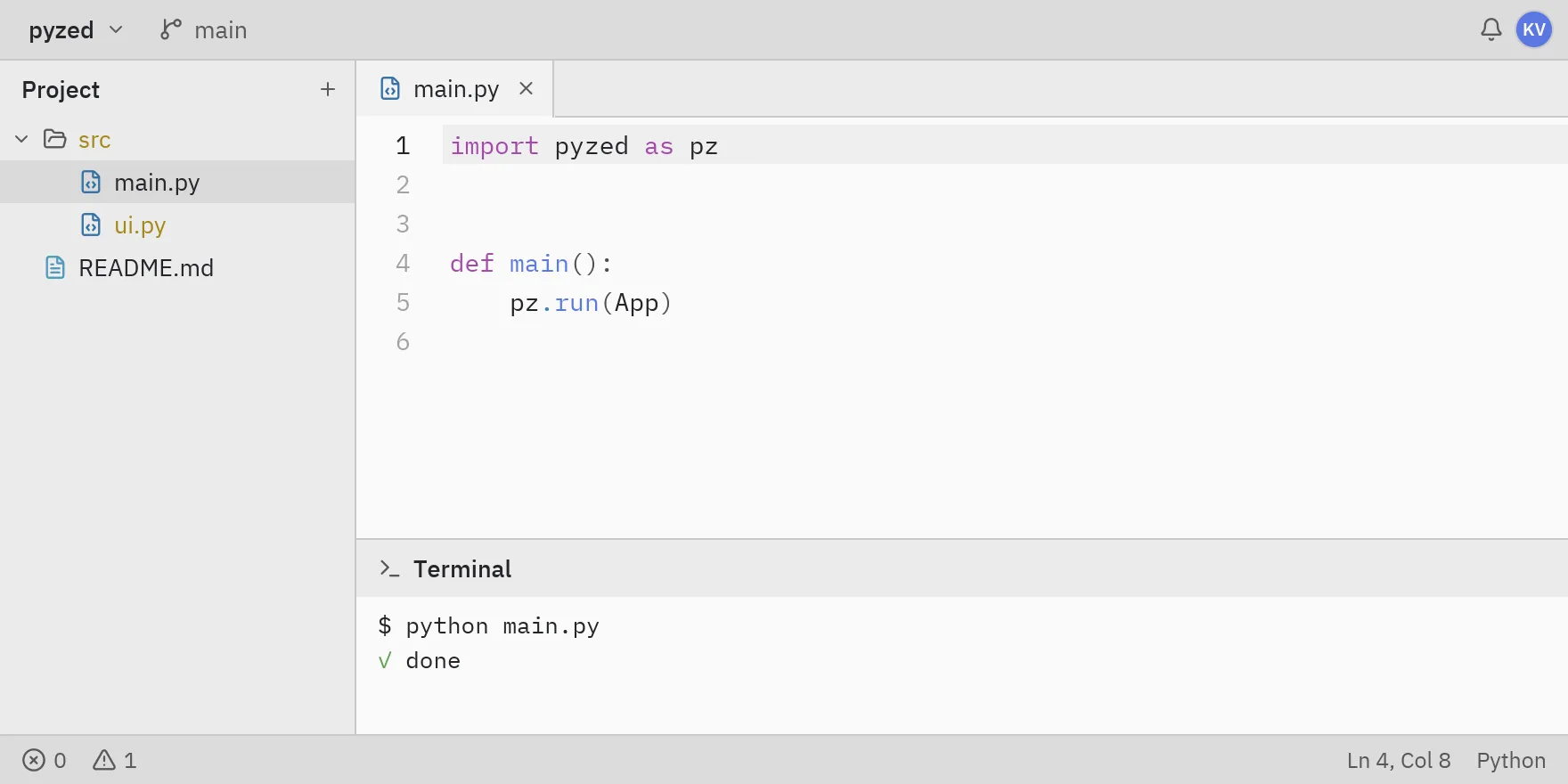

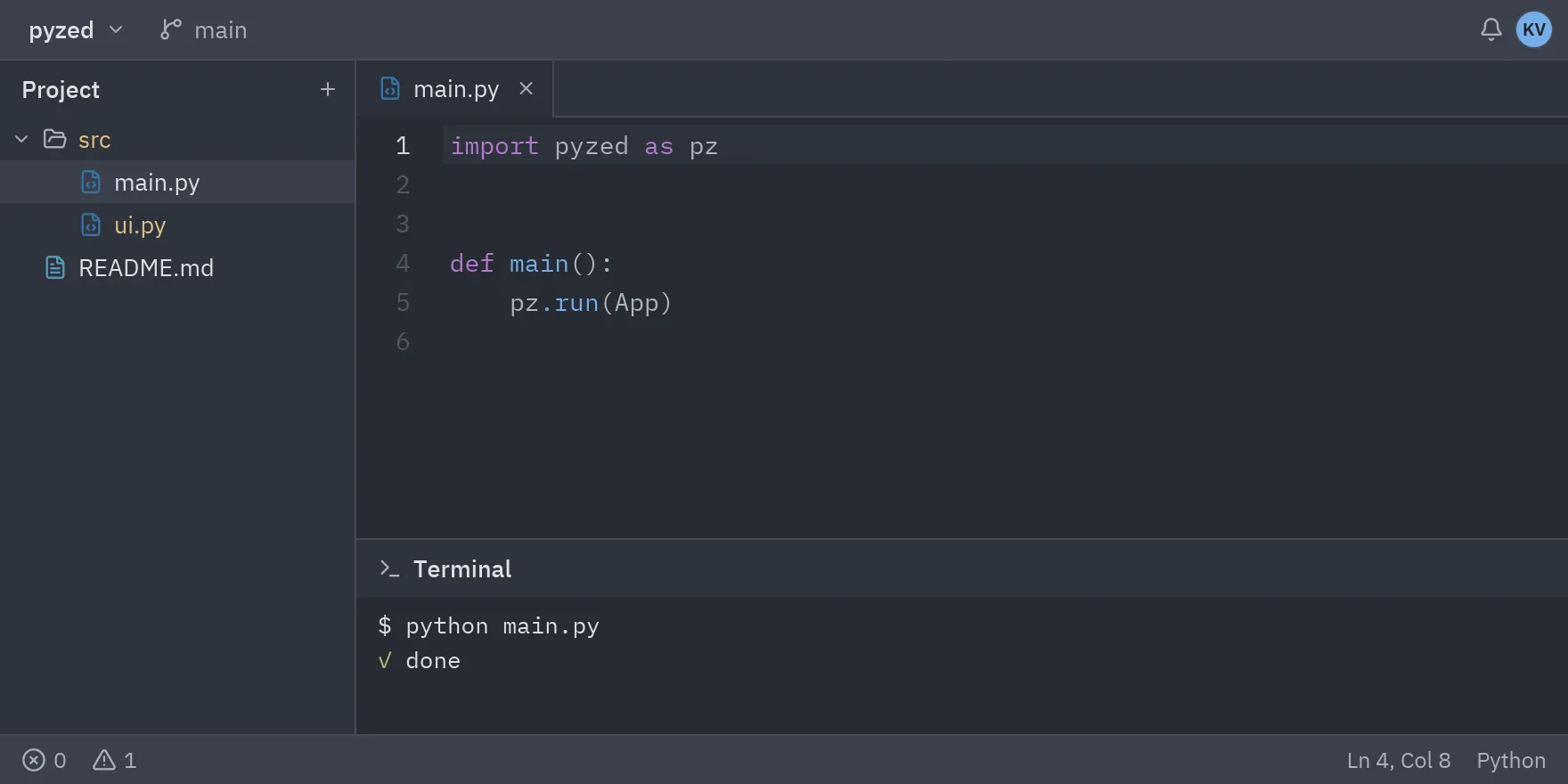

Preview

Code

files = ui.TreeNode.from_paths(["src/main.py", "src/ui.py", "README.md"], status={"src/ui.py": "modified"})
ui.workspace(
    pz.column([
        ui.tab_bar([ui.Tab.for_file("src/main.py")], "src/main.py", on_close=on_close),
        ui.editor("ws-main", "import pyzed as pz\n\n\ndef main():\n    pz.run(App)\n", path="main.py"),
    ]),
    title_bar=ui.title_bar([ui.title_button("pyzed", chevron=True),
                            ui.title_button("main", icon="git-branch", muted=True)],
                           [ui.icon_button("bell", on_bell, size="sm"), ui.avatar("KV")]),
    left=pz.column([ui.panel_header("Project", [ui.icon_button("plus", on_new, size="xs")]),
                    ui.tree(files, expanded={"src"}, selected="src/main.py")]),
    bottom=pz.column([ui.panel_header("Terminal", icon="terminal"),
                      ui.terminal("$ python main.py\n\x1b[32m✓\x1b[0m done")]),
    status_bar=ui.status_bar([ui.status_item("0", icon="circle-x"), ui.status_item("1", icon="triangle-alert")],
                             [ui.status_item("Ln 4, Col 8"), ui.status_item("Python")]),
    left_width=200, bottom_height=110,
)

When to use

• As the root of editor-like apps: IDEs, note apps, database clients, file managers.

Usage

import pyzed as pz
from pyzed import ui

class Ide(pz.App):
    def __init__(self):
        self.show_left = True

    def on_key(self, combo):
        if combo == "ctrl-b":
            self.show_left = not self.show_left

    def view(self):
        return ui.workspace(
            self.editor_area(),
            title_bar=ui.title_bar([ui.title_button("my-project", chevron=True)]),
            left=self.project_panel() if self.show_left else None,
            status_bar=ui.status_bar([], [ui.status_item("Python")]),
        )

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Docks

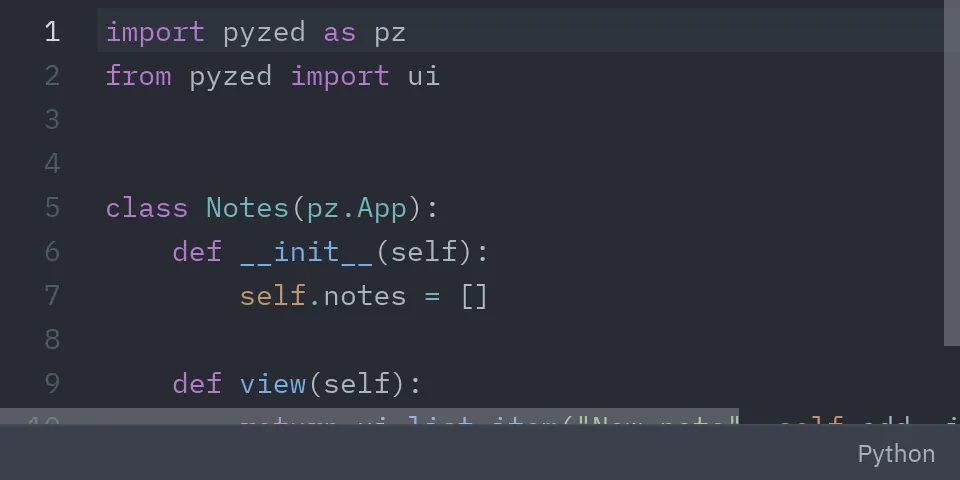

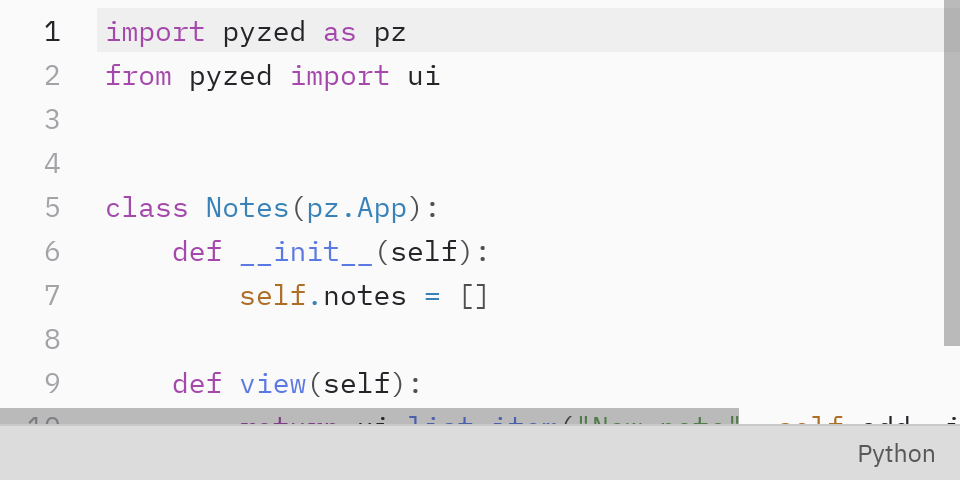

Center and status bar

Code

ui.workspace(main_view(), status_bar=ui.status_bar([], [ui.status_item("Python")]))

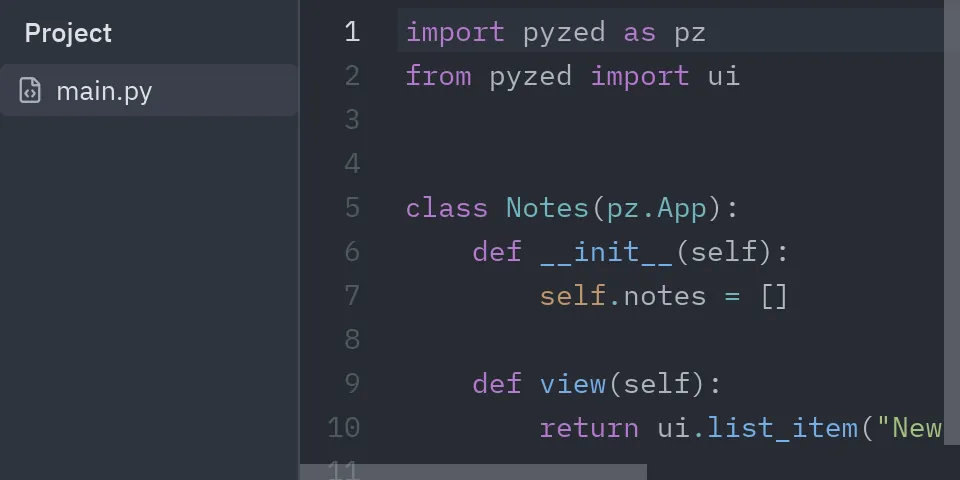

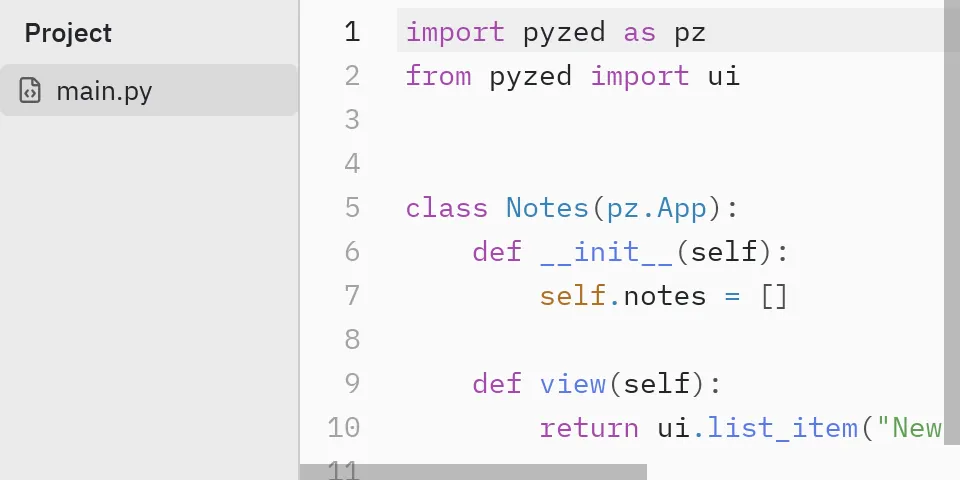

left=

Code

ui.workspace(main_view(), left=pz.column([ui.panel_header("Project"),
             ui.list_item("main.py", icon="file-code", selected=True, inset=True)]), left_width=150)

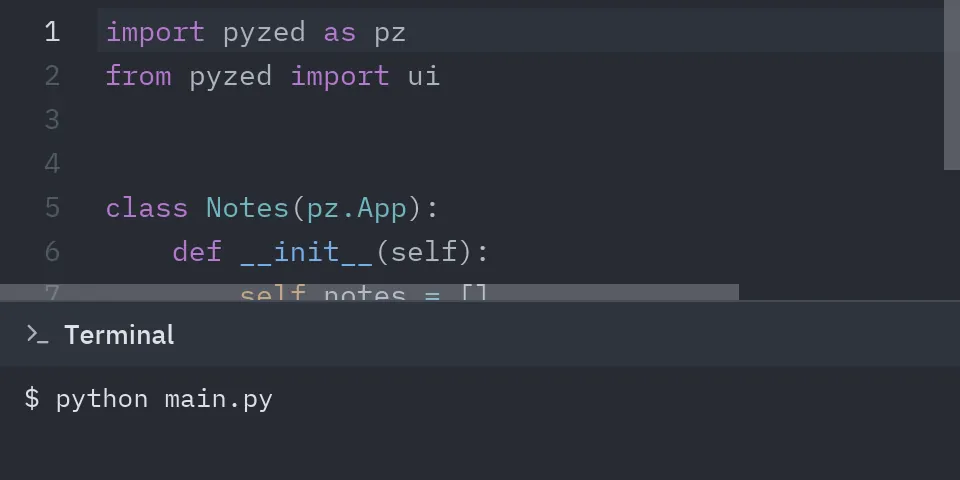

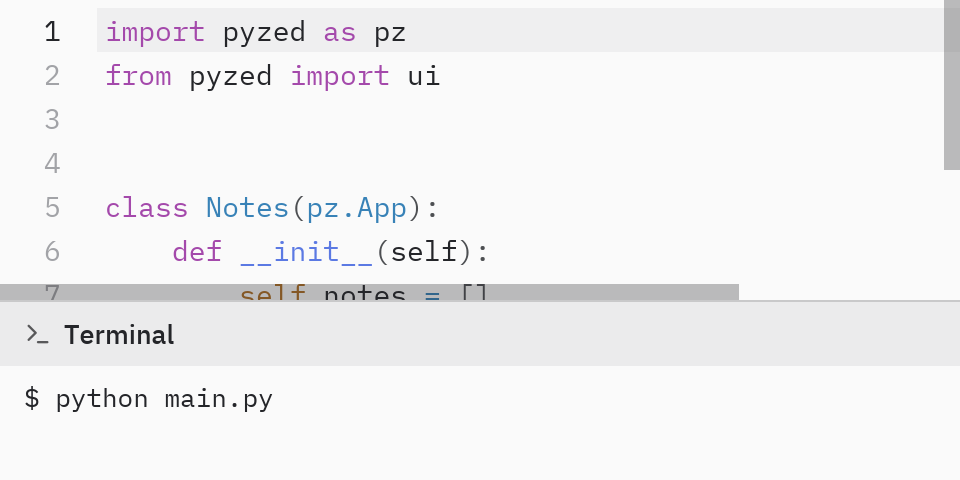

bottom=

Code

ui.workspace(main_view(), bottom=pz.column([ui.panel_header("Terminal", icon="terminal"),
             ui.terminal("$ python main.py")]), bottom_height=90)

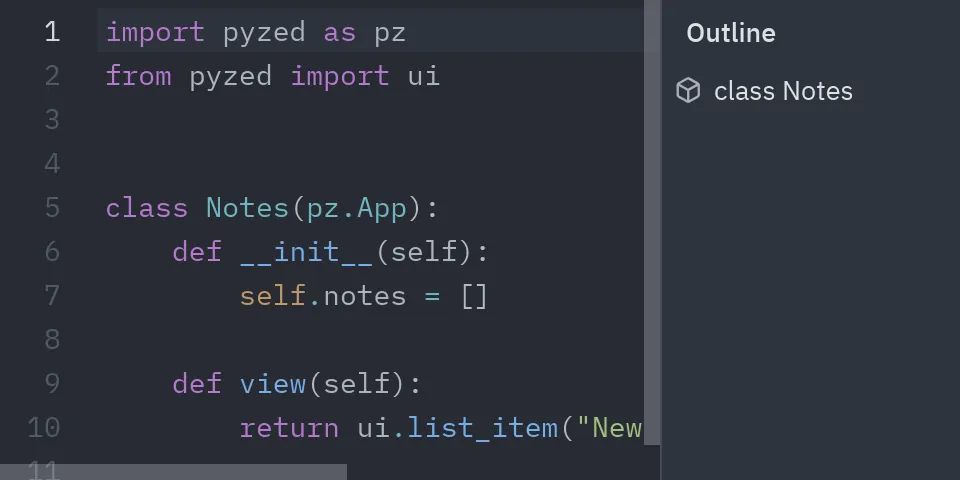

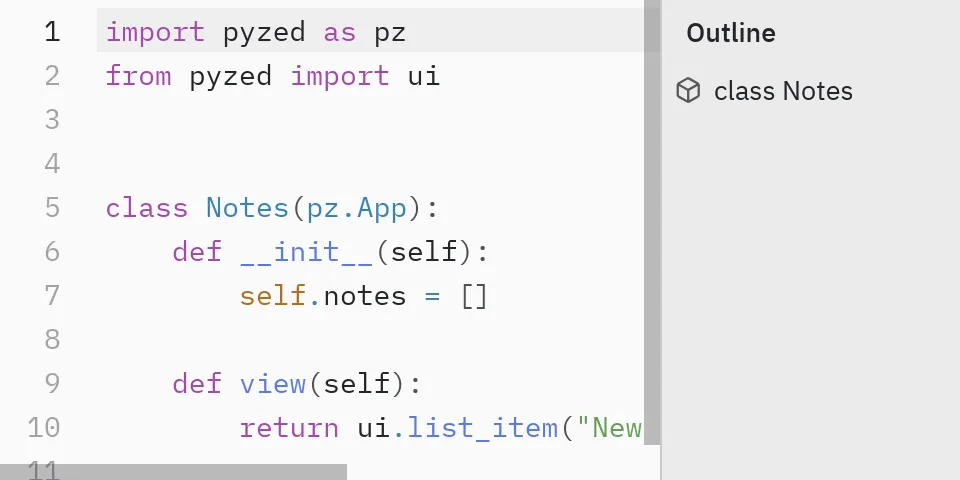

right=

Code

ui.workspace(main_view(), right=pz.column([ui.panel_header("Outline"), ui.list_item("class Notes", icon="box")]),
             right_width=150)

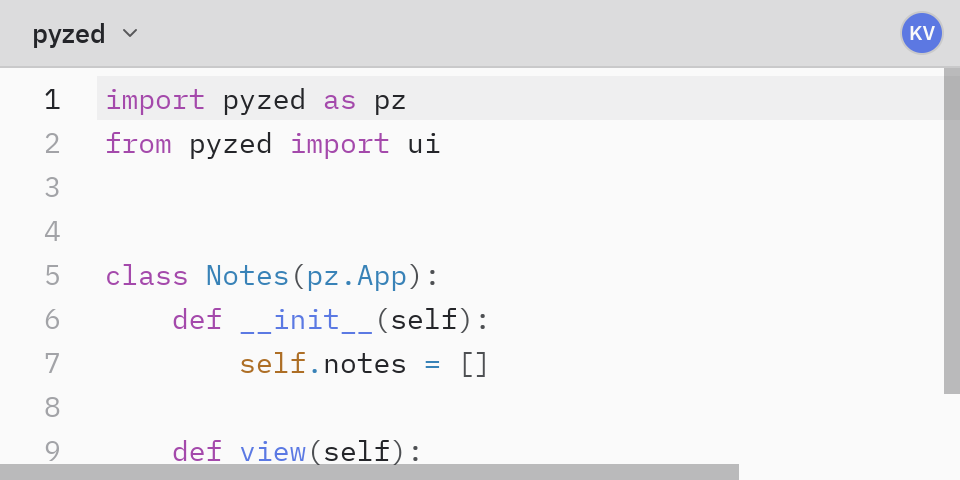

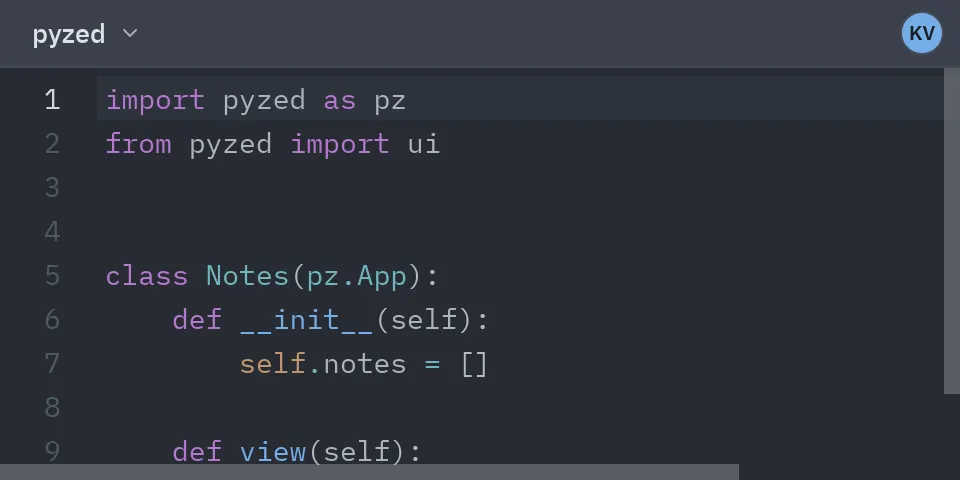

title_bar=

Code

ui.workspace(main_view(), title_bar=ui.title_bar([ui.title_button("pyzed", chevron=True)],
                                                  [ui.avatar("KV")]))

Events

Workspace has 1 event of its own, listed below. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Event	Handler gets	When
on_resize	(side, size)	Called with (side, size) when the user finishes resizing a dock by dragging its inner border.

Handler gets is what Pyzed passes to your callable: () means nothing. Any handler can also be a message (a value that is not callable), which goes to update().

Handling the events

The same events written three ways. Imperative: methods of the app change self. Declarative: the handlers produce messages and one update() decides. Functional: a pure function draws an immutable state and asks for changes with set_state(...). See Imperative, declarative and functional.

Imperative

class Ide(pz.App):
    def __init__(self):
        self.left_width, self.bottom_height = 220, 160

    def resized(self, side, size):       # on_resize: which dock and its new size
        if side == "left":
            self.left_width = size
        elif side == "bottom":
            self.bottom_height = size

    def view(self):
        return ui.workspace(main_view(), left=ui.panel_header("Project"), bottom=ui.panel_header("Terminal"),
                            left_width=self.left_width, bottom_height=self.bottom_height,
                            on_resize=self.resized)

Declarative

from dataclasses import dataclass


@dataclass
class Resized:
    side: str
    size: float


class Ide(pz.App):
    sizes = {"left": 220, "bottom": 160}

    def update(self, message):
        match message:
            case Resized(side, size):
                self.sizes = {**self.sizes, side: size}

    def view(self):
        return ui.workspace(main_view(), left=ui.panel_header("Project"), bottom=ui.panel_header("Terminal"),
                            left_width=self.sizes["left"], bottom_height=self.sizes["bottom"],
                            on_resize=Resized)

Functional

from dataclasses import dataclass


@dataclass(frozen=True)
class State:
    left: float = 220
    bottom: float = 160


def view(state, set_state):
    return ui.workspace(main_view(), left=ui.panel_header("Project"), bottom=ui.panel_header("Terminal"),
                        left_width=state.left, bottom_height=state.bottom,
                        on_resize=lambda side, size: set_state(**{side: size}))

Properties and API

ui.workspace

workspace(
    center,
    *,
    title_bar=None,
    left=None,
    right=None,
    bottom=None,
    status_bar=None,
    left_width=240,
    right_width=320,
    bottom_height=220,
    on_resize=None,
    theme=None,
)

The layout of an editor-style window: title bar, left, right and bottom docks, center and status bar. Pass None to hide a dock.

Property	Default	Description
center	required	Central content (usually tabs + editor).
title_bar	None	Title bar (ui.title_bar).
left	None	Left dock.
right	None	Right dock.
bottom	None	Bottom dock.
status_bar	None	Status bar (ui.status_bar).
left_width	240	Width of the left dock.
right_width	320	Width of the right dock.
bottom_height	220	Height of the bottom dock.
theme	None	Theme to use instead of the current one (pyzed.theme.current()).

Events: on_resize (events).

Full reference →
