Anchor layout

In plain words

Places things exactly where you put them, and says which corner each one sticks to when the window grows.

Places children at exact positions, the way a visual form designer does, and says how each one follows a resize: pz.anchor(child, x=, y=, width=, height=, anchor=) keeps the distance to the edges it is anchored to, stretches between opposite edges and stays centered otherwise. Presets such as "top_right", "bottom_wide", "center" or "full" cover the usual cases. pyzed.anchors.place is the math behind it, for your own layouts.

pz.anchor_layout · Category: Layout · Full reference →

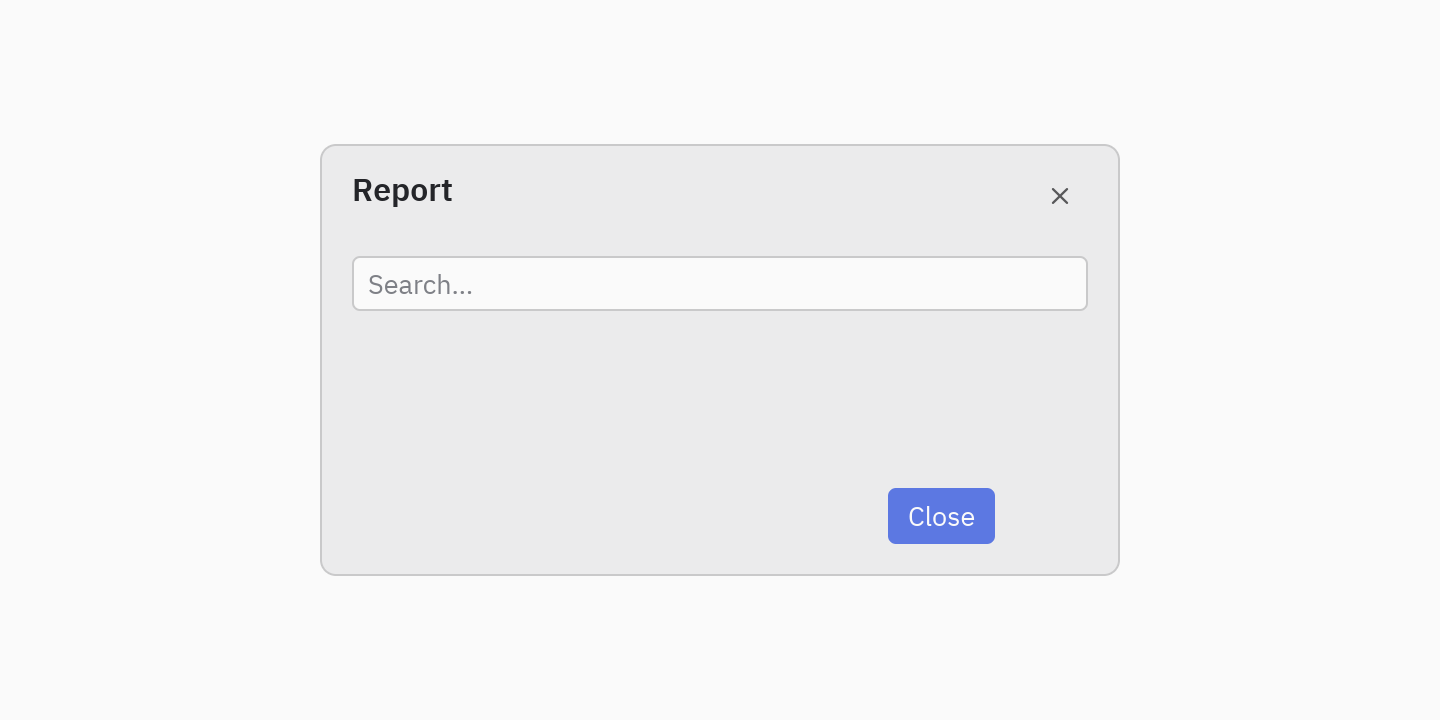

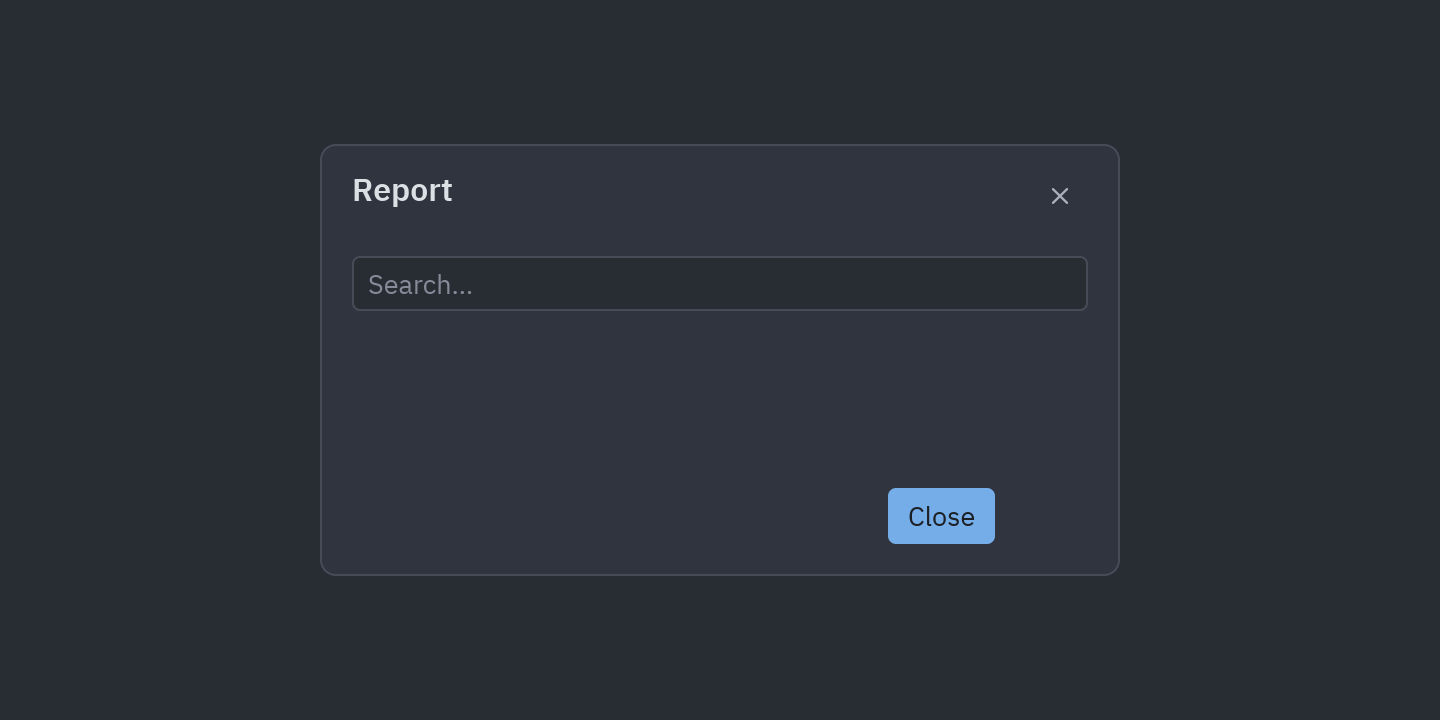

Preview

Code

t = pz.theme.current()
pz.container(pz.anchor_layout([
    pz.anchor(ui.heading("Report", level=3), x=16, y=12, width=200, height=28, anchor="top_left"),
    pz.anchor(ui.icon_button("x", on_close), x=356, y=12, width=28, height=28, anchor="top_right"),
    pz.anchor(ui.input("", on_input, placeholder="Search…"), x=16, y=56, width=368, height=30,
              anchor="top_wide"),
    pz.anchor(ui.button("Close", on_close, variant="solid"), x=284, y=172, width=100, height=30,
              anchor="bottom_right"),
], design=(400, 216)), width=400, height=216, bg=t.panel, border_color=t.border, border_width=1, radius=8)

New

This component was added recently. Tell us how it works for you in the issue tracker.

When to use

• For forms drawn in Pyzed Design (it is what the Form view generates) or ported from Visual Basic, Qt Designer or WinForms.
• For game HUDs and overlays where things stick to corners.
• For forms that grow and shrink with the window, prefer row, column and grid.

Usage

import pyzed as pz
from pyzed import ui

class Report(pz.App):
    def view(self):
        return pz.anchor_layout([
            pz.anchor(ui.heading("Report"), x=16, y=12, width=368, height=28, anchor="top_wide"),
            pz.anchor(self.table(), x=16, y=48, width=368, height=196, anchor="full"),
            pz.anchor(ui.button("Close", self.close), x=284, y=252, width=100, height=32,
                      anchor="bottom_right"),
        ], design=(400, 300))

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Presets

Each layout was designed at 110 × 44 and drawn at 260 × 110: the badge keeps its distance to the edges it is anchored to.

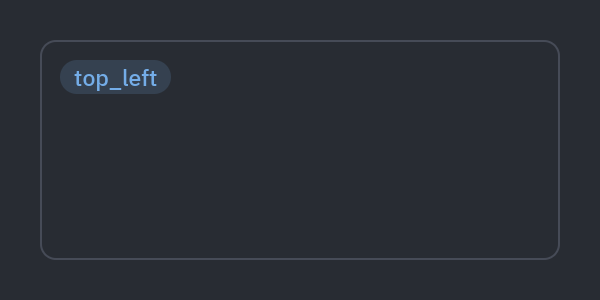

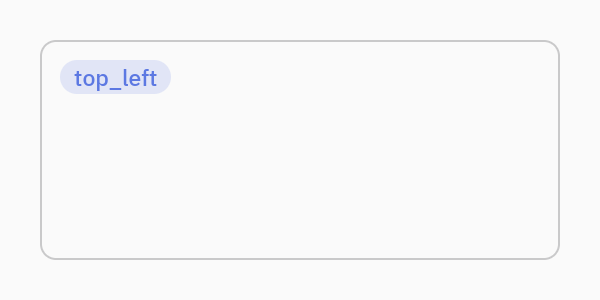

top_left

Code

t = pz.theme.current()
pz.container(pz.anchor_layout([pz.anchor(ui.badge("top_left"), x=10, y=10, width=90, height=24,
                                         anchor="top_left")], design=(110, 44)),
             width=260, height=110, border_color=t.border, border_width=1, radius=8)

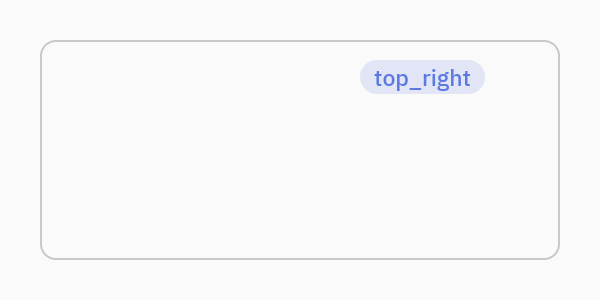

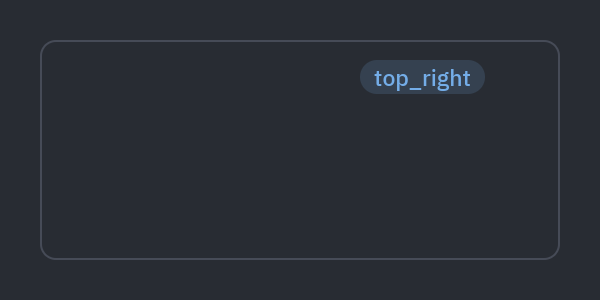

top_right

Code

t = pz.theme.current()
pz.container(pz.anchor_layout([pz.anchor(ui.badge("top_right"), x=10, y=10, width=90, height=24,
                                         anchor="top_right")], design=(110, 44)),
             width=260, height=110, border_color=t.border, border_width=1, radius=8)

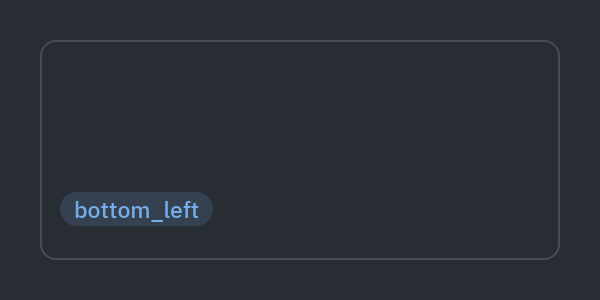

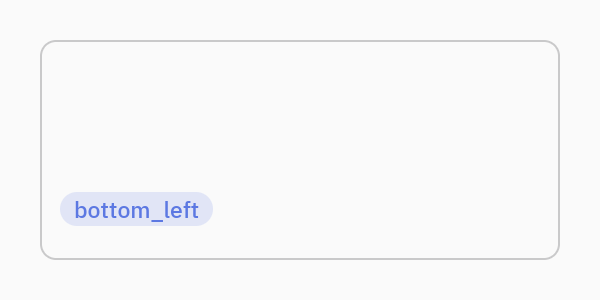

bottom_left

Code

t = pz.theme.current()
pz.container(pz.anchor_layout([pz.anchor(ui.badge("bottom_left"), x=10, y=10, width=90, height=24,
                                         anchor="bottom_left")], design=(110, 44)),
             width=260, height=110, border_color=t.border, border_width=1, radius=8)

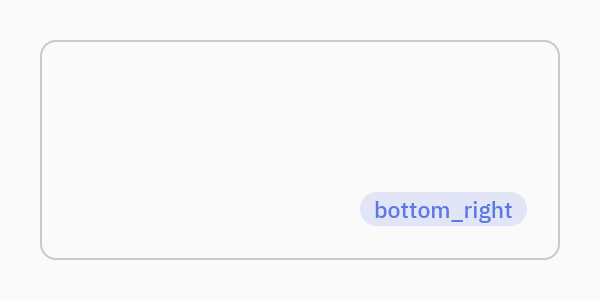

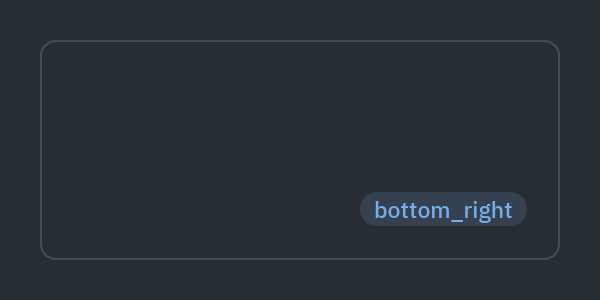

bottom_right

Code

t = pz.theme.current()
pz.container(pz.anchor_layout([pz.anchor(ui.badge("bottom_right"), x=10, y=10, width=90, height=24,
                                         anchor="bottom_right")], design=(110, 44)),
             width=260, height=110, border_color=t.border, border_width=1, radius=8)

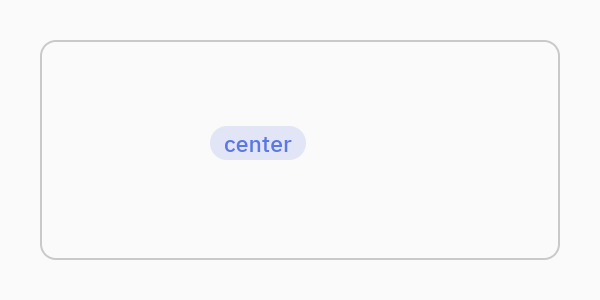

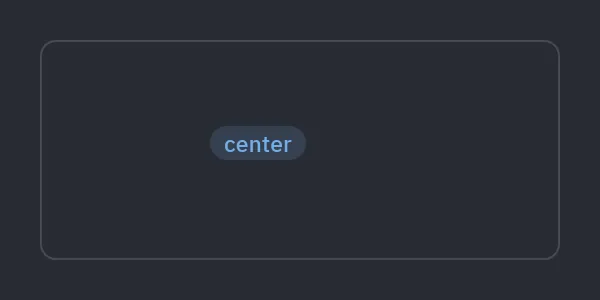

center

Code

t = pz.theme.current()
pz.container(pz.anchor_layout([pz.anchor(ui.badge("center"), x=10, y=10, width=90, height=24,
                                         anchor="center")], design=(110, 44)),
             width=260, height=110, border_color=t.border, border_width=1, radius=8)

Stretching

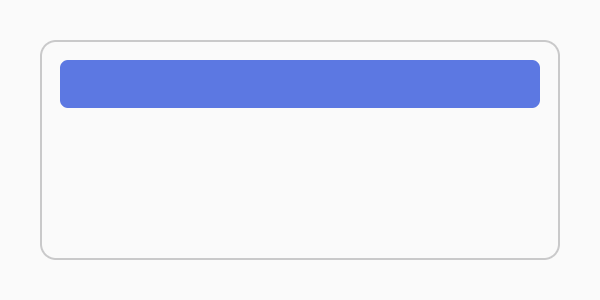

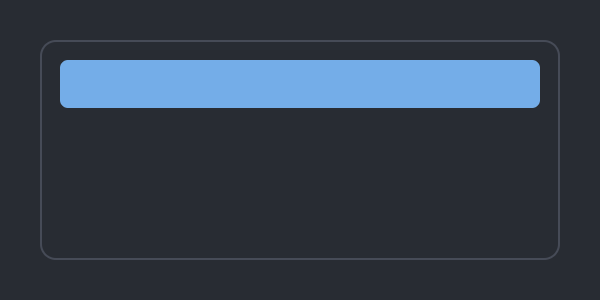

top_wide

Code

t = pz.theme.current()
pz.container(pz.anchor_layout([pz.anchor(pz.container(width="fill", height="fill", bg=t.accent, radius=4),
                                         x=10, y=10, width=90, height=24, anchor="top_wide")], design=(110, 44)),
             width=260, height=110, border_color=t.border, border_width=1, radius=8)

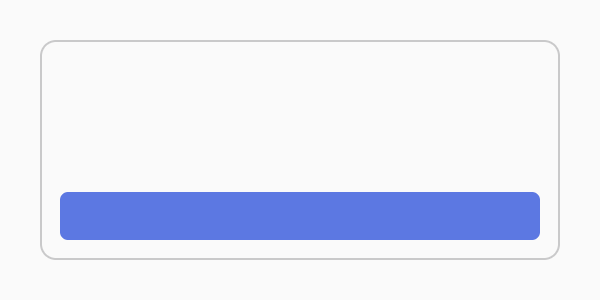

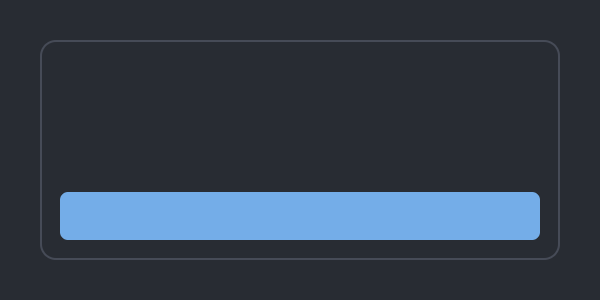

bottom_wide

Code

t = pz.theme.current()
pz.container(pz.anchor_layout([pz.anchor(pz.container(width="fill", height="fill", bg=t.accent, radius=4),
                                         x=10, y=10, width=90, height=24, anchor="bottom_wide")], design=(110, 44)),
             width=260, height=110, border_color=t.border, border_width=1, radius=8)

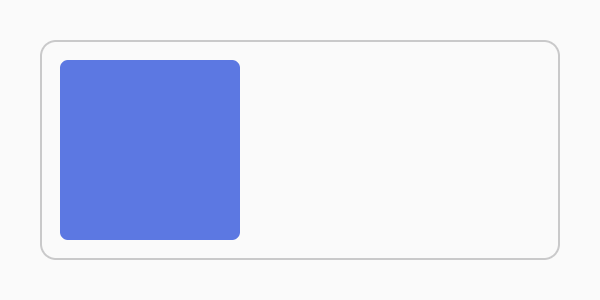

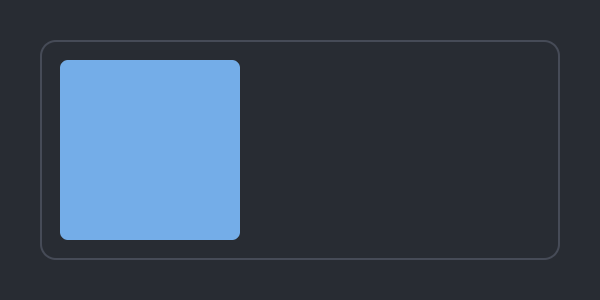

left_tall

Code

t = pz.theme.current()
pz.container(pz.anchor_layout([pz.anchor(pz.container(width="fill", height="fill", bg=t.accent, radius=4),
                                         x=10, y=10, width=90, height=24, anchor="left_tall")], design=(110, 44)),
             width=260, height=110, border_color=t.border, border_width=1, radius=8)

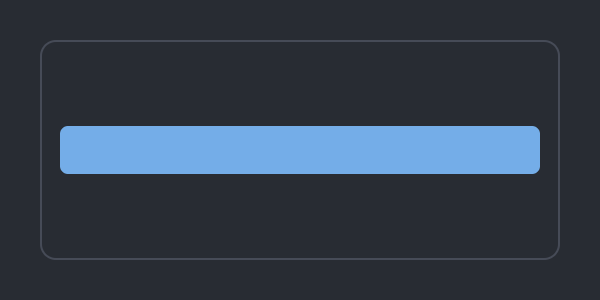

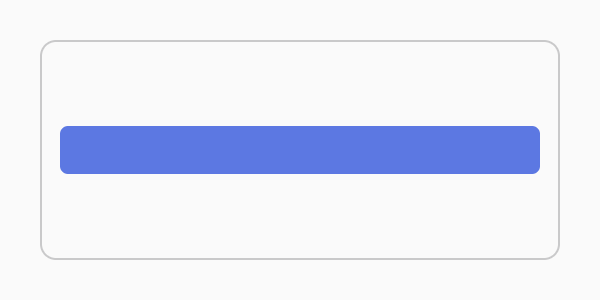

center_wide

Code

t = pz.theme.current()
pz.container(pz.anchor_layout([pz.anchor(pz.container(width="fill", height="fill", bg=t.accent, radius=4),
                                         x=10, y=10, width=90, height=24, anchor="center_wide")], design=(110, 44)),
             width=260, height=110, border_color=t.border, border_width=1, radius=8)

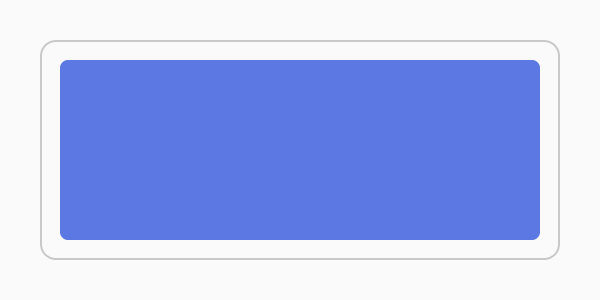

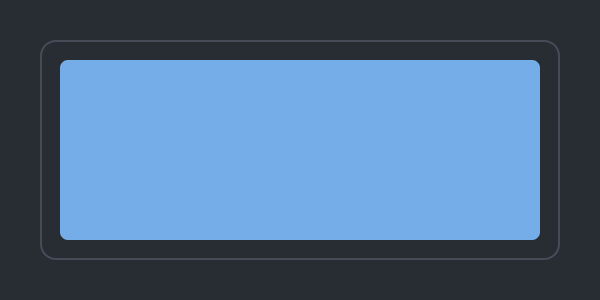

full

Code

t = pz.theme.current()
pz.container(pz.anchor_layout([pz.anchor(pz.container(width="fill", height="fill", bg=t.accent, radius=4),
                                         x=10, y=10, width=90, height=24, anchor="full")], design=(110, 44)),
             width=260, height=110, border_color=t.border, border_width=1, radius=8)

Events

Anchor layout has no events of its own: it shows what you give it. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Tips

Tip

design is the size the positions were measured in; when the layout gets more or less room, each child moves or stretches from there. Try it live: drag the window corner of a form in Pyzed Design.

Properties and API

pz.anchor_layout

anchor_layout(children, *, design=None, width='fill', height='fill')

Places children made with pz.anchor freely, like a designed form: when it is resized, each child keeps its distance to the edges it is anchored to, stretches between opposite ones and stays centered otherwise. Later children are drawn on top. See Anchored layouts.

Property	Default	Description
children	required	Children made with pz.anchor(...) (None is skipped).
design	None	(width, height) the children were laid out in; by default the smallest size that holds them.
width	"fill"	Width.
height	"fill"	Height.

Full reference →

pz.anchor

anchor(
    content,
    *,
    x=0,
    y=0,
    width=100,
    height=28,
    anchor='top_left',
    min_width=0,
    min_height=0,
    max_width=0,
    max_height=0,
    pivot=(0.5, 0.5),
    rotate=0,
)

Places a child of pz.anchor_layout at x, y with width and height (in the layout’s design size) and says how it follows a resize.

Property	Default	Description
content	required	The widget.
x	0	Left edge in the design size.
y	0	Top edge in the design size.
width	100	Width in the design size.
height	28	Height in the design size.
anchor	"top_left"	A preset of pyzed.anchors.PRESETS ("top_right", "bottom_wide", "center", "full"…), words ("left right bottom") or a tuple of edges.
min_width	0	Smallest width when it stretches (0: no limit).
min_height	0	Smallest height when it stretches.
max_width	0	Largest width when it stretches (0: no limit).
max_height	0	Largest height when it stretches.
pivot	(0.5, 0.5)	(x, y) from 0 to 1: the point that stays put when a limit stops it, and that rotate turns around.
rotate	0	Degrees clockwise.

Full reference →

pz.anchors.place

place(
    rect,
    anchor,
    design,
    actual,
    *,
    min_size=(0, 0),
    max_size=(0, 0),
    pivot=(0.5, 0.5),
)

Where a box designed in a parent of size design goes in a parent of size actual, following its anchor, with size limits and a pivot. The math behind pz.anchor_layout and designed forms.

Property	Default	Description
rect	required	(x, y, width, height) in the design size.
anchor	required	A preset, words or edges.
design	required	The parent’s design size.
actual	required	The parent’s current size.
min_size	(0, 0)	(width, height) lower limits (0: none).
max_size	(0, 0)	(width, height) upper limits (0: none).
pivot	(0.5, 0.5)	The point that stays put when a limit stops the box from stretching.

Full reference →

Related

StackLayers children on top of each other; `pin` places one at x, y.

GridEqual columns, or CSS-like tracks with spans.

ContainerSize, padding, alignment, background, border and shadow for one child.
