Donut

In plain words

A ring cut into colored slices that shows the parts of a whole.

A donut chart of values, with a label in the center. colors overrides the theme’s palette.

ui.donut · Category: Data · Full reference →

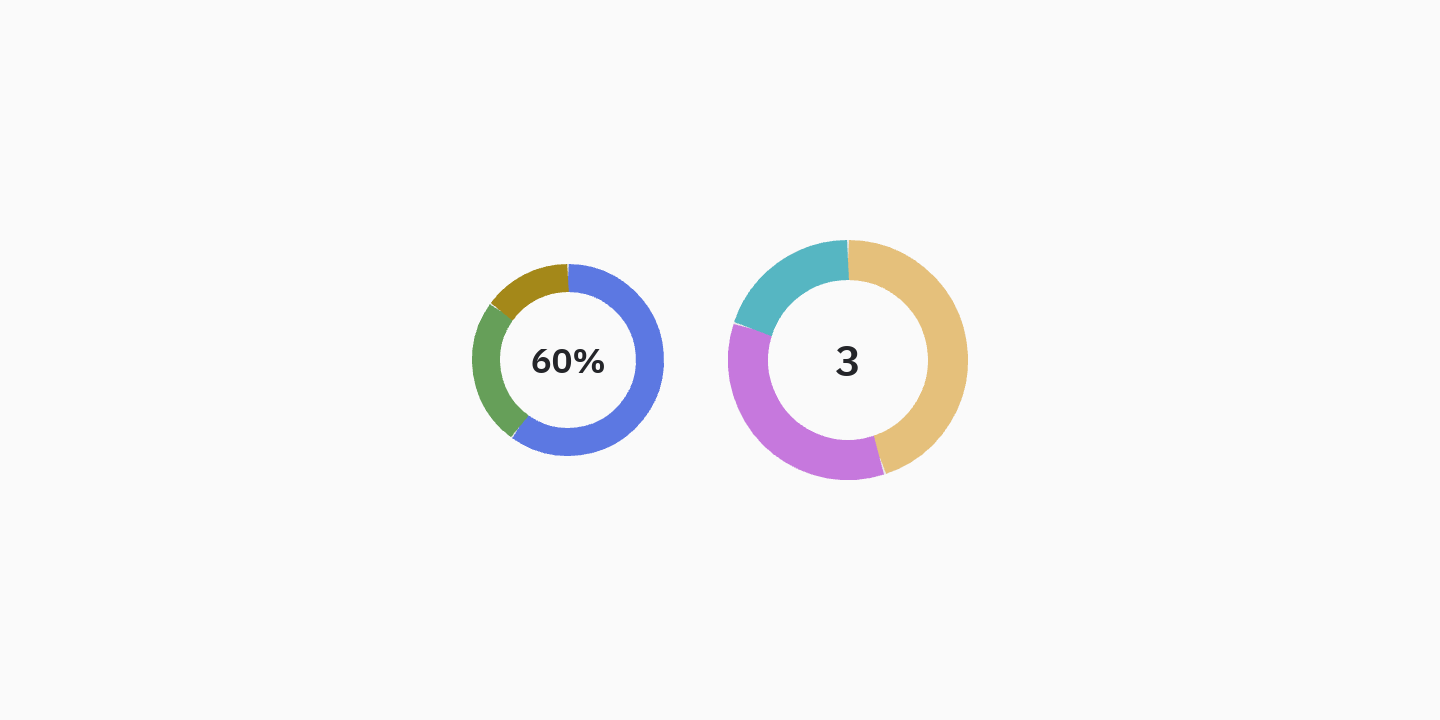

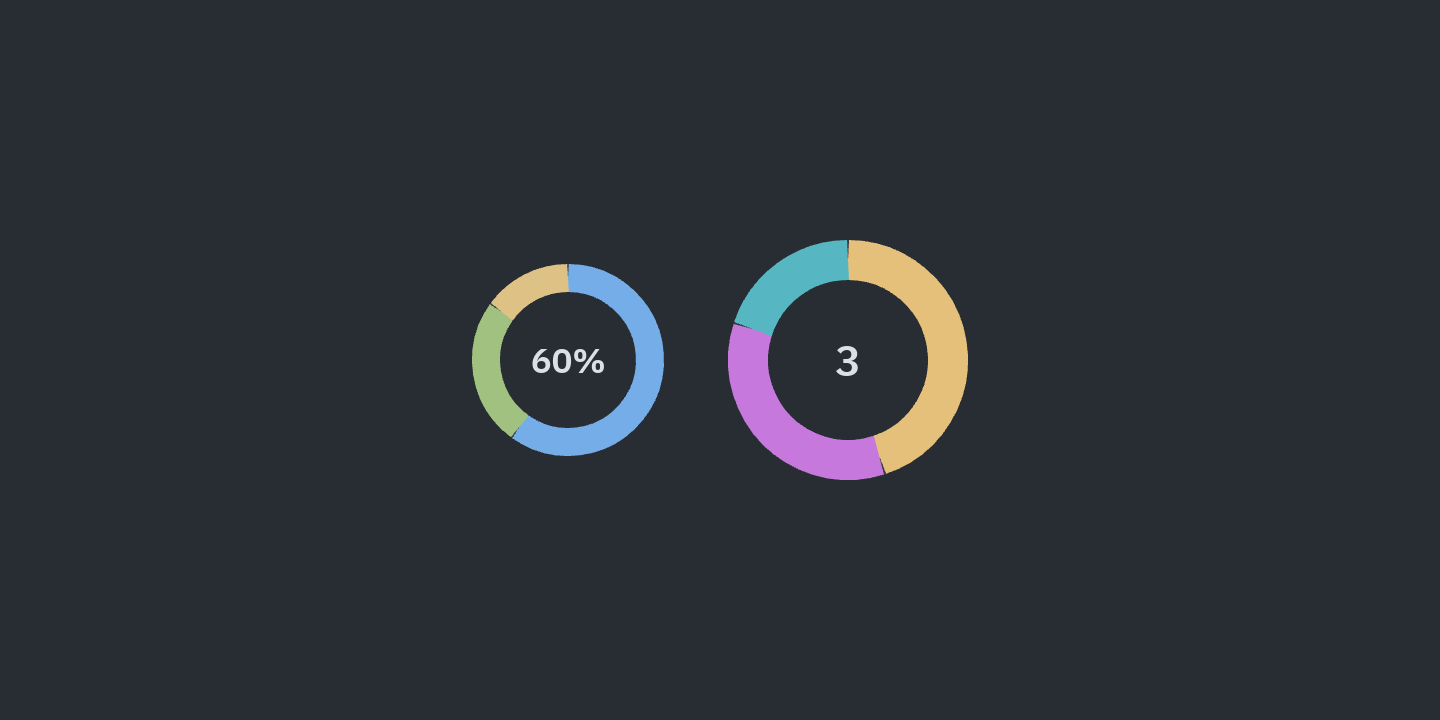

Preview

Code

pz.row([
    ui.donut([60, 25, 15], label="60%"),
    ui.donut([45, 35, 20], colors=["#e5c07b", "#c678dd", "#56b6c2"], size=120, thickness=20, label="3"),
], spacing=32, align="center")

When to use

• To show the parts of a whole (disk usage, languages of a project) with three or four slices.

Usage

import pyzed as pz
from pyzed import ui

pz.row([
    ui.donut([60, 25, 15], label="60%"),
    ui.donut([45, 35, 20], colors=["#e5c07b", "#c678dd", "#56b6c2"], size=120, thickness=20, label="3"),
], spacing=32, align="center")

Variants

About these captures

Each capture is recorded by pyzed itself, off-screen at 2x, in One Dark or One Light to match this site’s theme, and cropped to the component so it shows at its real size. The pointer hovers, presses or types into it; a component that does not react to the pointer cycles through a few themes. With reduced motion you see the first frame. Open Code under a capture to see the snippet that draws it; free names such as on_save stand for your own callbacks.

Options

Default

Code

ui.donut([60, 25, 15], label="60%")

colors=

Code

ui.donut([45, 35, 20], colors=["#e5c07b", "#c678dd", "#56b6c2"], label="3")

thickness=6

Code

ui.donut([70, 30], thickness=6, label="70%")

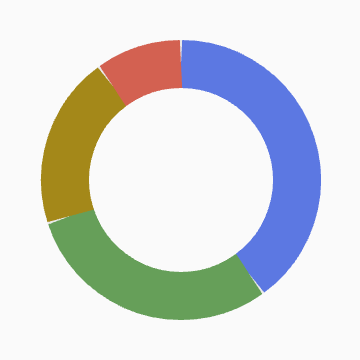

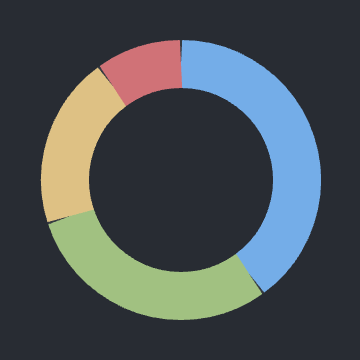

size=140, thickness=24

Code

ui.donut([40, 30, 20, 10], size=140, thickness=24)

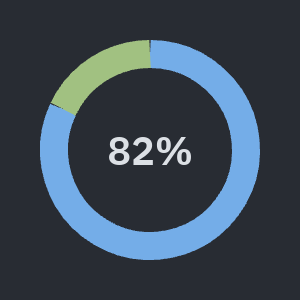

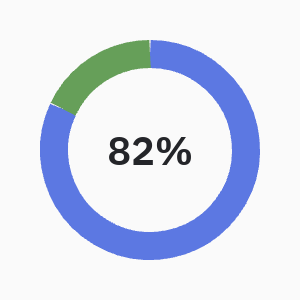

size=110, label="82%"

Code

ui.donut([82, 18], size=110, label="82%")

Events

Donut has no events of its own: it shows what you give it. Like every widget it also has the 18 common events (click, double_click, right_click, mouse_enter, drag, key_down, resize…), attached with .on(...): see Events and Events of every component.

Properties and API

ui.donut

donut(values, *, colors=None, size=96, thickness=14, label=None, theme=None)

A donut chart; label is drawn in the center.

Property	Default	Description
values	required	Values.
colors	None	Colors (defaults to the theme’s).
size	96	Size.
thickness	14	Ring thickness.
label	None	Center text.
theme	None	Theme to use instead of the current one (pyzed.theme.current()).

Full reference →

Related

Bar chartA vertical bar chart with labels.

StatA dashboard number with change and sparkline.
