Colors and behavior
Colors
Section titled “Colors”Any color= takes a theme token ("accent", "success", "warning", "error"…) or a hex
color ("#ff9f3d"). Tokens follow the theme: switch to a light theme and the knobs follow.

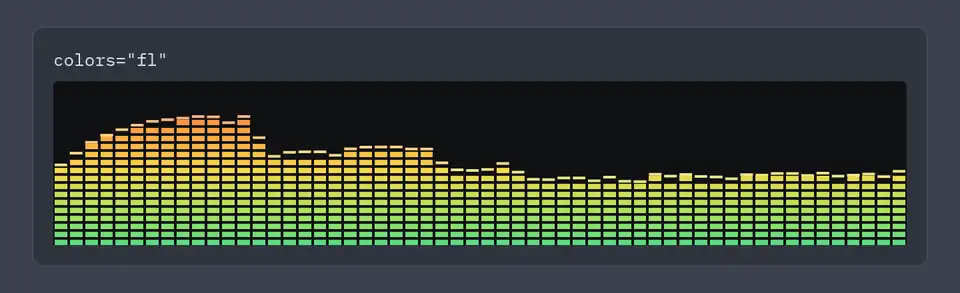

Meters and analyzers take colors=: a palette name or a list of colors, from quiet to loud
(or from bass to treble with color_by="frequency").
| Palette | Colors |
|---|---|
"fl" |
Green → yellow → orange → red, like FL Studio’s meters. |
"vu" |
Mostly green, yellow near the top, red at the very top. |
"neon" |
Cyan → violet → pink. |
"fire" |
Dark purple → red → orange → yellow → white. |
"ice" |
Navy → blue → light cyan. |
"magma", "viridis" |
The scientific color maps, best for spectrograms. |
"mono" |
Gray to white. |
"scope" |
The oscilloscope’s trace colors. |
Add your own to ui.audio.PALETTES and use it by name everywhere:
ui.audio.PALETTES["sunset"] = ["#2d1b69", "#f72585", "#ffbe0b"]ui.audio.Spectrum(magnitudes=mags, colors="sunset")Behavior
Section titled “Behavior”| What | Where |
|---|---|
| Look | variant= on every component (knob, fader, meter, spectrum…). |
| How far a drag turns a control | travel= on knobs, length= on faders; Shift is always ten times finer. |
| How a value maps to the control | curve="log", step=, options=, bipolar=True. |
| How meters move | hold= (peak hold), falloff= and peaks= (analyzers), variant="analog" ballistics. |
| How a scope reads | trigger=, window=, persistence=, xy=. |
All of them are pz.Components, so style=, class_=, stylesheets and animate= work as on
any other component (see Components).
Building your own
Section titled “Building your own”The helpers are public: ui.audio.bands() (FFT bins to log bands), ui.audio.format_value()
(1.2 kHz, -6.0 dB), ui.audio.note_name() and ui.audio.PALETTES. Every component also has
a shapes() method returning its drawing as pyzed.draw shapes, so you can put a knob or a meter
inside your own pz.canvas.
