Animated cables

In plain words

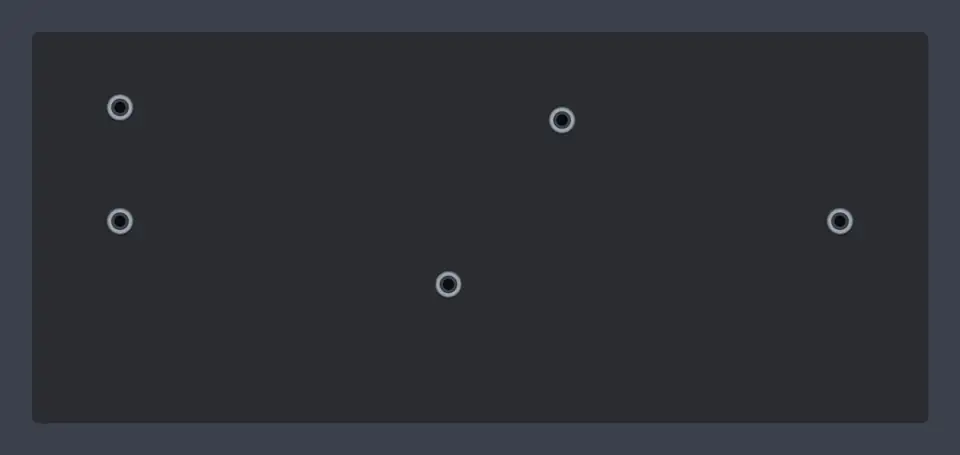

The cables of the rack behave like real ones: they hang, they bounce a little when you plug them in, and small dots run along them in the direction the signal travels.

The shape: a hanging curve

A cable between two jacks is a cubic Bézier curve: it starts at one jack, ends at the other, and two control points pull it down. The control points sit a little inside the two ends and lower by the sag, which grows with the distance between the jacks:

sag = (18 + 0.3 × distance) × (1.15 − tension)

so a short cable is almost straight and a long one droops, as gravity would make it. tension (0..1) tightens all of them at once.

from pyzed.ui import rack

c0, c1 = rack.cable_path((40, 60), (300, 80), tension=0.45)
shape = draw.path([("M", 40, 60), ("C", *c0, *c1, 300, 80)], stroke="#f5c542", width=5)

The drop: a damped spring

When a cable is plugged, its sag does not appear at once. It follows a damped spring:

drop(t) = 1 − e^(−5.5 t) · cos(13 t)

At t = 0 the cable is straight; it falls, goes a little past its resting sag (the cosine makes it overshoot) and settles in about half a second. The rack stores when each cable was plugged and multiplies its sag by drop(now − plugged) on every frame. Nothing is simulated step by step, so the motion is the same at any frame rate.

The look

Each cable is drawn as five layers, from the bottom up:

1. A soft shadow, offset down and right, so the cable floats over the panels.
2. A darker outline.
3. The body in the cable’s color (cable_opacity lets you see the panels through it).
4. A thin white shine along the top edge, which makes it read as round.
5. Two plugs: a ring, a lighter center and a highlight.

New cables take the next color of ui.rack.CABLE_COLORS (yellow, red, green, blue, purple…), like VCV Rack. A cable keeps its color when you pick it up and move it.

Signal flow

With flow=True small light dots travel from the output to the input, spaced about 38 px apart. Their position along the curve is the time multiplied by a speed, wrapped around, so they move smoothly at any frame rate and every cable shows which way its signal goes.

While dragging

A cable being dragged follows the pointer with a tighter, lighter curve and snaps to the nearest compatible jack within 18 px (outputs only reach inputs and the other way round), so you see where it will land before you let go. An input takes one cable: dropping on a patched input replaces its cable.

Tip

The rack needs to redraw every frame for the drop and the flow: pz.frames(lambda dt: None) in subscriptions(). Set flow=False and return no subscription when nothing moves to let the app sleep.
