Waveform

In plain words

A waveform is the picture of a sound over time: tall where it is loud, flat where it is quiet. Music players use it to show where you are in a song and let you click to jump.

left, right = engine.render(5.0)          # five seconds rendered offline
ui.audio.Waveform(samples=left, variant="bars", playhead=self.position,
                  on_seek=lambda e: self.seek(e.value))

Samples

samples are numbers from −1 to 1: a whole file or the last buffer of a live signal (node.scope(1024)). A long list is reduced to one minimum/maximum pair per pixel column, so a minute of audio draws as fast as a short buffer. gain scales it up when the sound is quiet.

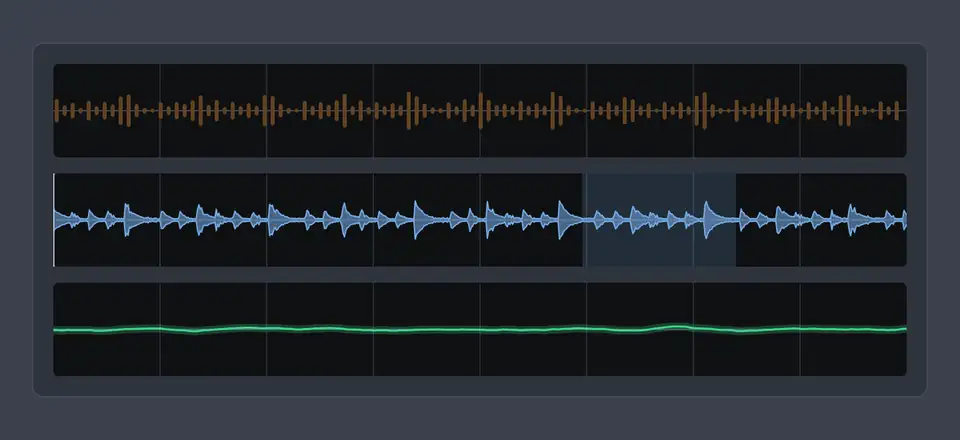

Looks

variant	Looks like
"mirror"	The envelope, symmetric around the center line (the default).
"filled"	The real shape, filled between its lowest and highest points.
"line"	A line through every sample; glow=True adds a soft halo. Best for short buffers.
"bars"	Rounded bars like a music app: the played part in color, the rest dimmed.
"dots"	One dot per sample.

Playhead, selection and seeking

• playhead (0..1) draws the playing position (with "bars", it splits played and unplayed).
• selection=(0.2, 0.4) highlights a range: a loop, a region to cut.
• With on_seek, clicking or dragging on it reports the position (0..1) in event.value.

Property	Default	What it does
samples	()	Values from −1 to 1.
width, height	360, 96	Size in pixels.
variant	"mirror"	See the table above.
color, background	"accent", "#0f1012"	Colors.
gain, thickness, glow	1, 1.5, False	Scale, line width and halo.
grid	True	Faint vertical lines and a center line.
playhead, selection	None	Position (0..1) and range (start, end).
bar	3	Width of a bar with variant="bars".

Event: on_seek (0..1).
