Oscilloscope

In plain words

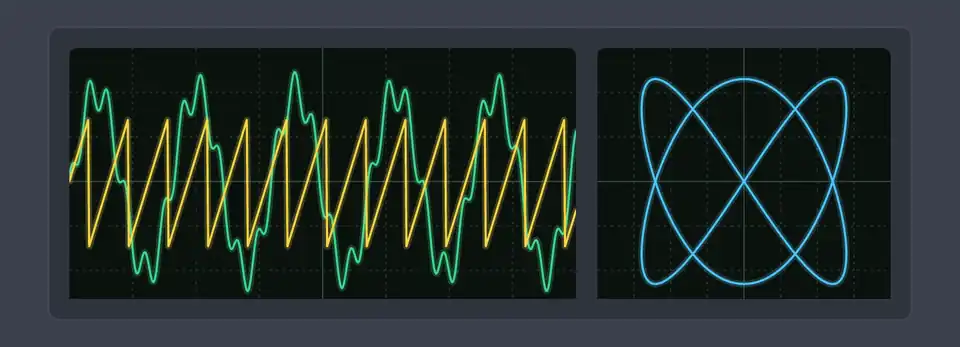

An oscilloscope draws a signal the way a lab instrument does: a few milliseconds of it on a green grid. It is how you see the shape of a wave — sine, saw, square — while you patch.

ui.audio.Scope(traces=[osc.scope(1024), lfo.scope(1024)], width=320, height=180)

Traces and trigger

traces is a list of signals (or a single list of numbers), each drawn in the next color of colors. With trigger=True each trace starts at the first point where the wave rises through zero, so a steady tone stands still instead of drifting. window is how many samples are shown.

XY mode

xy=True draws the first trace against the second: the first moves the dot left and right, the second up and down. Two sines make Lissajous figures; a stereo pair (left, right) shows how wide the stereo image is — a vertical line is mono, a cloud is wide.

Phosphor

persistence=3 leaves fading copies of the last three frames, like the glow of an old CRT screen; glow=True adds a soft halo around the newest trace.

Property	Default	What it does
traces	()	Signals to draw (−1..1).
width, height	320, 180	Size in pixels.
colors	"scope"	A palette name or a list (one color per trace).
background	"#0b120e"	The screen.
columns, rows	8, 6	Divisions of the grid.
gain	1	Vertical zoom.
trigger, window	True, 512	Holds periodic waves still; samples shown.
xy	False	Lissajous mode.
persistence, glow	0, True	Fading copies and halo.
