The audio engine

pyzed.audio is a modular synthesizer you program from Python. You add modules (oscillators, filters, envelopes, effects, sequencers, drums, samplers), plug their ports together with cables, turn their knobs, and the engine plays the result on your sound card with low latency. It works on its own, with no window at all: a script, a server or a test can make sound. The interface side (knobs, faders, waveforms and the rack with animated cables) is built on top of it.

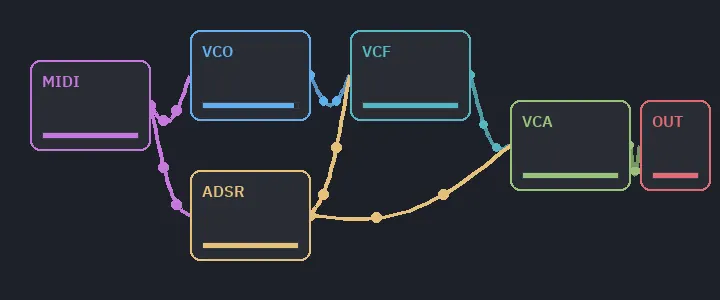

Six modules joined by glowing cables: MIDI into an oscillator and an envelope, through a filter and an amplifier to the output — A synth voice: the dots are the signal travelling along the cables, the bars each module’s level.

Your first sound

from pyzed import audio

engine = audio.Engine()                            # the default sound card, low-latency settings
osc = engine.add("oscillator", freq=220, wave="saw")
lpf = engine.add("filter", cutoff=800, resonance=0.5)
out = engine.add("audio_out")
engine.chain(osc, lpf, out)                        # osc → filter → speakers

with engine:                                       # plays while inside the block
    input("Playing. Press Enter to stop.")

Every line of the patch is plain Python, so you can change it while it plays:

lpf["cutoff"] = 2000        # turn a knob (clamped to its range)
osc["wave"] = "square"      # a choice takes the name of an option...
osc.set(wave=1, fine=0.1)   # ...or its index; set() turns several knobs at once

How it works

Python describes the patch. engine.add, engine.connect and node["knob"] = value only record what you asked for and send it to the audio thread through a lock-free queue. They never wait for the sound, and the sound never waits for them.
Rust computes the sound. A real-time thread runs the modules in order, 64 frames at a time, with no allocation and no locks. Python’s garbage collector or a busy interface cannot make it miss its deadline.
The system plays it through its own low-latency API: WASAPI (or ASIO) on Windows, CoreAudio on macOS, PulseAudio/PipeWire or ALSA on Linux. See Devices and latency.
The engine reports back: every module publishes its recent signal, level and state, so an interface can draw scopes, spectra, meters and step lights at 60 fps without touching the audio thread.

Signals

Like in a hardware modular synth (and in VCV Rack), every cable carries one signal at audio rate, and any output can go into any input. The port’s type only says how to read it:

Type	What it carries	Range
`audio`	Sound	-1 … 1
`cv`	A control voltage: pitch in V/oct or an amount	pitch: 0 = C4, +1 = one octave up
`gate`	On or off: a key held, a step that plays	0 or 1

Pitch in volts per octave means adding 1 to the pitch input of an oscillator plays it an octave higher, and 1/12 a semitone higher. audio.volts("A4") gives 0.75, so a constant can tune an oscillator to any note:

pitch = engine.add("constant", value=audio.volts("E2"))
engine.connect(pitch, "out", osc, "pitch")

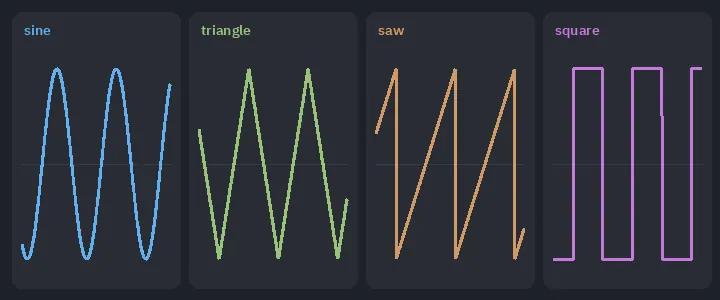

The sine, triangle, saw and square waves of the oscillator scrolling as they play — The four outputs of the oscillator, read live from the engine with `node.scope()`.

Modules, ports and cables

engine.add(kind, id=None, **params) adds a module and returns a Node. Its id ("oscillator1" unless you name it) is how cables and saved patches refer to it. The module catalog lists every kind with its ports and knobs.

keys = engine.add("midi_in", id="keys")
vco = engine.add("oscillator", id="vco", wave="saw")
vcf = engine.add("filter", id="vcf", cutoff=600, resonance=0.6)
env = engine.add("adsr", id="env", attack=0.01, decay=0.3, sustain=0.4, release=0.5)
vca = engine.add("vca", id="vca")

engine.connect(keys, "pitch", vco, "pitch")   # the keyboard plays the oscillator
engine.connect(keys, "gate", env, "gate")     # each key opens the envelope
engine.connect(env, "out", vca, "cv")         # the envelope shapes the volume...
engine.connect(env, "out", vcf, "cutoff")     # ...and opens the filter
engine.chain(vco, vcf, vca, engine.add("audio_out"))

An input takes any number of cables; their signals add up.
engine.chain(a, b, c) plugs each module’s first output into the next one’s first input (both sides of a stereo pair when both modules have left and right).
Loops are allowed. A cable that goes back to an earlier module (feedback through a delay, an oscillator modulating itself) reads the previous block, as in a hardware rack.
engine.disconnect(...) takes the same arguments as connect; engine.cables lists them all; node.remove() takes a module out with its cables.

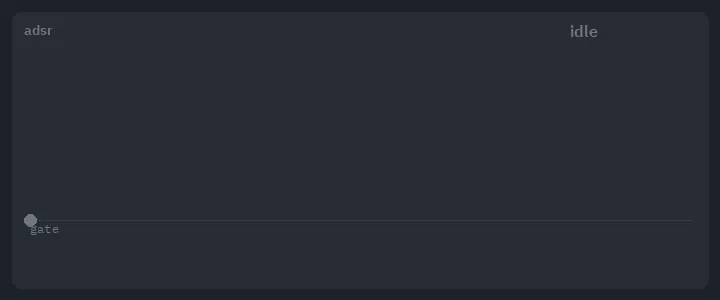

An ADSR envelope drawn while a key is held and released: attack, decay, sustain and release — The `adsr` module while a key is held and let go: attack, decay, sustain, release.

Playing notes

The midi_in module turns notes into pitch, gate and velocity. They come from a MIDI keyboard or from your code:

engine.note_on("C4", velocity=100)    # a MIDI number (60) or a name
engine.note_off("C4")
engine.note("E4", duration=0.5)       # the release happens on a timer
engine.cc(1, 64)                      # the mod wheel
engine.pitch_bend(0.5)                # half the bend range up

engine.open_midi_input()              # the first MIDI keyboard; or open_midi_input("Arturia")
engine.open_midi_input(virtual="Pyzed")  # a port your DAW can play into (Linux and macOS)

audio.midi_inputs() and audio.midi_outputs() list the ports. The midi_out module plays a gate and a pitch on the output opened with engine.open_midi_output(...), so a Pyzed sequencer can drive a hardware synth or a DAW.

Sequencing

A clock sets the tempo; a sequencer steps through up to 16 pitches and gates on each clock tick (or on its own bpm when nothing is plugged into clock):

clock = engine.add("clock", bpm=124, division="1/16", swing=0.1)
seq = engine.add("sequencer", steps=8, pitch_1=0, pitch_2=7, pitch_3=3, pitch_4=12, gate_3=0)
engine.connect(clock, "clock", seq, "clock")
engine.connect(seq, "pitch", vco, "pitch")
engine.connect(seq, "gate", env, "gate")

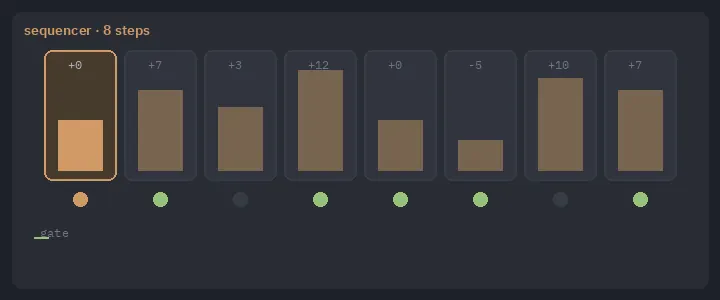

Eight sequencer steps lighting up in turn, with the gate signal they send drawn below — The current step comes from `seq.state[“step”]`; the gate below is `seq.probe(“gate”)`.

Drums are modules too: drum synthesizes a kick, snare, hi-hat, clap or tom on each rising edge of its trigger. The drum machine example builds a whole beat with a bass line ducked by the kick through a compressor’s sidechain.

Samples

The sampler plays a WAV file or a list of samples, once, while its gate is held or in a loop:

smp = engine.add("sampler", mode="one-shot")
smp.load("snare.wav")                       # or smp.load([0.0, 0.3, ...], sample_rate=48000)
engine.connect(seq, "trigger", smp, "gate")
smp.trigger()                               # or play it from code

Watching the sound

Every module records its signal for the interface: read it as often as you like, from any thread.

Call	Returns
`node.scope(n=1024)`	the last `n` samples, oldest first (a waveform view)
`node.spectrum(bins=256, size=2048, log=True)`	`bins` bands in dB (-120 … 0), spread over octaves from 20 Hz
`node.level()`	`(rms, peak)` from 0 to 1 (a VU meter)
`node.probe("out")`	the latest value of an output (a cable can glow with it)
`node.state`	what the module reports: the step of a sequencer, the stage of an envelope…
`engine.scope()`, `engine.spectrum()`, `engine.level()`	the same for what goes to the speakers

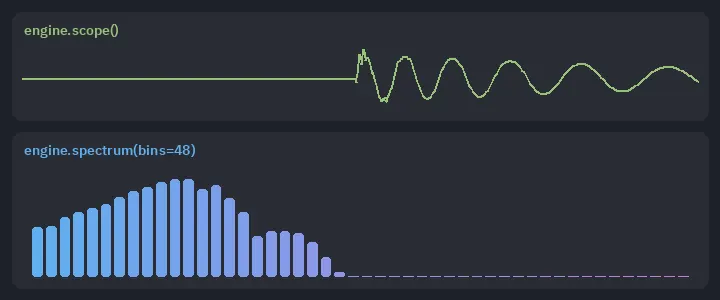

A waveform and a bar spectrum moving with a beat and a bass line — A beat read at 20 fps with `engine.scope()` and `engine.spectrum(bins=48)`.

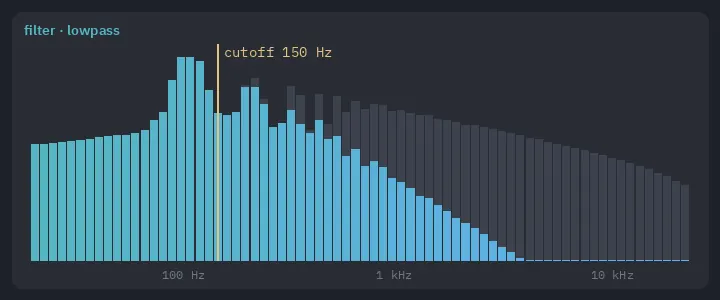

The spectrum of a saw wave before and after a low-pass filter whose cutoff sweeps up and down — `vco.spectrum()` (grey) and `vcf.spectrum()` (blue) while the filter’s cutoff sweeps.

In a pz.App, read them on each frame with pz.frames or pz.every and draw them with the audio components of pz.ui.

Rendering without a sound card

audio.Engine("offline") never opens a device: engine.render(seconds) computes the patch as fast as the processor allows and returns (left, right). It is how the tests and these pictures are made, and how you bounce a patch to a file:

engine = audio.Engine("offline")
...                                  # build the patch
engine.note_on("A3")
engine.render(1.0)                   # one second with the key held
engine.note_off("A3")
engine.render_wav("pad.wav", 3.0)    # three more seconds into a WAV file

audio.write_wav(path, left, right, sample_rate) saves any list of samples. backend="null" runs the patch in real time with no sound, for machines without a sound card.

Saving patches

import json

json.dump(engine.to_dict(), open("patch.json", "w"))
engine.load(json.load(open("patch.json")))
copy = audio.Engine.from_dict(data)

The data holds the modules with their knobs, the cables and the sample files. Anything you put in engine.ui or node.ui (positions in a rack, colors) travels with it untouched.

The catalog

audio.modules() describes every kind of module, the same data as the catalog page: its inputs and outputs (Port with name, label and type), its params and its state. A Param knows its range, unit and curve, which is all an interface needs to draw a knob:

cutoff = audio.module("filter").param("cutoff")
cutoff.to_unit(1000)     # 0.57: where 1 kHz sits on the knob (logarithmic, by octaves)
cutoff.from_unit(0.25)   # 112.5 Hz
cutoff.format(1500)      # "1.50 kHz"

Examples

The examples/audio/ folder has complete scripts, each with --render out.wav to hear them without a device:

engine_synth.py: a subtractive synth with sub oscillator, filter, envelope, LFO, delay and reverb, played by your MIDI keyboard or a melody.
engine_drum_machine.py: drums, an acid bass line and sidechain pumping at 124 BPM.
engine_microphone.py: your microphone through distortion, chorus, delay and reverb, live.
