Knob

In plain words

A knob is the round control of every synthesizer and mixer. Drag it up to turn it right and down to turn it left; hold Shift for fine adjustments; double-click to put it back.

import pyzed as pz
from pyzed import ui


class Filter(pz.App):
    cutoff = 1200.0

    def view(self):
        return ui.audio.Knob(
            value=self.cutoff, min=20, max=20000, curve="log", unit="Hz", caption="Cutoff",
            on_change=lambda e: setattr(self, "cutoff", e.value),
        )


pz.run(Filter)

How it works

• Drag up or down: travel pixels (200 by default) cover the whole range. With Shift held, the same drag moves it ten times less.
• Scroll the mouse wheel over it: 2 % of the range per notch, or one step.
• Double-click to go back to default (or min when there is none).
• change fires on every movement with the new value in event.value.

The knob keeps the value the user sets even if your app does not store it. When your app passes a different value (a preset was loaded, a MIDI controller moved), that one wins.

Looks

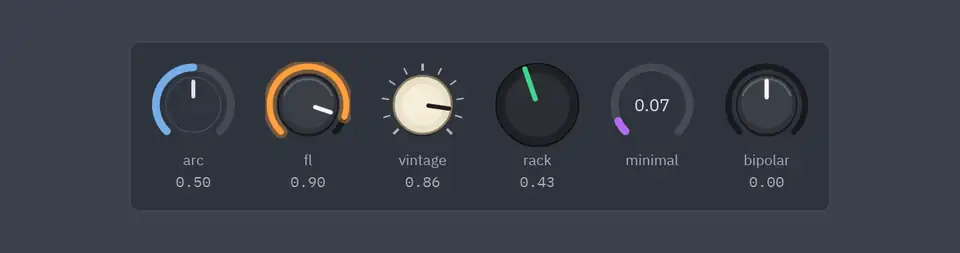

variant picks one of five drawings; all of them are vector shapes drawn on a canvas, so they stay sharp at any diameter.

variant	Looks like
"arc"	A ring that fills with color around a small dial. The default, matches the theme.
"fl"	FL Studio: a shaded dark knob with a glowing ring.
"vintage"	A cream knob with tick marks, like old hardware.
"rack"	A small Eurorack knob with a colored pointer (the rack uses it).
"minimal"	Only the ring, with the value written in the middle.

bipolar=True draws the ring from the top center instead of the left end: right for positive values, left for negative ones. Use it for pan, detune or a filter’s envelope amount.

Ranges, units and choices

• curve="log" turns the knob by ratios instead of steps: the middle of 20 Hz–20 kHz is about 630 Hz, which is how we hear pitch. Use it for frequencies and times.
• unit formats the value: "Hz" (switches to kHz), "ms" (switches to seconds), "dB", "%" (0..1 shown as a percentage) or any text. decimals fixes the decimals.
• step snaps the value (step=1 for whole numbers).
• options=["Sine", "Triangle", "Saw", "Square"] makes a stepped selector: the value is the index of the option and the label shows its name.

ui.audio.Knob(value=self.wave, options=["Sine", "Tri", "Saw", "Square"], caption="Wave",
              variant="fl", on_change=lambda e: engine.set(osc, "wave", e.value))

Properties

Property	Default	What it does
value	0.5	The value shown.
min, max	0, 1	The range.
default	None	Where a double-click takes it (min when None).
step	None	Snaps the value to multiples of step.
curve	"lin"	"log" for frequencies and times.
caption	""	Text under the knob.
unit, decimals	"", None	How the value is written.
options	None	Names of choices: turns it into a stepped selector.
diameter	48	Size in pixels.
variant	"arc"	"arc", "fl", "vintage", "rack" or "minimal".
color	"accent"	A theme token or a hex color.
bipolar	False	Draws the ring from the center.
show_value	True	Writes the value under the caption.
travel	200	Pixels of dragging for the whole range.
disabled	False	Grays it out and ignores the pointer.

Event: on_change (event.value is the new value). In Pyzed Design the knob is in the Audio group of the toolbox.

Tip

Connecting a knob to the audio engine is one line: on_change=lambda e: engine.set(node, "cutoff", e.value). engine.set only hands a number to the audio thread, so calling it on every movement is fine.
