Music visualizer

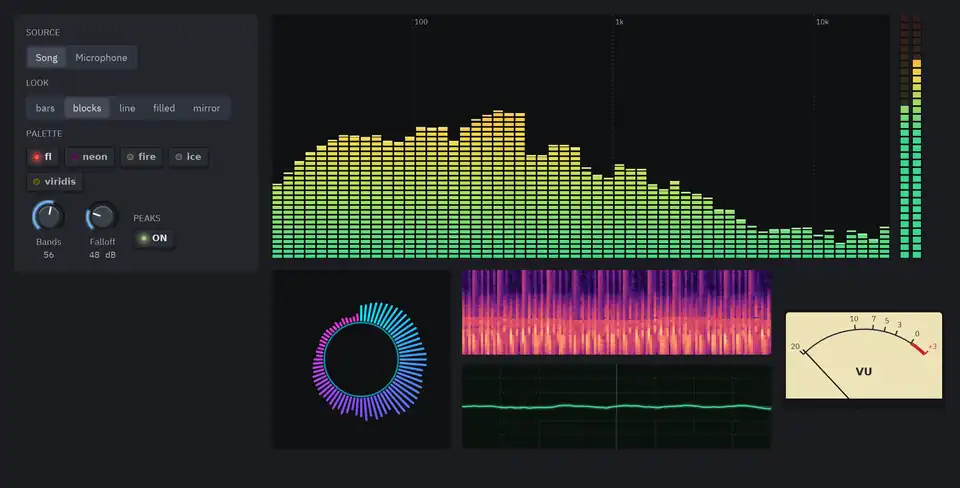

Every analyzer of Pyzed in one window: examples/audio/visualizer.py.

python examples/audio/visualizer.py

It plays a short groove made with the engine (a sequenced bass, kick, snare, hats and chords). Switch the source to Microphone to see your own voice. The panel on the left changes the main spectrum live: its look (variant), its colors (colors), how many bands it has, how fast the bars fall and whether the peaks stay.

How it is built

• demo_song(engine) builds the groove: a clock drives a sequencer for the bass and another one for the snare, and its beat output strikes the kick. Everything goes through a scope module before the speakers, so it can be analyzed.
• Each frame, the view asks that module for its analysis, computed in Rust:

mags = tap.spectrum(512)      # 512 bands, 20 Hz to 24 kHz, in dB
rms, peak = tap.level()
wave = tap.scope(2048)        # the last 2048 samples

• The same mags feed a Spectrum in two looks and a Spectrogram; wave feeds a Scope; the levels feed two VuMeters.

When the source is the microphone, the song’s output is muted so the speakers do not feed back into the microphone.
