5. Asteroids with particles
Rock Storm is a shooter in the spirit of the 1979 classic: a ship that turns and thrusts, drifts with
inertia, and shoots rocks that split into smaller rocks. It is a good place to learn a bit of trigonometry (it
is only cos and sin) and to make the screen come alive with particles.
| Goal | Time | Level | You need |
|---|---|---|---|
| A shooter with inertia, splitting rocks, waves, lives and particle effects | 50 minutes | Intermediate | 1. Your first game; 3. Collisions helps |
What you’ll learn
Section titled “What you’ll learn”- Turn an angle into a direction with
cosandsin; thrust and drag. - Wrap things around the edges of the screen.
- Circle collisions for rocks, bullets and the ship.
- Particles with
game.Particles: an engine trail, muzzle flashes, debris and explosions. - Screen shake, invulnerability after a hit and waves.
uv run --with pyzed-ui python examples/games/asteroids.pypython3 -m venv .venvsource .venv/bin/activatepython -m pip install pyzed-uipython examples/games/asteroids.pypy -m venv .venv.venv\Scripts\Activate.ps1python -m pip install pyzed-uipython examples\games\asteroids.pypython3 examples/games/asteroids.pypy examples\games\asteroids.py-
An angle becomes a direction. The ship stores where it points in degrees.
cosandsinof that angle give a direction of length 1: at 0° it is(1, 0)(right), at -90° it is(0, -1)(up). Thrust adds that direction to the velocity; drag takes away a fraction every second:def fly(self, dt):self.angle += game.axis(("left", "a"), ("right", "d"), held=self.held) * TURN * dtrad = math.radians(self.angle)fx, fy = math.cos(rad), math.sin(rad)if game.is_pressed("up", "w", held=self.held):self.vx += fx * THRUST * dtself.vy += fy * THRUST * dtdamping = max(0.0, 1 - DRAG * dt)self.vx, self.vy = self.vx * damping, self.vy * dampingThe ship keeps drifting after you let go: that inertia is what makes Asteroids feel like space.
-
Wrap around. What leaves through one edge comes back through the other. The modulo operator
%does it in one line; the margin lets big rocks leave the screen completely before they reappear:def wrap(x, y, margin=0):return ((x + margin) % (W + 2 * margin) - margin, (y + margin) % (H + 2 * margin) - margin) -
Rocks with character. A rock is a circle for collisions, but drawn as a jagged polygon: points around a circle at slightly random distances, turned by its own angle every frame:
n = 9 + size * 2self.outline = [(math.cos(i / n * math.tau), math.sin(i / n * math.tau), rnd.uniform(0.75, 1.1))for i in range(n)] -
Circle collisions. A bullet hits a rock when it is closer to the rock’s center than its radius; the ship hits a rock when the distance is less than both radii added:
for b in self.bullets[:]:for rock in self.rocks:if math.hypot(b[0] - rock.x, b[1] - rock.y) < rock.r:self.bullets.remove(b)self.break_rock(rock)breakIterate over a copy (
self.bullets[:]) when you remove items from the list inside the loop. -
Split the rock. A big rock (size 3) becomes two medium ones, a medium becomes two small, a small one is gone. Each piece flies off in a random direction, a little faster than its parent:
def break_rock(self, rock):self.rocks.remove(rock)self.score += POINTS[rock.size]self.sparks.burst(rock.x, rock.y, count=10 + rock.size * 10, color=["#cbd5e1", "#94a3b8", "#fbbf24"],speed=(40, 120 + rock.size * 60), life=(0.3, 0.6 + rock.size * 0.25), size=(1, 3))self.shake.kick(rock.size * 2.5)if rock.size > 1:for _ in range(2):self.rocks.append(Rock(self.random, rock.x, rock.y, rock.size - 1,math.hypot(rock.vx, rock.vy) * 1.3 + self.random.uniform(20, 60))) -
Particles everywhere.
game.Particlesis a list of short-lived dots.burstadds some,update(dt)moves them and removes the dead ones,shapes()draws them fading out. The engine trail is a small burst every frame while thrusting, aimed backwards:self.trail = game.Particles(drag=3.0, limit=400, seed=seed)...self.trail.burst(self.x - fx * SHIP_R, self.y - fy * SHIP_R, count=3, angle=self.angle + 180, spread=30,speed=(80, 180), life=(0.15, 0.4), size=(1.5, 3), color=["#fbbf24", "#f97316", "#fde68a"])

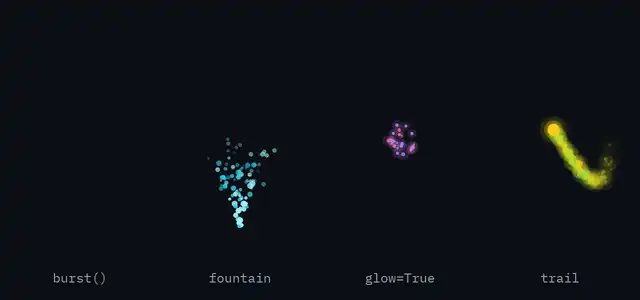

One class, four effects: burst(), a fountain (angle=-90, a narrow spread and gravity), glow=True, and a trail emitted every frame. angleandspreadaim a burst (angle=-90, spread=40is a fountain),gravityanddragshape the fall,lifeandsizeare ranges picked at random per particle, andcolorcan be a list to mix. -
Getting hit. A crash costs a life, shakes the screen hard and scatters the ship as particles. Then the ship comes back in the middle and blinks for two seconds (
safe), when rocks can’t hurt it.
Try this
Section titled “Try this”- Add a UFO that crosses the screen now and then and shoots at the ship.
- Add a hyperspace key that moves the ship to a random place (with a burst where it left).
- Give rocks a color per size and make small ones flash white for a frame when hit.
Full code
Section titled “Full code”"""Rock Storm: an Asteroids-style shooter with thrust, wrap-around space and lots of particles.
python examples/games/asteroids.py
Left/Right (or A/D) turn, Up (or W) thrusts, hold Space to fire, P pauses, Enter playsagain. Big rocks split in two when hit, small ones burst into sparks. Shows:
- **Rotation and thrust**: the ship has an angle; thrust adds ``cos``/``sin`` of it to the velocity, and a little drag slows it down. Everything wraps around the screen edges.- **Circle collisions**: two circles touch when the distance between their centers is smaller than the sum of their radii.- **Particles** everywhere: an engine trail emitted every frame, explosions, debris and sparks, with ``game.Particles`` (``burst``, ``update``, ``shapes``).- **Screen shake**, invulnerability after a hit, waves that get harder.
Tutorial: https://albakore.github.io/pyzed/games/asteroids/"""
import mathimport random
import pyzed as pzfrom pyzed import draw, game, ui
W, H = 720, 480TURN = 260 # degrees per secondTHRUST = 380 # px/s² while thrustingDRAG = 0.6 # fraction of the speed lost per secondMAX_SPEED = 420BULLET_SPEED = 620BULLET_LIFE = 0.9FIRE_DELAY = 0.18SHIP_R = 13SIZES = {3: 46, 2: 26, 1: 14} # rock size -> radiusPOINTS = {3: 20, 2: 50, 1: 100}
def wrap(x, y, margin=0): """The point moved back onto the screen when it leaves through one edge.""" return ((x + margin) % (W + 2 * margin) - margin, (y + margin) % (H + 2 * margin) - margin)
class Rock: def __init__(self, rnd, x, y, size, speed): self.x, self.y, self.size = x, y, size a = rnd.uniform(0, math.tau) self.vx, self.vy = math.cos(a) * speed, math.sin(a) * speed self.angle, self.spin = rnd.uniform(0, 360), rnd.uniform(-60, 60) # A jagged outline: points around a circle at slightly random distances. n = 9 + size * 2 self.outline = [(math.cos(i / n * math.tau), math.sin(i / n * math.tau), rnd.uniform(0.75, 1.1)) for i in range(n)]
@property def r(self): return SIZES[self.size]
def points(self): rad = math.radians(self.angle) c, s = math.cos(rad), math.sin(rad) return [(self.x + (ux * c - uy * s) * k * self.r, self.y + (ux * s + uy * c) * k * self.r) for ux, uy, k in self.outline]
class Asteroids(pz.App): title = "Rock Storm" size = (W + 32, H + 92) theme = "One Dark"
def __init__(self, seed=None): self.random = random.Random(seed) self.held = None # the keys held down; None reads the keyboard self.sparks = game.Particles(drag=1.2, seed=seed) # explosions and debris self.trail = game.Particles(drag=3.0, limit=400, seed=seed) # the engine's exhaust self.shake = game.Shake(seed=seed) self.stars = [(self.random.uniform(0, W), self.random.uniform(0, H), self.random.uniform(0.4, 1.4)) for _ in range(90)] self.best = 0 self.new_game()
# -- state ------------------------------------------------------------------------------ def new_game(self): self.score, self.lives, self.wave = 0, 3, 0 self.over = self.paused = False self.clock = 0.0 self.reset_ship() self.next_wave()
def reset_ship(self): self.x, self.y, self.vx, self.vy = W / 2, H / 2, 0.0, 0.0 self.angle = -90.0 # pointing up self.bullets = [] # [x, y, vx, vy, age] self.cooldown = 0.0 self.safe = 2.0 # seconds of invulnerability
def next_wave(self): self.wave += 1 self.rocks = [] for _ in range(2 + self.wave): # Spawn on the edges, never on top of the ship. x, y = (self.random.uniform(0, W), -40) if self.random.random() < 0.5 else (-40, self.random.uniform(0, H)) self.rocks.append(Rock(self.random, x, y, 3, self.random.uniform(30, 60) + self.wave * 8))
# -- input ------------------------------------------------------------------------------ def on_key(self, combo): if combo == "p" and not self.over: self.paused = not self.paused elif combo == "enter" and self.over: self.new_game()
# -- update ----------------------------------------------------------------------------- def subscriptions(self): return [] if self.paused else [pz.frames(self.tick)]
def tick(self, dt): dt = min(dt, 1 / 30) self.clock += dt self.sparks.update(dt) self.trail.update(dt) self.shake.update(dt) for rock in self.rocks: rock.x, rock.y = wrap(rock.x + rock.vx * dt, rock.y + rock.vy * dt, rock.r) rock.angle += rock.spin * dt if self.over: return self.safe = max(0.0, self.safe - dt) self.fly(dt) self.move_bullets(dt) self.collide() if not self.rocks: self.next_wave()
def fly(self, dt): self.angle += game.axis(("left", "a"), ("right", "d"), held=self.held) * TURN * dt rad = math.radians(self.angle) fx, fy = math.cos(rad), math.sin(rad) if game.is_pressed("up", "w", held=self.held): self.vx += fx * THRUST * dt self.vy += fy * THRUST * dt # Exhaust: a few particles every frame, shot backwards from the tail. self.trail.burst(self.x - fx * SHIP_R, self.y - fy * SHIP_R, count=3, angle=self.angle + 180, spread=30, speed=(80, 180), life=(0.15, 0.4), size=(1.5, 3), color=["#fbbf24", "#f97316", "#fde68a"]) damping = max(0.0, 1 - DRAG * dt) self.vx, self.vy = self.vx * damping, self.vy * damping speed = math.hypot(self.vx, self.vy) if speed > MAX_SPEED: self.vx, self.vy = self.vx / speed * MAX_SPEED, self.vy / speed * MAX_SPEED self.x, self.y = wrap(self.x + self.vx * dt, self.y + self.vy * dt)
self.cooldown -= dt if game.is_pressed("space", held=self.held) and self.cooldown <= 0: self.fire()
def fire(self): self.cooldown = FIRE_DELAY rad = math.radians(self.angle) fx, fy = math.cos(rad), math.sin(rad) self.bullets.append([self.x + fx * SHIP_R, self.y + fy * SHIP_R, self.vx + fx * BULLET_SPEED, self.vy + fy * BULLET_SPEED, 0.0]) self.sparks.burst(self.x + fx * SHIP_R, self.y + fy * SHIP_R, count=4, angle=self.angle, spread=40, speed=(60, 140), life=(0.05, 0.15), color="#a5f3fc")
def move_bullets(self, dt): for b in self.bullets: b[0], b[1] = wrap(b[0] + b[2] * dt, b[1] + b[3] * dt) b[4] += dt self.bullets = [b for b in self.bullets if b[4] < BULLET_LIFE]
def collide(self): for b in self.bullets[:]: for rock in self.rocks: if math.hypot(b[0] - rock.x, b[1] - rock.y) < rock.r: # a point inside a circle self.bullets.remove(b) self.break_rock(rock) break if self.safe <= 0: for rock in self.rocks: if math.hypot(self.x - rock.x, self.y - rock.y) < rock.r + SHIP_R * 0.8: # circle vs circle self.crash() break
def break_rock(self, rock): self.rocks.remove(rock) self.score += POINTS[rock.size] self.sparks.burst(rock.x, rock.y, count=10 + rock.size * 10, color=["#cbd5e1", "#94a3b8", "#fbbf24"], speed=(40, 120 + rock.size * 60), life=(0.3, 0.6 + rock.size * 0.25), size=(1, 3)) self.shake.kick(rock.size * 2.5) if rock.size > 1: for _ in range(2): child = Rock(self.random, rock.x, rock.y, rock.size - 1, math.hypot(rock.vx, rock.vy) * 1.3 + self.random.uniform(20, 60)) self.rocks.append(child)
def crash(self): self.lives -= 1 self.shake.kick(16) self.sparks.burst(self.x, self.y, count=70, color=["#22d3ee", "#a5f3fc", "#f472b6", "#ffffff"], speed=(60, 340), life=(0.4, 1.2), size=(1.5, 4)) if self.lives <= 0: self.over = True self.best = max(self.best, self.score) else: self.reset_ship()
# -- draw ------------------------------------------------------------------------------- def board(self): shapes = [draw.background("#05060d"), *self.shake.shapes()] for x, y, r in self.stars: shapes.append(draw.circle(x, y, r, fill=game.rgba("#e2e8f0", 0.25 + r * 0.3))) shapes += self.trail.shapes(glow=True) for rock in self.rocks: shapes.append(draw.polygon(rock.points(), fill="#1e2433", stroke="#94a3b8", width=2)) for x, y, vx, vy, age in self.bullets: speed = math.hypot(vx, vy) or 1 tx, ty = x - vx / speed * 10, y - vy / speed * 10 shapes.append(draw.line(tx, ty, x, y, stroke=game.rgba("#22d3ee", 0.35), width=6, cap="round")) shapes.append(draw.line(tx, ty, x, y, stroke="#e0fbff", width=2, cap="round")) if not self.over and (self.safe <= 0 or int(self.clock * 12) % 2): rad = math.radians(self.angle) pts = [] for a, d in ((0, 1.4), (140, 1.0), (180, 0.45), (220, 1.0)): # nose, wing, tail notch, wing pa = rad + math.radians(a) pts.append((self.x + math.cos(pa) * SHIP_R * d, self.y + math.sin(pa) * SHIP_R * d)) shapes += game.glow(self.x, self.y, SHIP_R, "#22d3ee", layers=3, strength=0.18, core=False) shapes.append(draw.polygon(pts, fill="#0b1220", stroke="#22d3ee", width=2.5)) shapes += self.sparks.shapes(glow=True) return pz.canvas(shapes, width=W, height=H)
def overlay(self): if self.over: title, lines = "Game over", [f"Score {self.score:,} · wave {self.wave}", "Enter plays again"] elif self.paused: title, lines = "Paused", ["P continues"] else: return None card = pz.container(pz.column([ui.heading(title, level=2), *[ui.muted(t) for t in lines]], spacing=8, align="center"), padding=(20, 32)).style(glass=True, radius=14) return pz.container(card, width="fill", height="fill", align_x="center", align_y="center")
def view(self): t = self.resolved_theme() ships = pz.row([pz.icon("rocket", size=15, color="#22d3ee" if i < self.lives else t.border) for i in range(3)], spacing=3) hud = pz.row([ ui.label("Rock Storm", weight="semibold"), pz.hspace(), ui.badge(f"Wave {self.wave}", icon="orbit", tint="accent"), ui.badge(f"{self.score:,}", icon="star", tint="warning"), ui.badge(f"Best {self.best:,}", icon="trophy", tint="text_muted"), ships, ], spacing=8, align="center") play = pz.stack([self.board(), self.overlay()], width=W, height=H) return pz.container(pz.column([hud, pz.container(play, radius=10, clip=True), ui.muted("←/→ turn · ↑ thrust · hold Space to fire · P pauses", size="sm")], spacing=10), padding=16, width="fill", height="fill", bg=t.background)
if __name__ == "__main__": pz.run(Asteroids)6. A puzzle game: 2048Rules as plain functions, tweened tiles, swipes and a widget overlay.
